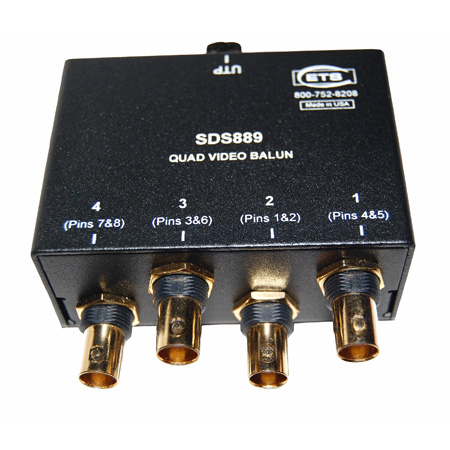

ETS SDS889 Quad Video 4 FBNC to Ethercon RJ45 Jack All Pins

ITEM #: ETS-SDS889 MFG #: ETS-SDS889

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ETS-SDS889

ETS-SDS889 - Overview

The ETS SDS889, a UTP Video Distribution Hub, designed for Broadway theaters and other similar theaters, has four baseband video signals transmitting through the distribution amplifier creating 32 outputs. The ETS SDS889 Hub can be used for monitoring in a variety of installations. Note: Unshielded Twisted Pair, Category5 or better cable should be used.

The SDS889 Distribution Hub balances the input signal, distributes it on the UTP cable, and converts the signal back at each display. NTSC, PAL, SECAM, or CCTV signals are converted to and from the UTP cable using the ETS SDS888 Video + Power and SDS889 Quad Video Balun. For signal stability, EtherCon connectors are recommended for these products.

Intended for theatrical applications where those backstage can monitor on-stage activity, the SDS889 Video Distribution Hub supports color video over a total run length in excess of 330 meters (1100ft.) inclusive of all cable segments, on Category 5 or better cable. Black and white signals are typically supported up to 750 meters (2500ft.).


Please Note: This is the SDS889 is Quad Video, (4) FBNC to Ethercon RJ45 jack, all pairs ONLY! See diagram for details.

  • Features:

    • Sends 4 video camera signals to up to 32 monitors
    • Active hub, passive baluns mean a 90% passive system for superior reliability
    • All connectors are high-quality Neutrik brand, including new power connectors
    • EtherCon connectors are used for stability
    • Easily rack-mountable
    • Expandable for any size production
    • Easy portability
    • Major cable runs use Cat5 cable, reducing weight and cost
    • Rugged metal enclosure for road travel
    • Made in USA, 100% tested

  • Specifications:

    • Support Bandwidth: Flat to 60 MHz
    • Connectors: FBNC
    • Crosstalk: >50dB
    • Pinouts: Video 1: Pin 5&4; Video 2: Pin 1&2; Video 3: Pin 3&6; Video 4: Pin 7&8
    • Power Input: 120Vac, 60Hz
    • Media Category: 5e or better UTP cable
    • Distance: Up to 1100 feet
    • Dimensions: 3.35" x 5.04" x 1.73" (metal case)
    • Net Weight: 1 lb
