ETS SDS906 InstaMusician - AV Panel InstaMuscian Panel 24 MXLR and 2 FBNC to 8 Ethercon RJ45 Jacks - 2 RU
  • ETS SDS906 InstaMusician - AV Panel InstaMuscian Panel 24 MXLR and 2 FBNC to 8 Ethercon RJ45 Jacks - 2 RU
  • ETS SDS906 InstaMusician - AV Panel InstaMuscian Panel 24 MXLR and 2 FBNC to 8 Ethercon RJ45 Jacks - 2 RU

Questions? Ask a Markertek Expert:
800-522-2025 Email

ETS SDS906 InstaMusician - AV Panel InstaMuscian Panel 24 MXLR and 2 FBNC to 8 Ethercon RJ45 Jacks - 2 RU

Item #: ETS-SDS906   •   MFG #: SDS906




Our Price:$2,282.75

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The ETS InstaMusician™ Panel SDS906 enables both audio and composite video signals to be sent over a single Cat5 or better cable instead of costly coax and microphone cables. The InstaMusician Panel (SDS906) is a 2-rack unit high panel
    featuring (24) male XLRs for audio, (2) female BNCs for Video In and Video Out, (2) powerCon connectors on the back and (8) etherCon RJ45 jacks on the front.

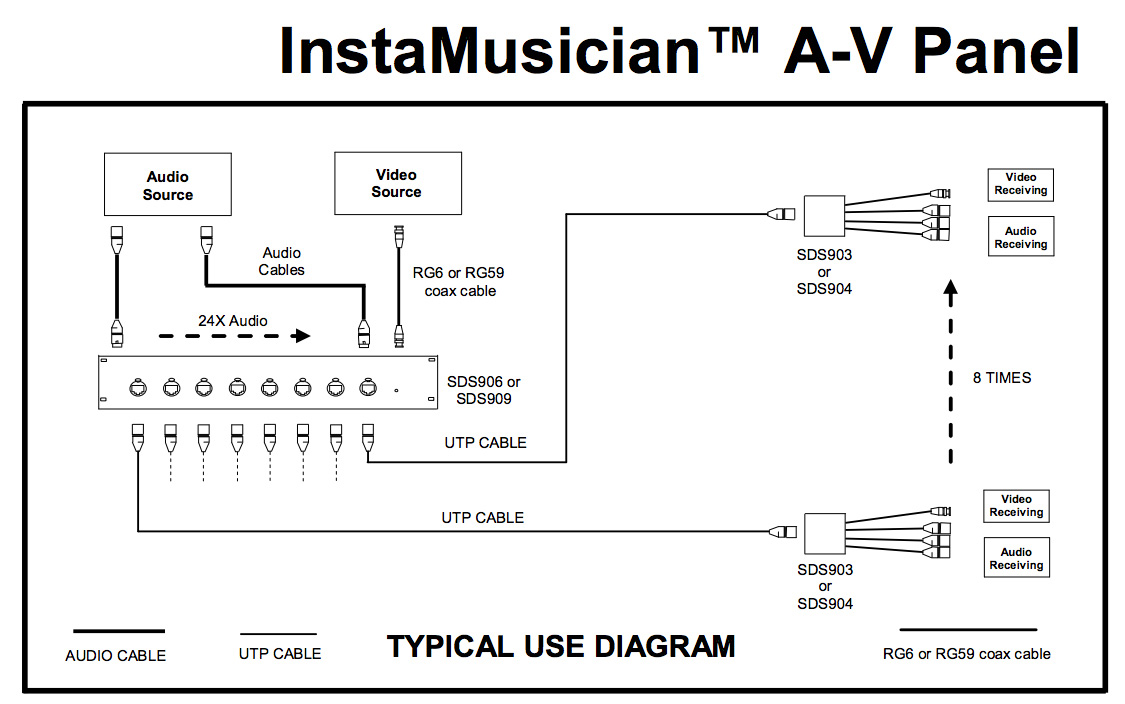

    ETS designed this panel for theater orchestras simultaneous listening and viewing; hence no more missed cues. The use of these panels in this application is highly cost effective, easily, neatly and quickly installed. In addition, the UTP cable replaces more costly and heavier cables. Installation and testing are a snap.


    • Features

      • Transmits both audio and video over UTP cable.
      • Reduced weight and cost.
      • Superior signal balances, reduces crosstalk, ingress and ghosting.
      • Utilize existing telecom wiring
      • LED display for power on/off.
      • All connectors are high quality Neutrik brand.
      • Meets FCC Class A standards
      • Rugged metal enclosure, 2 RU high, easy rack -mounted.
      • Made in USA
      • 100% tested

    • Specifications

      • Video
      • Support: NTSC, PAL, SECAM, or CCTV
      • Video In: Unbalanced signal, 75 ohm FBNC
      • Video Out:(8) balanced signal, etherCon RJ45 jack, pins 7&8
      • Power Source: 120Vac, 60Hz (IN) Blue Power Conn 120Vac, 60Hz (OUT) Gray Power Conn
      • Media: Category 5e or better UTP cable is recommended
      • Dimensions: 2RU x 136mm deep
      • Weight: 0.83Kg

        Audio
      • Crosstalk @ 20KHz 109dB between Ch 1 and Ch 2, 103dB between Ch 1 and Ch 3, 106dB between Ch 2 and Ch 3
      • Audio In: XLR connector
      • Audio Out: etherCon RJ45 jack Channel x - 1, pins 5&4Channel x - 2, pins 1&2, Channel x - 3, pins 3&6
