    F-RF-RX-MN-2 - Overview

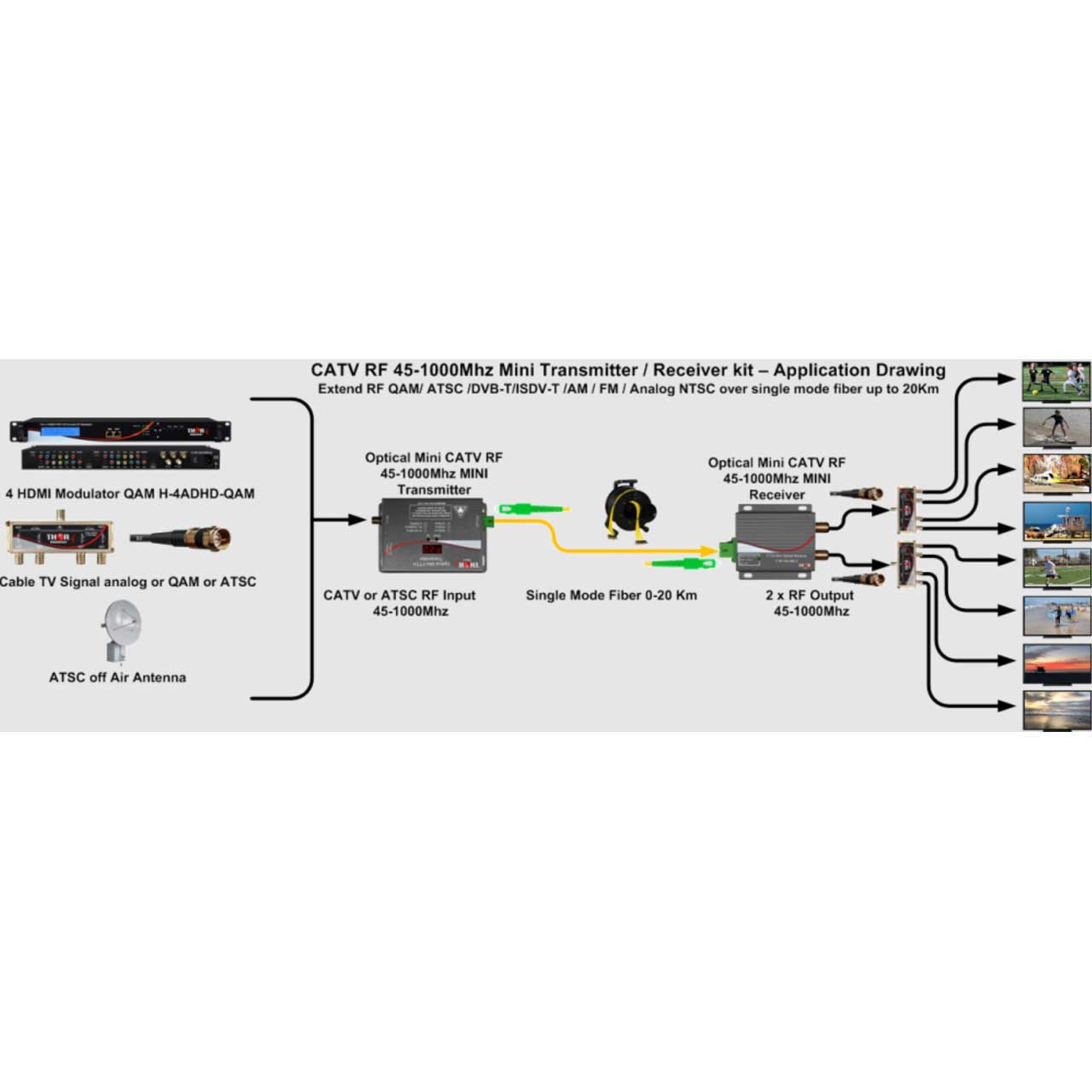

    The Thor Fiber Mini FTTH optical receiver F-RF-RFMN-2 is specifically designed for FTTH networks. These ultra compact Fiber-To-The-Home optical receivers were designed and engineered to ensure compatibility for any type of FTTH network structure in mind. It has small compact housing, mini-internal circuit structure that still remains a high performance, low cost receiver that is economical for any project. It can be used for any application of HFC network fiber to the home (FTTH) because of it's form factor and output power. These units have a wide range for receiving optical power, high output level and low power consumption. They are the ideal pieces for any optical fiber network which can provide a highly reliable, digital video frequency and data bi-directional transmission for the HFC network. It could be use to send CATV RF point to point or point to multipoint.

    IMPORTANT NOTE*** (it is very important to interface the unit with SC/APC - Angle Polished Connector to avoid any light reflections.

    If your fiber is terminated with the SC, ST, FC /PC flat connector, you need to use an optical jumper from PC type to SC/APC for proper conversion.

    • Features:

      • Designed for FTTH (Fiber To The Home) Networks
      • Excellent linearity and flatness
      • Converts Optical siganl to electrical RF 45-1000Mhz
      • Analog NTSC/PAL, Digital QAM, ATSC, DVB-T ,
      • 20dBmV RF ouput power at Optical Input: -0 dBm

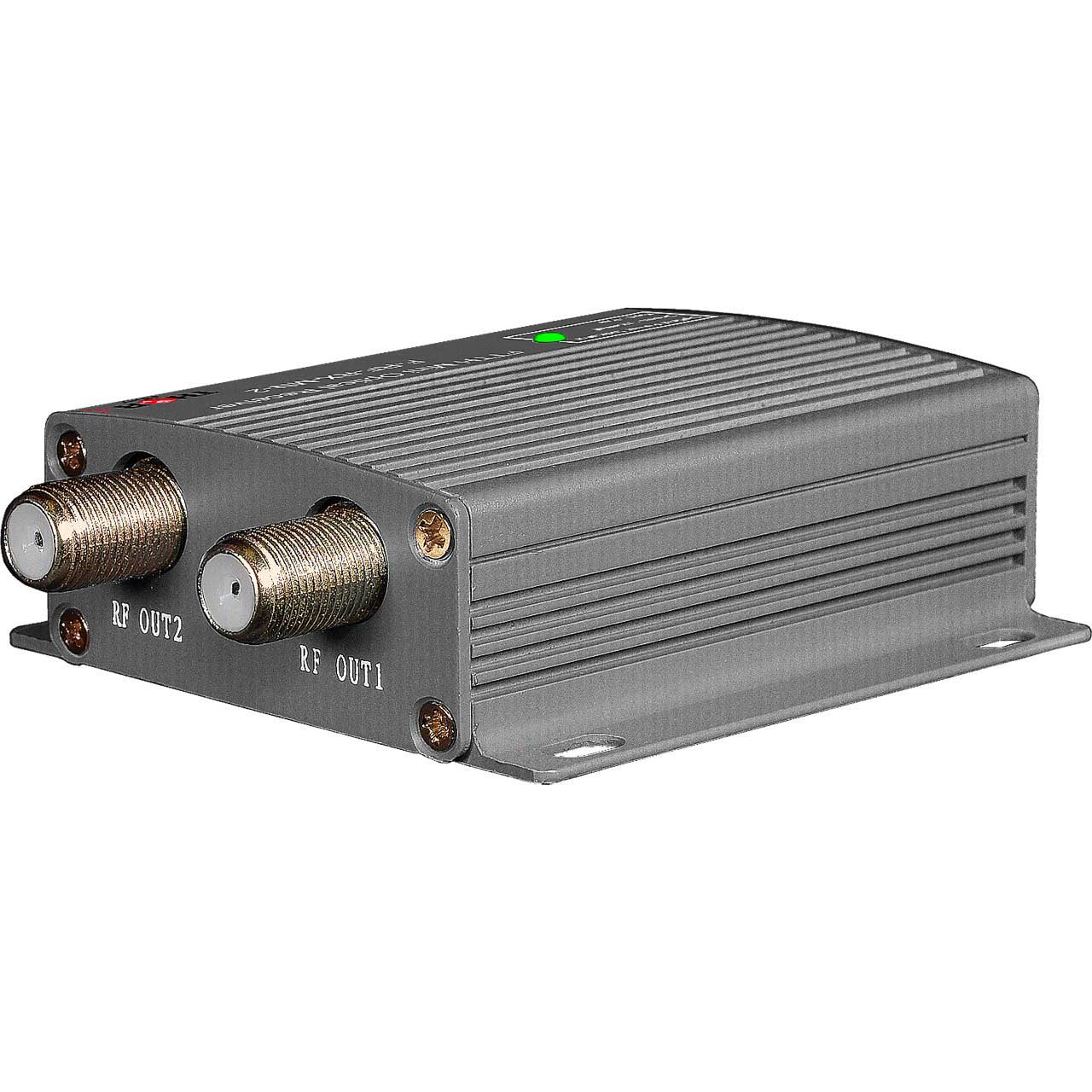

      • Dual Coaxial ouput for easy deplyment for multiple devices
      • Wide range of optical input power
      • Single-mode fiber
      • Ultra low noise technology
      • Smaller size and easy to install
      • Red-LED for power indication

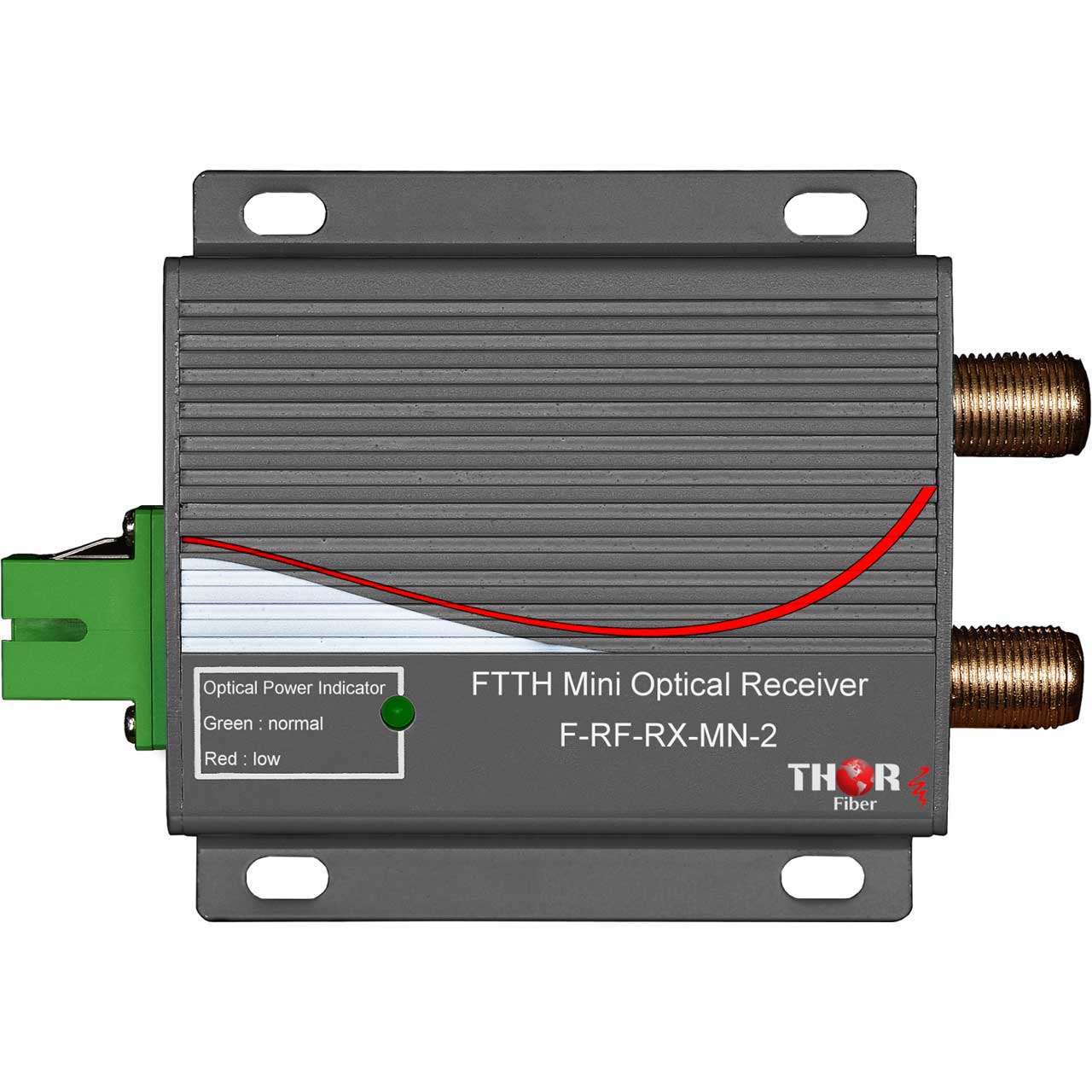

      • Color-LED for optical power indication
      • Built-in filter
    • Specifications:

      • Light Wavelength: 1100 ~1600nm
      • Operating Wavelength: 1550 nm ± 20nm ,built-in for filtering 1490 nm signal and remain 1550 nm signal to photo-diode
      • Optical Input Power Range: 0dBm to ~-15dBm (digital) & 0dBm to ~-10dBm (analog)
      • Frequency Range: 45MHz-1GHz
      • Output Level:
        Output range: 65-75dBµV (Optical Input: -6 dBm)
        Output range: 70-80dBµV (Optical Input: -2 dBm))
      • Flatness: ±1dB
      • Slope: 5dB ± 2dB
      • Return Loss: 16dB
      • Noise Figure: 47.5dB
      • CTB: ≥65dB
      • CSO: ≥65dB
      • MER: 38
      • Power Consumption: ≥ 0.6W
      • Test Conditions: 60 CH (PAL-D), Pin -6dBm, 1 EDFA with noise figure 5dB, 25Km, Composite OMI 18.5%
      • Output Impedance: 75Ω
      • Output Port Number: 1
      • RF Connector: F (female)
      • Responsibility: ≥ 0.9 A/W @ 1550nm
      • Optical Return Loss: ≥55 dB
      • LED Indicator
        Alarm LED: Green on: receive power in range (about -6 to 0 dBm) Red: low (<-8dBm) or lost signal
        Power LED: Red = Power on
      • Power Adapter:
        Input Voltage: 90-250V [email protected]
        Output Voltage uncertainty ≤ 3% without load
        Output Voltage: Continous current ≥ 90% nominal current;
        ±5% nominal DC Voltage; Ripple Voltage (Vpp) ≤150mV
        Voltage surge arrester equipment integrated.
      • Housing Material: Stainless Metal with wall-mount Flange
      • Operating Temperature: -4° to 131°F (-20° to 55°C)
      • Dimensions (WxDxH): 1.42 x 3.01 x 0.90" (36 x 76.5 x 23mm)
    • Item Includes:

      • 1x F-RF-RX-MN-2 Receiver
