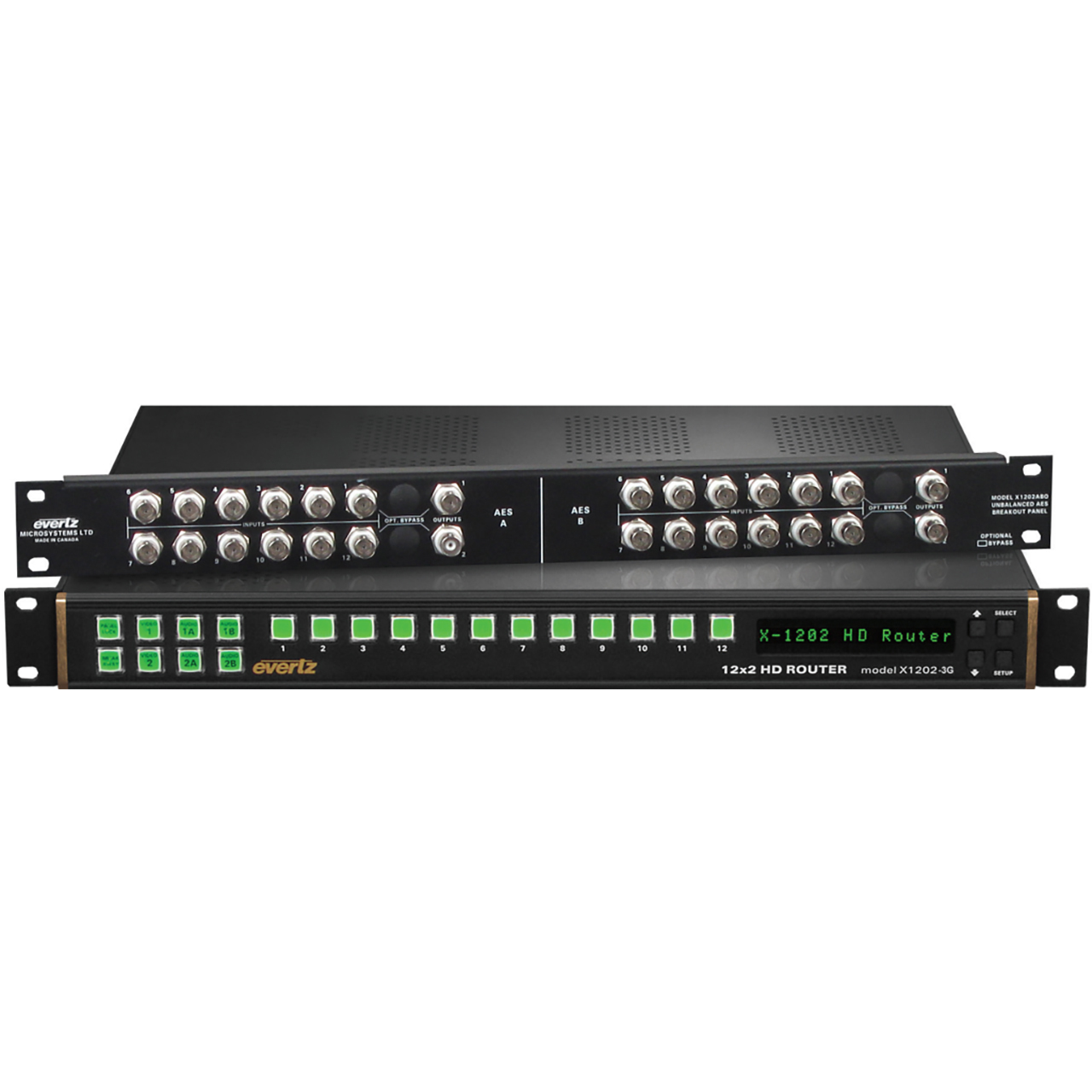

The Evertz X-1202, supporting 3G/HD/SD SDI signals, is a twelve input routing switcher. The X-1202 routers are used for 3GB/s, 1.5GB/s, 270MB/s, 360MB/s, 540MB/s, and DVB-ASI serial digital signals. This router features the ability for redundancy protection with a bypass relay and optional dual power supplies (sold separately). The router electronics are housed in a 1RU rack mount frame and is controlled from the built-in front panel controls. Each model can also be purchased with an optional rack mount remote control panel that replaces the built-in control panel, or can be used as a second control panel. All units can also be controlled by Quartz over Ethernet, contact closures on the GPI control port, or through the RS-232 or RS-422 serial remote control port using industry standard switcher protocols.
Embedded SoftSwitch (HES)
Routers equipped with Embedded SoftSwitch have all the features of the SoftSwitch versions as well as the following additional features. The embedded audio on the 2x video busses uses Evertz patented SoftSwitch technology to eliminate audible pops when switches are performed (for SD, HD, or 3G video). Embedded SoftSwitch is performed on all four audio groups.
