Thor Fiber F-8SDI-B-3G-TxRx-RM Rack-Mount 8-Ch Bi-Directional SD/HD/3G-SDI Over Fiber Tx/Rx Kit - ST/PC -12 Mile Range

ITEM #: F-8SDIB3GTXRXRM MFG #: F-8SDI-B-3G-TXRX-RM

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$17,994.00

Our Price:

$14,995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


F-8SDI-B-3G-TXRX-RM - Overview

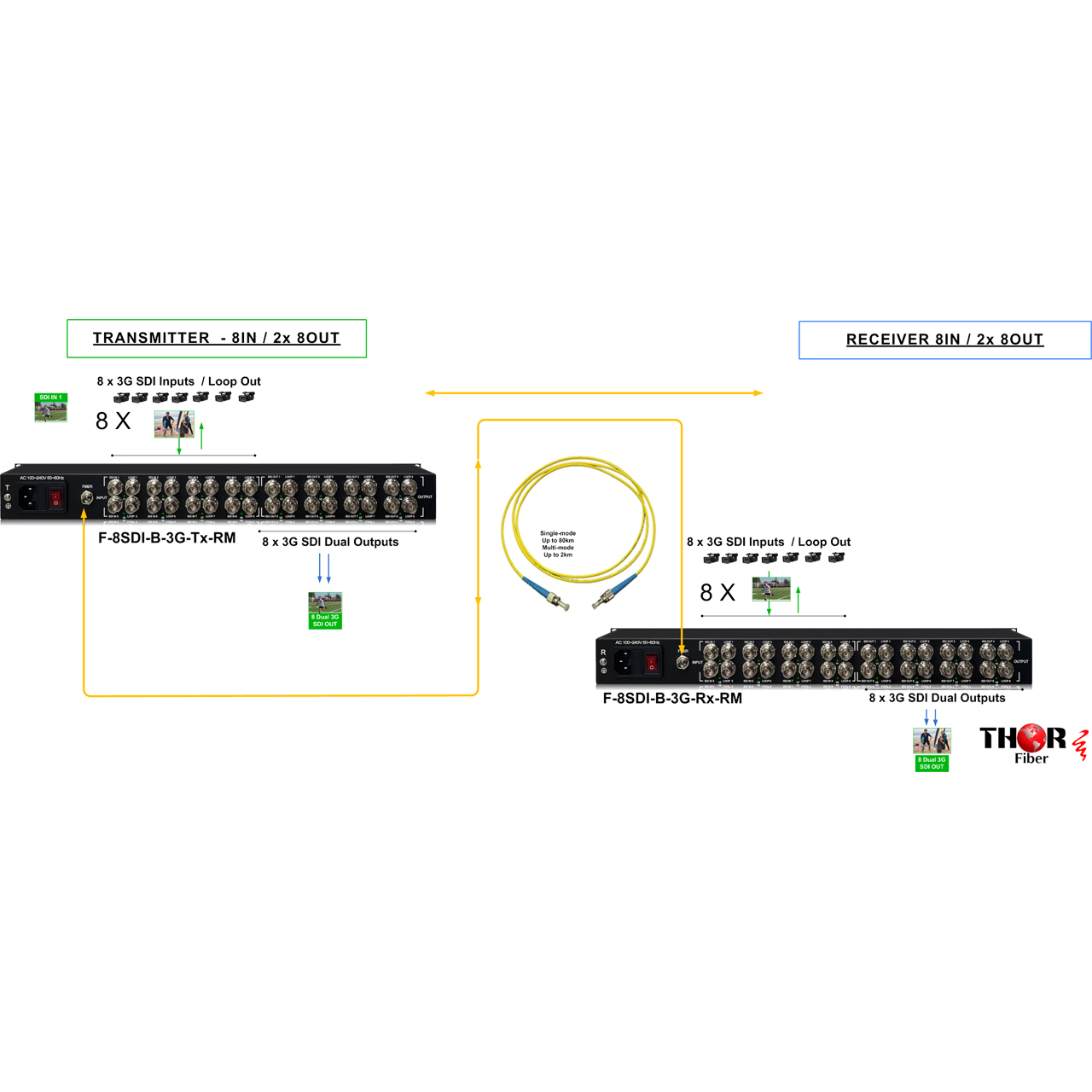

The Thor Fiber F-8SDI-B-3G-TX/RX 8-channel CWDM (Coarse Wavelength Division Multiplexing) 3G-SDI fiber optic transmitter and receiver system is a powerful solution for long-distance video signal transmission. This setup allows for the simultaneous transmission of 8 bi-directional channels of video signals over a single optical fiber cable, supporting SD, HD, and 3G-SDI formats with loop-out outputs for enhanced flexibility.

8 Bidirectional Channel Capability
This system is equipped to handle up to 8 bdirectional video channels, making it ideal for applications where multiple video sources or feeds need to be transmitted.

CWDM Technology
Coarse Wavelength Division Multiplexing technology is employed to efficiently combine and transmit these channels over a single fiber. Each channel is assigned a specific wavelength, allowing for the simultaneous transmission of multiple signals.

3G SDI Compatibility
It supports 3G SDI up to1080p/60, which is a high-quality digital video standard commonly used in professional broadcasting and video production.

Singlemode Fiber Optic Transmission
The use of optical fiber ensures high bandwidth and reliability, making it suitable for long-distance transmission without signal degradation.

Transmitter and Receiver

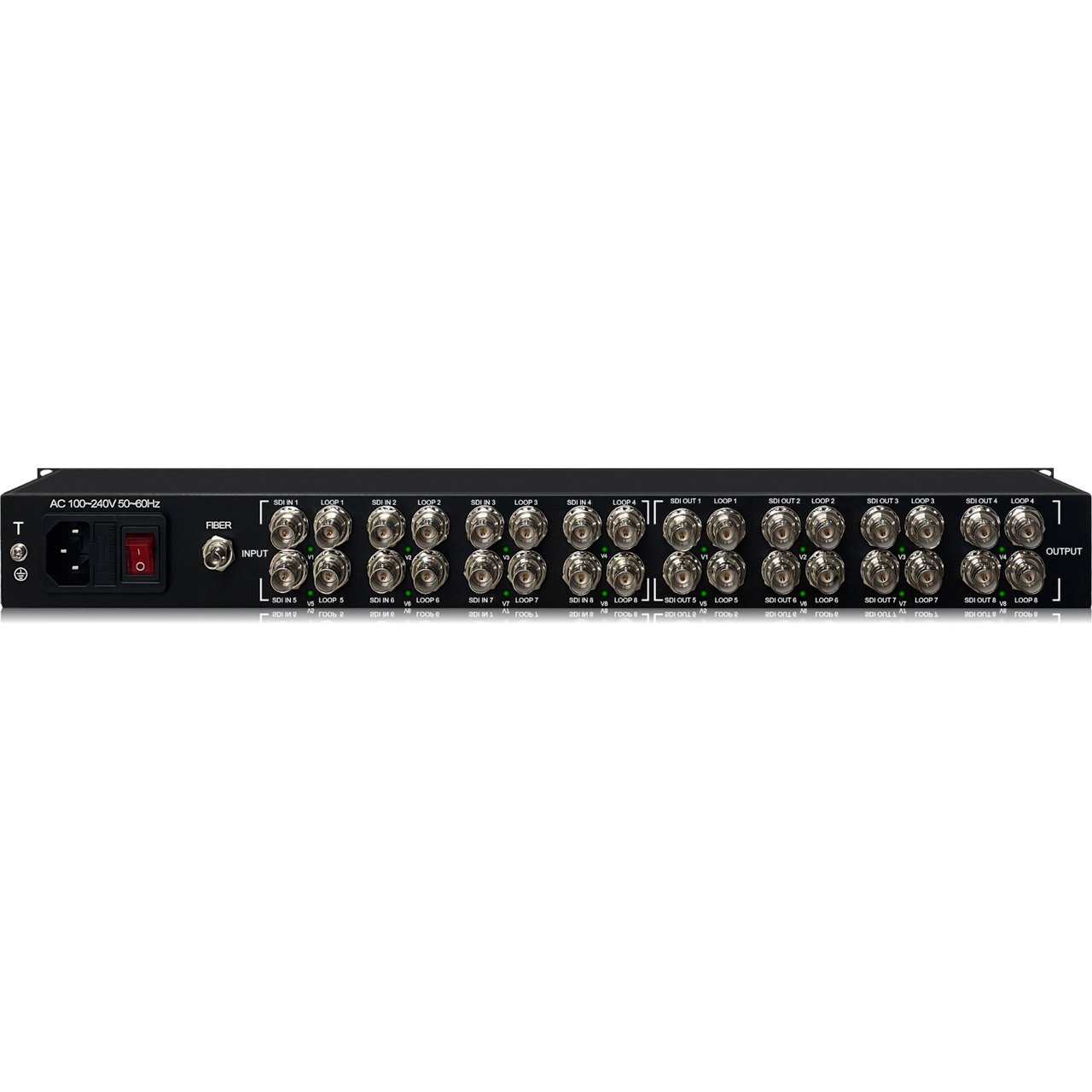

The system includes both a 19" rack mountable Transmitter and a receiver, ensuring a complete solution for sending and receiving video signals.

  • Features:

    • 8 Bidirectional 3G SDI signals via CWDM optical multiplexing technology
    • Compliant with SMPTE ST 425-3, ST 425-5, 259M-2006, 292-2006, 424M-2006
    • Supports transmission of SMPTE 305M-2005, 310M-2004, 344M-2000, and DVB-ASI
    • Up to 8 Bidirectional 3G SDI, 480i, 720p, 1080i and 1080p/60
    • Supports up to 4x 4K/UHD at 60Hz (using 4x 3G SDI lines) and up to 8 x 4K/UHD at 30Hz (using 2x 3G SDI lines)
    • Standard ST/PC fiber connector
    • The signal is equalized and re-clocked prior to fiber optic transmission
    • The receiver features four re-clocked SDI outputs
    • Includes pathological patterns over the entire link budget and operating temperature range
    • Single-Mode fiber only
    • 3G/HD/SD-SDI inputs with or without embedded audio and data
    • 16 channels of embedded audio per SDI signal
    • 4K/UHD resolutions up to 60 fps
    • Internal Universal Power supply - 110VAC to 240VAC

  • Specifications:

      Resolutions
    • Standard Definition (SD SDI):
      - 720x480 pixels at 30fps (480p)
      - 720x576 pixels at 25fps (576p)
    • High Definition (HD SDI):
      - 1280x720 pixels at 30fps (720p)
      - 1280x720 pixels at 60fps (720p)
      - 1920x1080 pixels at 30fps (1080p or Full HD)
    • 3G SDI: 1920x1080 pixels at 60fps (1080p or Full HD)
    • 4K SDI:
      - 2048x1080 pixels at 24fps (2K)
      - 2048x1080 pixels at 48fps (2K)
      - 2048x1080 pixels at 60fps (2K)
      - 3840x2160 pixels at 30fps (4K UHD) - (2x 3G SDI)
      - 3840x2160 pixels at 60fps (4K UHD) - (4x 3GSDI)

      SD HD 3G 4K/UHD
    • Supported Standards: SMPTE ST 425-3, ST 425-5, 259M, 292, 297-2006, 424M-2006, 305M, 310M, 344M, DVB-ASI
    • Optical Characteristics:
      - 1310 nm CWDM Band: 1271nm, 1291nm, 1311nm, 1331nm, 1351nm, 1371nm, 1411nm, 1431nm
      - 1550 nm CWDM Band: 1471nm, 1491nm, 1511nm, 1531nm, 1551nm, 1571nm, 1591nm, 1611nm
    • Fiber Cable: Singlemode fiber only
    • Optical Data Rate: Up to 4.25Gbps (Model Specific)
    • Optical Source: DFB Laser Module - CWDM
    • Optical Budget:
      - 10dB: 12.42mi (20km)
      - 15dB: 24.85mi (40km)
      - 20dB: 49.71mi (80km)
      - 35dB: 112.42mi (20km)
    • Fiber Connectors: Single ST/PC

      Electrical Characteristics
    • Input: Any Serial Digital Signal up to 3.0Gbps
    • Input Level: 1.00V Peak to Peak
    • I/O Impedance: 75Ω
    • Electrical Connectors: BNC - 75Ω

      Mechanical/Environmental
    • Dimensions: 19" x 11" x 1.75" (82.6mm x 279.4mm x 44.45mm)
    • Weight:
      - TX: 10lbs
      - RX: 10lbs
    • Operating Temperature: 14°F - 131°F (-10°C - 55°C)
    • Storage Temperature: -22°F - 158°F (-30°C - 70°C)
    • Humidity Range: 0% - 95%, non-condensing
    • Power:
      - 100V - 240V AC
      - 25W

  • Item Includes:

    • 1x Thor Fiber F-8SDI-B-3G Transmitter
    • 1x Thor Fiber F-8SDI-B-3G Receiver
    • 2x US Power Cord

  • Warranty:

    • 5 Year Limited Warranty
