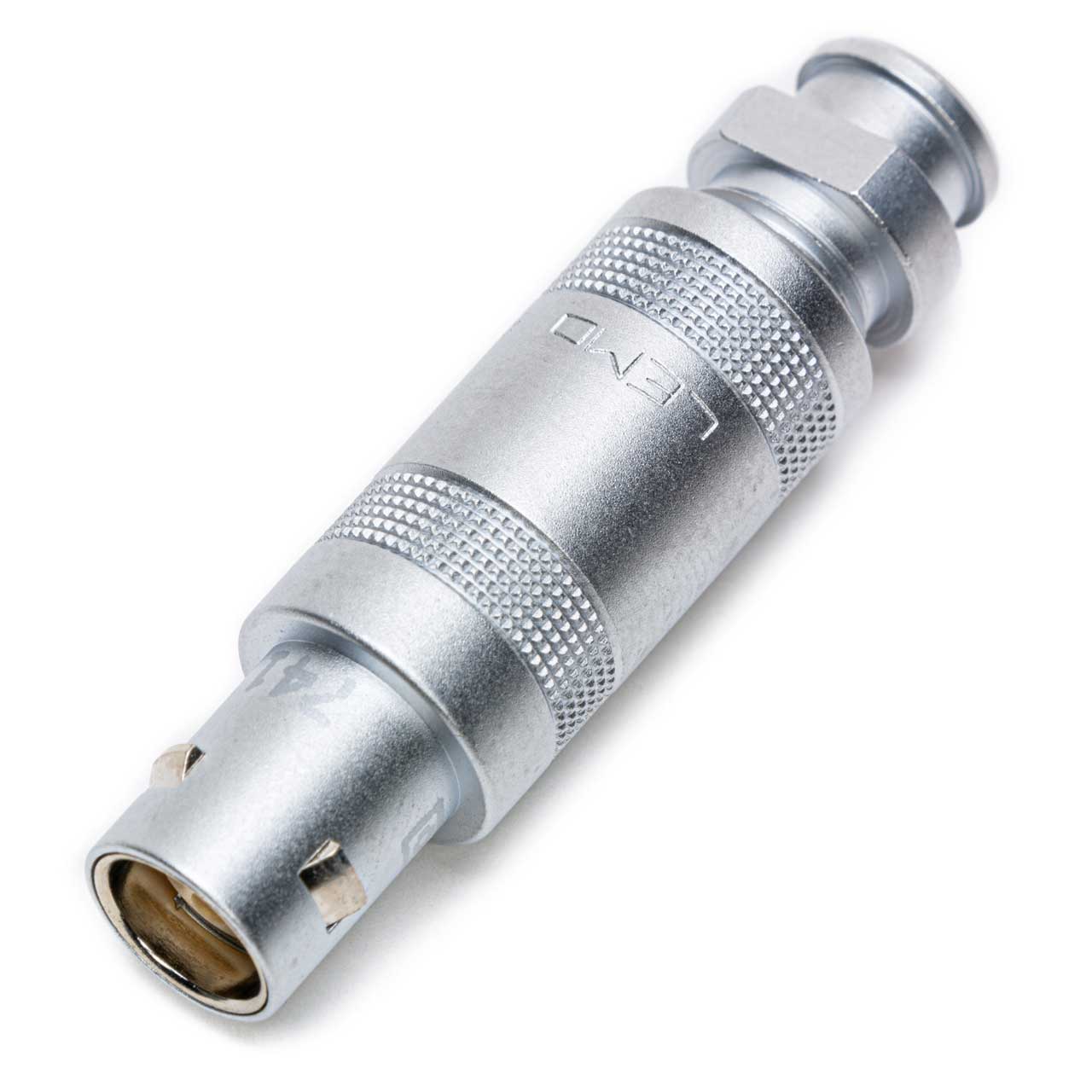

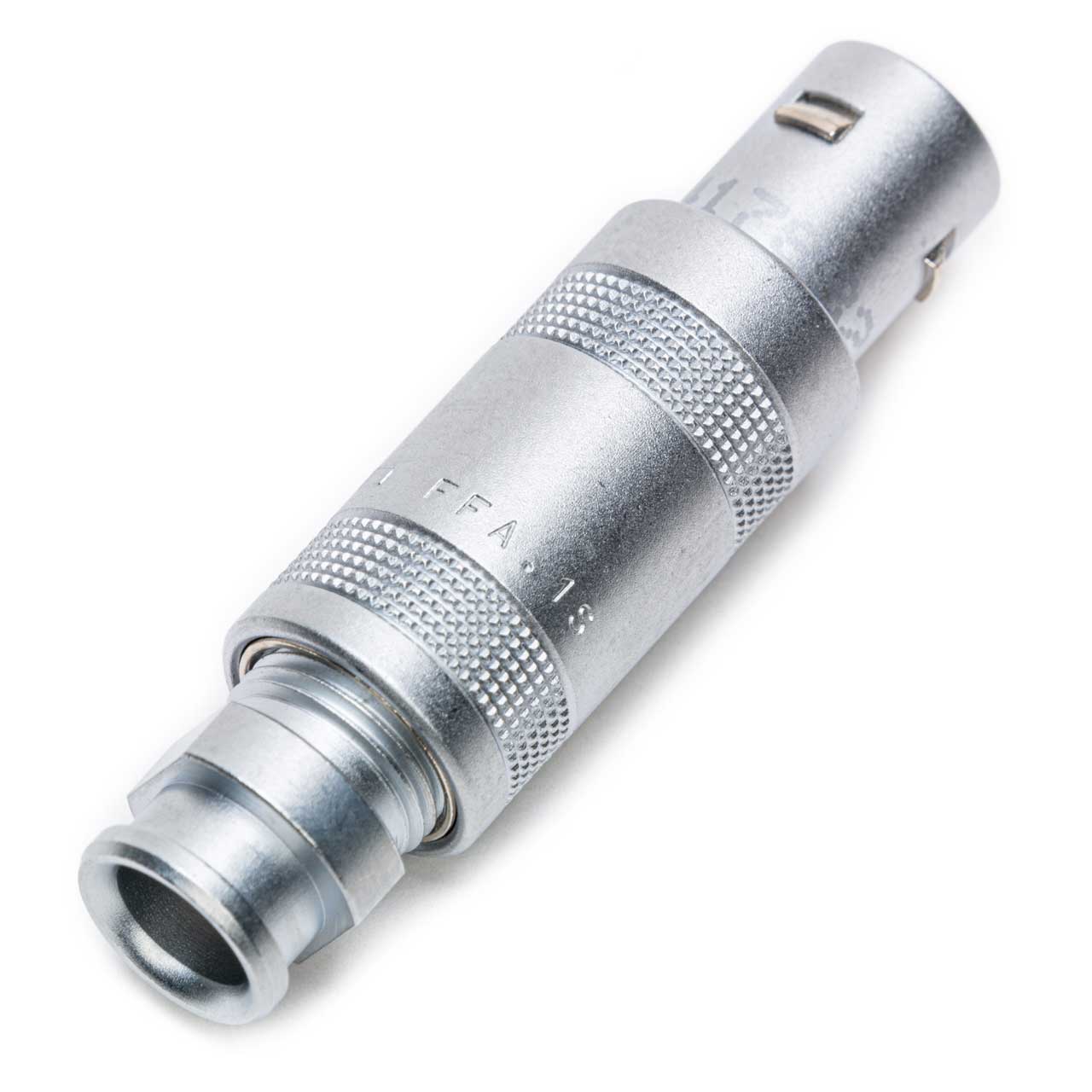

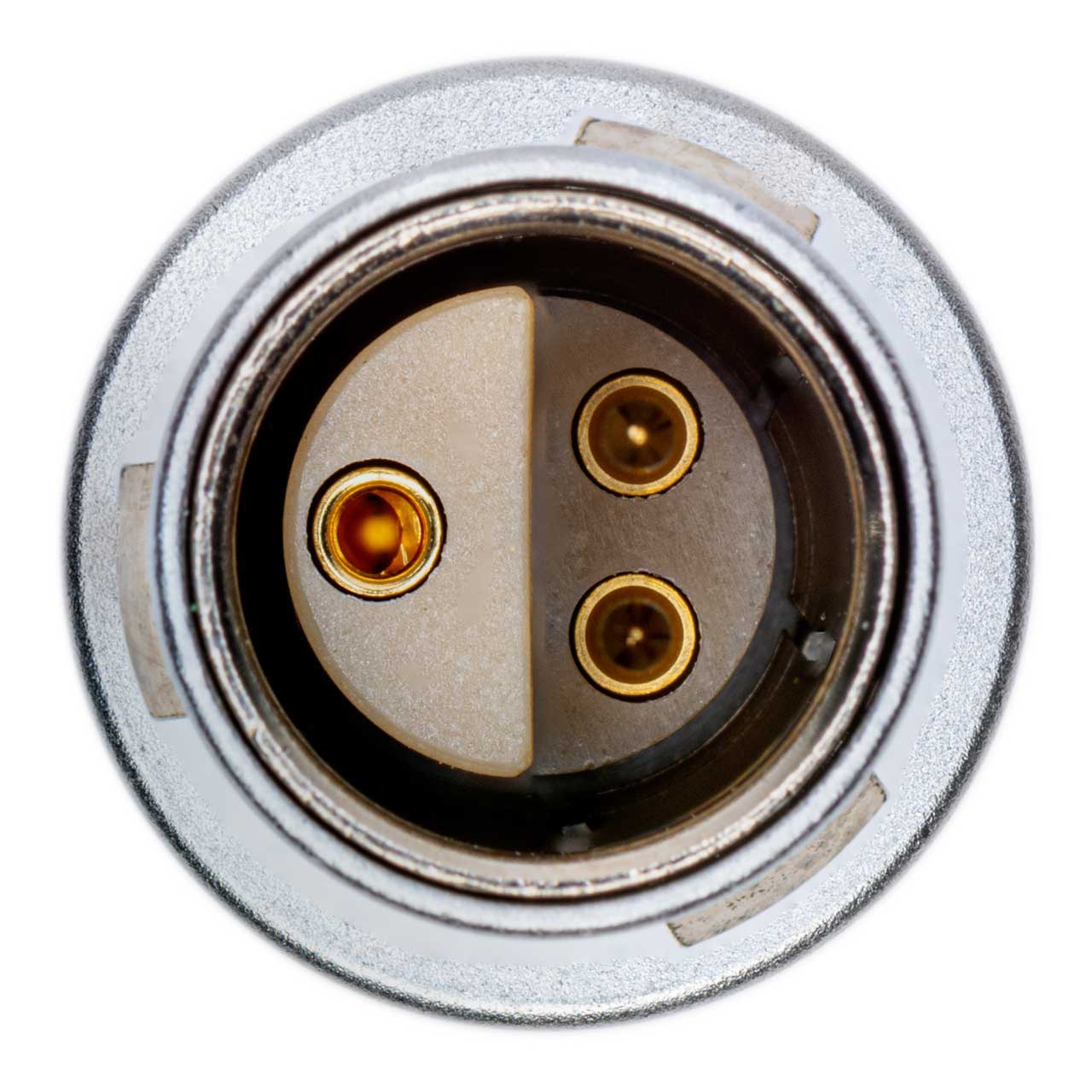

Lemo FFA.1S.303.CLAC52Z 5.2mm Split Gender 3-Pin Collet Circular Push Pull Connector with Bend Relief Nut

ITEM #: FFA1S303CLAC52Z MFG #: FFA.1S.303.CLAC52Z

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the FFA1S303CLAC52Z

FFA.1S.303.CLAC52Z - Overview

Lemo FFA.1S.303.CLAC52Z split gender 3-pin collet S-Series circular connectors are the original push pull connectors, offering the high performance and rugged design for which they are known. The S-Series circular connector is ideal for use in the audio/video field, machine industry, medical applications, research instrumentation and test & measurement environments. This circular connector can be built with unipole, coaxial, multipole, or triaxial contacts (stepped inserts for alignment are available in the multipole version)

  • Specifications:

    • Connector Type: Plug
    • Contact Gender: Pin (Male)
    • Number of Contacts: 3 Contact
    • Shell Plating: Chrome
    • Product Type: Circular Push Pull Connectors
    • Shell Material: Metal
    • Contact Type: Solder
    • Contact Dia.: 0.9 mm (0.0354in)
    • Bucket Dia.: 0.8 mm (0.031in)
    • Max. Solid Conductor: 0.34 mm^2 (AWG 22)
    • R (max): 4.8 mOhm
    • Vtest: 1200 V (AC), 1800 V (DC)


  • Item Includes:

    • 1x Lemo FFA.1S.303.CLAC52Z Split Gender 3-Pin Collet Circular Push Pull Connector with Bend Relief Nut
