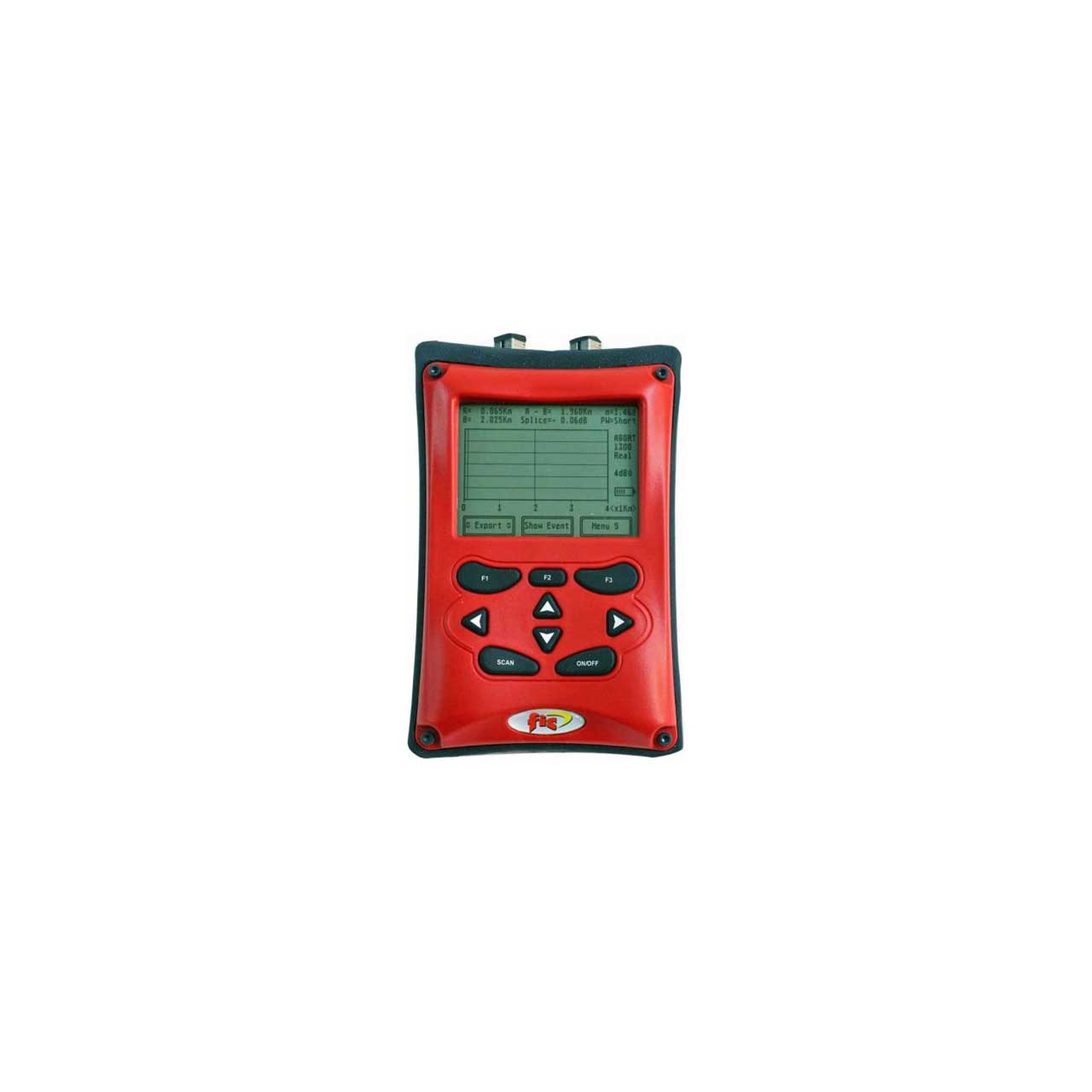

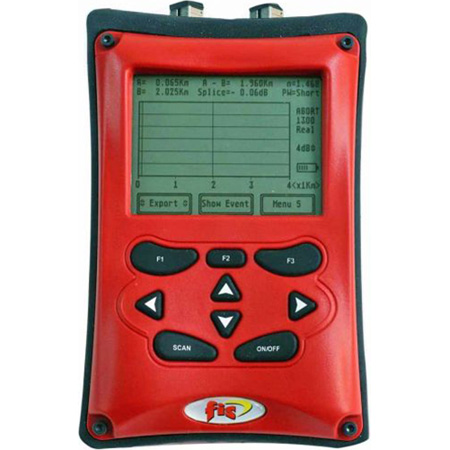

FIS FIRECATQUAD Optical Time-Domain Reflectometer (OTDR) Quad Wavelength - MM/SM 850/1300/1310/1550 Handheld

ITEM #: FIS-FIRECATQUAD MFG #: FIRECATQUAD

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$4,000.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    FIRECATQUAD - Overview

    The FIS Firecat OTDR provides an industry leading value with its low cost and easy functionality. This unit is perfect for both inexperienced and experienced technicians alike with its simple on screen 'soft key menus'. The unit features a backlit keypad and screen for easy use in dim lighting conditions. Data is transferred via USB. By providing the essentials for fiber optic troubleshooting, this OTDR is the perfect tool for basic link troubleshooting and is affordable enough for every truck, office or tool kit.

    • Features:

      • Dynamic Range - 23dB
      • Lowest Cost OTDR in the Industry
      • Event Table and Auto-Test Modes
      • Multimode Units Designed to Work with Both 50/125æm and 62.5/125æm Fiber

    • Specifications:

      • Wavelength of Operation: 850, 1300, 1310, 1550nm, +/- 20nm
      • Connector type: Interchangeable SC (FC and ST also available)
      • Dynamic Range: 23dB
      • Distance Accuracy: +/- (1mtr + .01% x distance)
      • Loss Modes: 2 Point, Splice Loss, dB/km
      • Group IOR Range: 1.024 - 2.048
      • Vertical Expansion: 0.5, 1, 2, 4 dB/div
      • Units of Measure: Meters/Kilofeet
      • Pulse Widths: Short Pulse (SP) 4m/13ft, Medium Pulse (MP) 50m/164ft, Long Pulse (LP)100m/330ft
      • Distance Range: 1Km/3.3Kft 4Km/8Kft(SP), 4Km/13Kft, 16Km/53Kft(MP), 16Km/53Kft, 64Km/215Kft(LP)
      • Dead Zone: 6m
      • Distance Interval: 2m/6ft(SP), 8m/25ft(MP), 32m/105ft(LP), 16Km/32Kft, 8Km/16Kft, 4Km/8Kft, 2Km/4Kft/div (LP-Ext)
      • Horizontal Exp: 4Km/8Kft, 2Km/4Kft, 1Km/2Kft, 500m/1Kft/div (LP-Norm and MP-Ext),1Km/2Kft, 512m/1Kft, 256m/512ft, 128m/256ft/div (MP-Norm and SP-Ext)
      • Data Storage: 255 traces
      • Computer Interface: USB
      • Operation Tempature: 0° - +50°C
      • Storage Tempature: -40° - +60°C
      • AC Power: 120 VAC standard (220 VAC available)
      • Batteries: 8 AA NiMH Cells
      • Battery Life: 12 hours (typ.)
      • Recharger Time: 12 hours (typ.)
      • Size/Weight - Ruggedized: 8" X 6.5" X 3.5" / 2.75 lbs.
      • Size/Weight - Hand Held: 7.25" X 4.5" X 2.75" / 1.9 lbs.

    • Item Includes:

      • 1x Quad Wavelength - MM/SM 850/1300/1310/1550
      • 1x 110v AC Adapter
      • 1x Certification Software
      • 1x Data Transfer Cable
      • 1x SC Interchangeable Adapter
      • 1x Soft Carry Case
      • 1x Instruction Manual
