Creativity Made Simple
Live events and broadcast markets face similar challenges when deploying video walls. Fast transmission speeds are paramount to project success, with large distances needing to be covered by vast networks of cables.

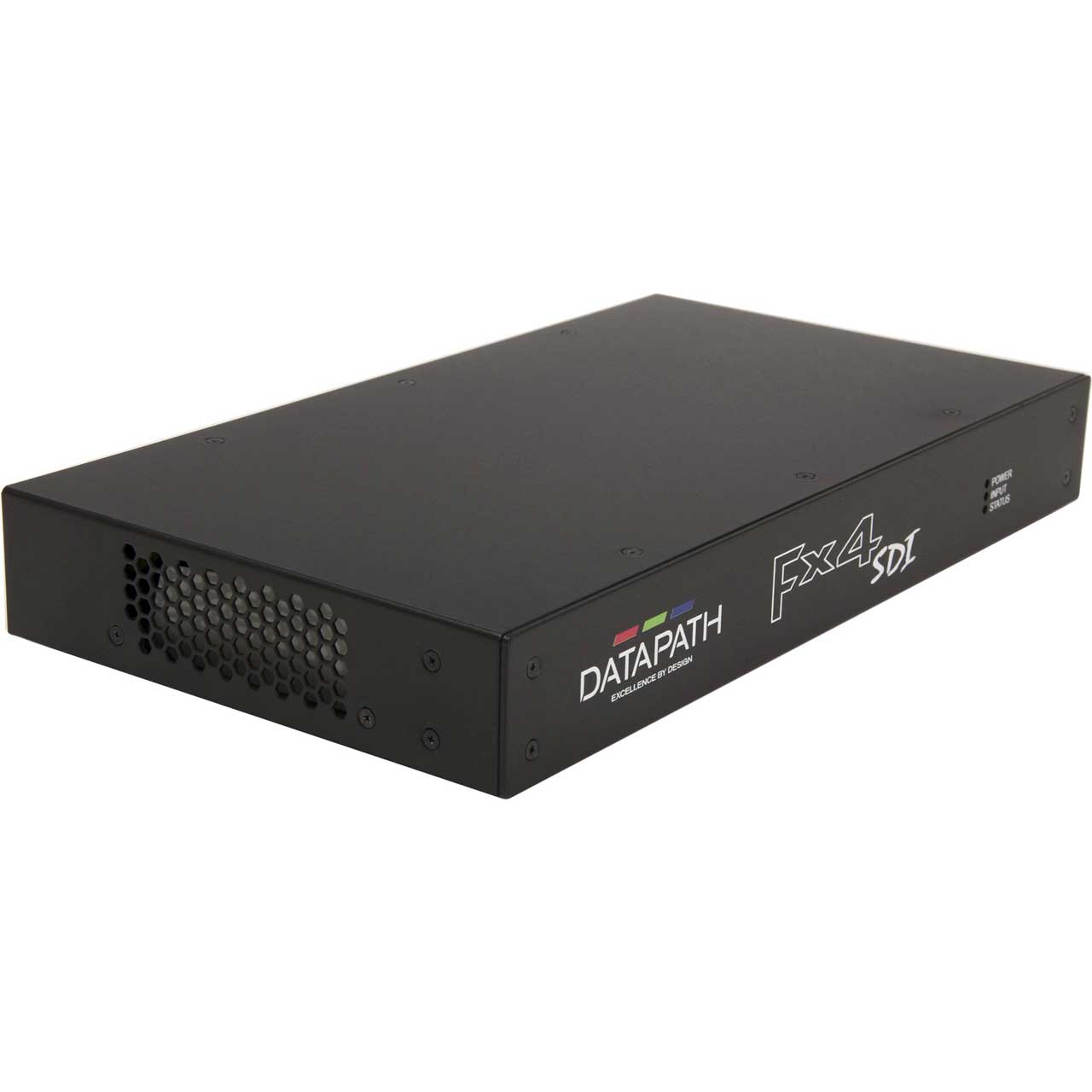

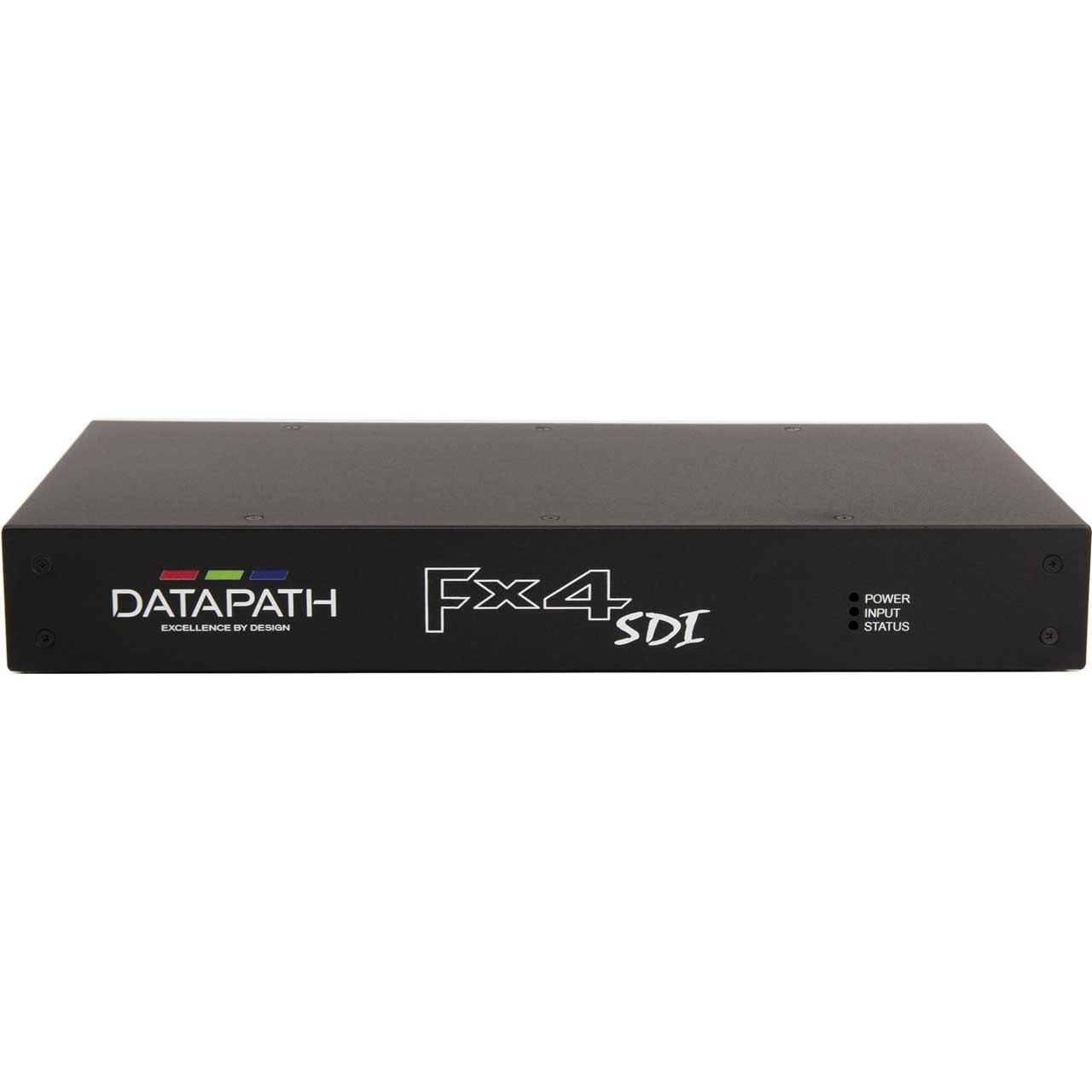

The Datapath Fx4-SDI offers the perfect solution for staging and televised video walls. Delivering four SDI outputs and the ability to loop multiple units together, even the largest, most complex video wall installations are possible. Datapath's intuitive Wall Designer software and fully featured API means that whole projects can be quickly set up and easy to manage.
A choice of 3G SDI, DisplayPort1.2 and HDMI1.4 inputs, the Datapath Fx4-SDI offers up to 4K 4096 x 2160p at 60fps.
Unparalleled Connectivity Options:

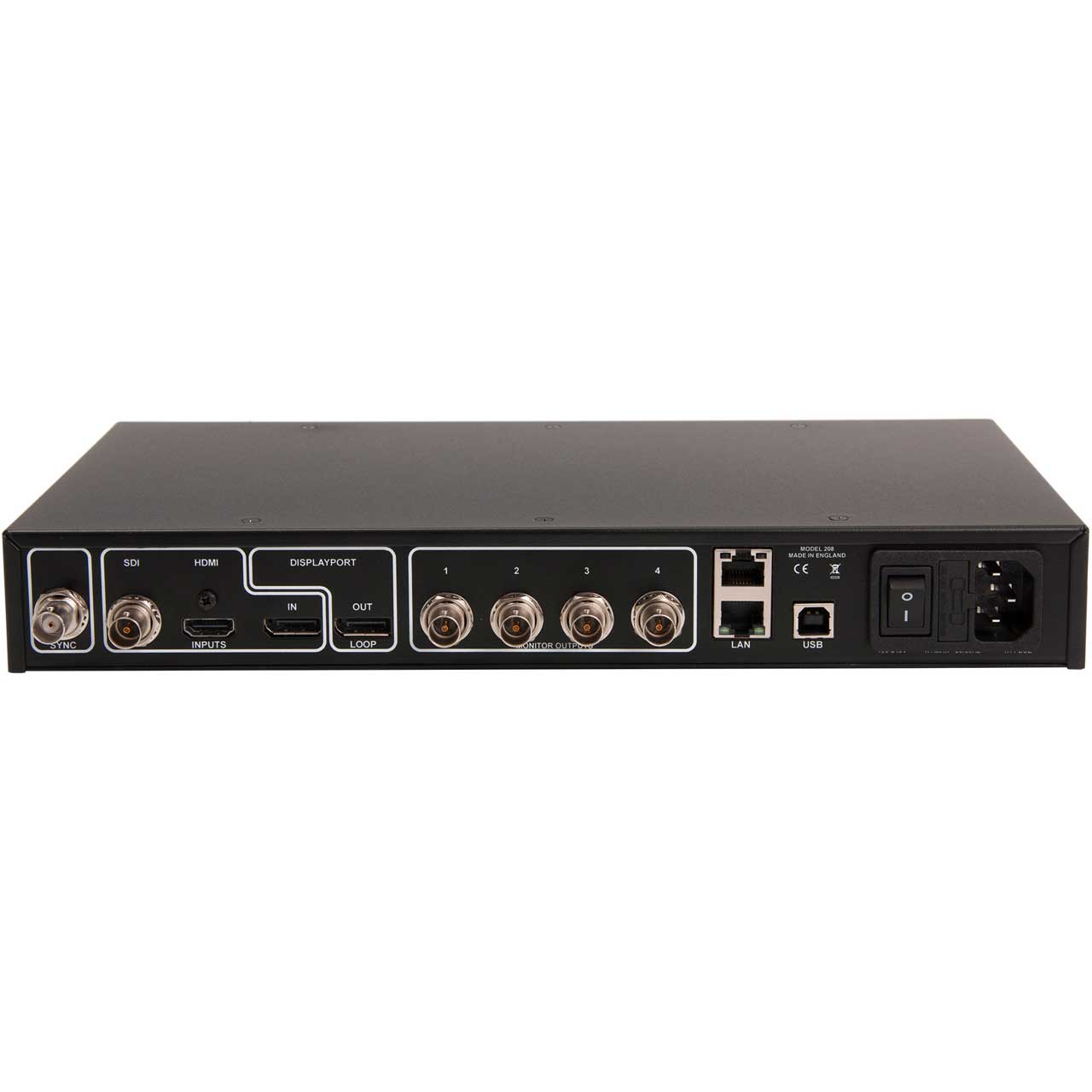

• 3 Input Choices: The Fx4-SDI features a choice of 3G-SDI, DisplayPort 1.2 and HDMI 1.4 inputs. The intuitive UI allows users to determine which input is used.
• Network Connectivity: Dual Ethernet ports allow users to add the device to their networks. Ethernet loop though support on the second port means only one device in the chain needs to be physically connected.
• Genlocked Input: A dedicated BNC connector allows users to SYNC with third party hardware.

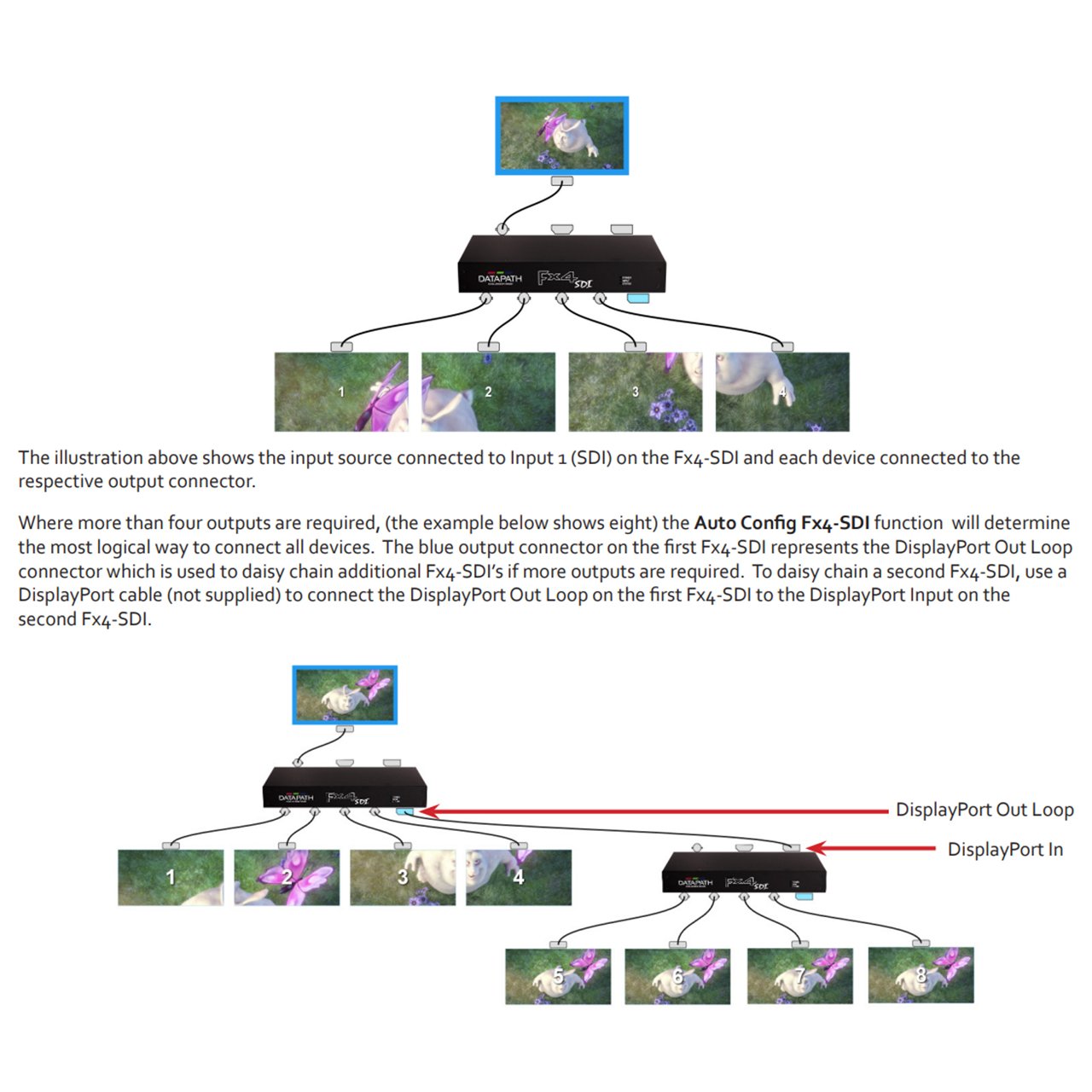

• Loop Through: A dedicated DisplayPort 1.2 loop through output allows users to link multiple devices. Specifically designed prevent any loss of resolution, the original capture signal remains unchanged.
Powered by Wall Designer
Wall Designer Wall Designer allows users to add displays from the ever-expanding database of monitors, visualise their content by adding inputs, backgrounds and adjusting capture regions. Finally, instantly configure all Datapath Fx4-SDI's either via USB or the network ports.
