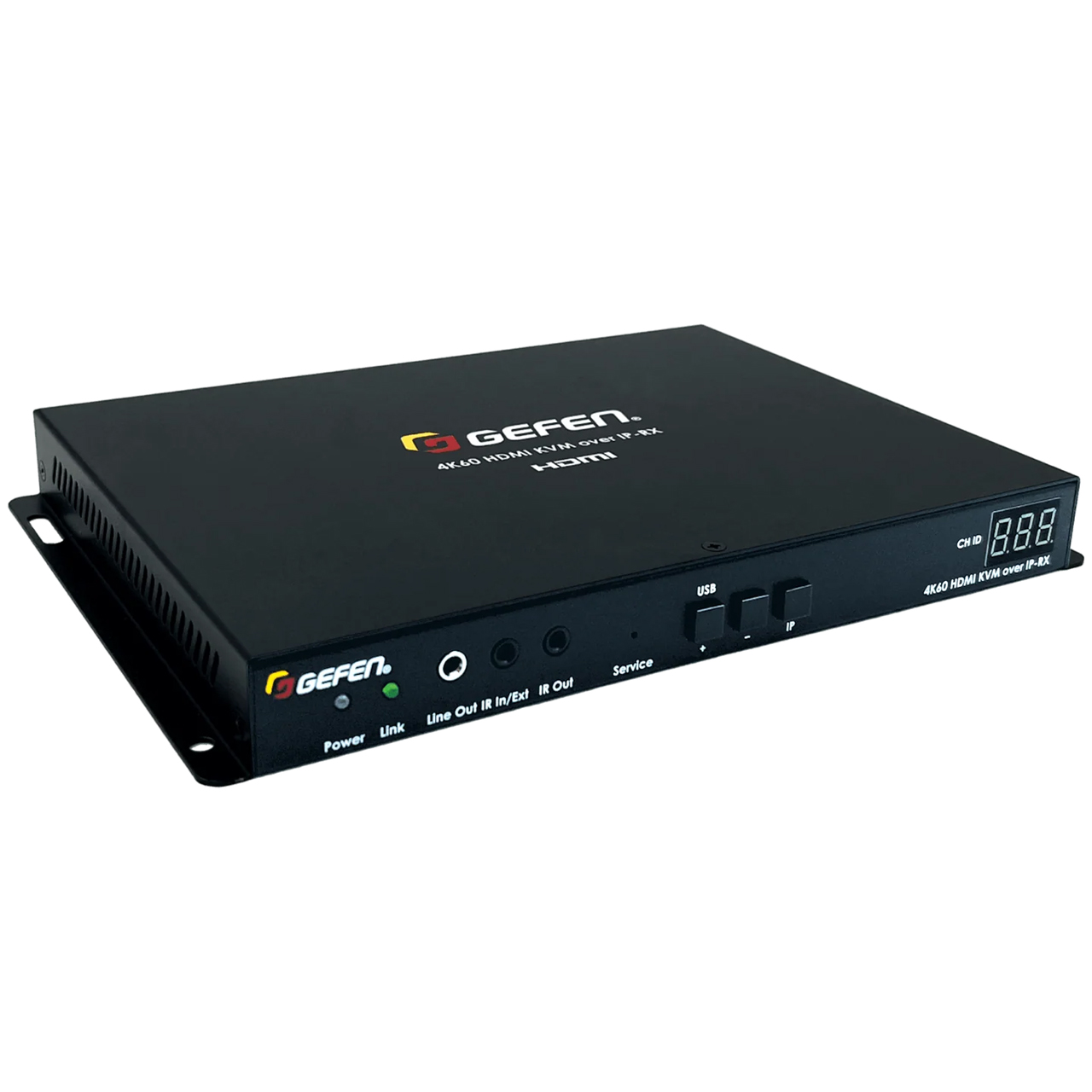

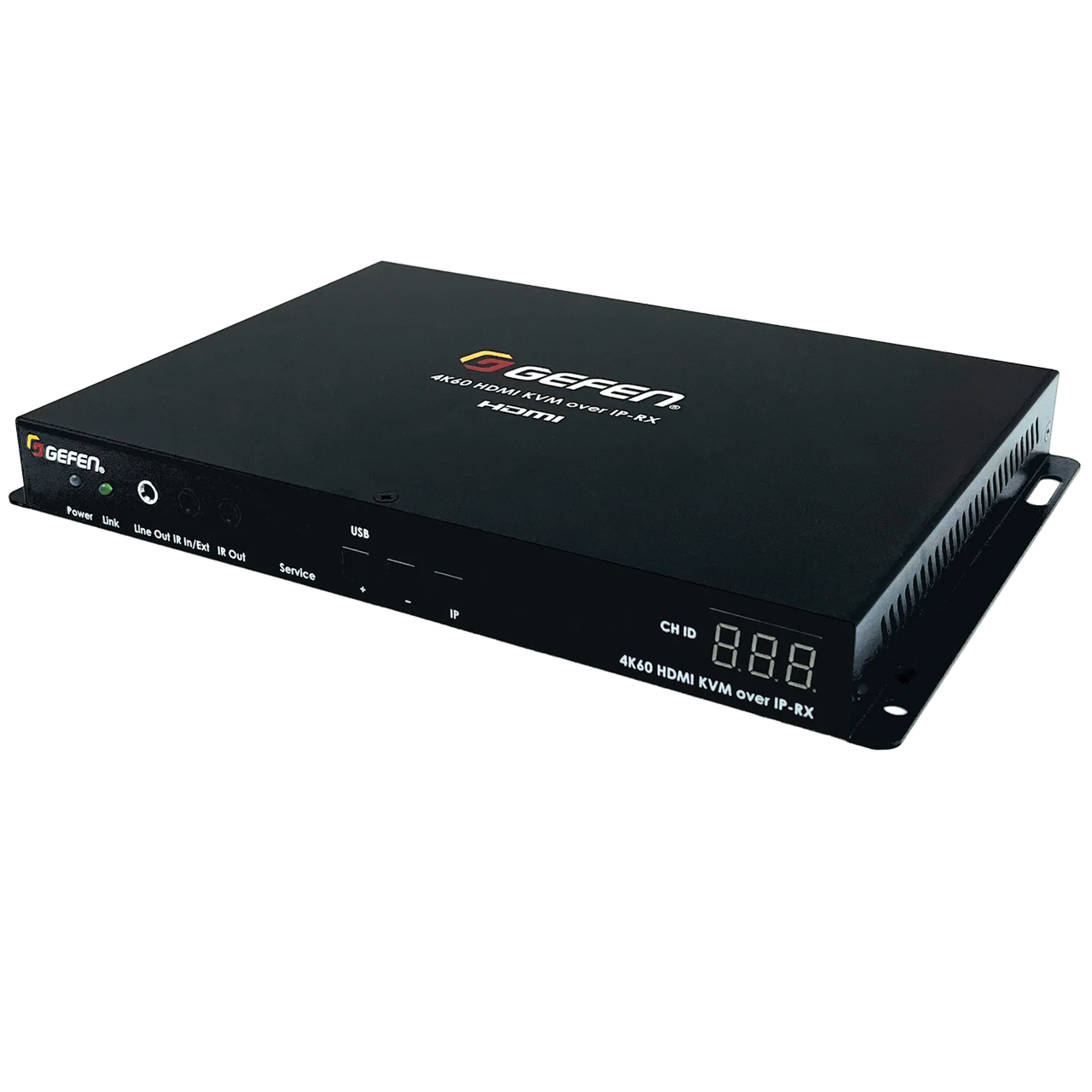

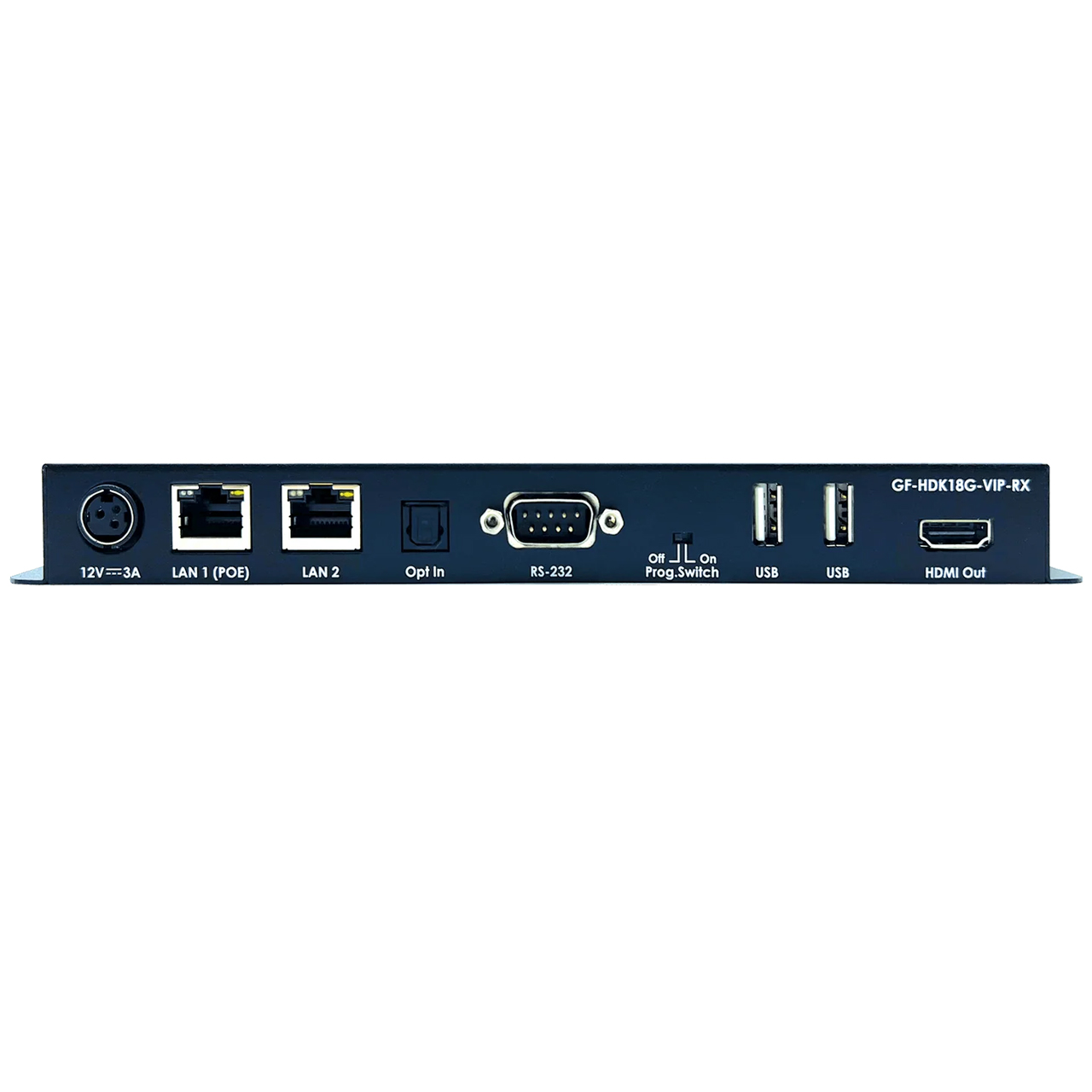

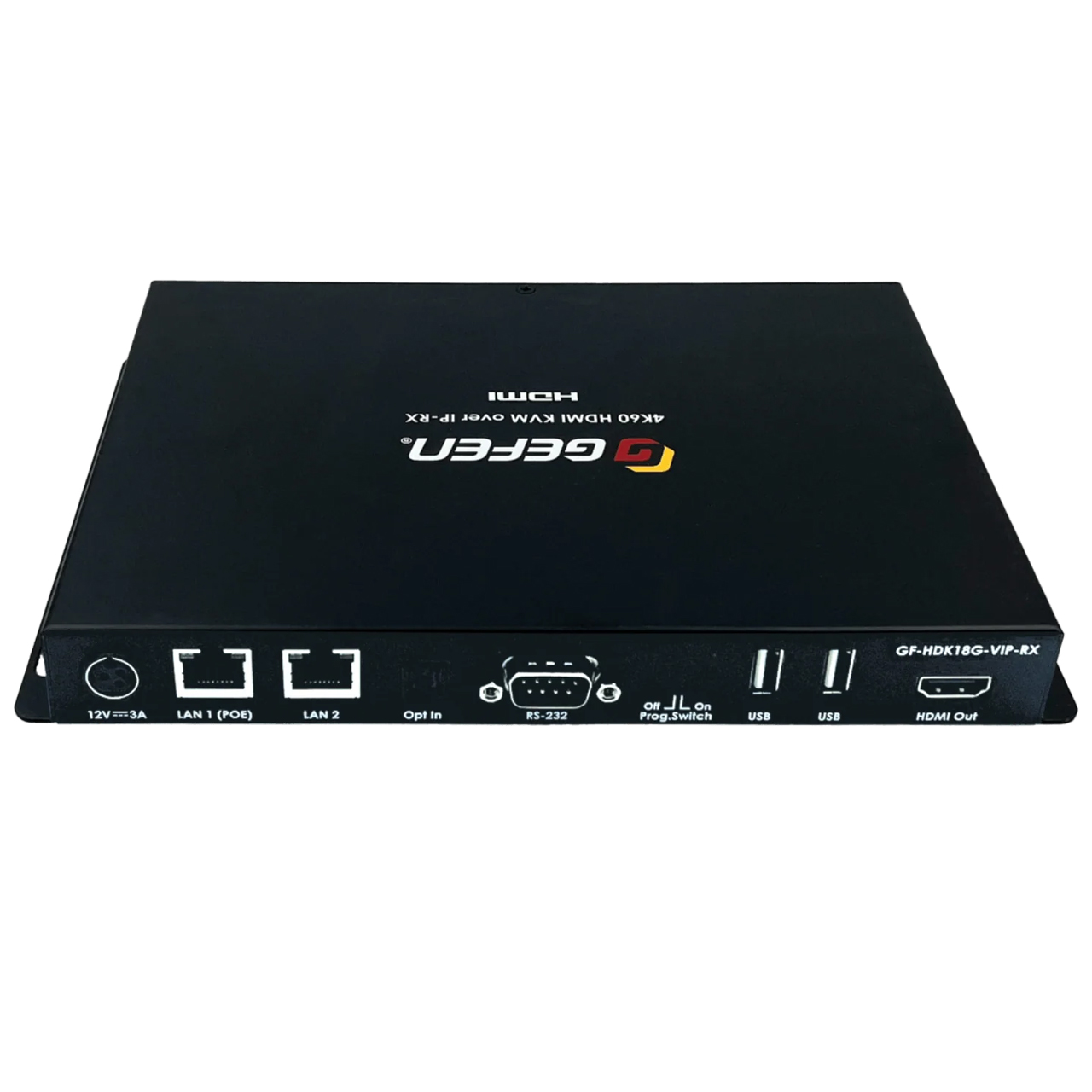

The Gefen GF-HDK18G-VIP-RX 4K HDMI KVM over IP Receiver provides remote access to your high-definition and Ultra HD sources over a local area network (LAN). This powerful receiver unit allows you to extend 4K 60Hz 4:4:4 HDMI video, audio, RS-232, IR, and USB signals up to 330ft (100m) from any sender unit on the network. Part of a flexible and scalable AV over IP system, this receiver, when used with a sender, can be used in a simple extender configuration or expanded to a sophisticated virtual matrix KVM switch system. Ideal for large-scale remote workstation access, digital signage, and high-performance AV applications, this HDMI extender solution offers a versatile and massively scalable system for your professional AV and IT needs.
How It Works

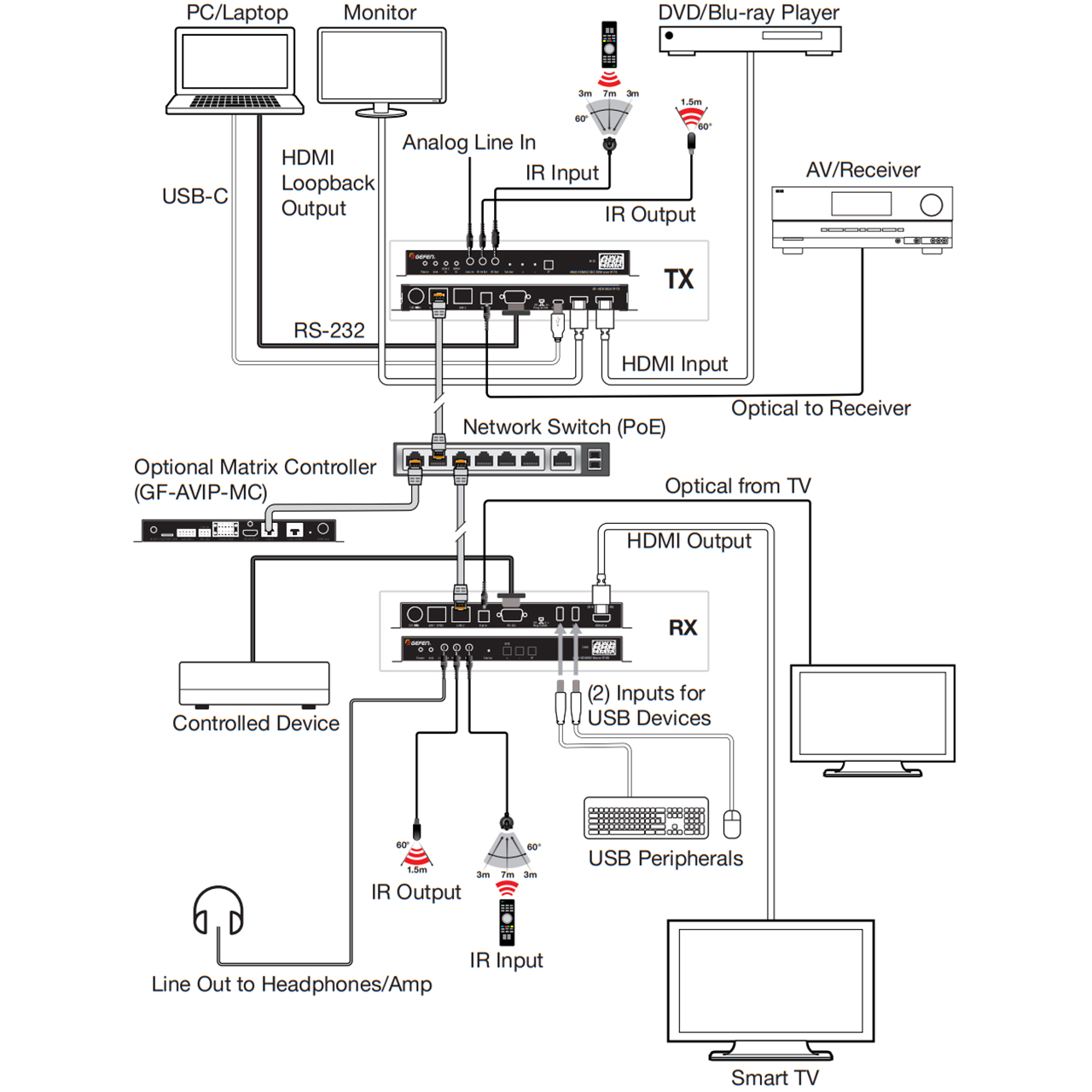

The Gefen HDK18G-VIP system operates with two main components: a Sender unit (sold separately) and one or more Receiver units connected over a standard Gigabit Local Area Network. The Sender unit connects to your HDMI or USB-C source device, and the Receiver unit connects to your display. Using a network switch, the system extends signals up to 330ft (100m). By setting the channel ID on the Sender and Receiver units to match, you can route the source signal to the desired display. By adding multiple Senders and Receivers to the network, you can create a flexible and massively scalable "virtual matrix," allowing any connected workstation to control any source on the network using this advanced AV over IP solution.
System Requirements:
• A managed gigabit switch with Jumbo Frame Support (8k or greater) and IGMP Snooping enabled is required for LAN connection.
• A dedicated LAN is highly recommended.
• Shielded CAT-5e (or better) cables not exceeding 330 feet (100 meters) are required between the Receiver and the network switch.
• For setup and control, Gefen Syner-G™ Software Suite and the Gefen Matrix Controller (GF-AVIP-MC) are highly recommended.
Please Note: Gefen GF-HDK18G-VIP-TX Sender is sold separately and required to complete this system.
