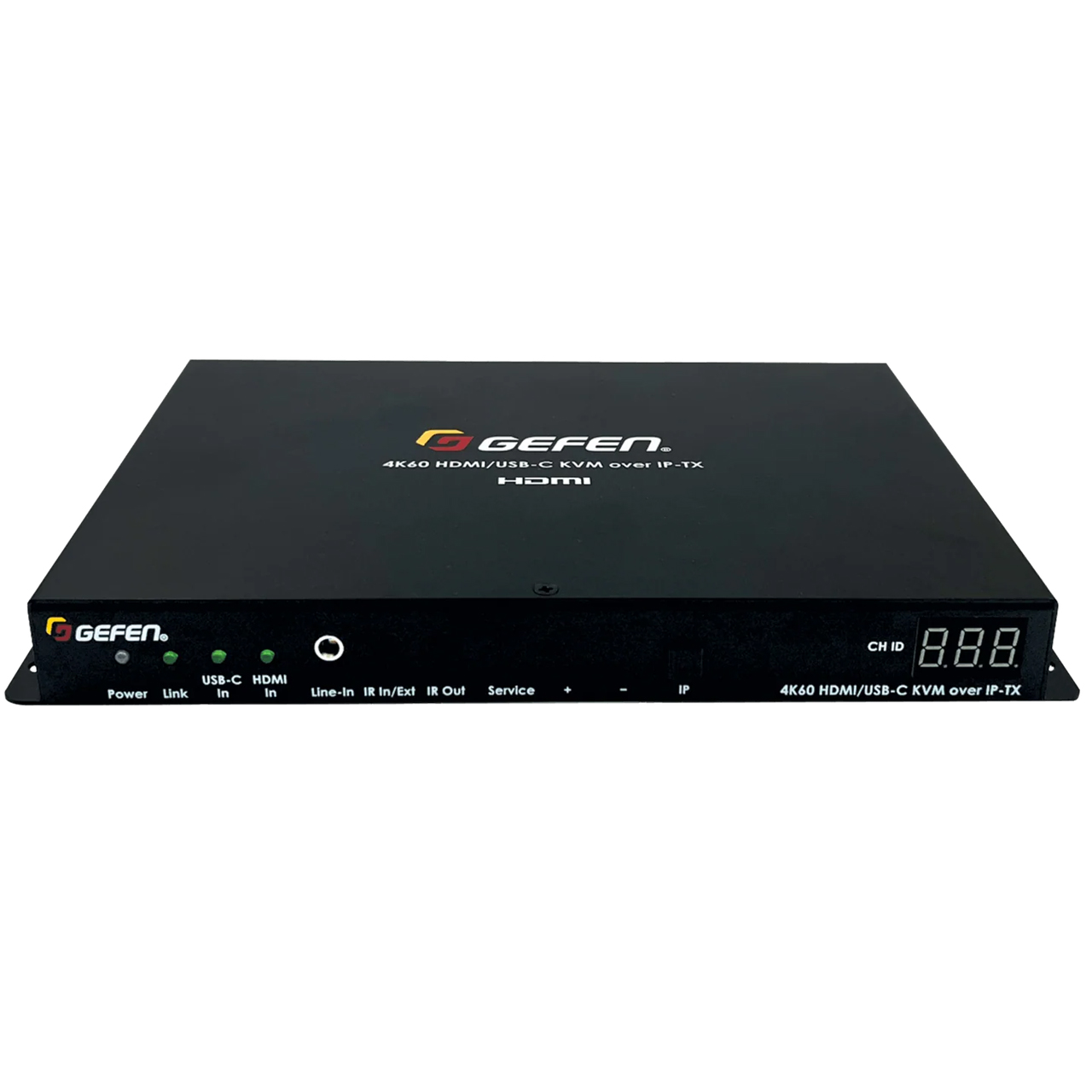

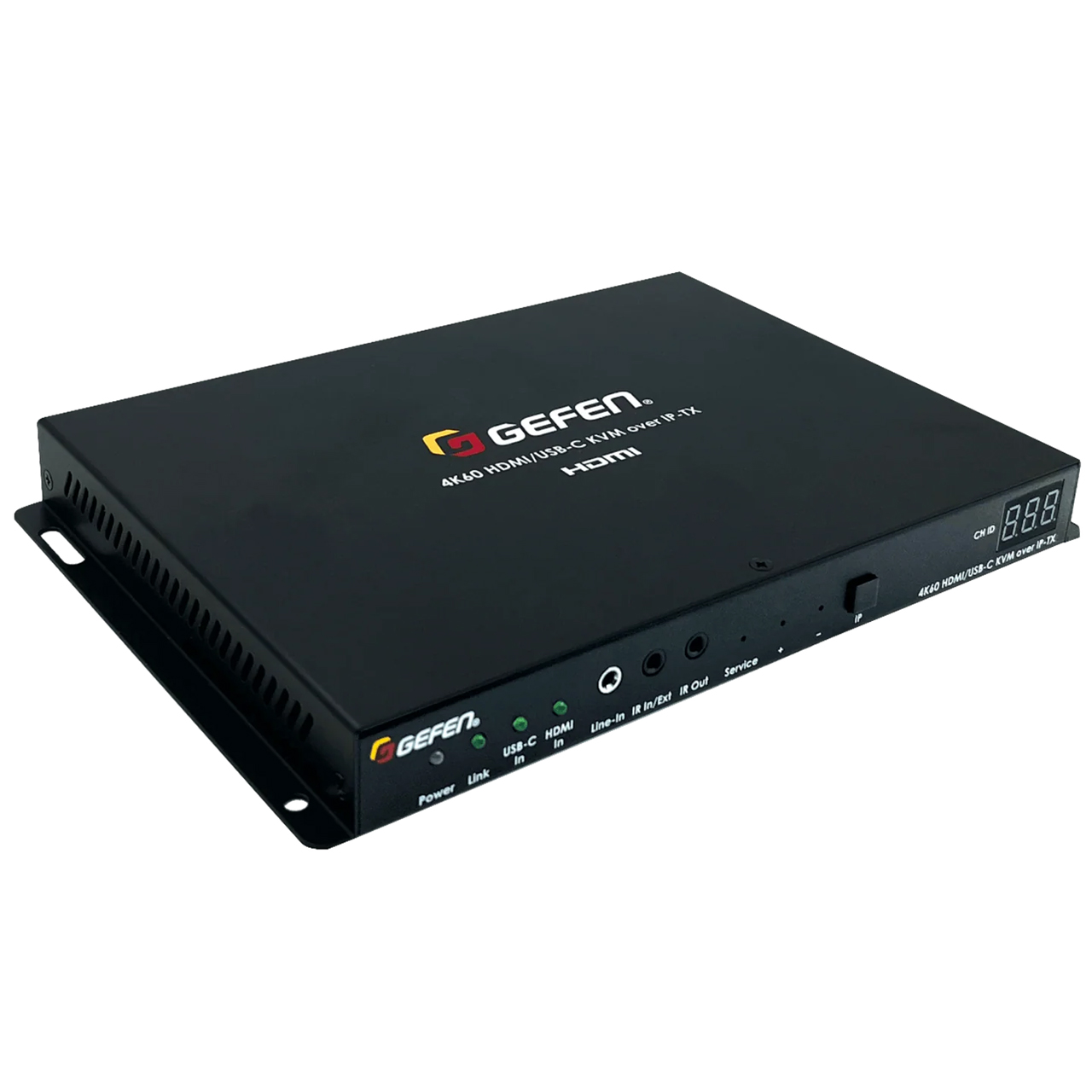

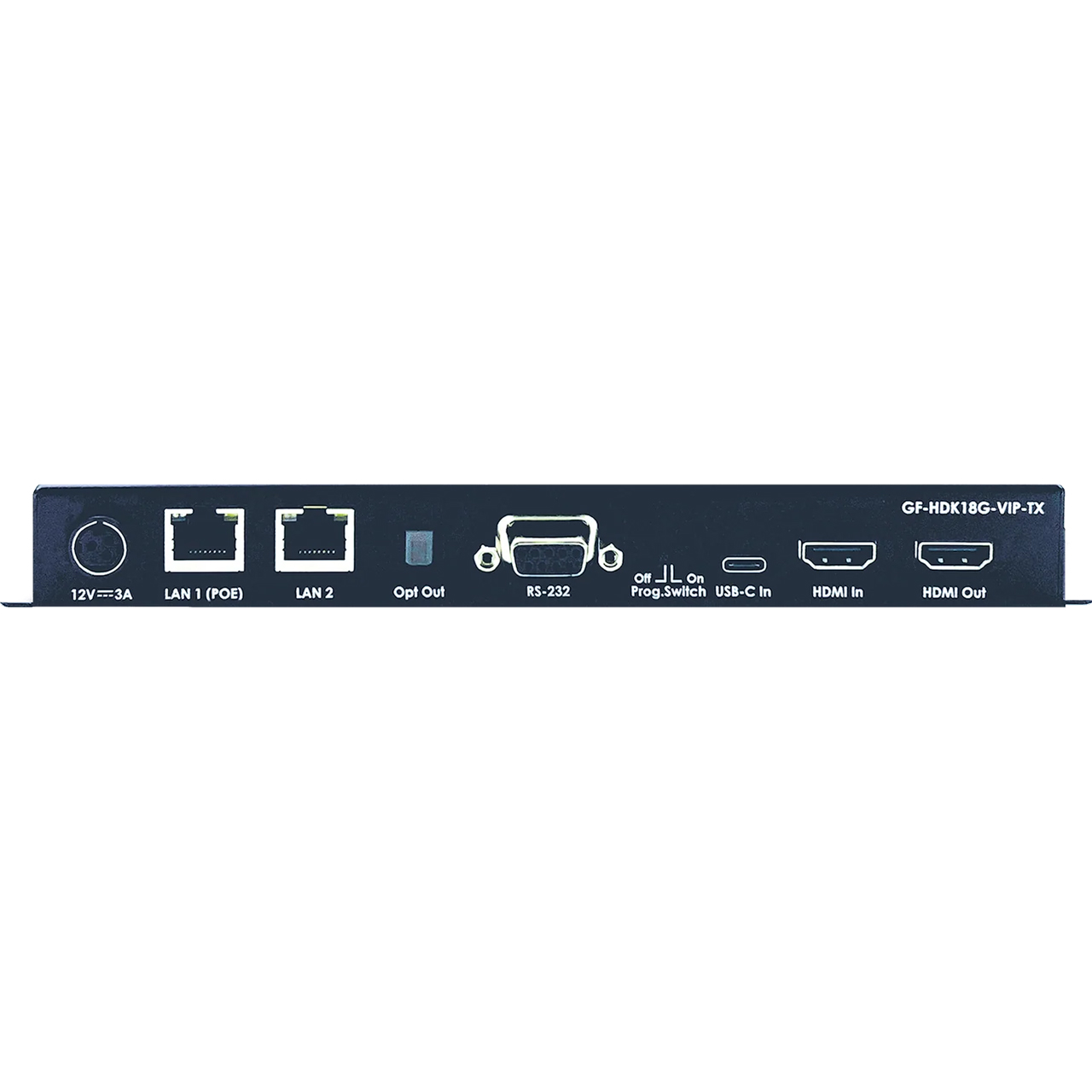

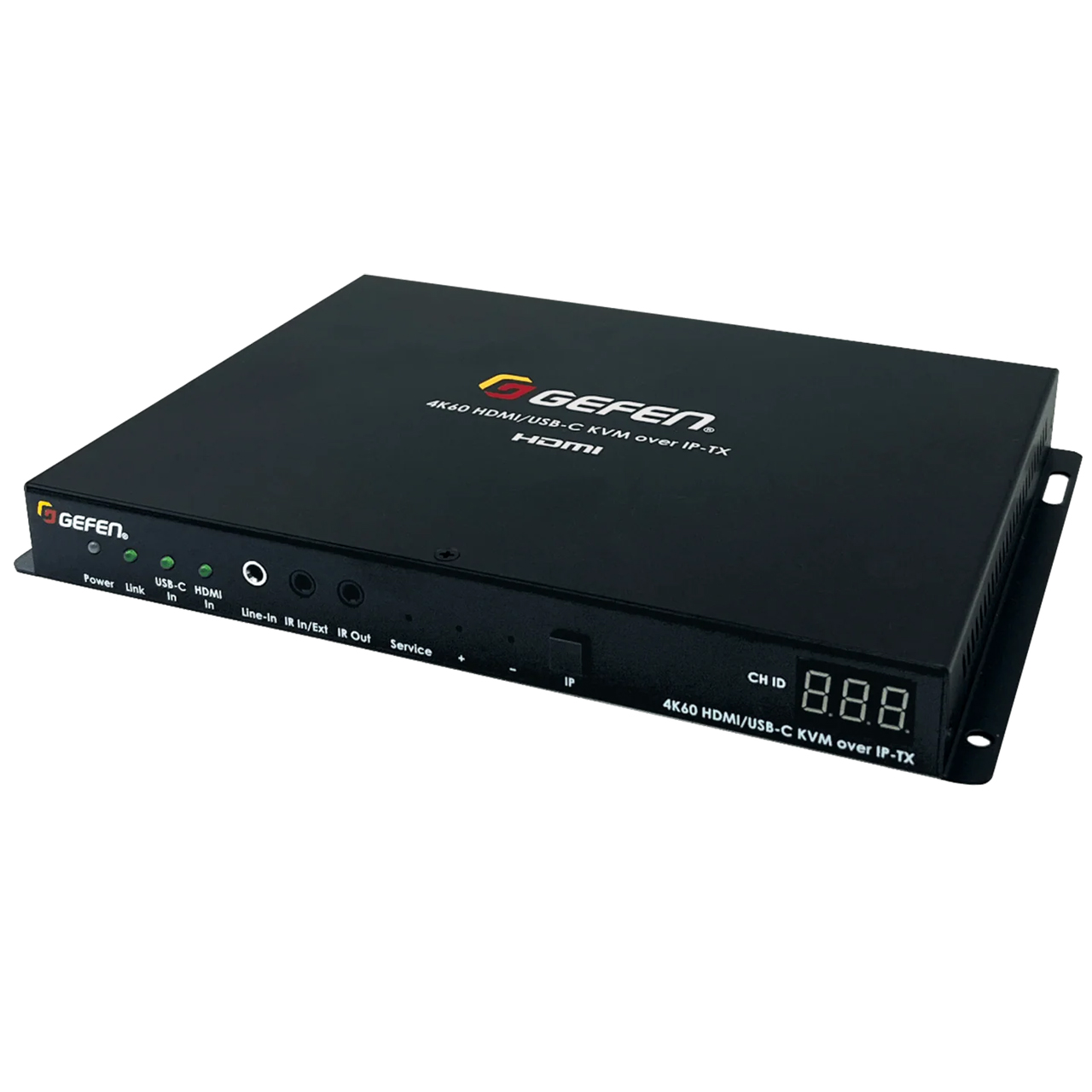

The Gefen GF-HDK18G-VIP-TX is a high-performance 4K HDMI and USB-C KVM over IP Sender unit that extends and distributes video, audio, and control signals over a standard Gigabit local area network (LAN). This powerful sender allows you to route 4K 60Hz 4:4:4 video with HDR, along with USB, RS-232, and bi-directional IR, creating a flexible and massively scalable "virtual matrix". By pairing this Sender with one or more receivers, you can control any source from any display on the network, making it an ideal AV over IP solution for professional AV, digital signage, and high-performance KVM applications.
How It Works

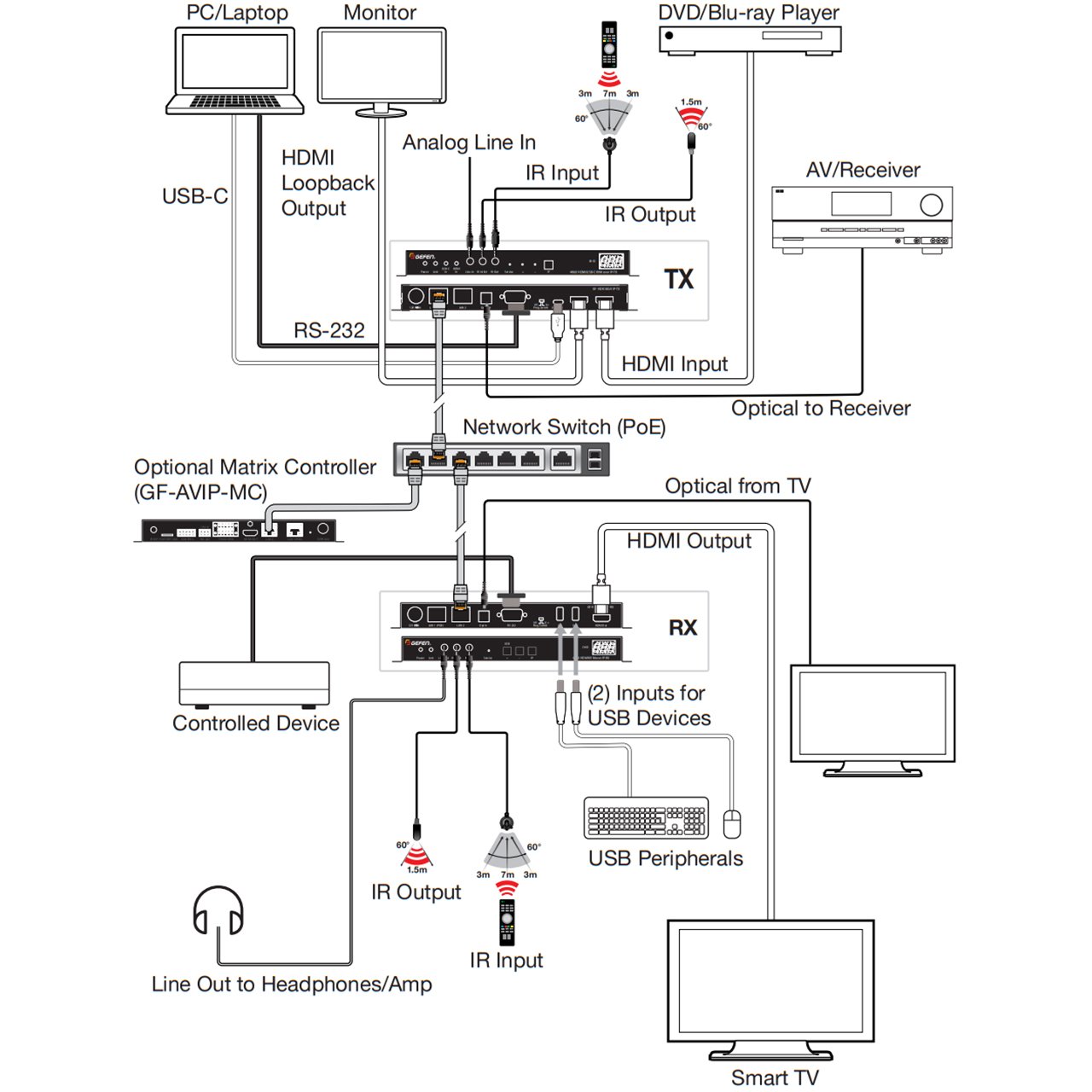

The Gefen 4K KVM over IP system operates with two main components: a Sender (Tx) unit and one or more Receiver (Rx) (sold separately) units. First, connect your 4K Ultra HD source, such as a computer or media player, to the HDMI or USB-C input on the Sender unit. The Sender unit is then connected via a CAT-5e or better cable to a managed Gigabit IP switch on your Local Area Network (LAN). A Receiver unit is connected to each display and also to the same network switch. This setup allows signals to be transmitted up to 330ft (100m) between any sender and receiver. By adding multiple Senders and Receivers to the network, you can create a flexible and massively scalable 'virtual matrix,' allowing any connected workstation to control any source on the network.
System Requirements:
• A managed gigabit switch with Jumbo Frame Support (8K or greater) and IGMP Snooping enabled is required for LAN connection.
• A dedicated LAN is highly recommended.
• Shielded CAT-5e (or better) cables not exceeding 330ft (100m) are required between the Receiver and the network switch.
Please Note: Gefen GF-HDK18G-VIP-RX Receiver is sold separately and required to complete this system.
