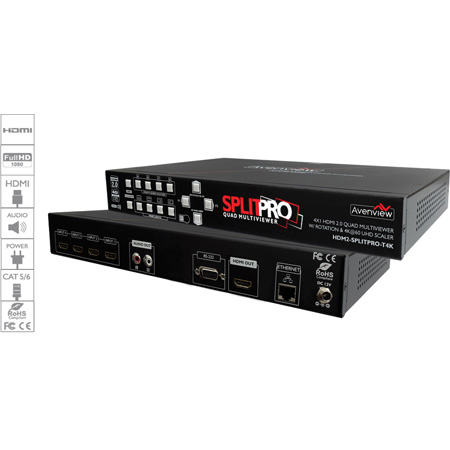

Avenview HDM-SPLITPRO-4K 4X1 1080p HDMI Quad Multiviewer with Upscaling of [email protected] Output

ITEM #: HDM2-SPLITPROT4K MFG #: HDM2-SPLITPROT-4K

free ship

Our Price:

$2,999.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


HDM2-SPLITPROT-4K - Overview

The HDM2-SPLITPRO-T4K 4 x1 multiviewer Scaler was developed for the purpose of supporting higher output resolution ([email protected] 4:4:4 8bits) for multiple sources on a single screen. This HDMI device can accept 4 HDMI input digital sources and combine (4) four video signals onto a single HDMI UHD or
HD monitor The user can easily manage each input via the supplied Control Software and create any layout and position of
any of the 4 (four) Inputs on a single monitor. This device supports full range of input video resolutions up to [email protected]
(RB) or full HD1080p and audio RCA breakout supported for external audio distribution systems. Audio channels can be
selected to playback with input or can be muted.

This device can input any 4 HDMI input digital sources and then combine, (4) four video signals onto a
single HDMI HD monitor. The user will benefit with from its processing power to switch between the 8 user defined function
via IR Remote, Ethernet or RS232. This device can Crop any 4 HDMI input digital sources to remove black bars and then combine, (4) four video signals onto a single HDMI HD monitor. This device can be configured using the supplied Control software via Ethernet or RS232 to set the desired layout on the connected screens.

This device can input any 4 HDMI digital sources and then combine, (4) four video signals onto a single HDMI HD monitor, which the user can select picture In picture (PIP) picture Aside picture (PAP) or overlay with the supplied Control Software via Ethernet or RS232 to set the desired layout configuration. The user can easily change the individual channel size and choose different position and
layout on the single monitor with the Control Software via Ethernet or RS232 to set the desired layout configuration.

The user can easily Rotate/Scale only a single input/window image 90° left and right. This device can be configured with the Control Software, IR Remote, Ethernet, RS232 or front panel buttons .

  • Features:

    • Fast switching between input channels and combined multiple images on single HD monitor;
    • Crop the (4) four HDMI Input Channels;
    • Supports PIP, PAP and multi-windows layout configurations;
    • Single Input Rotation (90° left & right ) functions;
    • 8 preset Hot keys with 4 Custom layouts and 4 Full screen layouts within the supplied control software;
    • 8 Custom saved layout buttons via the IR Remote
    • Input resolution support full range of video resolutions up to [email protected] (RB) or full HD1080p;
    • Output resolution support Full HD or upscale to [email protected] 3840x2160 (4:4:4 8bits);
    • Audio dembedded via RCA Left and Right audio connectors
    • RS 232 port for Service mode and firmware upgrade;
    • Supports RS 232,Ethernet, IR Remote and front panel buttons;
    • Factory Reset feature.

  • Specifications:

    • Video Bandwidth: Input: HDMI [2.25G to 6.75Gbps] / Output: Single-link 600MHz [18Gbps]
    • HDMI Compliance: Input: HDMI 1.4 /Output: HDMI 2.0a
    • Video Format Support: HDMI 2.0
    • Audio Support: LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/ Dolby TruHD & DTS-HD
    • Input: 4x HDMI + 1xRS-232 + 1x RJ-45(Ethernet)
    • Output: 1 x HDMI
    • Control: RS 232 / IP Control
    • RJ45 Connector: WE/SS 8P8C with 2 LED indicators
    • ESD Protection: Human body model - ±15kV [air-gap discharge] & ±8kV [contact discharge]
    • Weight: 3.3 lbs
    • Dimensions (L X W X H): 12.5" x 6.8" x 1.7"
    • Power Supply: 12V/5A DC (US/EU standards, CE/FCC/UL certified)
    • Power Consumption: 8.9W
    • Operating Temperature: 32~104 F (0~40 C)
    • Storage Temperature -4~140 F (-20~60 C)
    • Relative Humidity: 20~90% RH (no condensation)
