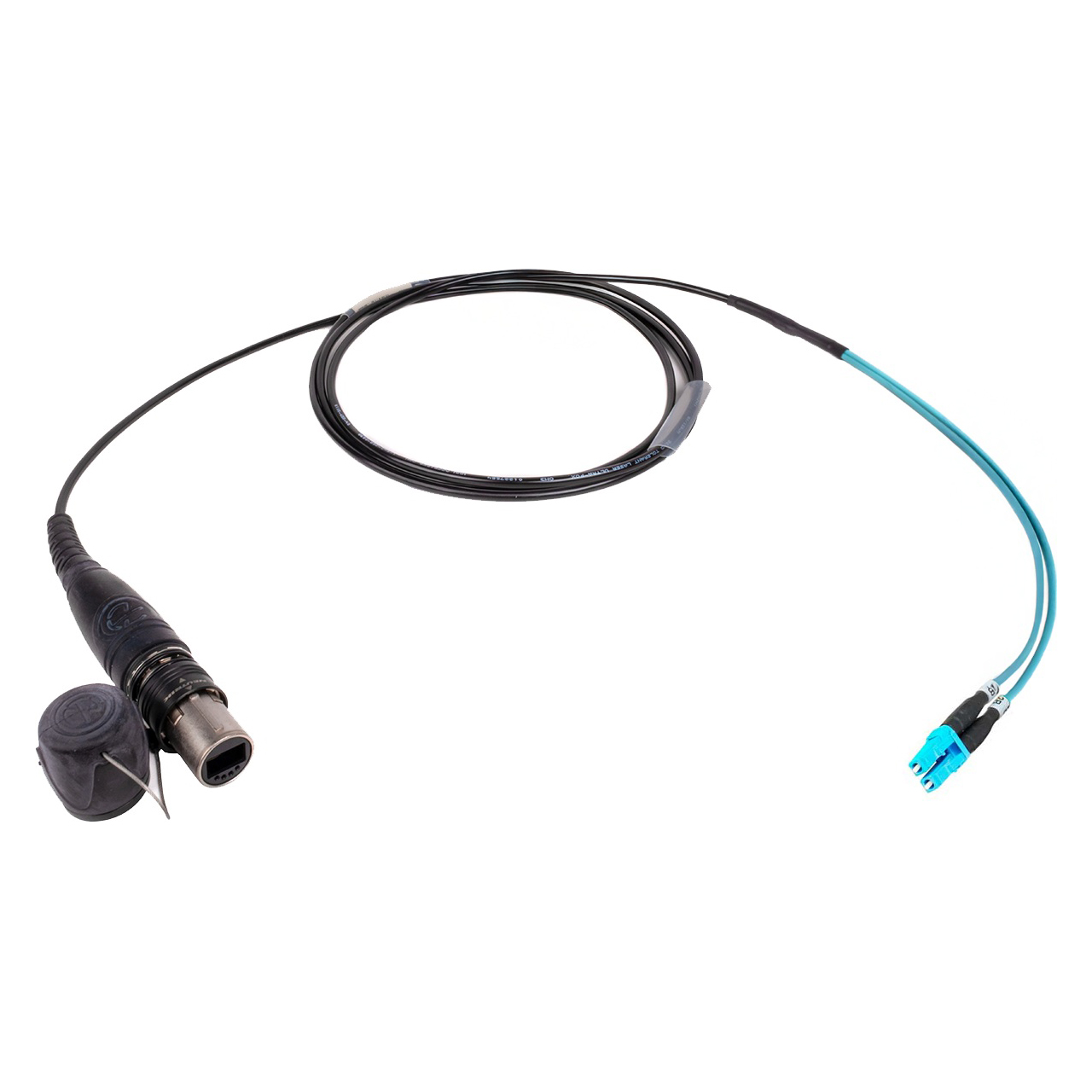

Camplex opticalCON DUO to Duplex LC Multimode Fiber Optic Breakout - NKO2M-LC-A-0 - 15 Foot

ITEM #: HF-OC2M-LC-0015 MFG #: HF-OC2M-LC-0015

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$529.49

Our Price:

$481.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


HF-OC2M-LC-0015 - Overview

opticalCON DUO to Duplex LC multimode Fiber Optic Breakout Cables. Two Fibers only, no electrical conductors. Designed for Broadcast & Pro-Audio Applications! Ruggedized opticalCON DUO fiber optic cables designed for internal wiring of racks and patch panels. Quickly adapt opticalCON DUO equipment to standard LC fiber systems. OpticalCON assemblies are COCA factory terminated and machine polished. Cables are assembled with lockable and water proofed metal caps as well as rubber guards. This is especially critical for outdoor applications. The ergonomically cable strain relief improves the cable protection and water resistance in long-term use. Custom Lengths & Configurations Always Available!

  • Features:

    • High Quality Neutrik opticalCON DUO connectors
    • 2-channel OM3 Multimode cable
    • Aramid Yarn Strength Member provides strength and crush resistance
    • No Electrical conductors - Fiber only
    • Tactical Tight-Buffered PUR cable jacket

  • Specifications:

      Fiber Specifications:
    • Fiber Type: Bend Tolerant OM3 Multimode
    • Core/Cladding Diameter (µm): 50/125
    • Numerical Aperture: 0.20
    • Wavelength (m): 850/1310
    • Gigabit Ethernet Distance (m): 1000/600
    • 10-Gigabit Ethernet Distance (m): 300/300
    • Max Cabled Attenuation (dB/km): 3.5/1.5
    • Min Laser EMB Bandwidth: 2000/500
    • Min OFL LED Bandwidth: 1500/500
    • Primary Coating Diameter (µm): 245
    • Secondary Coating Diameter (µm): 900
    • Proof Test Level: 100
    • Jacket Material: Polyurethane
    • Buffer Material: Hard Elastomeric
    • Cable Diameter: 0.20in (5.0mm)
    • Impact Resistance: 1,500 Impacts
    • Crush Resistance: 1,800 N/cm
    • Max Tensile Load:
      •Installation: 400lbs (1800 N)
      •Operating: 130lbs (600 N)
    • Min Bend Radius:
      •Installation: 2.0in (5.0cm)
      •Operating: 1.0 in (2.5cm)
    • Temperature:
      •Operating: -40°F to 185°F (-40°C to +85°C)
      •Storage: -94°F to 185°F (-70°C to +85°C)

      Neutrik opticalCON DUO Connector:
    • Type: Duplex LC-UPC
    • Insertion Loss: < 0.5 dB / connection
    • Lifetime: 5000 mating cycles
    • Locking Device: Push-Pull

      Senko Connectors:
    • Typical Insertion Loss (dB): 0.10
    • Max. Insertion Loss (dB): 0.20
    • Typical Return Loss (dB): >25
