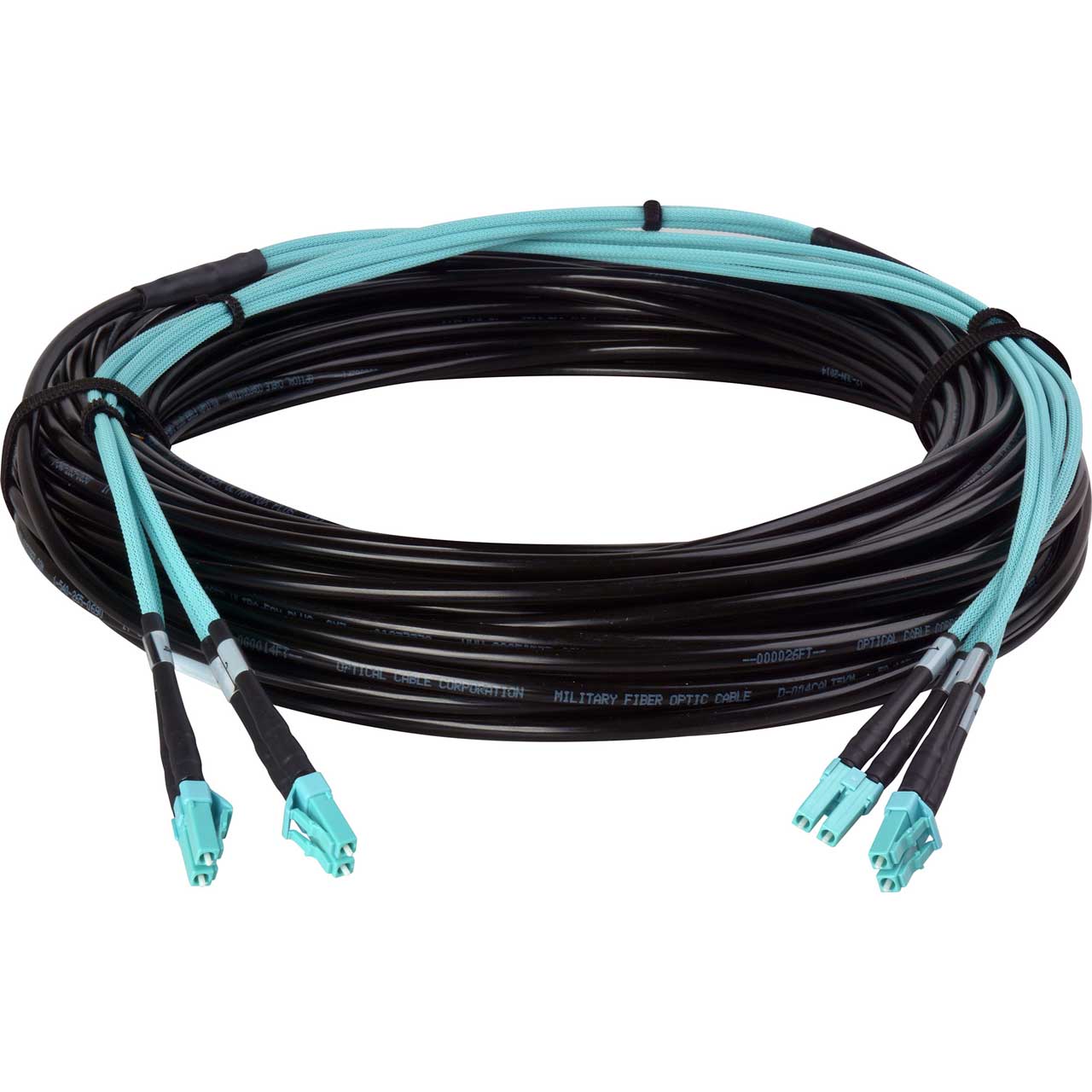

Camplex 4-Channel LC Multimode OM4 Fiber Optic Tactical Cable - 250 Foot

ITEM #: HF-TS04LCM4-0250 MFG #: HF-TS04LCM4-0250

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$834.49

Our Price:

$770.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


HF-TS04LCM4-0250 - Overview

The Camplex HF-TS04LCM4 Series 4-Channel OM4 Multimode fiber optic tactical snake cable designed for multiple deployments for field production in outside broadcast, rental houses and more. Highly flexible tight-buffered tactical cables with internal aramid strength members for crush resistance in high traffic areas if handled properly and a polyurethane outer sheath designed to withstand crushing by both Military Tanks and Outside Broadcast vehicles. Cables are complete end-to-end tactical grade where fanout channels are covered with tactical grade polyurethane furcation tubing. All assemblies multi-stage machine polished and tested for less than .55db RL (complete per-channel test results available on request). Built in-house at our state-of-the-art fiber lab - the only fiber lab in the US to have achieved full certification from LEMO, Neutrik & Canare!

Custom configurations and assemblies as well as full repair services are always available for any brand tactical or SMPTE hybrid fiber cable.

  • Features:

    • 4-Channel LC Multimode OM4 Fiber Optic Tactical Snake
    • UL-Listed OFNR and UV, Water and Fungus Resistant Fiber Cable Jacket
    • Wide Operating Temperature Range
    • Helically Stranded Core for Greater Flexibility and Mechanical Protection of the Optical Fibers
    • High Crush Resistance
    • Purple Shrink for OM4 Identification

  • Specifications:

    • Core/Cladding Diameter: 50/125µ
    • Min Bend Radius: 1.1" (2.8cm)
    • Jacket Material: Polyurethane
    • Cable Diameter: 0.22" (5.5mm)
    • Operating Temperature: -40°F - 185°F (-40°C - 85°C)
    • Storage Temperature: -94°F - 185°F (-70°C - 85°C)

  • Warranty:

    • 1 Year
