Hall Technologies EX-HDU-IP HDMI and USB Extension on CAT6 with Audio Integrated Control and IP


  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    EX-HDU-IP - Overview

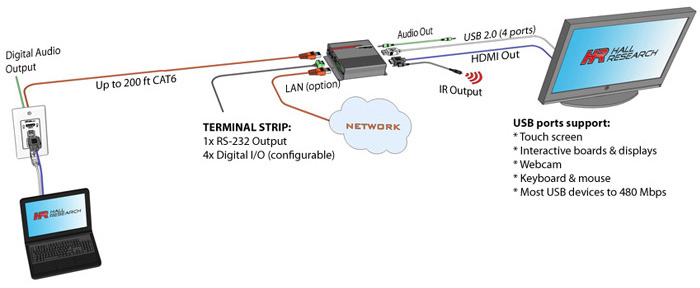

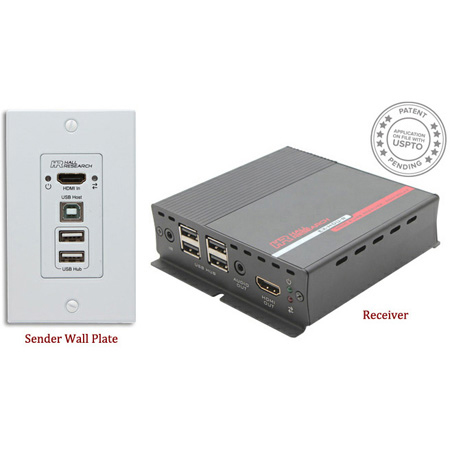

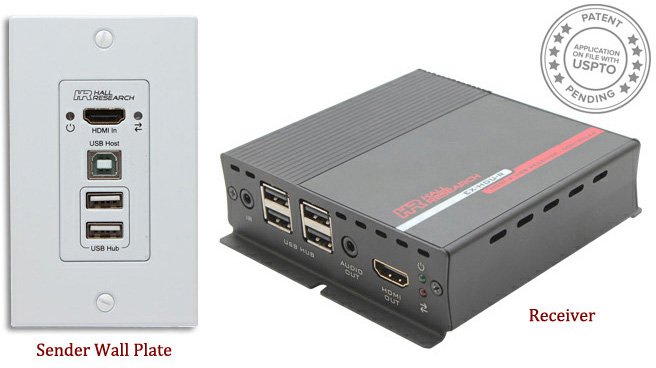

    The Hall Technologies EX-HDU-IP is used to extend HDMI video and USB data on a single Cat6 cable up to 200 ft (60 meters). HDMI audio is extracted and is provided both as analog stereo and multi-channel digital. The EX-HDU can also be used to control other equipment by providing programmable contact closure I/O, RS-232 output, IR output, and optional LAN interface with internal WebGUI and IP control. The EX-HDU extender consists of an EX-HDU-WP single-gang wall plate transmitter and an EX-HDU-R (or EX-HDU-R-IP) receiver. They connect using standard CAT5e/6 UTP cabling up to 200 feet (60 Meters) long.

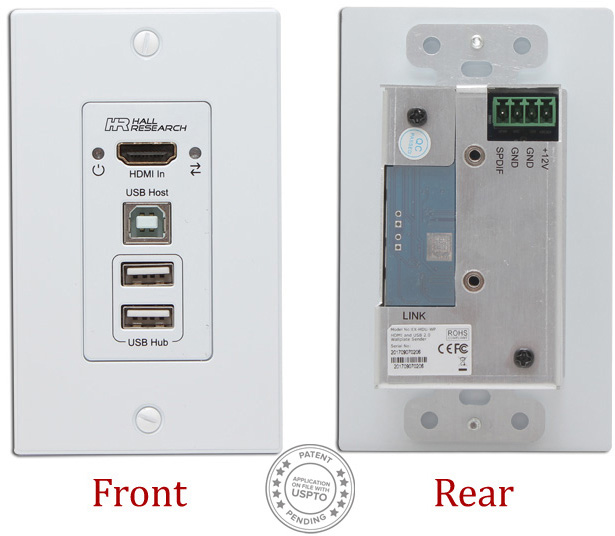

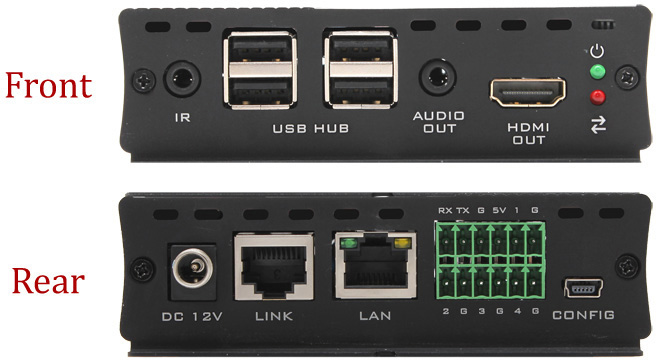

    The wall-plate Sender gets its power from the Receiver via the same UTP cable and does not need a separate power supply. For convenience, the wall plate features a USB hub with two USB ports for connection of USB devices. The plug-and-play extender is compatible with all PCs, MACs, and Android Tablets and does not require driver installation. Simply plug the PC's HDMI and USB ports to the sender and make them available at the remote receiver. The Receiver provides HDMI video output, stereo audio output, 4 USB ports, IR output, and a terminal strip that has RS-232 output plus 4 programmable digital I/O ports. A mini-USB port is also provided for configuration upload from a PC for cases where the Receiver is used also as a control system.

    • Features:

      • Extends HDMI + USB 2.0 to 200 ft (60 m) on one Cat 6 cable
      • Wall plate sender has 2-port hub for connection to USB devices to the host PC
      • Receiver provides HDMI, 4 USB ports, RS-232 for display control, contact closure I/O, and Stereo Audio outputs
      • Perfect for Interactive displays, Soft CODECs, and KVM extension
      • Wall plate does not require separate power supply
      • Receiver is available with optional IP and WebGUI control
      • Supports HDTV resolutions to 1080p 60 Hz
    • Specifications:

      • Video Standards: DVI (Single Link) HDMI 1.4 HDCP 1.1
      • Signal Type: TMDS
      • Resolutions: DVI - VGA (640x480) thru WUXGA (1920x1200) HDTV - 480p thru 1080p60 (no interlaced support)
      • Audio Format: LPCM 2 Channel Audio (32-192kHz sample rate)
      • Power Supply: 100 to 240 VAC, 47-63 Hz, External; 12VDC
      • Storage Temperature/Humidity: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, non-condensing
      • Temperature/Humidity Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, non-condensing
      • Cooling: Convection
      • Enclosure: Metal (Steel)
      • Vibration: ISTA 1A in carton (International Safe Transit Association)
      • Safety: CE
      • EMI/EMC: CE, FCC Class A
      • MTBF: 90,000 hours (Calculated Estimate)
      • Warranty: 3 years parts and labor
    • GTIN:
