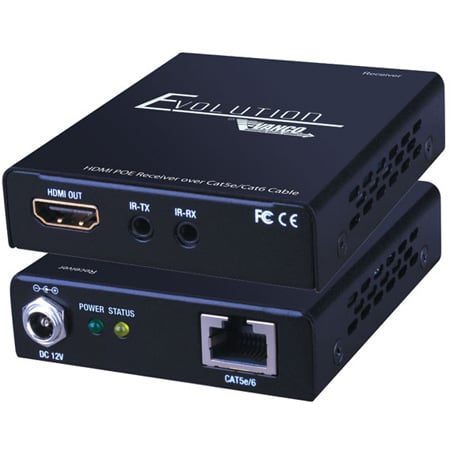

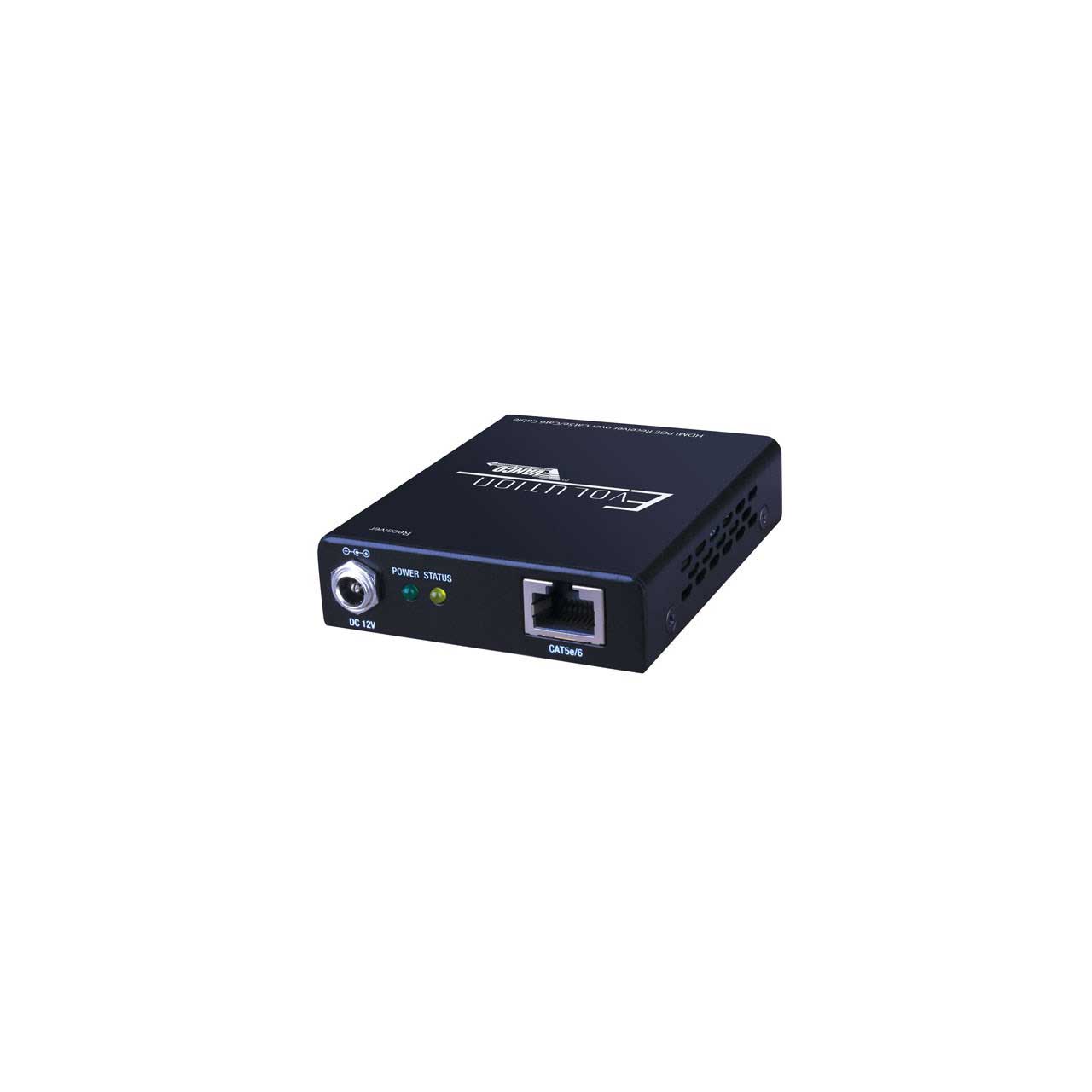

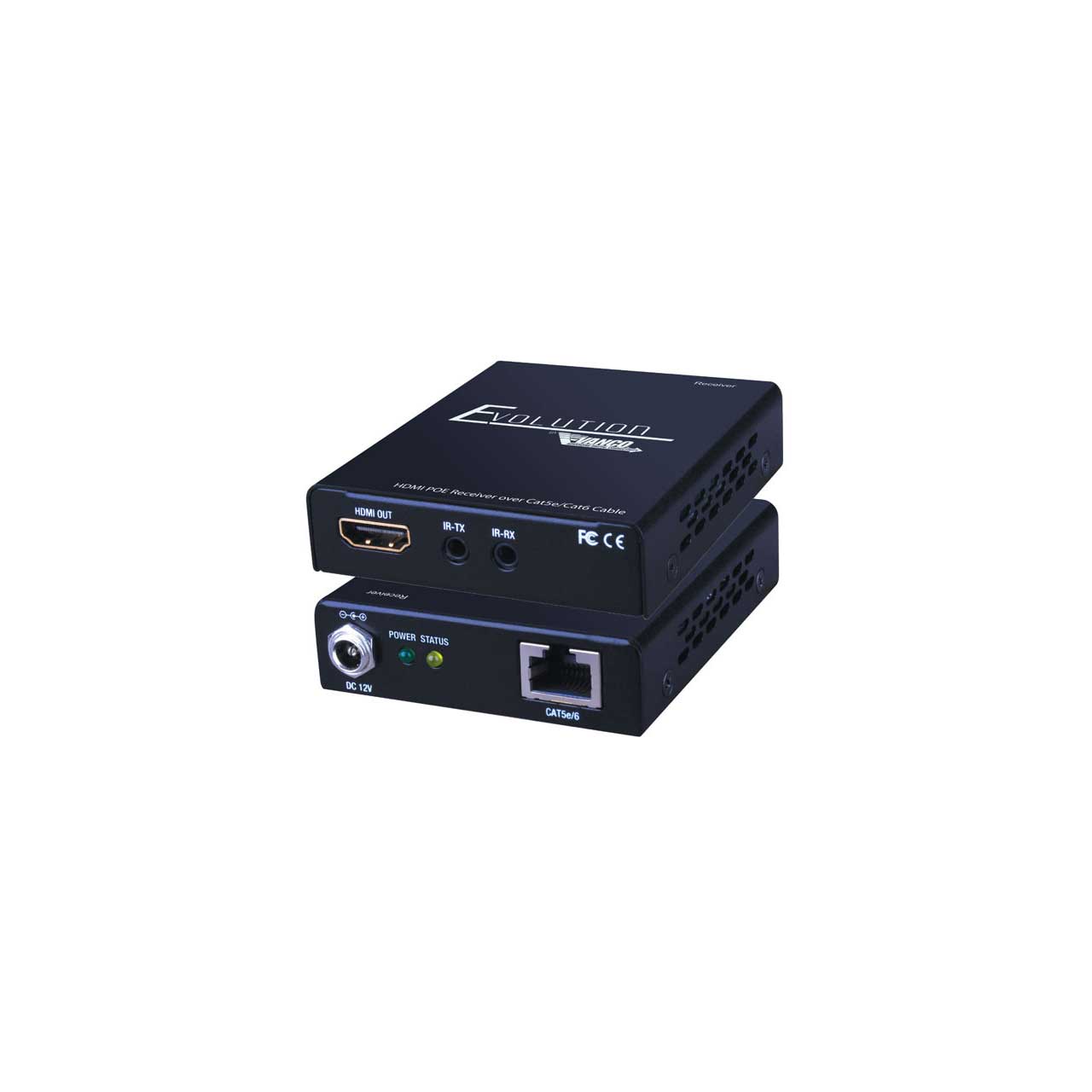

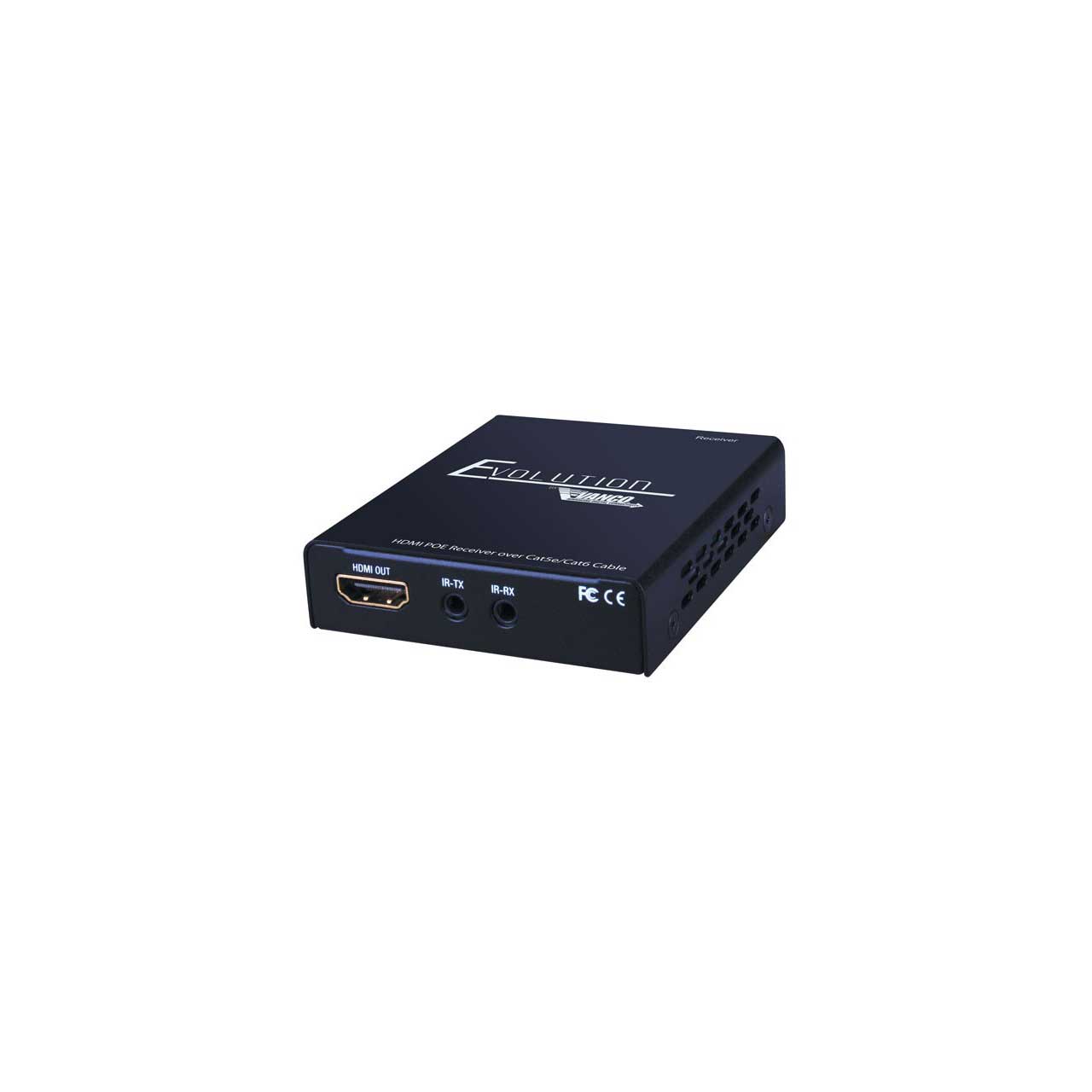

Vanco EVRX2006 HDMI POE Receiver - 165 Foot/50M

ITEM #: VCO-EVRX2006 MFG #: EVRX2006

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$221.99

Our Price:

$184.99

Availability: In Stock
iAvailability Description Popup


    EVRX2006 - Overview

    The Evolution by Vanco EVRX2006 HDMI Receiver over Single Cat5e/6 with Bi-directional IR, auto EDID/EQ, and PoE receives high definition video and audio signals, IR, and power at a distance of up to 164ft/50m over a single Cat5e/6 cable. Power over Ethernet (PoE) Technology transmits power over Cat5e/6, allowing the Receiver to be powered without the use of a power supply. No EDID or EQ adjustments are necessary as the unit automatically adjusts for compatibility and gain. This receiver also features a newly redesigned slim and compact chassis for easy and flexible installations. This product fully supports DTS-HD and Dolby TrueHD audio formats, and is HDCP compliant. In addition, bi-directional IR pass-through allows for source or display control. The EVRX2006 works with Evolution Series Splitters, Matrix Selector Switches and Extender Transmitters over Cat5e/Cat6 that have POE functionality.

    • Features:

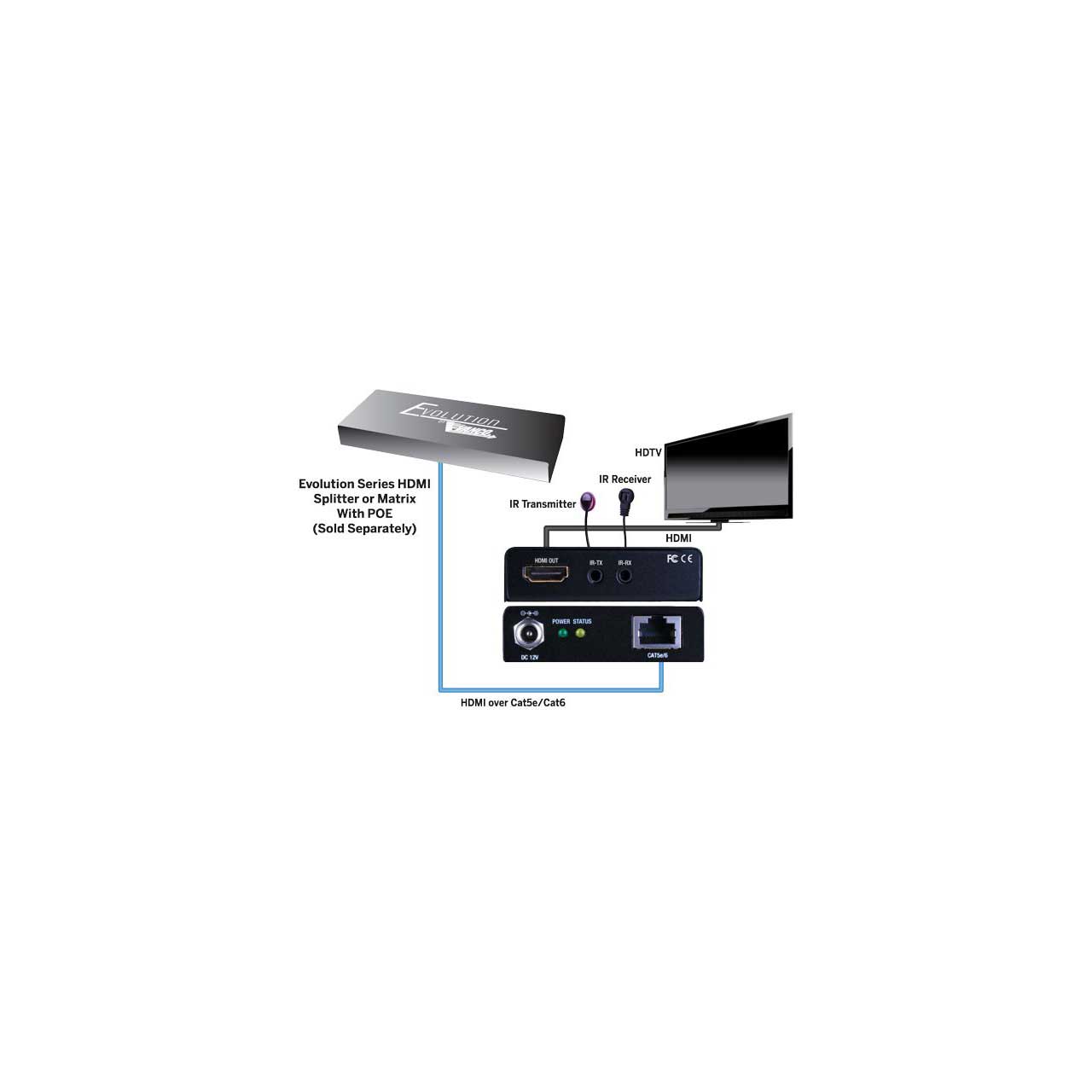

      • To be utilized with Evolution by Vanco matrix units, splitters, and extender transmitters that send HDMI
      • signals over a single Cat5e/6 cable and feature Power over Ethernet (PoE) Technology
      • Allows HDMI audio/video signals to be transmitted using a single Cat5e or Cat6 Cable
      • Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6; No power supply needed on the receiver end
      • Slim and compact design
      • Wide band Bi-directional IR system allowing for control of source or display (IR accessories included)
      • Wideband IR signal from 20KHz to 60KHz
      • Transmission Range: Extends HDMI transmission up to 50m (164ft) from the HDMI source at Full HD 1080p 24-bit color and 3D
      • Features Auto EDID and EQ Management
      • Works with HDMI and HDCP compliant devices
      • HDCP 2.0 compliant
      • Pure uncompressed 7.1ch digital audio
      • Supports DTS-HD and Dolby TrueHD high bit rate audio
      • Dimensions: 2.7" (68.58mm) W x .7" (17.78mm) H x 3.25" (82.55mm) D

    • Specifications:

      • HDMI Compliance: HDMI Deep Color, Full 3D
      • HDCP Compliance: Yes
      • Video Bandwidth: Single-link 165MHz [4.95Gbps]
      • Video Support: 480i/480p/720p/1080i/1080p @60
      • HDMI over UTP: Full HD [1080P]-50m [165ft]; HD [720p/1080i]-80m [262ft]
      • Audio Support: Surround Sound [up to 7.1 ch] or stereo digital audio
      • Input TMDS Signal: 1.2 Volts [peak to peak]
      • Input DDC Signal: 5 Volts [peak to peak, TTL]
      • ESD Protection: (1) Human body model +/- 6kV (air-gap discharge) & (contact discharge) (2) Core chipset - ±8KV
      • PCB Stack-Up: 4 layer board (impedance control - differential 100, single 50)
      • IR Pass-Thru: Full-duplex bi-directional
      • HDMI Source Control: Controllable via IR pass-through from RX to TX and from TX to RX with IR extenders or via CEC integrated
      • HDMI Connector: Type A 19 pin female
      • RJ-45 Connector: WE/SS 8P8C
      • LED Indicators: Video lock yellow, Power, green
      • 3.5mm Connector: (TX and RX) IR Receiver/ IR blaster
      • Temperature:
        Operation: 32° to 104°F (0° to 40°C)
        Storage: -4° to 140°F -20° to 60°C)
      • Relative Humidity: 20 to 90% RH (no condensation)

    • GTIN:

      0741835105453
