    ECHO-1S - Overview

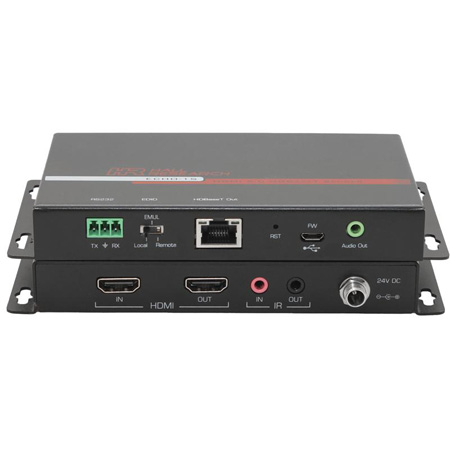

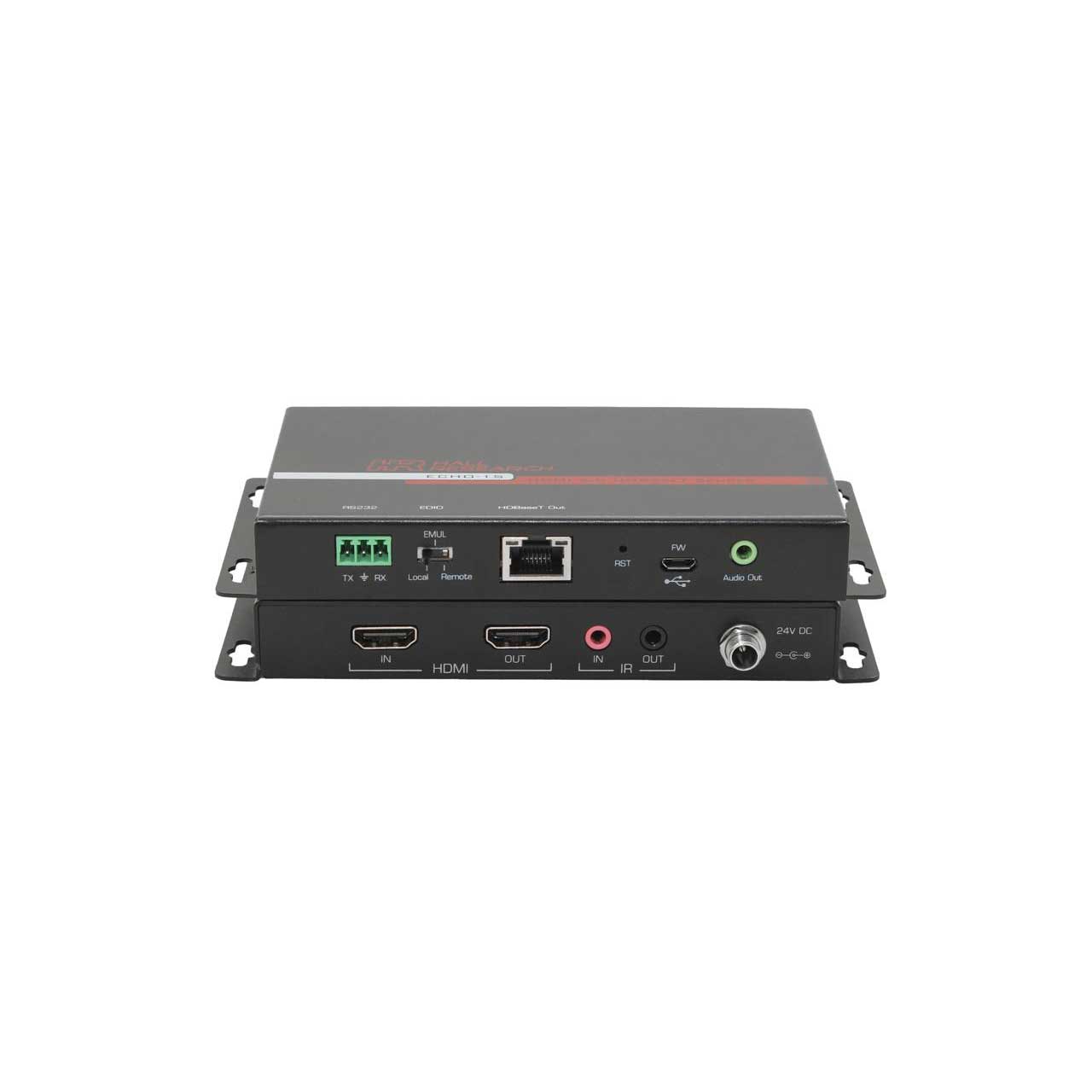

    Hall Technologies ECHO-1S 1 Channel HDBaseT Splitter (Sender) is designed to allow a single HDMI 2.0 source to display remotely at up to eight different locations, using HDBaseT technology. HDMI resolutions up to 4K UHD ([email protected] 4:4:4) can be extended up to 70m, while resolutions up to 1080p can be extended 100m over a single CAT5e or CAT6 cable. The ECHO family supports HDCP 2.2 and 1.4 content protection, as well as HDR10 high dynamic range video.

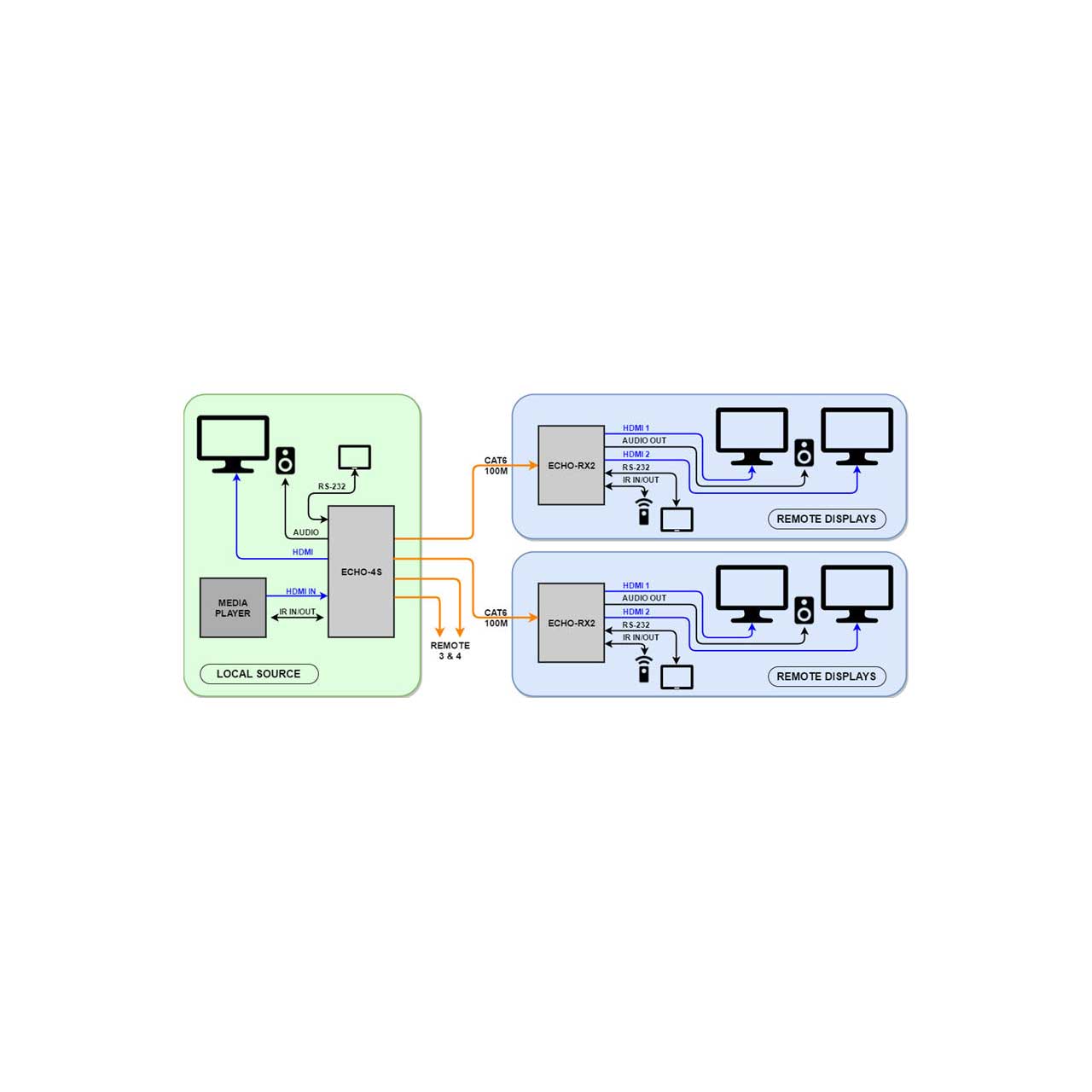

    In addition to HDMI extension, the ECHO family also extends RS-232 serial data, and bi-directional IR for control of remote devices. All senders include a local HDMI output, EDID routing control, de-embedded analog audio, and Power over Cable (PoC) to power remote receivers. The ECHO-4S and ECHO-8S have built-in HDMI splitters to extend a single video to four and eight receivers respectively and have additional features including RS-232 and IR loop output for daisy-chaining Senders, and digital TOSLINK audio de-embedding.

    The ECHO-RX2 receiver has a built-in HDMI splitter for connection to a secondary display, RS-232 and bi-directional IR for control, and de-embedded analog audio output. When used with an ECHO-1S, install the power supply at either sender or receiver - whichever is more convenient.

    • Features:

      • HDBaseT Extender
      • Extend UHD [email protected] 4:4:4 up to 70m & 1080p up to 100m
      • HDCP 2.2, HDR10, 3D Support
      • RS-232 Pass-Through & Control
      • Bi-directional IR (Wide Band)
      • HDMI loop output on the Sender
      • Dual HDMI output on the Receiver
      • Audio Extraction on the Sender and Receiver
      • EDID management
      • Power over Cable (only Sender side needs power supply)
      • Locking Power Supply Connector
    • Specifications:

      • Video Standards: HDMI 2.0 video specifications including HDR10, 3D video, HDCP 2.2, 1.4, DVI (single link)
      • Video Connectors: (1) HDMI Input, (1) HDMI Output
      • Resolutions: HDTV signal - 480p through [email protected] 4:4:4
      • DVI signal VGA (640x480) thru WUXGA (1920x1200)
      • Audio: All HDMI Embedded audio including: LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio (32-192 kHz sample rate)
      • Other Signals: RS-232 pass-through, (1) RX, TX and GND on Terminal Strip (Input and Loop Output), RS-232 Input Baud Rate: 115200, N, 8, 1 for configuration otherwise pass-through
      • IR: Wide-band IR pass-through: 38 - 56 kHz supported; (1) 3.5mm IR Inputs (Input and Loop), (1) 3.5mm IR Outputs (Input and Loop)
      • USB: USB USB 2.0 Micro type B (for firmware update only)
      • General: Power Supply: 100 VAC to 240 VAC, 47-63 Hz, External; 24 VDC 4A, MAIN: 24 VDC 2A, PoC: 24 VDC 4A
      • Temp/Humidity: Storage: -40 to +158°F (-40 to +70°C) / 5% to 90%, non-condensing
      • Operating: +14 to +131°F (-10 to +55°C) / 5% to 90%, non-condensing
      • Typical Power Consumption: 15W (Sender) 30W (PoC)
      • Cooling: Convection
      • Enclosure type: Metal (Steel)
      • Dimensions: 0.82" H x 6.06" W x 3.09" D (22.8mm H x 153.9mm W x 78.5mm D)
      • Safety: CE
      • EMI/EMC: CE, FCC Class A
      • MTBF: 90,000 hours (estimate)
    • Warranty:

      • 3 Year Warranty
