ikan PT4700S-PEDESTAL-TK 17 Inch SDI Turnkey Teleprompter Travel Kit with Tripod / Dolly & Travel Case

ITEM #: IKAN-PT4700SPEDT MFG #: PT4700S-PEDESTAL-TK

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$11,799.00

Our Price:

$11,699.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PT4700S-PEDESTAL-TK - Overview

    Turnkey Broadcast Solution
    ikan's Turnkey Broadcast Solutions include everything you need for your professional camera setup. ikan PT4700S-PEDESTAL-TK includes a 17" teleprompter, pedestal, and dolly. All of our systems have been tested internally for payload compatibility.

    The remaining payload capacity, after mounting the full 17" teleprompter, can accommodate camera setups up to 31.3 lbs. The pedestal, without the teleprompter system, can accommodate cameras up to 61.7 lbs. This solution includes a hard case that features custom-cut foam for the entire teleprompter system. This bundle also includes a separate hard case for the pedestal, and a carrying bag for the dolly.

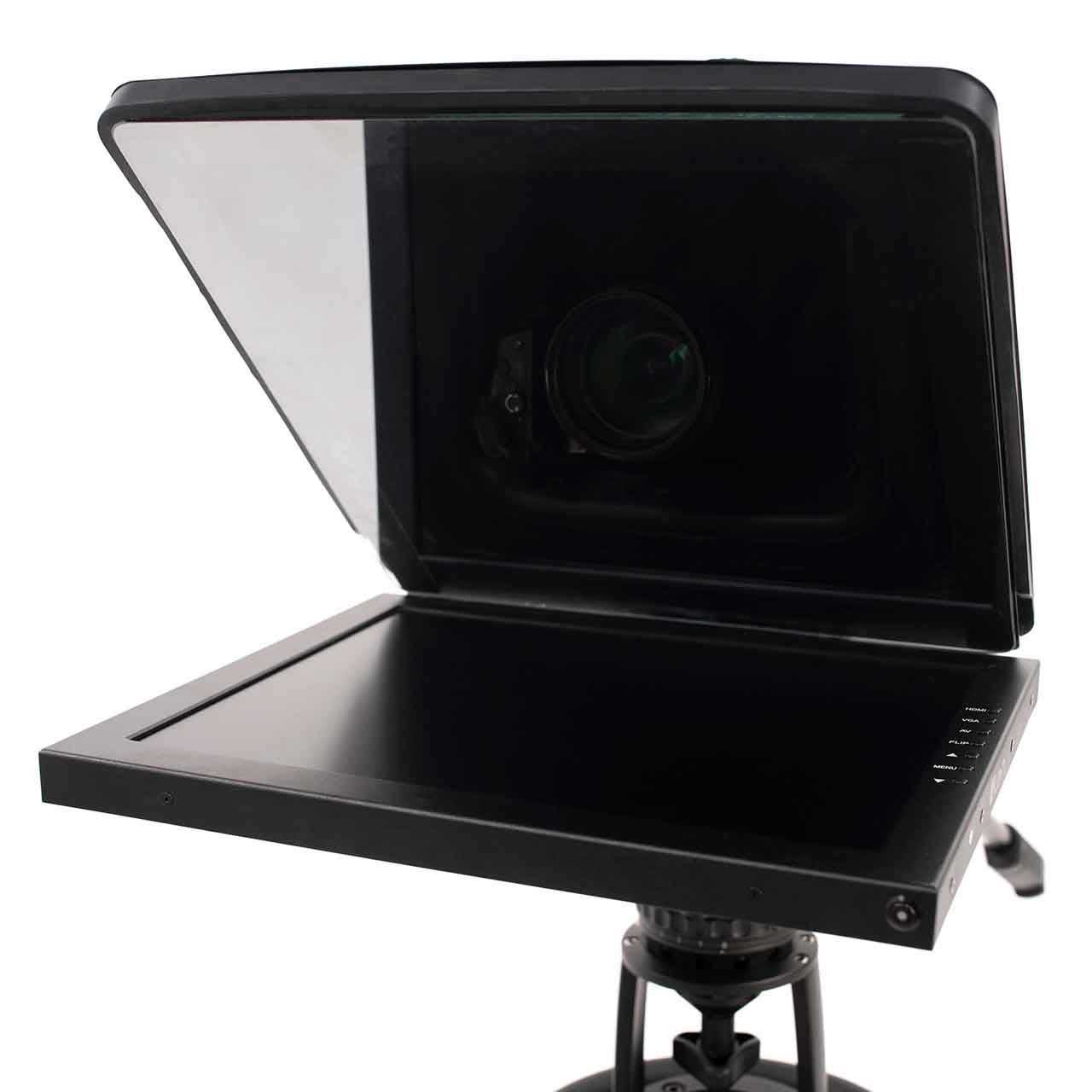

    17-Inch Teleprompter System
    ikan's 4th generation professional teleprompter series is designed for a quick and easy setup to work efficiently in outside broadcast applications or professional studios. The lightweight aluminum teleprompter has multiple 3/8-16" and 1/4-20" for mounting to a pedestal. The teleprompter monitor includes SDI, HDMI, & VGA inputs.

    Extreme Clarity
    The high quality 70/30 made-in-America teleprompter glass provides the perfect balance of reflection and pass-through without distorting the image. With 1000 nits the prompting image will always be crisp and visible whether you're under the sun or studio lighting.

    Large Range Of Camera Compatibility
    ikan's professional line teleprompters not only include four different camera mount bases but also counterweights to allow for a large range of different-sized cameras to work. The base can conveniently slide to adjust the weight without the need to remove the plate.

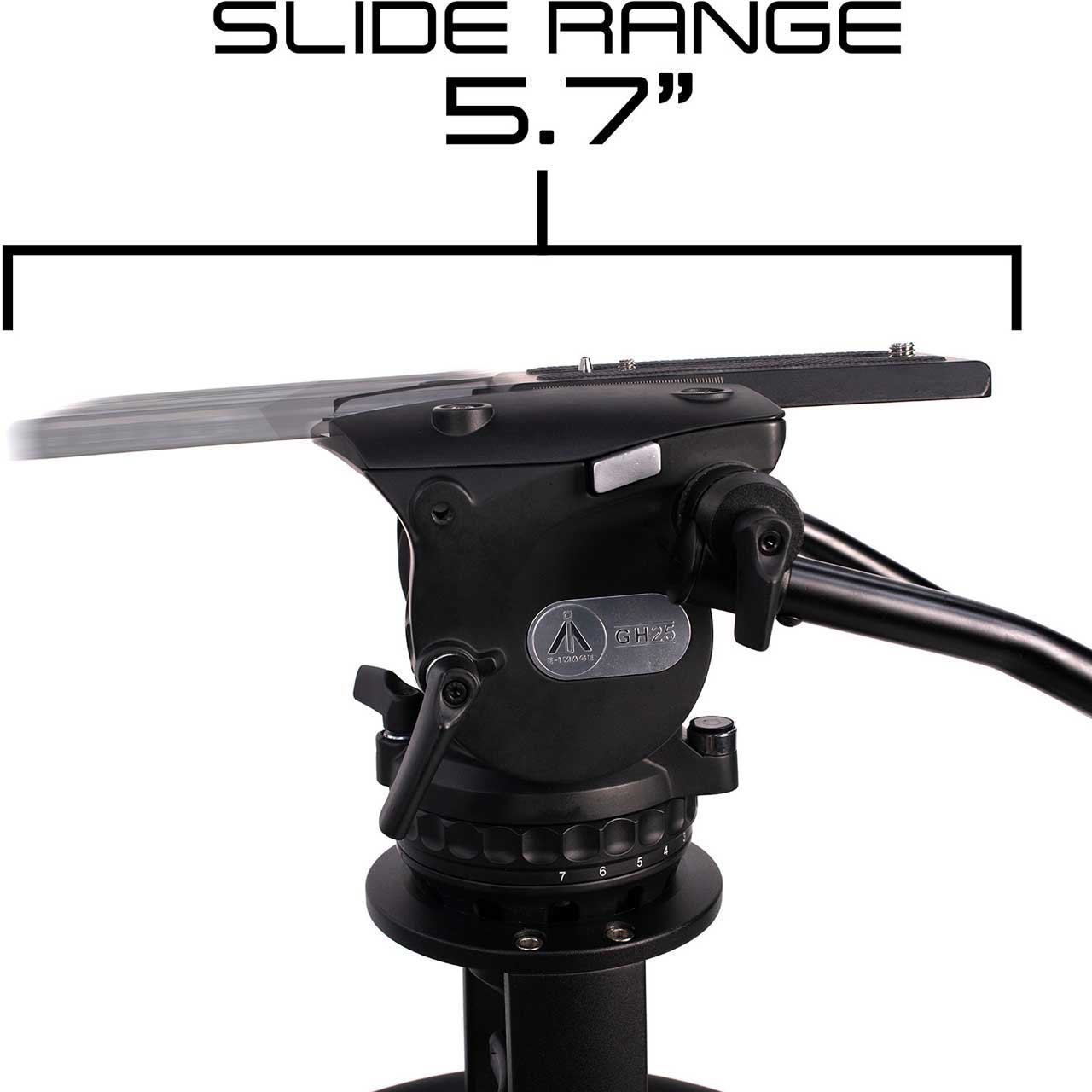

    Slide Range
    The 60mm tripod plate mounts the teleprompter system to the fluid head and provides an extra 5.7 inches of sliding range to counterbalance your entire teleprompter and camera setup.

    Pan & Tilt Locks
    The fluid head features individual locks for both the pan and tilt.

    Drag/Counterbalance
    The fluid head features 15-steps of adjustable counterbalance system, and 8 steps of pan & tilt dampening.

    Dual Panhandles
    The dual panhandles allow you to maintain firm control on your shots. These panhandles also work perfectly for mounting zoom, focus, and iris controls. The length range for each panhandle is 16.7" to 24".

    Pneumatic Pedestal
    This pneumatic pedestal includes an air pump to inject air into the center column and an air release allows you to fine-tune the balance.

    • Features:

      • Includes 17" SDI Teleprompter, Pedestal, & Dolly
      • Accommodates Camera Payloads up to 31.3 lbs
      • For Use in Studios, Live Events, & Virtual Productions
      • Video Inputs: 3G-SDI, HDMI, VGA
      • Pneumatic Pedestal w/ Fluid Head
      • Dolly w/ Cable Guards
      • Hard Case for Teleprompter, Pedestal & Carrying Bag for Dolly

    • Specifications:

      • General Specs
      • Available Payload: 31.3lbs
      • Weight of Full System: 89.47lbs
      • Max Height of Full System: 7.25 ft
      • Min Height of Full System: 4.65 ft

        17" Teleprompter
      • Riser Plate Height: Low: 2.06" / Medium: 3.74" / High: 5.31" / DSLR: 6.29"
      • Length of Rods: 15mm x 400mm
      • Build Material: Chassis: Anodized Aluminum / Rods: Carbon Fiber
      • Reading Range: 20 ft./6.1m
      • Beamsplitter Ratio: 70/30
      • Beamsplitter Shape: Rectangular
      • Beamsplitter Material: Glass
      • Tripod Mounts: 8 x 1/4" -20 Female / 6 x 3/8" -16 Female
      • Product Weight w/ Low Plate: 24.98lbs.
      • Product Weight w/ Medium Plate: 25.38lbs
      • Product Weight w/ High Plate: 25.51lbs
      • Product Weight w/ DSLR Plate: 24.88lbs

        17" Teleprompter Monitor
      • Aspect Ratio: 4:3
      • Maximum Brightness: 1000 cd/m2
      • Screen Size (Diagonal): 17"
      • Mount: VESA 100mm
      • Video Inputs: AV COMPOSITE, HDMI, VGA
      • Input Voltage: DC 12v / 4A
      • Power Consumption: 30W
      • Product Weight: 5lbs
      • Product Dimensions: 15.5" x 13.75" x 1"
      • Native Resolution: 1280 x 1024
      • Viewing Angle: 160° (H) / 170° (V)
      • Build Material: Aluminum Chassis
      • Image Flip: Horizontal: Yes / Vertical: Yes

        Pedestal
      • Bowl Size: 100mm
      • Payload Capacity: 66lbs
      • Height Range: 40.4 - 71.1" (with GH25 Head)
      • Build Material: Legs: Carbon Fiber / Column: Aluminum / Riser: Cast Iron
      • Net Weight: 52.7lbs
      • On-Shot Stroke: 15"
      • Steering Ring Diameter: 12.04"

        Fluid Head
      • Head Payload Capacity: 61.7lbs
      • Bowl Size: 100mm
      • Counterbalance System: Stepped, 1-15
      • Pan Drag Settings: 0-7
      • Tilt Drag Settings: 0-7
      • Tilt Lock: Thumb Lock
      • Tilt Range:: -80°/+90°
      • Bubble Level: Yes- Illuminated
      • Pan Handle Length Range: 16.7" - 24"
      • Net Weight: 9.2lbs
      • Net Weight w/ Pan Handles: 11lbs
      • Sliding Plate Range: 5.7"
      • Temperature Range: -40°F - 194°F
      • Camera Plate Length: 6.3"

        Dolly
      • Net Weight: 15lbs
      • Footprint Diameter: 39.4"
      • Height: 7.3"
      • Radius: 19.7"
      • Wheel Width: 3.9"
      • Lockable Wheels: Yes
      • Build Material: Legs: Aluminum / Wheels: Rubber / Screws: Steel
      • Payload: 220.5lbs

        Travel Case
      • Internal Dimensions: 22 x 17 x 12.75"
      • External Dimensions: 24.34 x 19.47 x 14.38"
      • Weight: 18.75lbs
      • Carry/Transport Options: Handle, Retractable Handle, Wheels (Built-In)
      • Color: Black
      • Security Lock: Accepts Padlock
      • Water Resistance: Waterproof
      • Build Material: Polypropylene

        Shipping Box & Diemsions
      • Box 1 / Box 2 / Box 3
      • Shipping Weight (lbs.): 61 / 50 / 58
      • Dimensions (in.): 37 x 18 x 15 / 44 x 20 x 10 / 25 x 24 x 17

    • Item Includes:

      • 1x EP880S Rolling Carrying Case
      • 1x EP880S Pneumatic Pedestal Base
      • 1x Air Pump
      • 1x Center Support Column
      • 1x EI-7007 Track Lock Dolly Wheels w/ Cable Guard
      • 1x Soft Carrying Case for EI-7007
      • 1x GH25 Head
      • 2x Pan Handle
      • 1x Base Plate
      • 1x Bottom Plate
      • 1x Base
      • 1x Glass Frame Holder Bracket
      • 1x 17 in. 70/30 Teleprompter Glass
      • 1x Hood Attachment Frame
      • 1x Teleprompter Hood Boot
      • 1x Silicone Teleprompter Hood
      • 1x Glass Holder
      • 2x 15mm Rod Clamps
      • 2x 15mm Rods
      • 1x Large Riser Camera Mount
      • 2x 3/8-16 D-Ring Screws
      • 2x D-Ring 1/4-20" Screws
      • 1x Counterweight
      • 1x Large Riser
      • 1x DSLR/Mirrorless Riser
      • 1x Medium Riser
      • 1x Short Riser Plate
      • 1x SDI 17 in. Teleprompter Monitor
      • 1x AC Adapter with Cord
      • 1x Teleprompter Glass
      • 1x PrompterPro Software (FREE with this teleprompter)
      • 1x Rolling Hard Case for Teleprompter System
