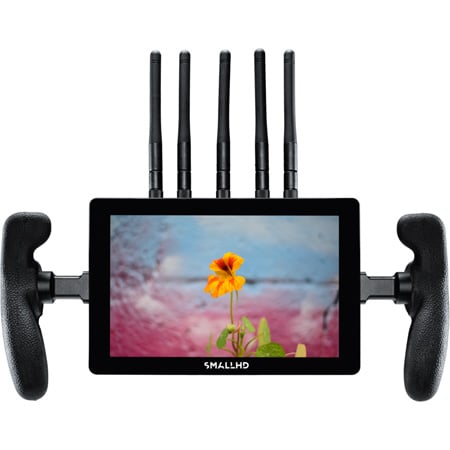

SmallHD MON-INDIE-7-BOLT-4K-GM 7 Inch Smart Touchscreen Monitor with Teradek Bolt 4K Receiver Monitor Module - V Mount

MON-INDIE-7-BOLT-4K-VM - Overview

• Features:

  • Responsive Touchscreen with Daylight Visibility
  • Full HD 7-inch IPS LCD with 1920x1200 resolution
  • 10-bit color processing in 100% Rec 709
  • 1000nits brightness
  • 4K & HDR compatible
  • 160-degree viewing angle

    Versatile I/O
  • Input: 1x 3G-SDI, 1x 3G-SDI In/Out, 1x HDMI 2.0, 1x Micro USB
  • Output: 1x 3G-SDI, 1x HDMI 2.0

    Rugged Lightweight Housing
  • Anodized aluminum chassis
  • Featherlight weight: 1.1lbs (.53kg)
  • Ultrathin body width: 1.2in (3.35cm)


• Specifications:

  • Environmental
  • Package Weight: 2lbs
  • Dimensions: 4.67 x 1.32 x 7.09 inch
  • Compliance: FCC, IC, CE, RoHS
  • Operating Temperature" 30F to 100F
  • Storage Temperature: 0F to 120F
  • Mount Points: Four 1/4-20 Mount Points
  • Construction: Anodized aluminum chassis

    Display
  • Panel Type: IPS LCD Touchscreen
  • Diagonal Size: 7.02
  • Resolution: 1920x1200
  • Pixel Density: 323
  • Aspect Ratio: 0.6736111111111112
  • Active Area: 5.95 x 3.72
  • Brightness: 1000 Nits
  • Contrast: 1000:1
  • Gamut: 100% rec709
  • Color Depth: 10-bit Processing (8-bit panel)
  • Viewing Angle: 160
  • Backlight Type: LED
  • Adjustable Backlight: Yes

    Input Signal
  • 3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
  • HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
  • SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
  • HDMI Input Types: YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
  • Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

    Output Signal
  • 3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
  • HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
  • SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
  • HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
  • Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

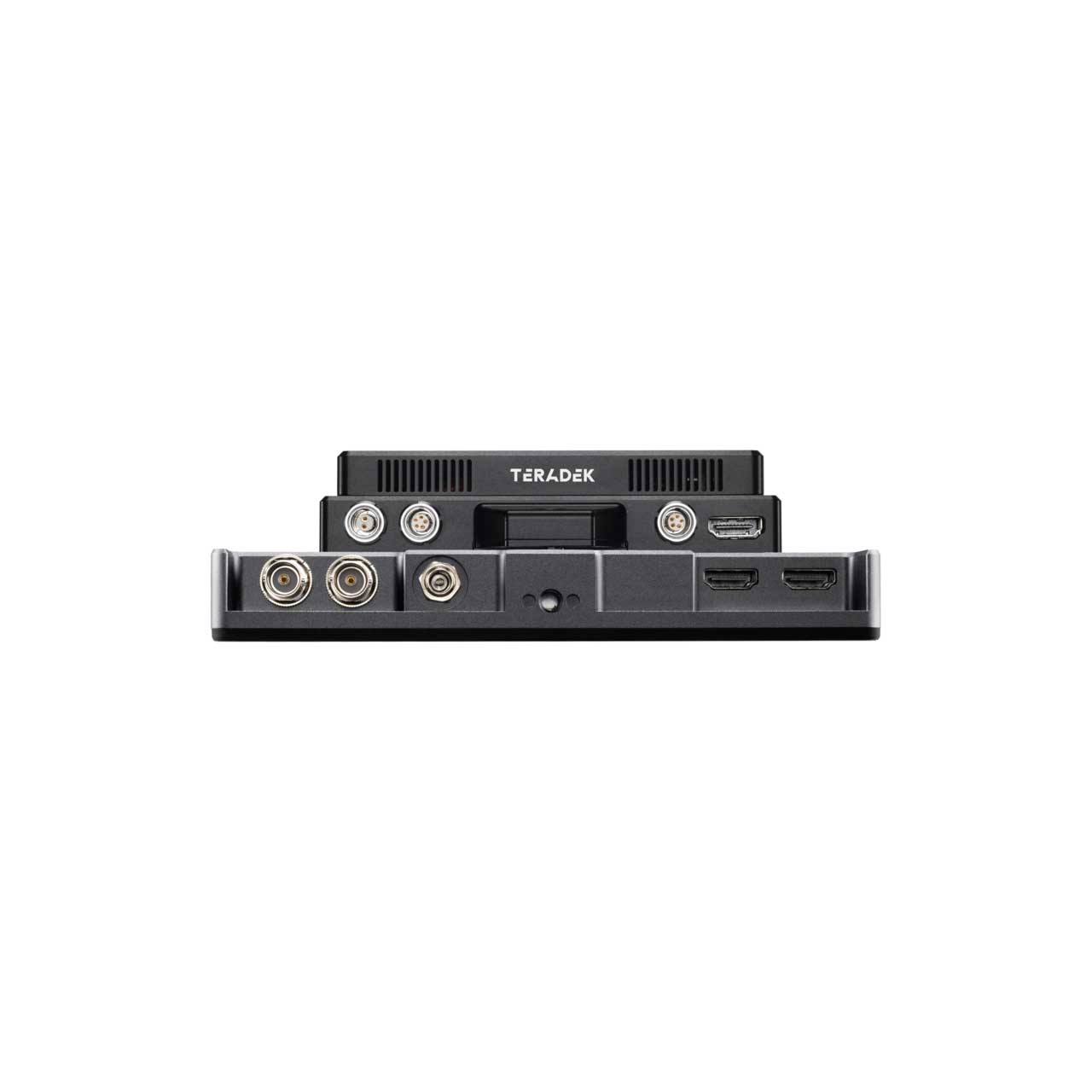

    Connector Type
  • SDI: 1x BNC 3G input and 1x BNC 3G selectable input/output
  • HDMI: 1 input and 1 output: HDMI Type-D Receptacles (full size)
  • Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
  • Power In: Barrel, 2.0mm ID, 5.5mm OD
  • USB: 1x USB 2.0 Micro-B receptacle

    Controls
  • Primary: Touch Screen
  • Record Capture: Image Capture Tool

    Power
  • Connector: Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
  • Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
  • Consumption: 17.3 watts
  • Batter Plate Included: Gold Mount
  • Power Supply: Recommend DC 12~15V at ~2.5 amp or greater
  • Battery Types: L-Series, V Mount, Gold Mount
  • Overload Protection DC input: Reverse polarity
  • Battery Chemistry: Li-ion
  • Battery Charging Time: Monitor does not support the charging of batteries

    Wireless
  • Color Sampling: HDMI: RGB 4:4:4, 8-bit
  • Delay Tx To Rx: <0.001sec
  • Supported Resolutions: 4Kp23.98/24/25/29.97/30 (4K signals will be displayed as 1080p on monitor) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 480i(NTSC)/576i(PAL)
  • Video Compression: Visually lossless
  • Audio Compression: 48kHz 24-bit PCM
  • Wireless Network: Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz DFS Frequencies: 5.270 ~ 5.670 GHz
  • RF Channel Selection: Auto, Manual
  • Encryption: AES-128
  • RF Power: AES-256, RSA-1024 key exchange
  • Range: Up to 750 ft, line of sight


• Item Includes:

  • 1x SmallHD Indie 7 Smart Monitor
  • 1x Teradek Bolt 4K RX Monitor Module

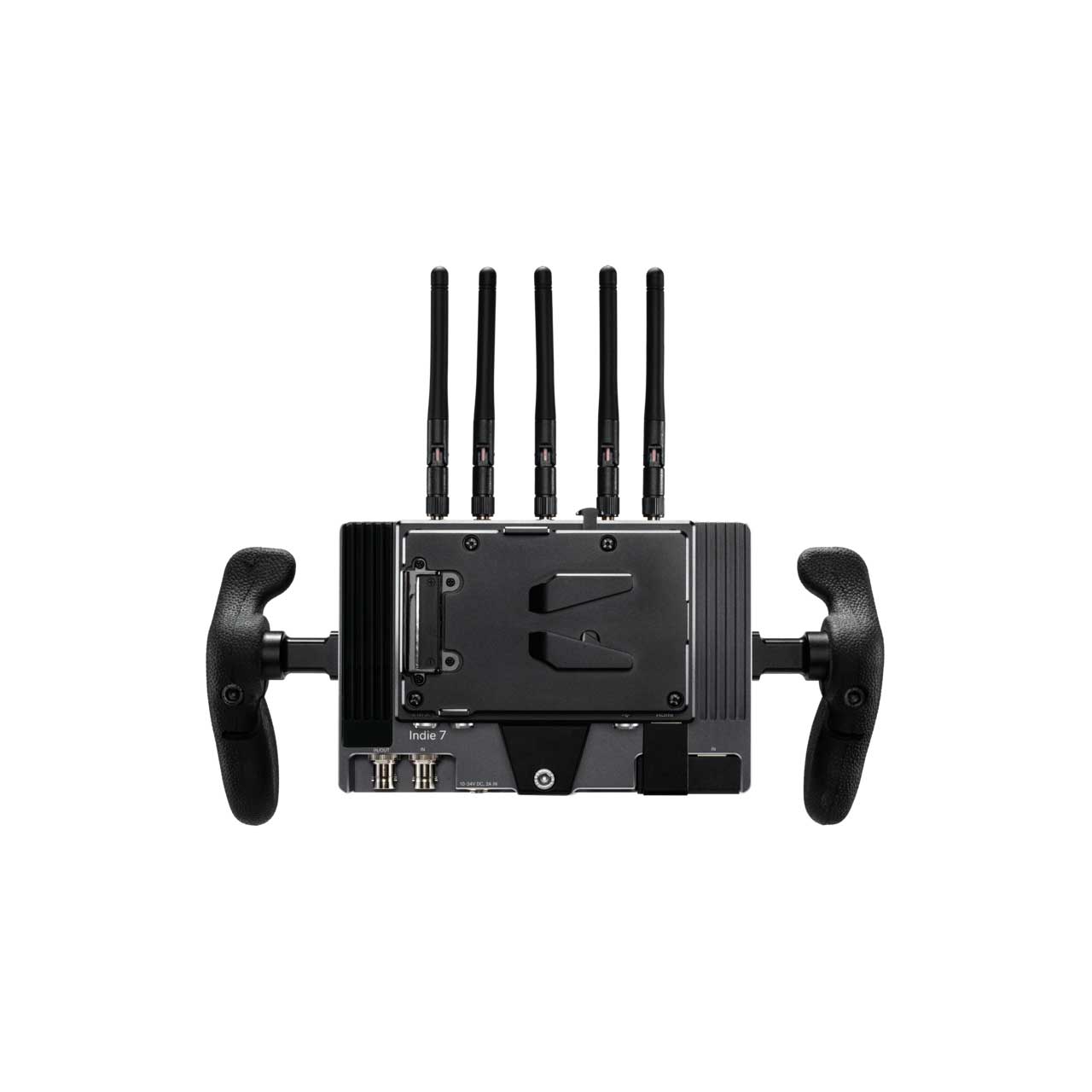

  • 1x V-Mount Battery Plate
  • 1x Monitor Handles and Neck Strap


• GTIN:

  0811786032709
