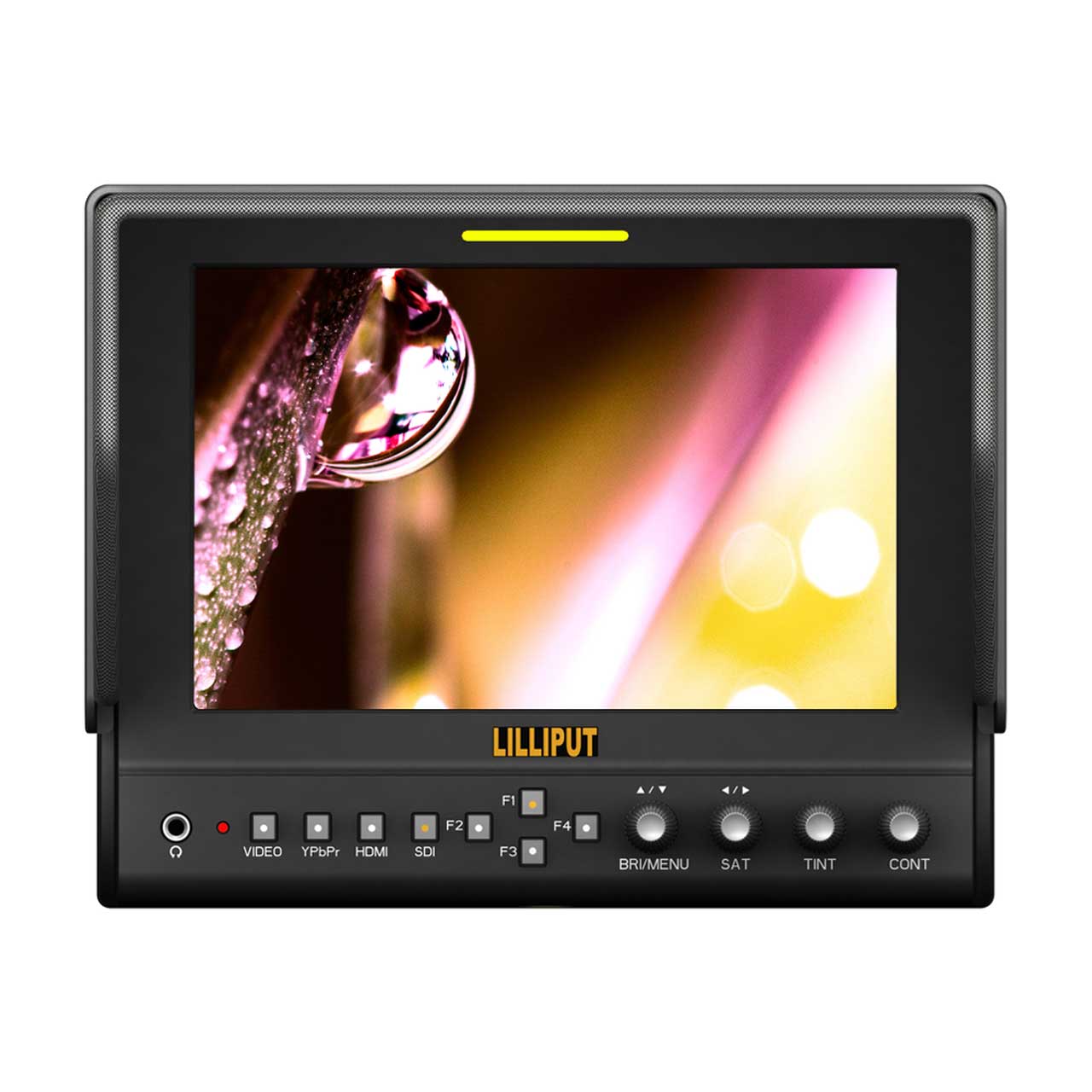

Lilliput 663/O 7-Inch 3G-SDI HDMI Camera-Top Monitor - 1280x800 Resolution/TALLY Interface with Light

ITEM #: LIL-663-O MFG #: 663-O

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    663-O - Overview

    7 inch 16:9 LCD Field Monitor with HDMI

    The Lilliput 663/O 7" Camera-Top Monitor is an on-camera monitor offering 1280 x 800 resolution with 400 nit brightness and an 800:1 contrast ratio. The 800:1 contrast ratio produces colors that are vivid, rich, and accurate. This monitor also includes a HDMI-output feature which allows you to duplicate the video content onto a second monitor.

    7" Monitor with Wide Screen Aspect Ratio
    The Lilliput 663/O monitor has a 1280 x 800 resolution, 7" IPS panel which is the perfect combination. It also fits neatly in a camera bag

    Optimized for DSLR Cameras
    Compact size and peaking functionality are the perfect complements for your DSLR camera's features

    Foldable Sun Hood Becomes Screen Protector
    The 663/O's smart screen protector folds out to become a sun hood. This solution provides protection for the LCD and saves space in your camera bag

    HDMI Video Output
    663/O includes an HDMI-output feature which allows you to duplicate the video content onto a second monitor without the need for additional HDMI splitters. The second monitor can be of any size and picture quality will not be affected

    High Resolution
    The Lilliput 663/O monitor uses LED-backlit display IPS panels that feature higher physical resolutions. This provides higher levels of detail and image accuracy

    High Contrast Ratio
    The 800:1 contrast ratio produces colors that are vivid, rich, and accurate

    Configurable to Suit your Style
    You can customize the 4 programmable function buttons (namely F1, F2, F3, F4) for shortcut operation according to different needs

    Wide Viewing Angles
    With a 178° viewing angle both vertically and horizontally, you can get the same vivid picture from wherever you are standing

    • Features:

      • IPS Panel Wide Viewing Angles
      • High Resolution: 1280X800
      • High Brightness: 400cd/M²
      • High Contrast: 800:1
      • Faster Response Time
      • Wide Voltage: DC 7-24V
      • TALLY Interface With Indicating Light
      • Firm & Portable Design
      • POP-UP Shortcut Menu
      • Watertight, Crushproof And Dust Proof
    • Specifications:

      • Panel Size: 7" LED backlit
      • Physical Resolution: 1280 x 800
      • Aspect Ratio: 16:9
      • Brightness: 400cd/m²
      • Contrast: 800:1
      • Viewing Angle: 178°/ 178° (H/V) (IPS)
      • Input Signal: 3G-SDI,HDMI, YPbPr, Composite, Audio(L/R),TALLY
      • Output Signal: 3G-SDI,HDMI
      • Audio: Speakerx1(built-in),Ear Phone Slotx1(built-in)
      • Current:900mA
      • Input Voltage: DC 7-24V(XLR Connector)
      • Battery Plate: V-mount(optional) Anton Bauer mount(optional) F-970, QM91D, DU21, LP-E6(4 chose 2)
      • Power Consumption: 11W Max
      • Operating Temperature: -4 to 140°F (-20 to 60°)
      • Storage Temperature: -22 to 158°F (-30 ~ 70°)
      • Dimension(LWD): 7.53 x 5.98 x 1.22 / 5.55in with cover (191.5 x 152 x31 /141mm with cover)
      • Suitcase Dimension(LWD): 12.16 x 9.72 x 3.83in (309 x 247 x 97.5mm)
      • Weight: 1.67lbs/2.05lbs with cover, 4.76lbs with suitcase (760g / 938g with cover, 2160g with suitcase)
    • Item Includes:

      • 1x Lilliput 7" LCD On-Camera HDMI Monitor
      • 1x Sun Shade
      • 1x LP-E6-Type Battery Plate
      • 1x F-970-Type Battery Plate
      • 1x HDMI A/C Cable
      • 1x Power & TALLY Cable
      • 1x Shoe Mount
      • 1x 12 VDC Adapter
      • 1x Suitcase
      • 1x Adapter Panel
      • 1x Gimbal Bracket
