Intelix INT-HD70-RX HDMI Slim 70M POH IR and Control HDBaseT Extender - Receiver

INT-HD70-RX - Overview

• Features:

  • Extends HDMI, IR, and RS232 over a single solid core shielded Category 5e or greater cable using the Valens VS010TX HDBaseT chip
  • 1080p, including HDCP 2.2 and multichannel audio, up to 70m
  • 3D and 4K x 2K (UHD) signals up to 40m

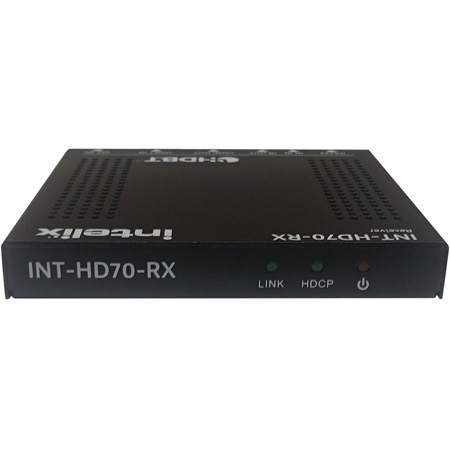

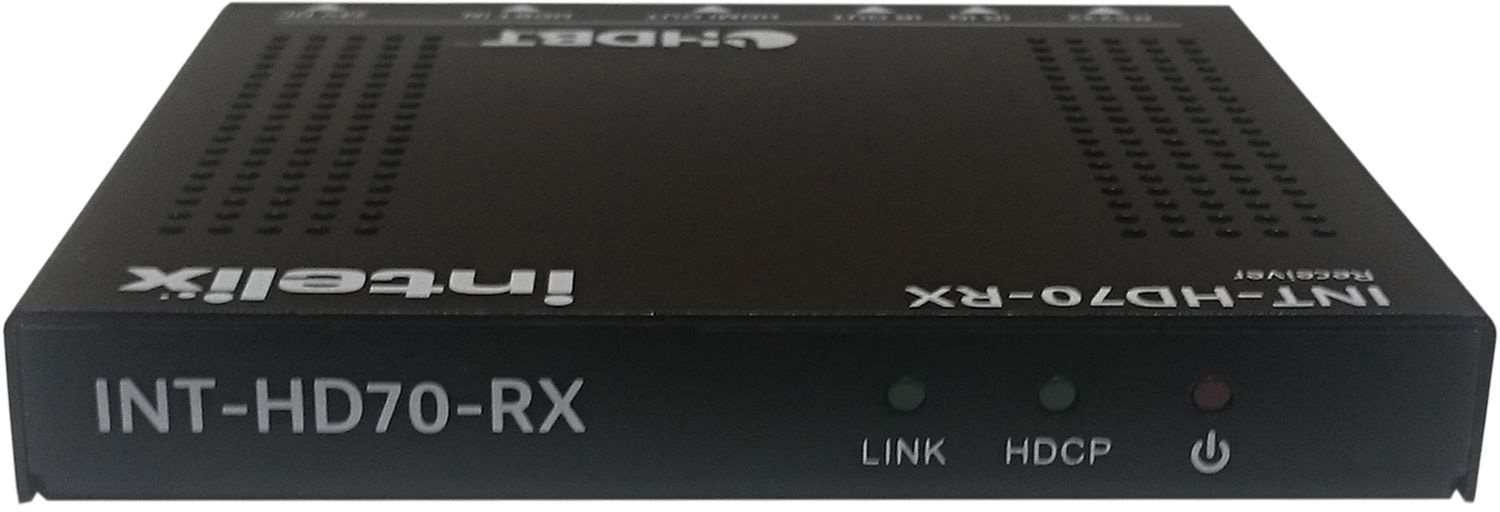

  • Built-in surge protection and diagnostic LEDs
  • Powered at either the TX or RX end, and only one power supply is required
  • The power supply is included; IR accessories (DIGIB-EMT and DIGIB-EYE) are sold separately.
  • Compatible with all Intelix HDBaseT product offerings and any product that meets the HDBaseT specifications.


• Specifications:

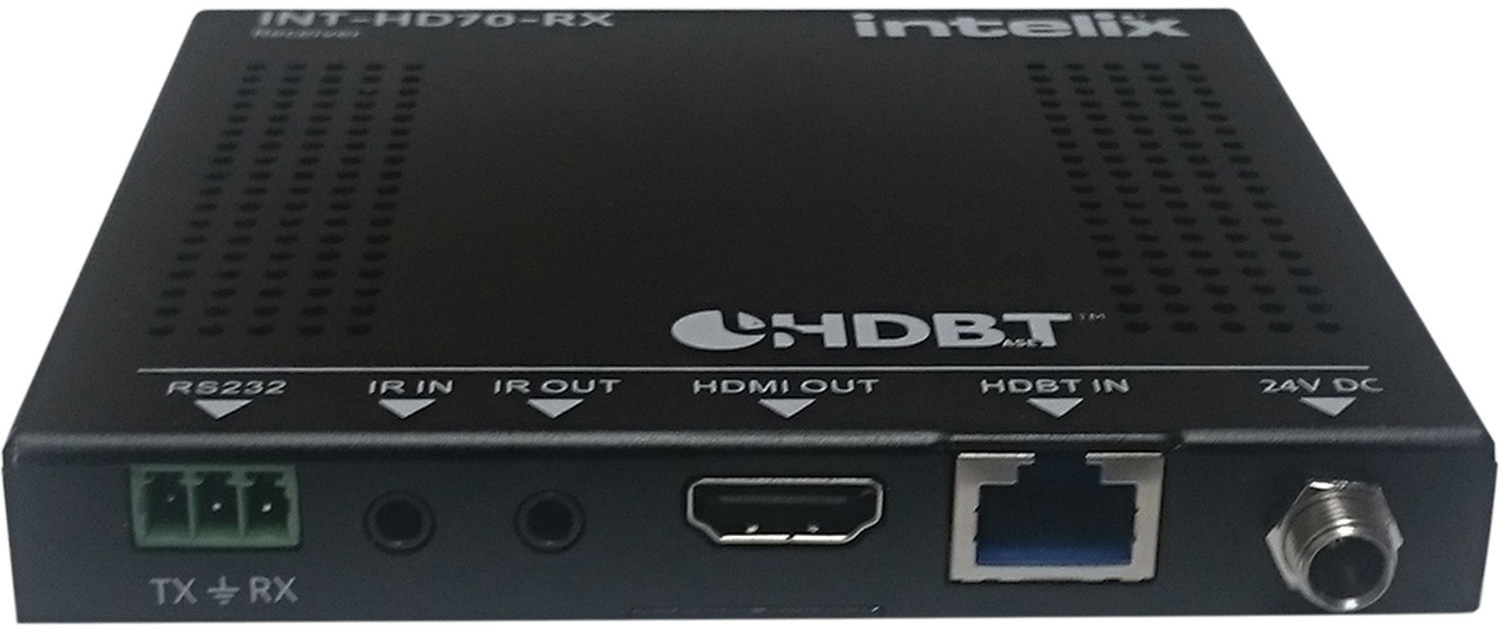

  • HDMI Output: One (1) HDMI Type A Receptacle
  • HDBaseT Port: One (1) 8P8C port (Shielded RJ45)
  • Power: One (1) 5.5 mm OD, 2.6 mm ID Threaded Barrel
  • RS232 Port: One (1) 3-pin Removable Terminal Block Connector
  • IR Input: One (1) 3.5 mm TRS Receptacle
  • IR Output: One (1) 3.5 mm TRS Receptacle
  • Maximum Video Compatibility at 70 m: Deep Color 36/30/24 Bit at 1080p
  • Maximum Video Compatibility at 40 m: 1080p 3D, UHD/30, Deep Color 48 Bit at 1080p
  • Video Compliance: HDMI 1.4 and HDCP 1.4/2.2
  • Embedded Audio: Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
  • Supported Baud Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
  • Supported IR Carrier Frequencies: 33 to 55 kHz
