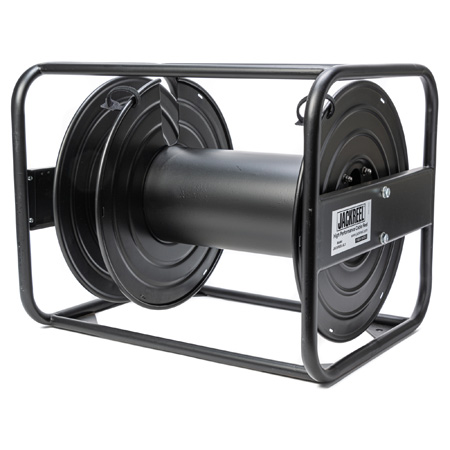

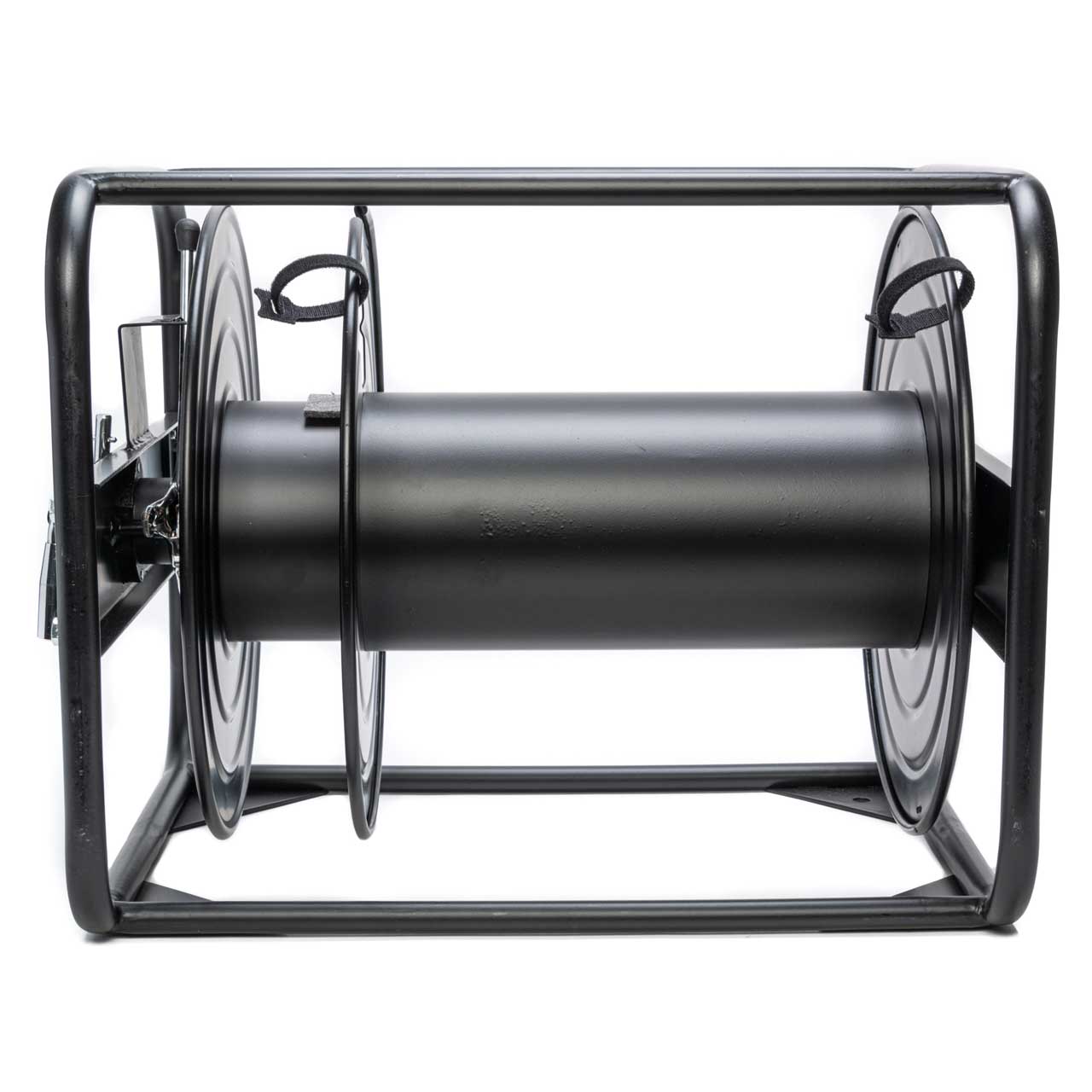

JackReel XL1 High Capacity Broadcast Cable & Fiber Optic Cable Reel - Bstock (Scratches/Box Damage)

ITEM #: JACKREEL-XL1-BS MFG #: JACKREEL-XL1-BS

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the JACKREEL-XL1-BS

JACKREEL-XL1-BS - Overview

Rugged High Capacity Cable Reel for Broadcast, Fiber Optic & Pro-Audio Applications!
The JackReel XL1 is a fantastic value for a super high capacity steel cable reel that is specially designed for multi-channel tactical fiber optic cables, SMPTE fiber optic camera cables, audio snake cables and other cable assemblies.

The JackReel XL1 features rugged steel construction with round tubing protective frame, non-reflective black matte finish, adjustable cam-lock drag brake for fast cable rollout and storage and large heavy duty locking caster wheels.

The main cable drum is specially engineered to protect the bend radius of fiber optic cables. A special drum divider plate protects connectors and fan-outs separating them from the main cable run during storage and rollout.

Please Note: This is a bstock item. Reel has scratches and box damage. Fully funtional.

  • Features:

    • Split Drum for Safe & Easy Connector Pigtail Storage
    • Durable Non-reflective Black Paint Finish
    • Heavy Duty Tubular Steel Construction
    • 3-Position Brake Lock: Free Spool, Soft Brake, Full Lock
    • Rugged Winding Handle with Storage

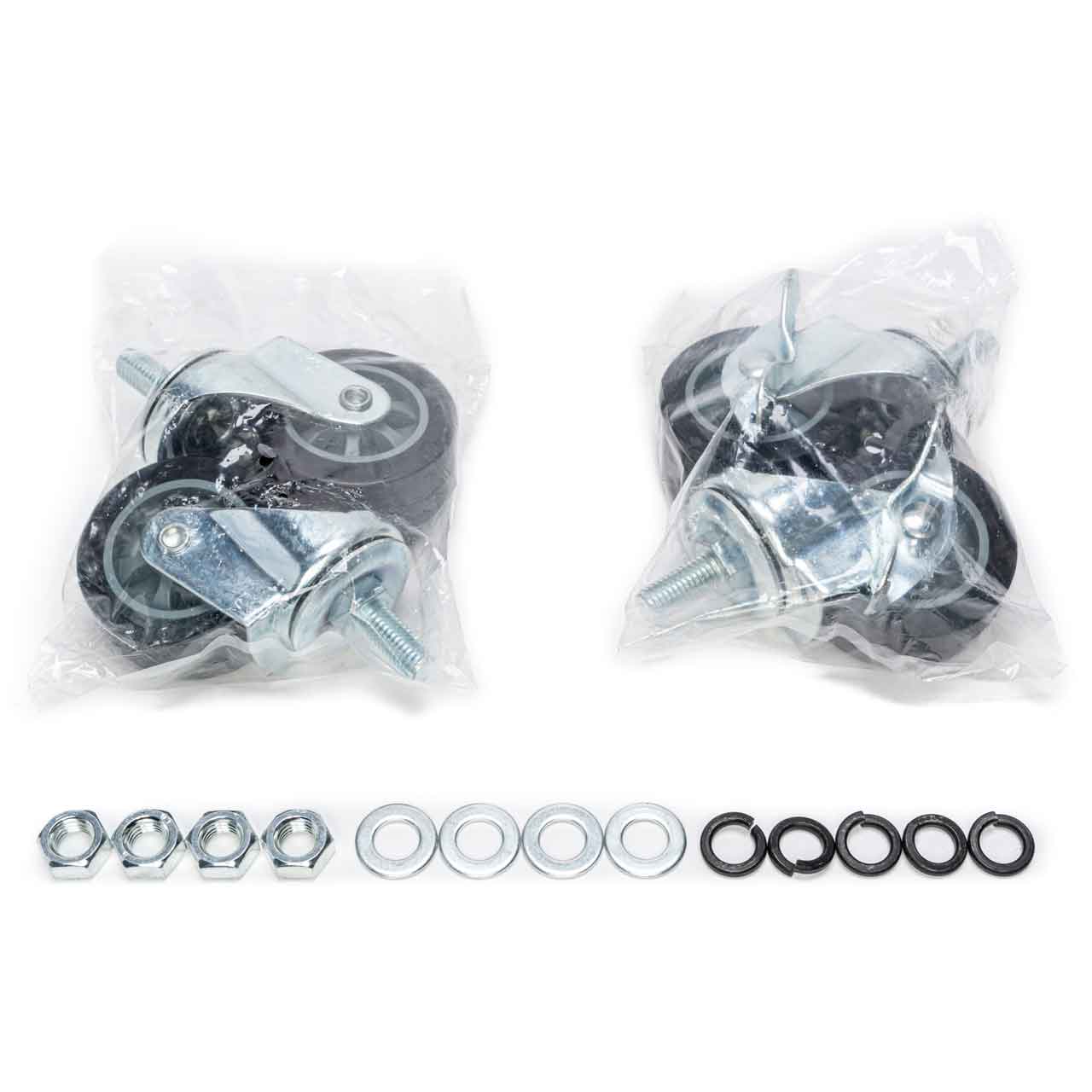

    • Locking Casters

      Please Note: This is a bstock item. Reel has scratches and box damage. Fully funtional.

  • Specifications:

    • Height: 21.187"H
    • Height (less casters): 17.875"
    • Width: 21.75"
    • Depth: 17.875"
    • Center Hub Overall Width: 17.625"
    • Center Hub Main Hub Width: 14" Outside (13.375" Inside)
    • Center Hub Divider Width: 4" (3.312" Inside)
    • Capacity for 5mm O.D. Cable: 4500 Feet
    • Capacity for 7mm O.D. Cable: 2500 Feet
    • Capacity for 9.5mm O.D. Cable: 1100 Feet
