    PI-XX - Overview

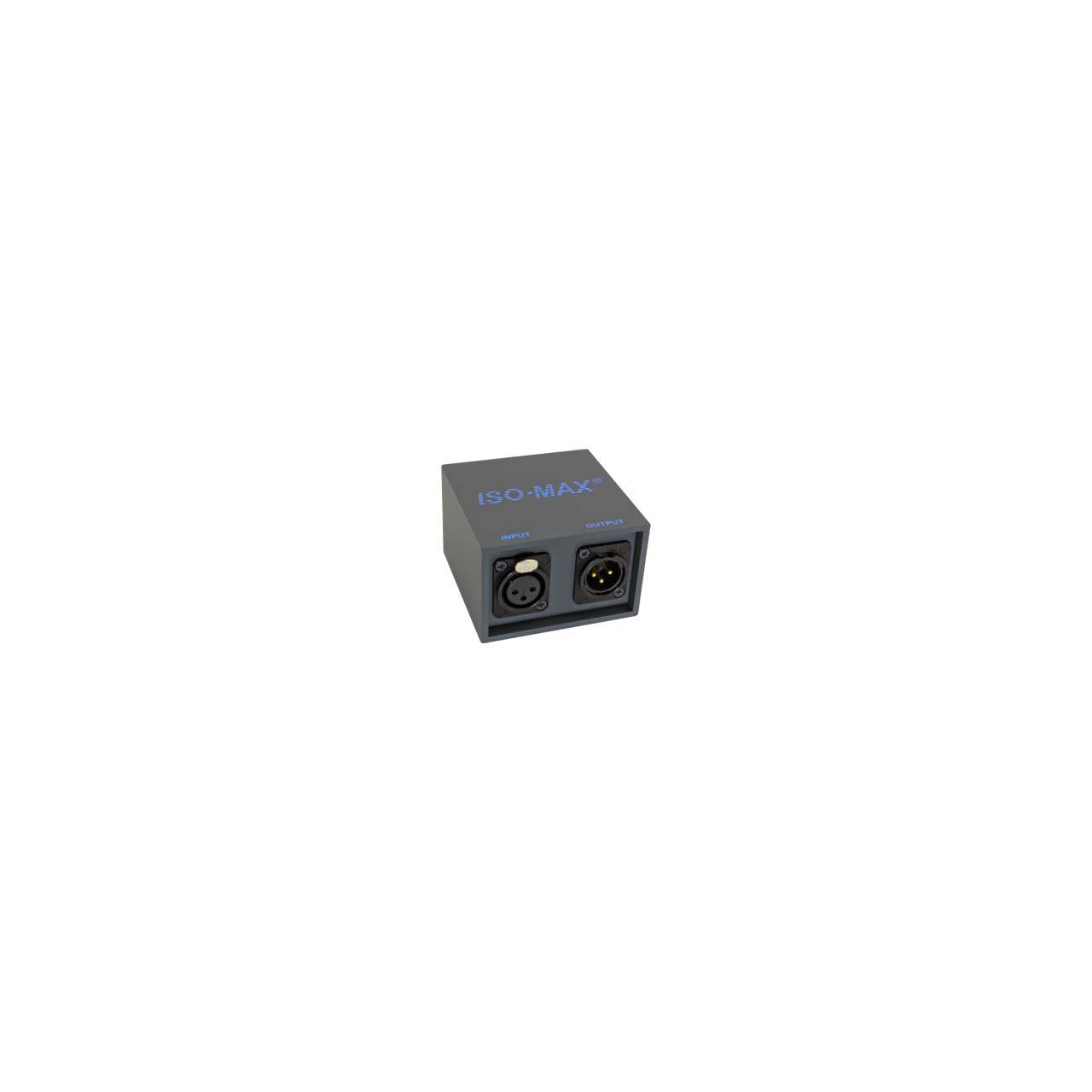

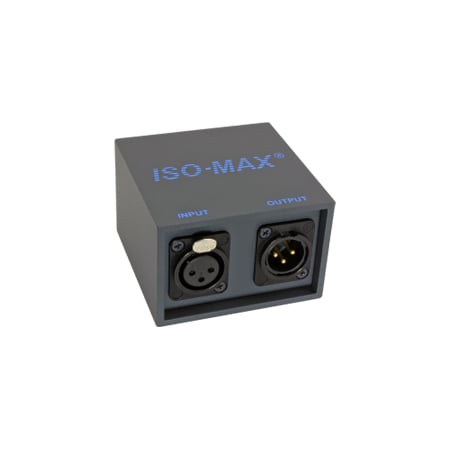

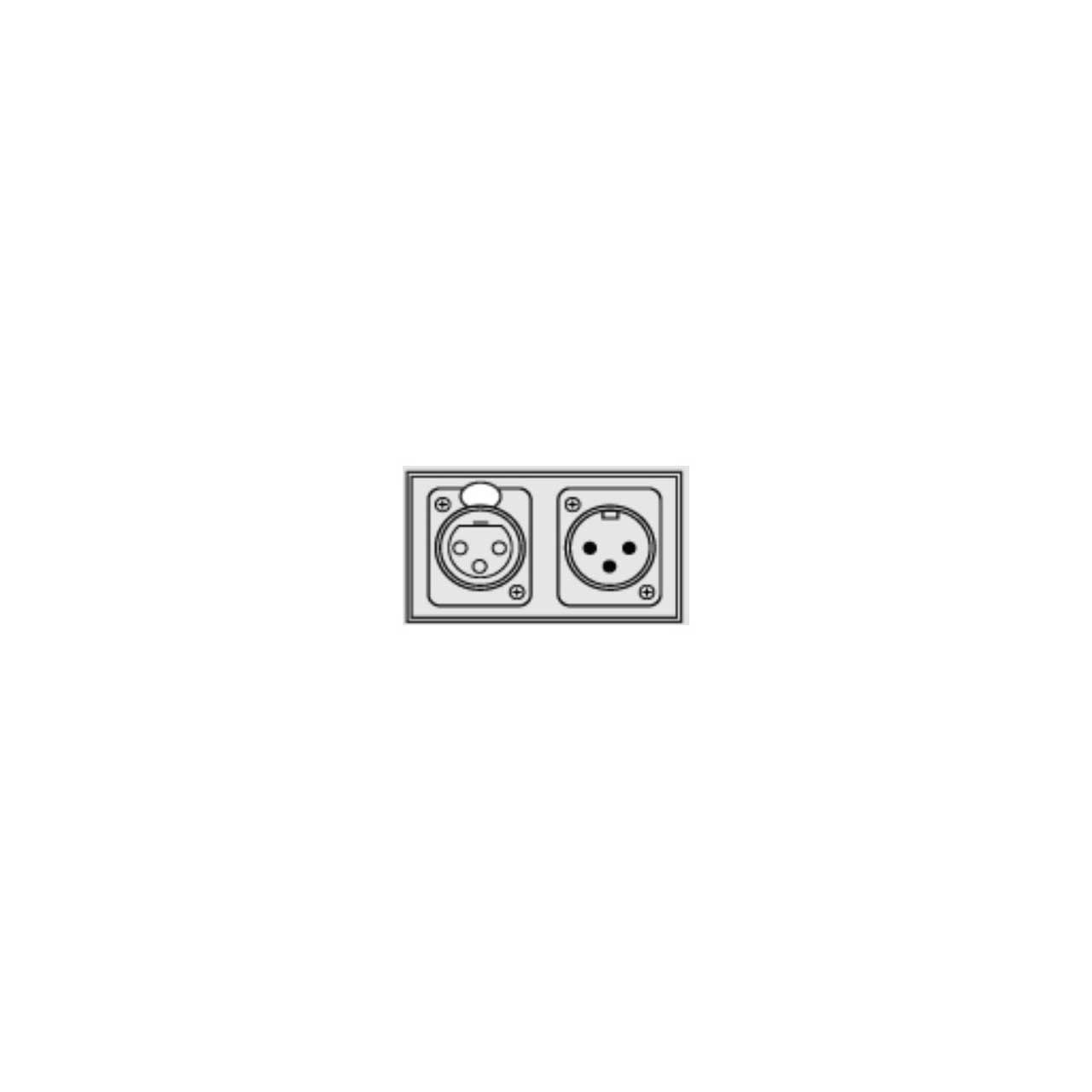

    The Iso-Max PI-XX is a single channel line input isolator designed to eliminate noise in professional balanced audio systems by isolating the input of the connected device.

    The design begins with an extruded aluminum case that comes standard with gold plated XLR connectors. Plug and play easy to use, this passive interface does not require any power to work. Inside is a high performance Jensen transformer that is able to withstand signal levels to +19 dBu at 20 Hz without discernible distortion. This provides galvanic isolation between the input and output to eliminate hum and buzz caused by ground loops, rejecting noise by as much as 124 dB.

    You simply connect the PI-XX between the source and the input destination to eliminate ground loops, electromagnetic interference (EMI) and RFI problems. The PI-XX will quietly go to work without introducing distortion, phase shift or artifact of any kind.

    • Features:

      • Eliminates hum and buzz caused by ground loops
      • Delivers exceptionally low distortion down to 20 Hz
      • Ruler flat frequency response from 5 Hz to 40 kHz
      • Plug and play easy to use, no power required


    • Specifications:

      • Input impedance, Zi: 1 kHz, +4 dBu, test circuit 1, 22.0 kΩ, 23.5 kΩ, 25.0 kΩ
      • Insertion loss: 1 kHz, +4 dBu, test circuit 1, < 1.6 dB, 2.0 dB
      • Magnitude response, ref 1 kHz: 20 Hz, +4 dBu, test circuit 1, -0.15 dB, -0.03 dB, ±0.0 dB
      • Magnitude response, ref 1 kHz: 20 kHz, +4 dBu, test circuit 1, -1.0dB, -0.70 dB, ±0.0 dB
      • Deviation from linear phase (DLP): 20 Hz to 20 kHz, +4 dBu, test circuit 1+1.4/-0°, ±2.0°
      • Distortion (THD): 1 kHz, +4 dBu, test circuit 1<0.001%
      • Distortion (THD): 20 Hz, +4 dBu, test circuit 1, 0.04%, 0.10%
      • Maximum 20 Hz input level: 1% THD, test circuit 1, +17 dBu, +19 dBu
      • Common - mode rejection ratio (CMRR) 600 Ω balanced / unbalanced source: 60 Hz, test circuit 2 / 3, 124 dB / 95 dB
      • Common - mode rejection ratio (CMRR) 600 Ω balanced / unbalanced source: 3 kHz, test circuit 2 / 3, 85 dB, 95 dB / 85 dB
      • Output impedance, Zo: 1 kHz, test circuit 1, 4.65 kΩ
      • Allowable source impedance: (output impedance of device driving the ISO-MAX input), 0, 600 Ω, 2 kΩ
      • Allowable load impedance: (input impedance of device loading the ISO-MAX output), 10 kΩ, 20 kΩ
      • Allowable load capacitance: (cable & input capacitance loading the ISO-MAX output), 0, 50 pF, 100 pF
      • Optimal cable length: input, 1 m (3.3'), 3 m (9.8')
      • Temperature range, operation or storage: 0°C, 70°C
      • Input to Output Voltage Difference*: any input to any output shield or any shield to case, 60 Hz, 24 V RMS 34 V peak


    • Item Includes:

      • 1x Jensen Transformers PI-XX ISO-MAX Single Channel Audio Input Isolator
