KanexPro AUD-DEBEDEARC-4K HDMI eARC/ARC Audio Extractor - 4K UHD HDR at 60hz

ITEM #: KAN-AUDEBEEARC4K MFG #: AUD-DEBEDEARC-4K

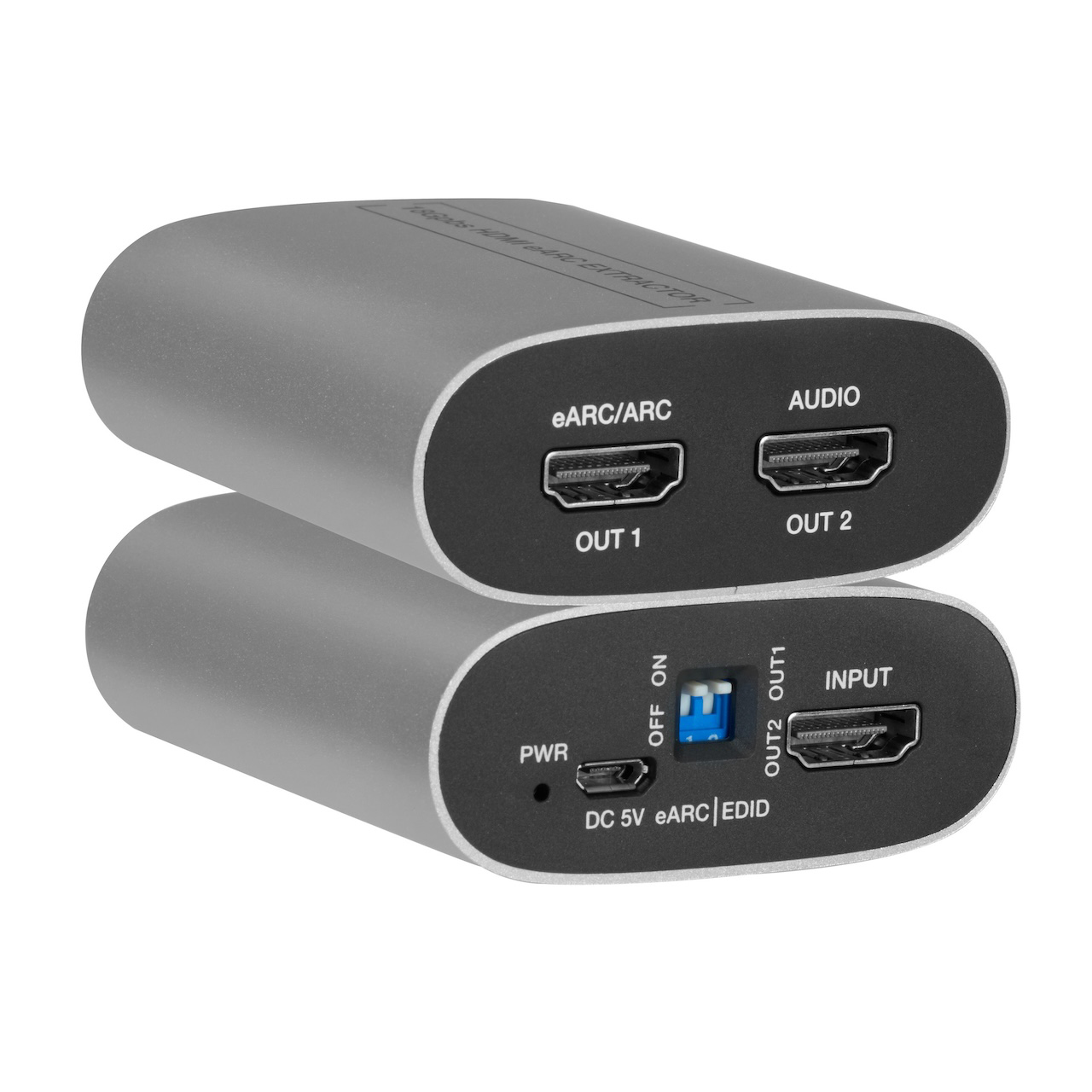

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
KanexPro
Free Shipping with $49 Minimum Order

Our Price:

$49.95

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

AUD-DEBEDEARC-4K - Overview

The Bridge for Integrators and End Users who want Full Dolby Atmos from any TV into any AV Receiver!

The KanexPro AUD-DEBEDEARC-4K extracts eARC and ARC audio from any compatible TV and routes high-quality Dolby Atmos, DTS:X, TrueHD, and up to 7.1-channel surround to your amplifier or AV receiver via a dedicated HDMI audio output - no need to upgrade your existing audio equipment. Video passes through at full 4K60 4:4:4 with HDR, HDR10, HDR10+, and Dolby Vision completely intact. Built-in signal equalization, retiming, and advanced EDID management ensure rock-solid performance, while CEC pass-through lets a single TV remote control the entire chain. USB-powered and compact, it installs in seconds behind any screen.

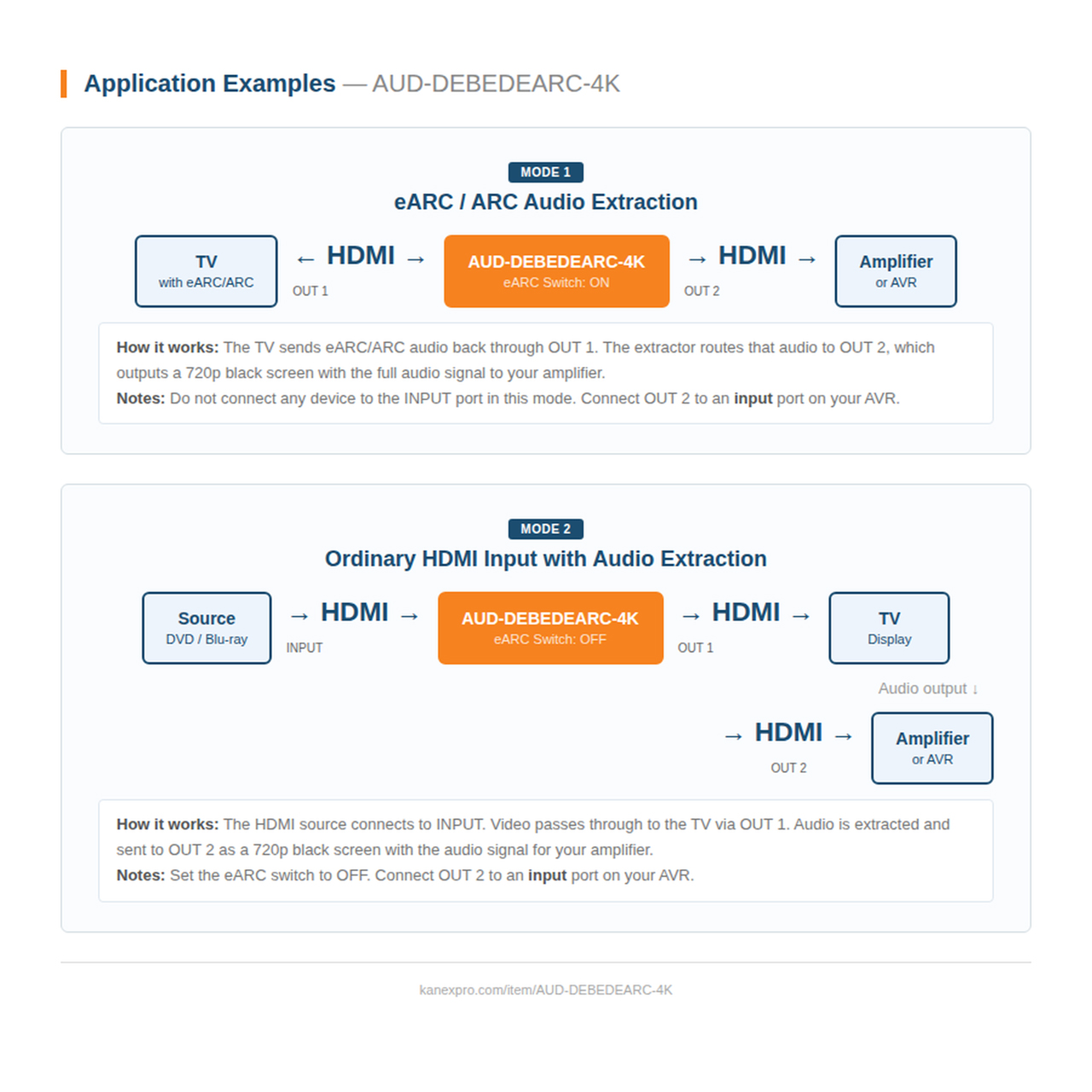

Applications:
Home Theater: Extract Dolby Atmos eARC audio from any 4K TV and route to a legacy AV receiver via HDMI Audio Out.
Soundbar and AVR Bridge: Feed eARC audio to both a soundbar via HDMI Audio Out and a legacy amplifier - one compact USB- powered device bridging two audio destinations simultaneously.
Gaming Systems: PS5 / Xbox Series X 4K60 HDR passes to the TV while eARC audio returns through the AUD-DEBEDEARC-4K to a gaming DAC or stereo amplifier.
Hospitality Rooms: Extract ARC audio from in-room TV and route to a bedside speaker or zone amplifier - USB-powered and compact, installs invisibly behind any display.
Conference Rooms: Route 4K presentation video to the room display while ARC audio from the TV feeds the room amplifier or ceiling speakers via HDMI Audio Out.
Education and Signage: Bridge 4K signage player audio to a PA system via HDMI Audio Out while full-resolution video continues to the display - zero signal degradation.

  • Features:

    • Extracts eARC/ARC audio from TV and outputs via dedicated HDMI audio port (720p black screen) to any AVR
    • Supports Dolby Atmos, TrueHD, DD+, DTS:X, DTS-HD Master, DTS ES 6.1, LPCM 7.1, and PCM 2.0. Transparent 4 K60 4:4:4 video pass-through at 18 Gbps - zero signal degradation to your display
    • Full HDR pass-through: HDR, HDR10, HDR10+, and Dolby Vision preserved end-to-end
    • Built-in equalizer, retiming, and driver for stable, reliable HDMI signal delivery
    • Advanced EDID management & CEC pass-through - one remote controls the entire system
    • VESA support up to QSXGA @ 60 Hz - compact aluminium enclosure, USB-powered


  • Specifications:

    • Video Resolution:
      - Up to 4K2K @ 60 Hz (4:4:4)
      - VESA up to QSXGA @ 60 Hz
    • Color Depth:
      - 8/10/12-bit 1080p @ 60hz
      - 8-bit 4K @ 60hz (4:4:4)
      - 8/10/12-bit 4K @ 60 hz (4:2:2/4:2:0)
    • HDR Formats:
      - HDR
      - HDR10
      - HDR10+
      - Dolby Vision
    • Audio Formats:
      - PCM 2.0
      - LPCM 5.1/7.1
      - DD, DD+
      - TrueHD
      - Atmos, DTS 5.1
      - DTS ES 6.1
      - DTS HRA
      - DTS-HD MA
      - DTS:X

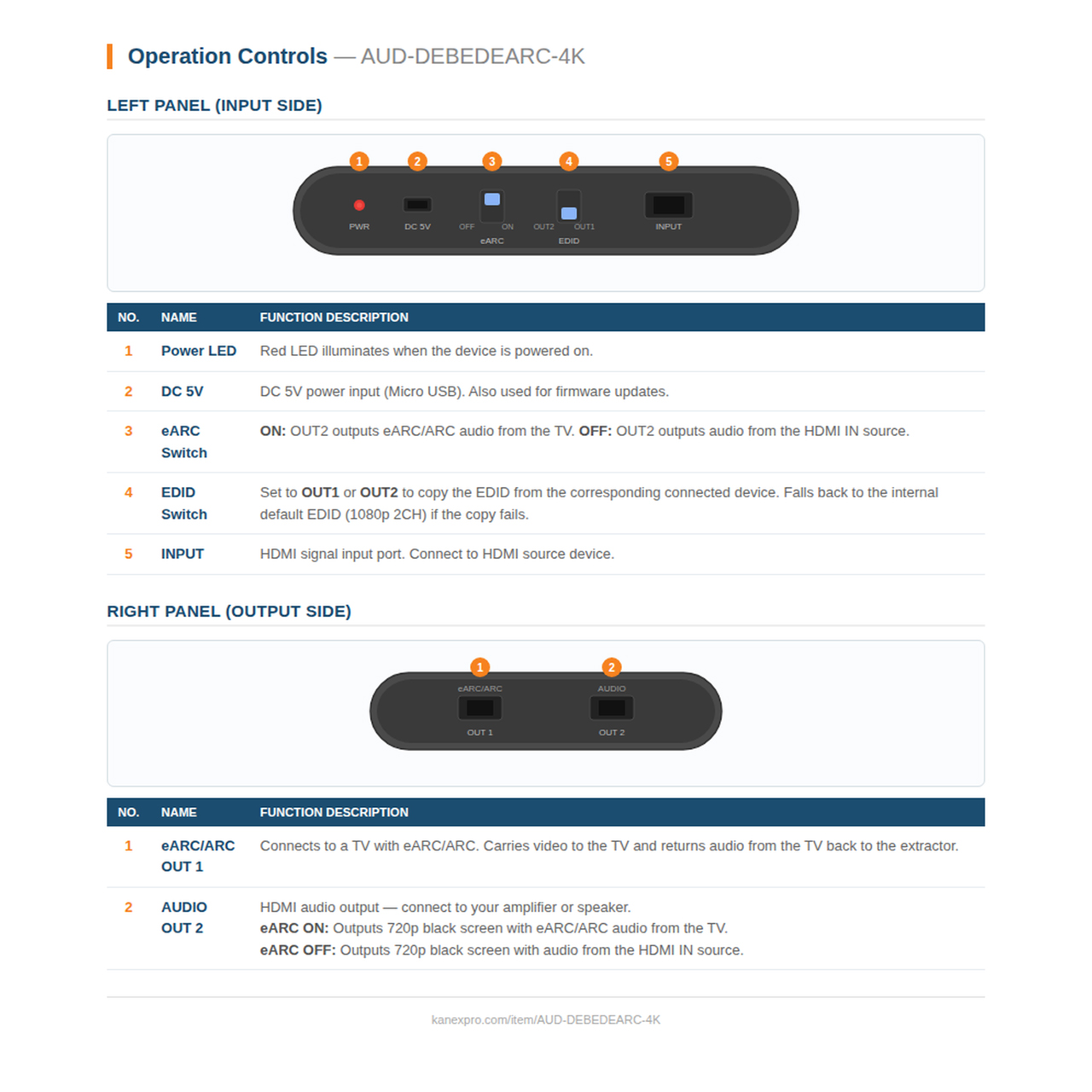

    • HDMI Ports:
      - 1x HDMI In
      - 1x HDMI eARC/ARC Out
      - 1x HDMI Audio Out
    • ESD Protection:
      - ±8 kV air-gap
      - ±4 kV contact (Human Body Model)
    • Enclosure: Aluminium
    • Color: Silver
    • Dimensions(L x W x H): 2.55" x 2.75" x 1.06" (65 mm x 70 mm x 27 mm)
    • Weight: 2.92 oz (83 g)
    • Power: USB 5V 500 mA with 1.75W max
    • Operating Environment: 32°F -104°F (0°C-40°C)


  • Item Includes:

    • 1x eARC Extractor
    • 1x USB Cable
    • 1x Product Manual
