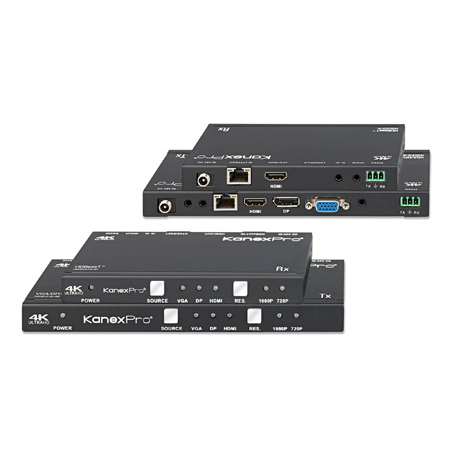

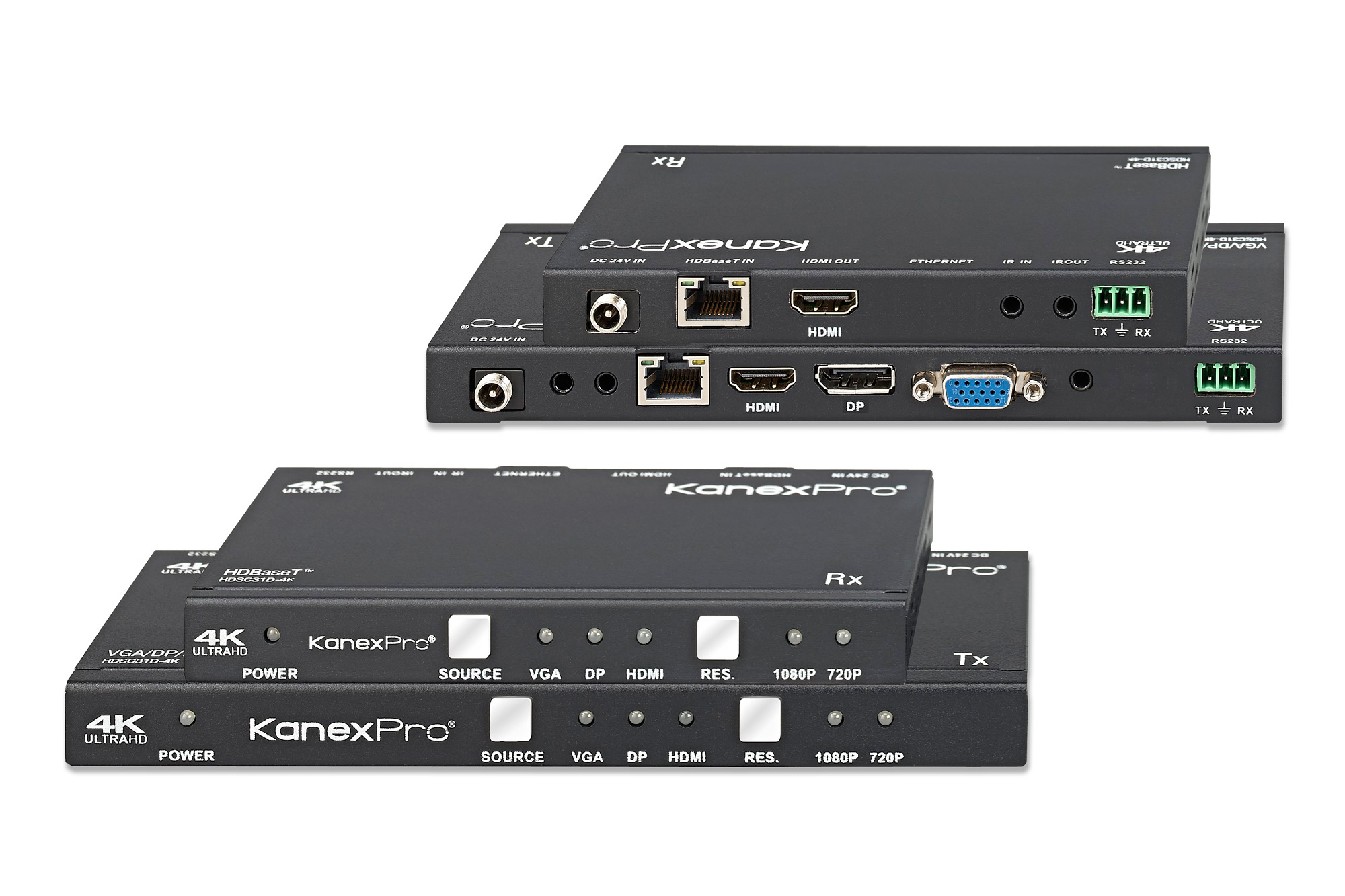

KanexPro HDSC31D-4K 3-Input DisplayPort - HDMI & VGA Collaboration Switcher Scaler Over HDBaseT

ITEM #: KAN-HDSC31D-4K MFG #: HDSC31D-4K

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KAN-HDSC31D-4K

HDSC31D-4K - Overview

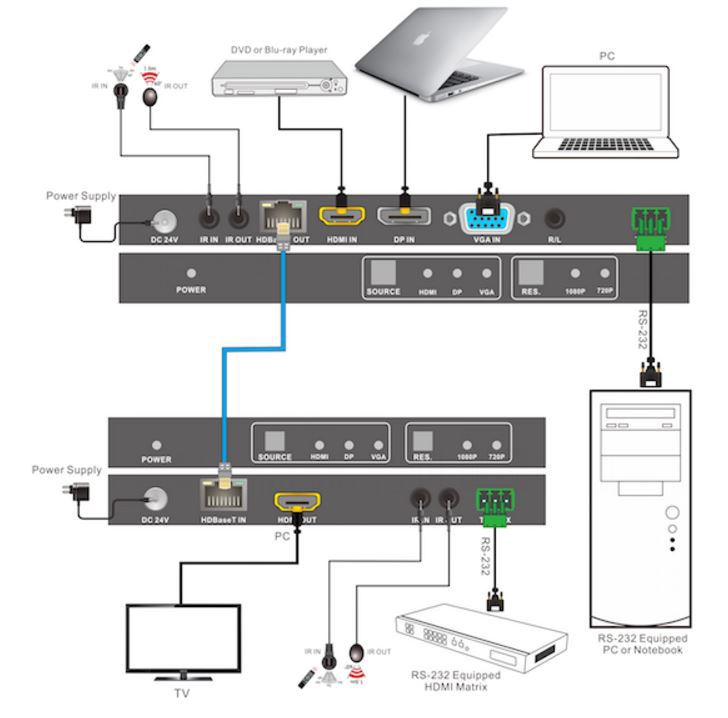

The KanexPro HDSC31D-4K is a three input Collaboration Switcher Scaler designed for sending DisplayPort, HDMI, or VGA signals with control up to 230 feet (70 meters) over a shielded CATx cable to an HDBaseT receiver supporting resolutions up to 4K/30Hz. The sender or receiver can be powered from either sides requiring only one power supply supporting POE (Power over Ethernet) and allowing you to switch between the sources and up-scale or downscale to desired video resolutions.

DisplayPort, HDMI, and VGA inputs are built on the Transmitter (Sender) with one HDBaseT output and serial control. This Collaboration Switcher supports video signals at resolutions up to 4K, including WUXGA and 1080p/60 Deep Color.

The HDSC31D-4K offers reliable switching and transmission of DisplayPort, HDMI, and analog video signals with HDCP compliancy. RS-232 and IR remote control facilitate integration in professional environments. Integrator-friendly features include EDID management and bidirectional RS-232 and IR pass-through for remote AV device control.

Applications:

The low profile design and remote power (POE) capability enable discreet placement in lecterns, beneath tables in conference rooms, boardrooms or smart classrooms wherever needed to meet application requirements.

  • Features:

    • 3-input Collaboration Switcher & Scaler w/ HDBaseT
    • Reliable switching with selectable output resolutions up to 4K UHD
    • Extend 3-inputs via HDBaseT up to 230 feet (70m)
    • Send 4K UHD - 24/30Hz signals up to 115 feet (35 meters)
    • 40 meters: 1080p @60Hz@48bit; 1080p@120Hz@24bit
    • 70 meters: 1080p@60Hz@36bit; 3D1080p@30Hz36bit
    • 3D, 1080p@60Hz@36bit; 4K x 2K@30Hz@24bit
    • Bi-directional POE support (Tx to Rx or Rx to Tx)
    • VGA video also supports: C-video & YPbPr
    • Built-in EDID management
    • Controllable via IR, front-panel, & RS-232
    • Supports CEC & HDCP 2.2 compliant
    • Locking power supplies
    • Compact & slim design for flexible installation
    • Includes mounting kits
    • International power supply

  • Specifications:

    • Video
    • Input: 1 HDMI; 1 VGA; 1 HDBaseT
    • Input Connector: 4 female HDMI; 2 female VGA (15 pin)
    • Video Signal:DP/HDMI/VGA
    • Output: 1 HDMI; 1 HDBaseT
      IR
    • Input: 1 IR In
    • Connector: 3.5mm mini jack
    • Output: 1 IR Out
    • Connector: 3.5mm mini jack
      Video General
    • Resolution Range: HDMI: up to 4K/30Hz
    • VGA: 1024x768, 1280x720; 1280x800, 1920x1080; 1600x1200, 1920x1200
    • Bandwidth HDMI: 10.2 Gbps
    • Maximum Pixel Clock: 165MHz
    • Output: 75 Ohms
    • Gain: 0dB
    • Input/Output Level: 0.5V~2.0Vp-p
    • HDMI & HDCP Standards: Compliant with DVI & HDMI 1.4 standards, HDCP 2.2
      Audio
    • Input: HDMI / DP audio
    • Output: 1 Stereo audio
    • Input Connector: HDMI, DP
    • Output Connector: 1 3.5mm jack
    • Input Impedance: > 10kO
    • Output Impedance: 50KO
      Audio General
    • Frequency Response: 20Hz~20K Hz
    • Stereo Channel Separation: > 80dB @1KHz
    • CMRR: > 90dB @20Hz to 20K Hz; Audio Format: HDMI embedded audio: PCM, Dolby DTS
      Control Parts
    • Control / Remote: IR remote, buttons & RS232 - Phoenix connectors
    • Pin Configuration: 2=TX, 3=RX, 5=GND
      General
    • Temperature: 0~45 C
    • Humidity: 10% ~ 90%
    • Power Supply: DC 5V,3A
    • Power Consumption: 3.8 Watts max
    • Case Dimension: W347mm x H28mm x D110mm
    • Product Weight: 0.63 Kg

  • GTIN:

    0813982020566
