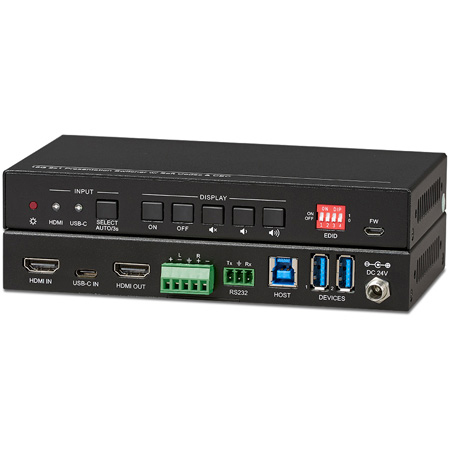

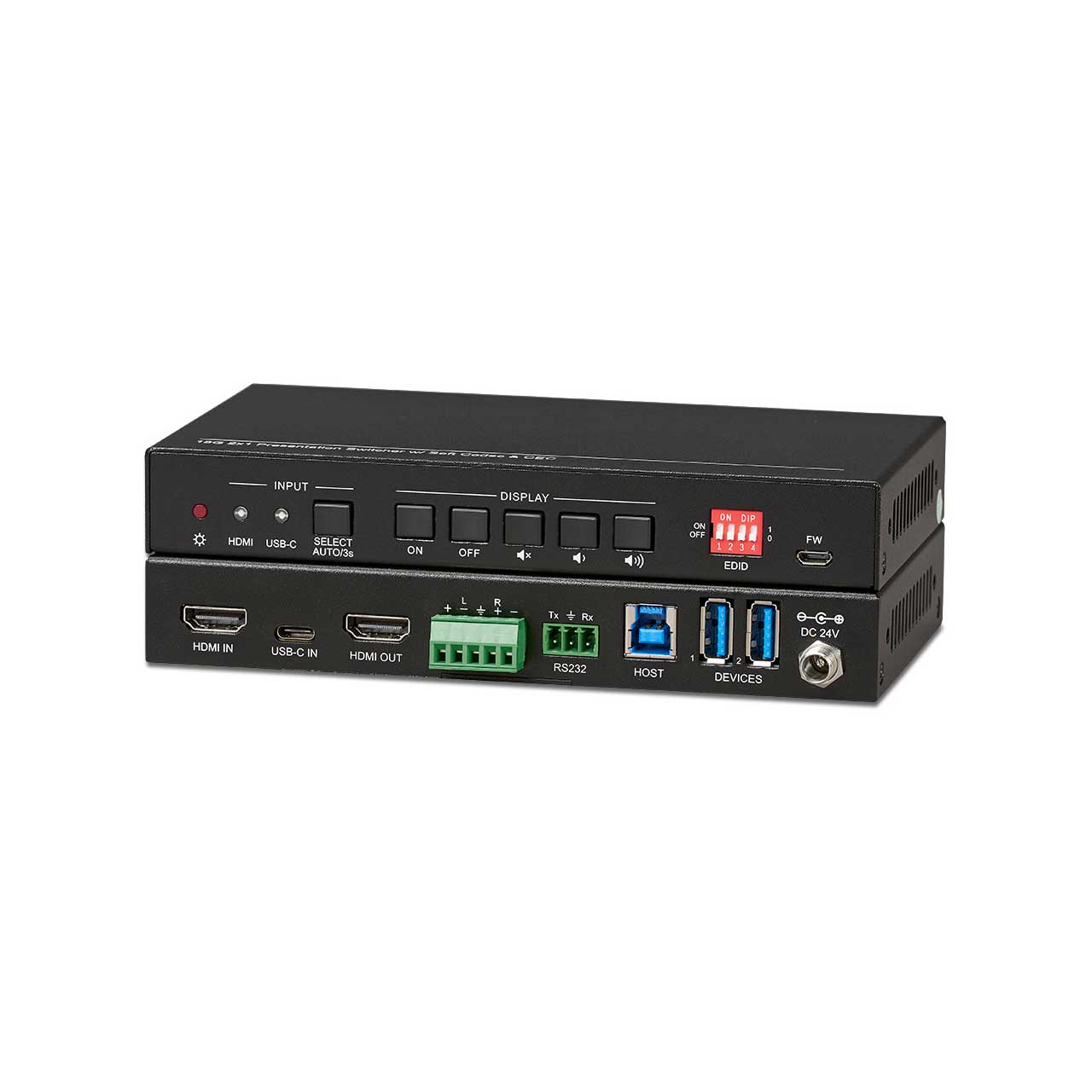

KanexPro SW-2X14KUSBC 2x1 USB-C & HDMI Auto Switcher with Video Conferencing Support


  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:


Our Price:


Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup

    SW-2X14KUSBC - Overview

    Introducing a holistic approach to conference rooms and small huddle rooms where there is an ever-increasing need to connect USB-C based laptops, tablets and other devices to switch between HDMI and other devices. Enter the KanexPro SW-2X1USBC switcher. Intelligently designed to auto-switch between two devices with simultaneous audio. It supports video resolution up to [email protected] 4:4:4 8 bit and 1080p/60.

    USB-C Charging for MacBooks, Tablets and Laptops
    The 2X1 switcher allows USB-C charging on the input port up to 60 Watts for MacBook Pro, iPad, or slimport based laptops while you collaborate in huddle rooms.

    Audio and USB 3.0 for SOFTCODEC & Peripheral Sharing
    The switcher supports stereo and multichannel audio on the HDMI inputs. In addition to the audio embedded in the HDMI output stream, the audio is simultaneously de-embedded to a balanced analog audio output. It also supports device extension by providing one type-B USB 3.0 port for host connection to a PC, and two type-A USB ports for HID devices such as camera, microphone, keyboard for instant conferencing.

    Auto-Switching Enabled
    The switcher features multiple methods of control. When in the AUTO mode, the switcher will automatically switch to the first detected source device. When the active source is removed, the switcher will switch to the lowest numbered input. The switcher can be manually controlled by the front panel buttons and RS232 command. CEC allows the display device can be controlled by the front panel buttons and RS232 CEC

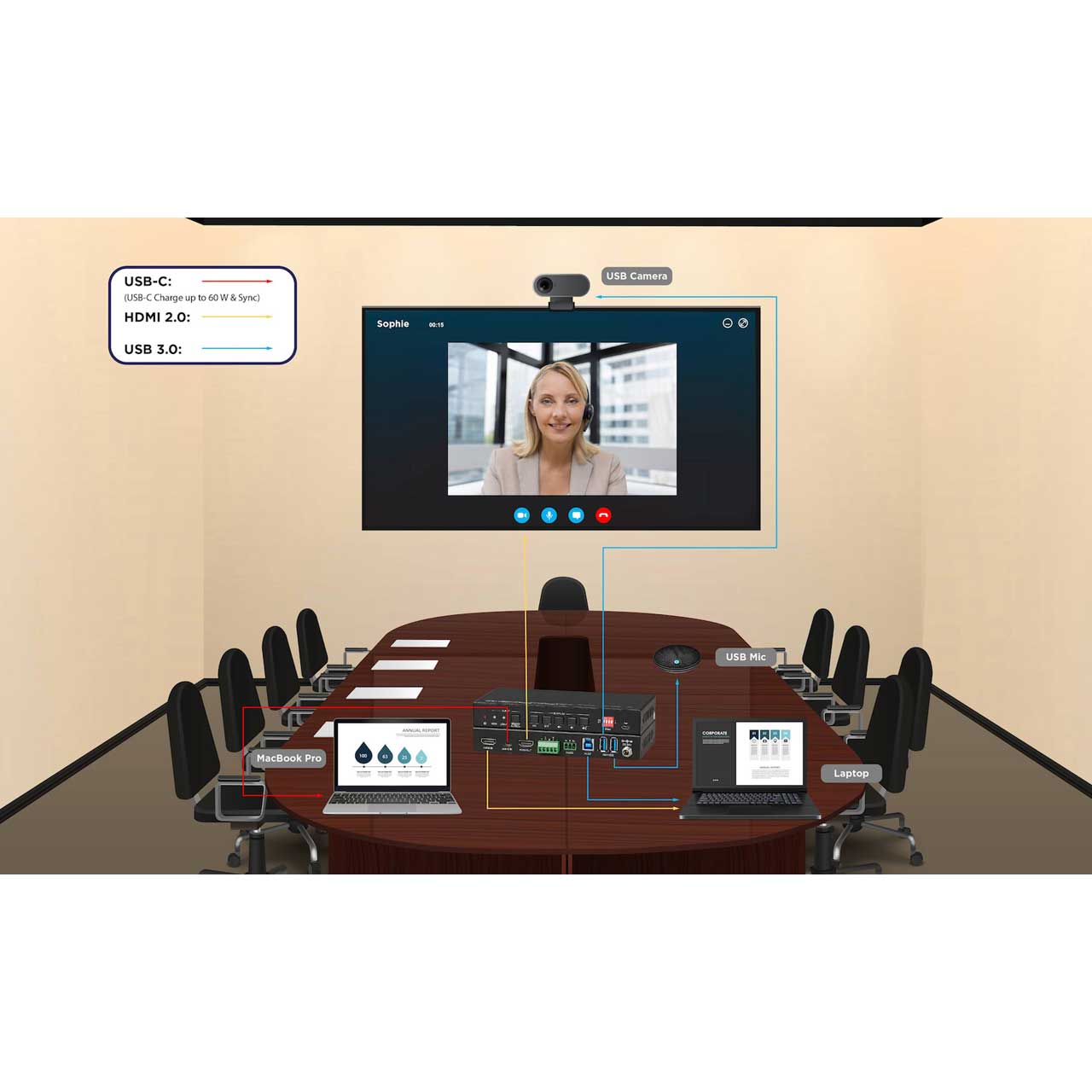

    The low-profile design with auto-switching capability enable discreet placement in lecterns, beneath tables in smaller conference rooms, huddle rooms and smart classrooms and is perfect for on-the-spot conferencing using Skype, Lync, Zoom and much more apps.
