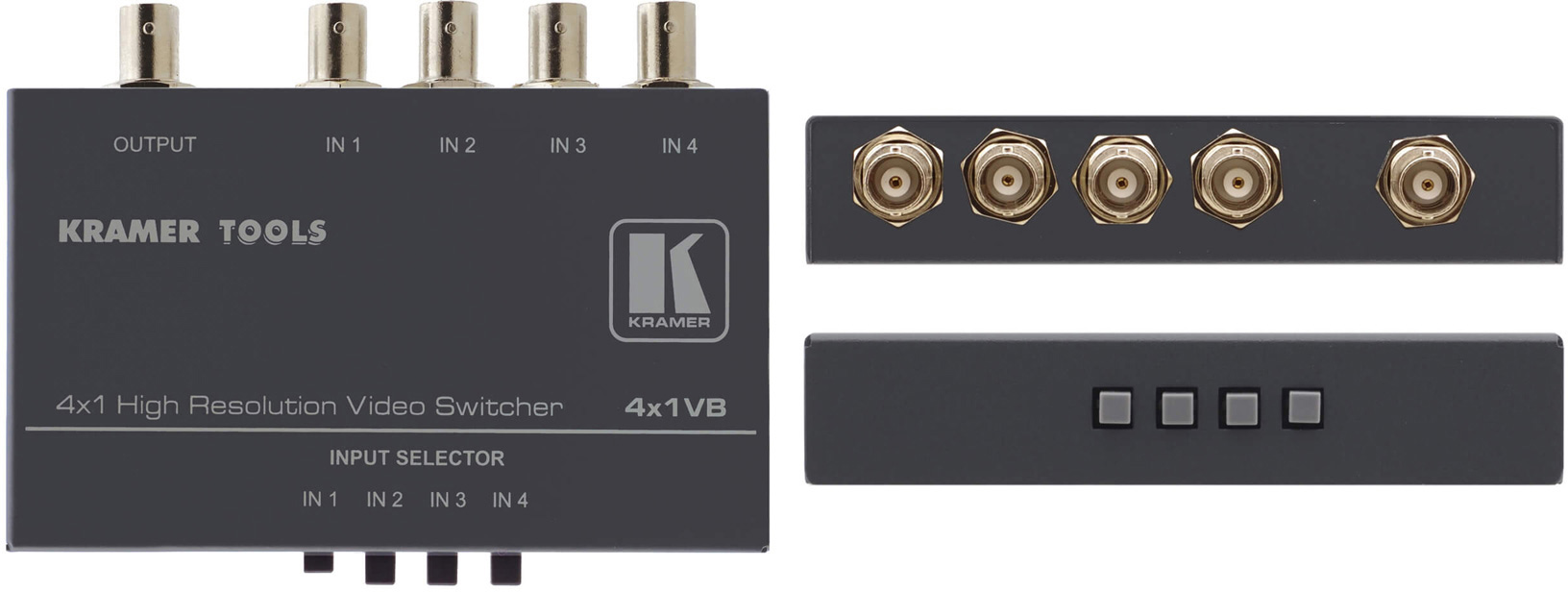

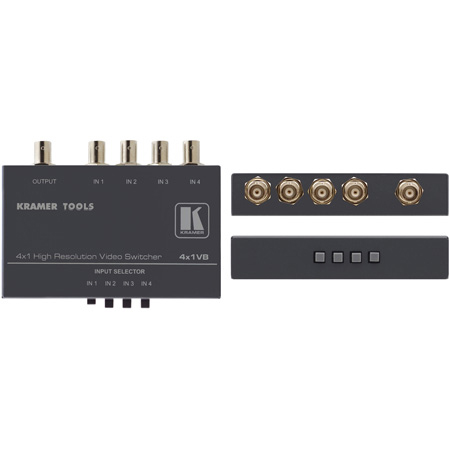

Kramer TOOLS 4X1VB 4x1 Composite Video 400 MHz Mechanical Switcher with BNC

4X1VB - Overview

4x1 Composite Video 400 MHz Mechanical Switcher

• Features:

  • High Bandwidth - 400MHz (-3dB).
  • Video on BNC Connectors - 4x1V has RCAs.
  • Mechanical (Passive) Switching - No power required.
  • Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack.


• Specifications:

  • INPUTS: 4 video, 1Vpp/75 ohm on BNC connectors.
  • OUTPUT: 1 composite or single component video, 1Vpp/75 ohm on a BNC connector.
  • BANDWIDTH (-3dB): 400MHz.
  • SWITCHING SYSTEM: Mechanical, Break-before-make.


• Item Includes:

  • VB4X1VB Switcher
  • Mounting Bracket


• Warranty:

  • 7 Year Limited Warranty

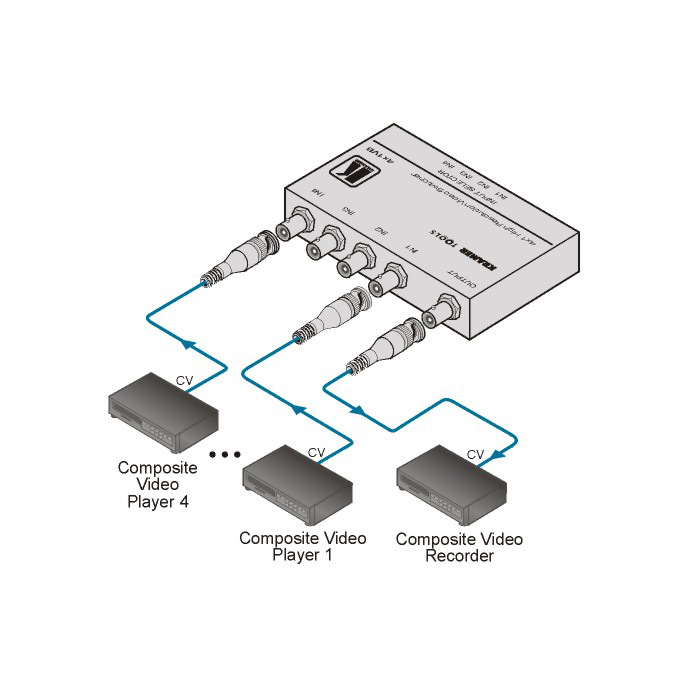

• Applications::

  • Presentation and display systems.
  • CCTV and home theater.
  • Rental and staging.
  • Also compatible with SDI and any other high frequency signals.


• GTIN:

  7291063027384
