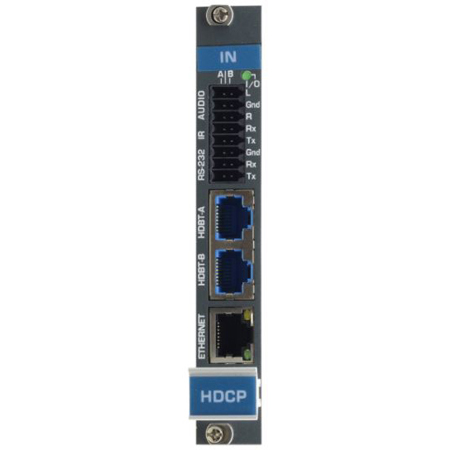

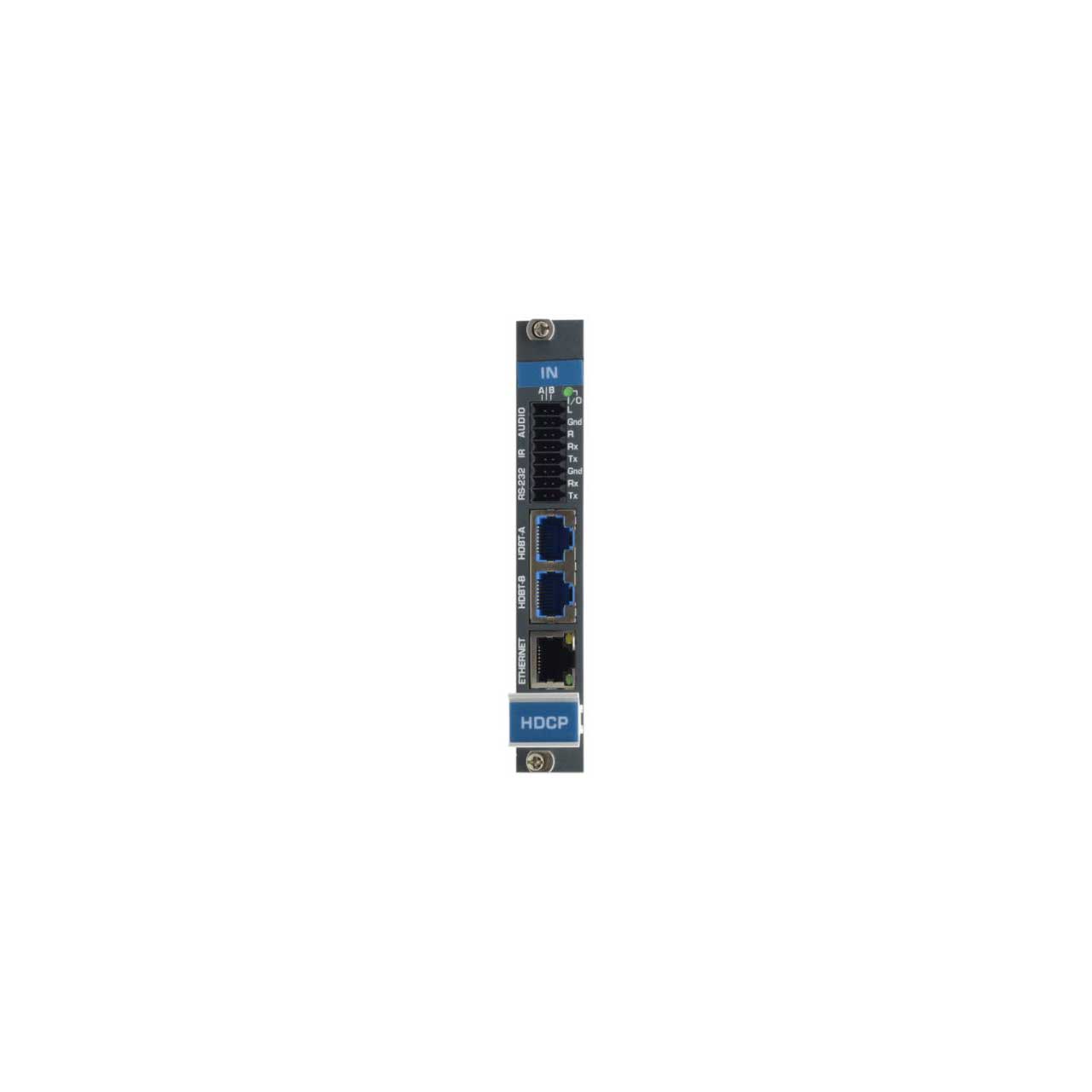

Kramer DTAxr-IN2-F16 2-Channel 4K60 4:2:0 HDMI over Extended Reach HDBaseT Input Card w/Selectable Audio for VS-1616

DTAXR-IN2-F16 - Overview

HDBaseT Technology - HDTV compatible, HDCP compliant

• Features:

  • Max. Data Rate - 10.2Gbps (3.4Gbps per graphics channel).
  • Max. Resolution - 4K@60Hz (4:2:0).
  • Analog Audio Embedding/De-embedding - On the same jack
  • HDBaseT Technology - HDTV compatible, HDCP compliant.
  • System Range - Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp). Note: When using Kramer HDBaseT cables.
  • Ethernet Extension - Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
  • Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
  • Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
  • 3D Pass-Through.


• Specifications:

  • INPUTS
  • 2 HDBaseT TP on RJ-45 connectors
  • 2 Unbalanced audio on a 16 pin terminal block


  • PORTS
  • 2 RS-232 and 2 IR on a 10 pin terminal block for bidirectional RS-232 and IR extension
  • 1 Ethernet on an RJ-45 connector for bidirectional Ethernet extension


  • BANDWIDTH PER CHANNEL
  • Video: 3.4Gbps
  • Serial data: 115200


  • TOTAL BANDWIDTH
  • Video: 10.2Gbps
  • Serial data: 115200


  • MAXIMUM RANGE
  • Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp)
  • Note: When using Kramer HDBaseT cables


  • 3D PASS THROUGH
  • Supported


  • EXTENDED ETHERNET
  • Up to 100Mbps extended line rate bandwidth


  • EXTENDED RS-232
  • 300 to 115200 baud rate


  • POWER CONSUMPTION
  • 17W


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • STANDARD COMPLIANCE
  • HDCP 1.4, HDMI 1.3a, HDBaseT


  • SAFETY REGULATORY COMPLIANCE
  • CE


  • ENVIRONMENTAL REGULATORY COMPLIANCE
  • Complies with appropriate requirements of RoHs and WEEE


• Item Includes:

  • DTAxr-IN2-F16 2-Input 4K HDMI plus Analog Audio over HDBaseT Card (F-16)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063084325
