Kramer TP-583T 4K HDR HDMI Transmitter with RS 232 & IR over Long Reach HDBaseT

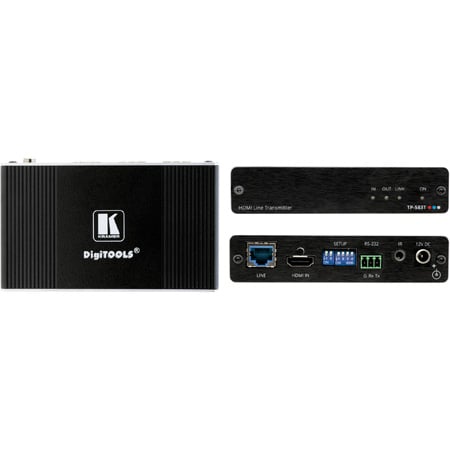

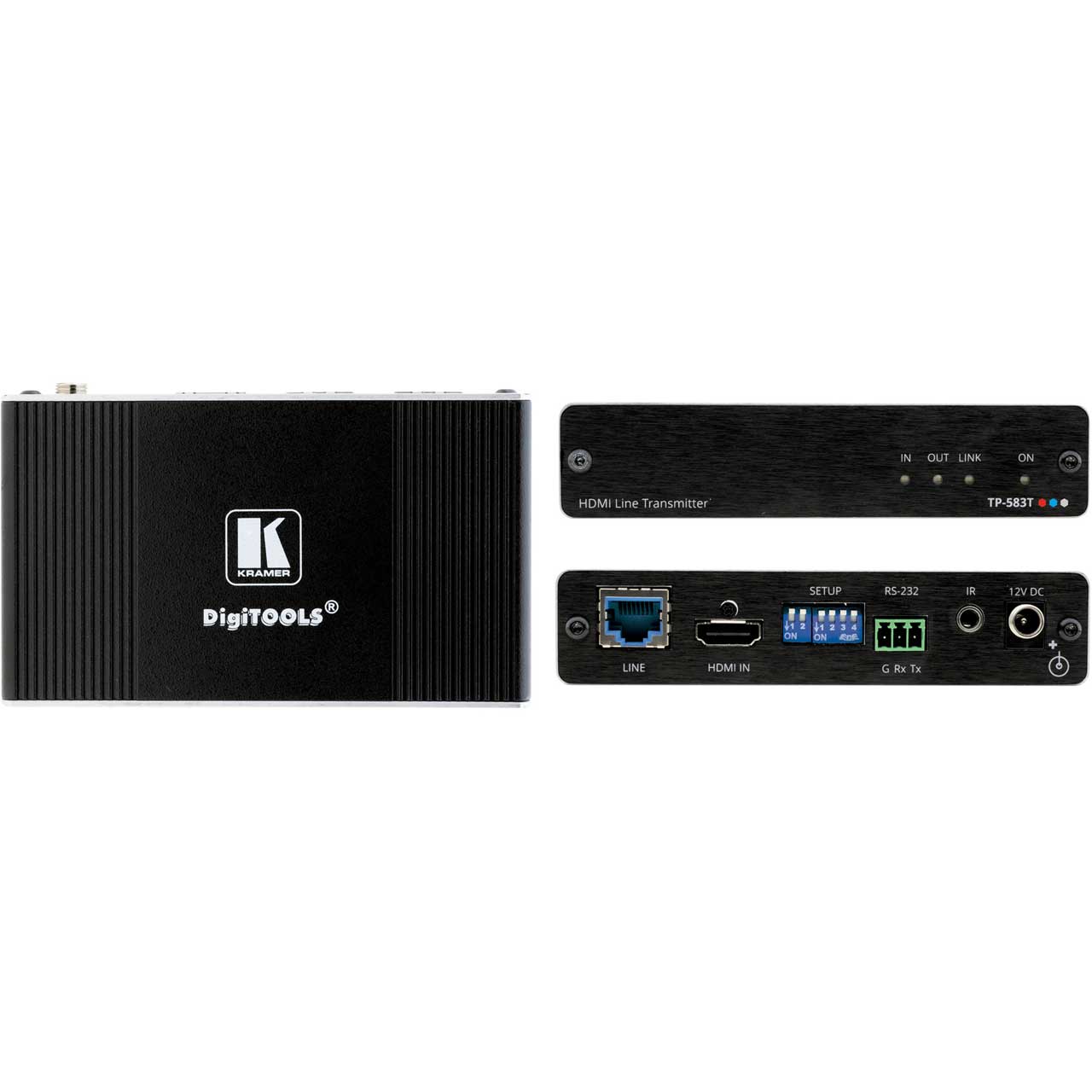

TP-583T - Overview

HDBaseT 1.0 Transmitter

• Features:

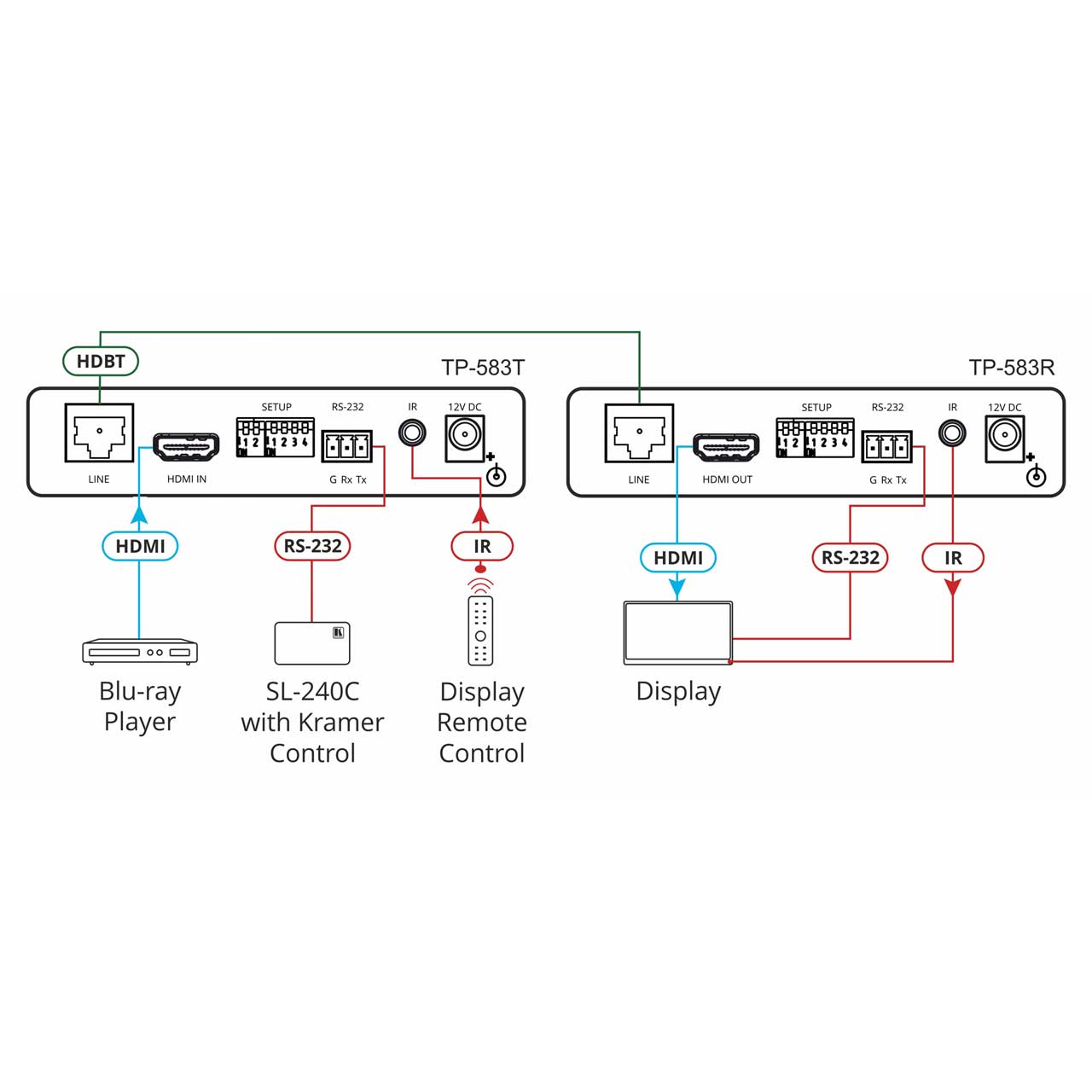

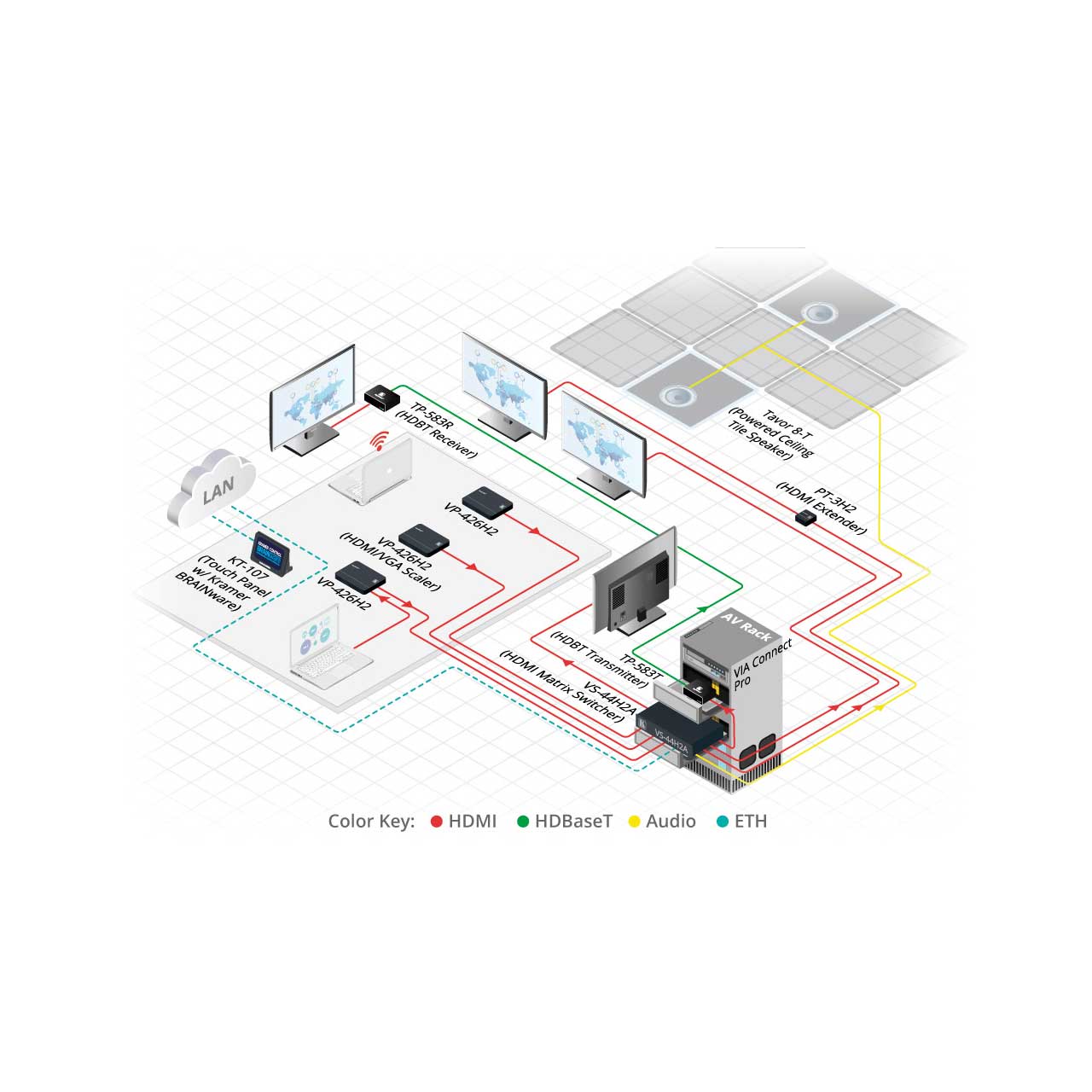

  • High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures. It employs low-level video compression technology that delivers visually lossless performance for 4K@60 (4:4:4) and HDR signals with near-zero latency. This high-quality compressed signal is extended to almost double the extension reach of the uncompressed signal.
  • Future-proof, Standard Extender - TP-583T is a standard HDBaseT extender, backwards compatible with other standard HDBT extenders. It extends either compressed or uncompressed HDBaseT signal, by auto-adapting to the compression capabilities of its connected extender. This enables it to be connected to any market-available HDBaseT-compliant extension product.
  • Intelligent Compression Handling - Automatically detects a standard HDBaseT extender without compression and disables the compression to extend the signal in compliance with the detected extender.
  • HDMI Signal Extension - HDR HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™- Intelligent EDID pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
  • Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
  • Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
  • Cost-Effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection ensures lasting, field-proven deployment.
  • Easy Installation - Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter.


• Specifications:

  • Inputs
  • 1 HDMI: On a female HDMI connector

  • Outputs
  • 1 HDBT: On an RJ-45 connector

    Ports
  • 1 RS-232: On a 3-pin terminal block connector for serial link extension
  • 1 IR: On a 3.5mm mini jack connector

    Extension Line
  • Standard Compression: Up to 40m (130ft) at 4K@60Hz (4:4:4) or 4K@60Hz (4:2:0)
  • Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)
  • High Compression: Up to 70m (230ft) at 4K@60Hz (4:4:4), 4K@60Hz (4:2:0), or full HD (1080p @60Hz 36bpp)
  • No Compression: Up to 40m (130ft) at 4K@60Hz (4:2:0)
  • Up to 70m (230ft) at full HD (1080p @60Hz 36bpp)
  • Standards Compliance: HDBaseT 1.0
  • Note: When using recommended Kramer cables

    Video
  • Max Data Rate: Up to 18Gbps (6Gbps per graphic channel)
  • Standard Compression Max Resolution: 4096x2160@60Hz (4:4:4) 24bpp
  • High Compression Max Resolution: 3840x2160@60Hz (4:4:4) 24bpp
  • No Compression Max Resolution: 4096x2160@60Hz (4:2:0) 24bpp
  • Compliance: HDMI 2.0, HDCP 2.2, HDR 10

    Extended Bidirectional RS-232
  • 300 to 115200 baud rate

    Extended Bidirectional IR
  • 20kHz to 100kHz frequency

    User Interface
  • Indicators: IN, OUT, LINK and ON LEDs
  • Controls: DIP-switches

    Power
  • Source: 12V DC, 2A
  • Consumption: 480mA

    Environmental Conditions
  • Operating Temperature: 0° to 40°C (32° to 104°F)
  • Storage Temperature: -40° to 70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing

    Regulatory Compliance (Standards Compliance)
  • Safety: CE, UL
  • Environmental: RoHs, WEEE

    Enclosure
  • Size: DigiTOOLS®
  • Type: Aluminum
  • Cooling: Convection ventilation


• Item Includes:

  • TP-583T HDMI Line Transmitter
  • Power Adapter and cord (1)
  • Bracket Set (1)
  • Rubber Feet (4)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063085148
