Kramer VP-427X2 4K HDR HDBT Receiver / Scaler Tool with HDBaseT and HDMI Inputs

VP-427X2 - Overview

Comprehensive Receiver/Scaler

• Features:

  • Comprehensive Receiver/Scaler - Scales signals of all standard resolutions up to 4K@60Hz (4:4:4) for routing to the HDMI output. Constant output sync prevents signal disruption when switching between inputs and when no video is detected.
  • HDMI Signal Extension - HDCP 1.4 / 2.2. 4K60, CEC, xvYCC color (on input).
  • Audio De-embedding - Analog balanced stereo output for de-embedding the audio to speakers.

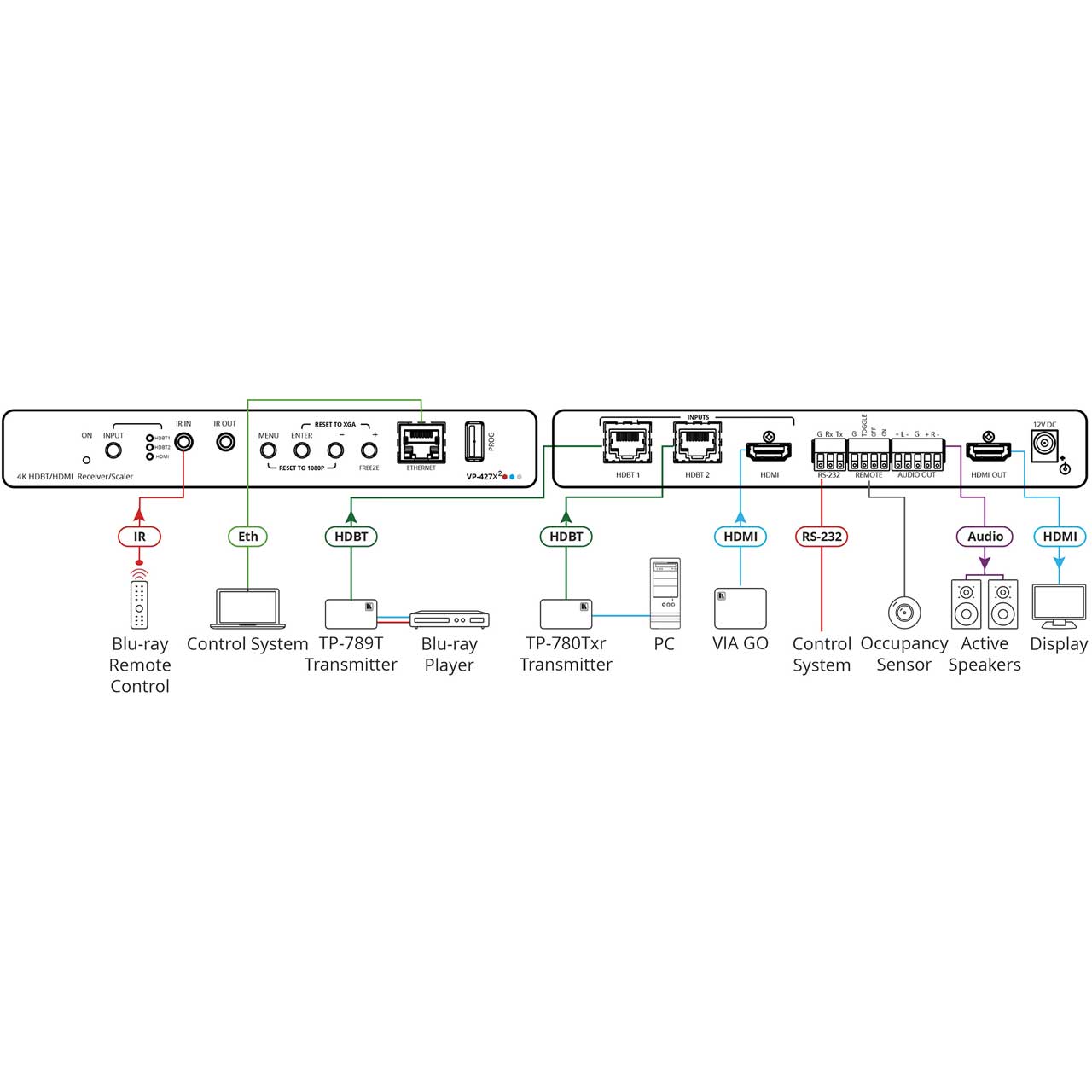

  • Data Tunneling - Extend RS-232, IR, and Ethernet over the HDBaseT line.
  • Built-in Automated Control - Includes easy connection to occupancy sensors and contact closure switches.
  • CEC Support - Supports passing of CEC from input to output. Automatically sends CEC commands to shut down the output display after a timeout period when no input signal is found and to power up the display when the input returns.
  • Cost-Effective and Convenient Control Options - Ethernet and RS-232 serial ports, and local control via front panel input selection and OSD menu buttons.
  • ProcAmp Control - Contrast, brightness, color, etc.
  • Convenient Unit Control and Configuration Options - Local control via front panel source switching buttons and OSD menu. Distance control via RS-232 serial commands transmitted by a PC, touch screen system or other serial controllers.
  • Easy, Cost-effective Maintenance - Local firmware upgrade via USB connector.

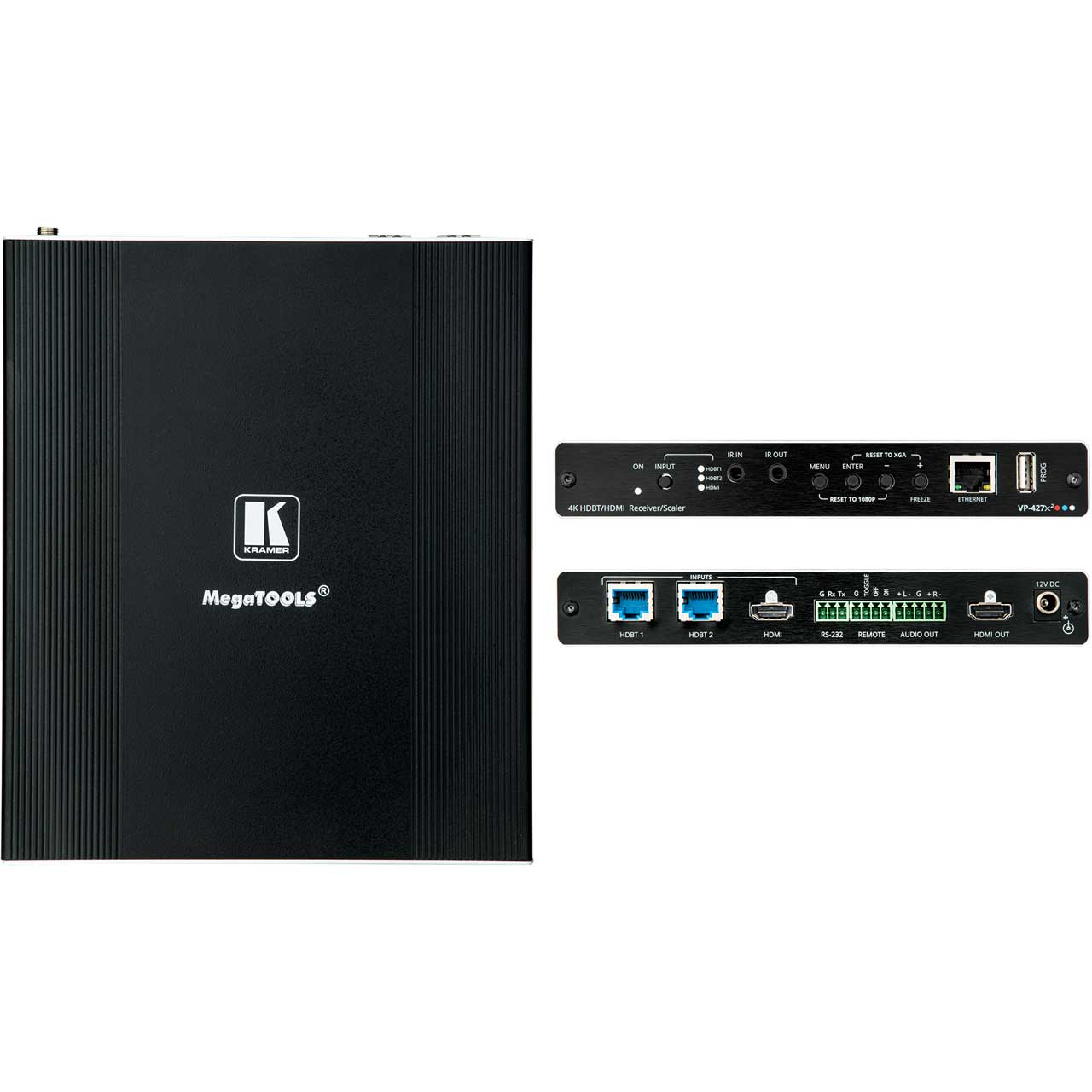

  • Easy and Elegant Installation - Compact MegaTOOLS™ fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter.


• Specifications:

  • INPUTS
  • 2 HDBaseT: On an RJ-45 connector
  • 1 HDMI: On a female HDMI connector


  • OUTPUTS
  • 1 HDMI: On a female HDMI connector
  • 1 Balanced Analog Stereo Audio: On a 5-pin terminal block


  • PORTS
  • 1 IR: On a 3.5mm mini jack
  • 1 RS-232: On a 3-pin terminal block
  • 1 Ethernet: On an RJ-45 connector


  • VIDEO
  • Output Resolutions: 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz RB, 2560x1600@60Hz RB, 1920x1080@60Hz, 1280x720@60Hz, 2048x1080@50/60Hz, 2560x1440@60Hz RB, 720x480p@60Hz, 720x576p@50Hz, 1280x720p@50/60Hz, 1920x1080p@24/25/30/50/60Hz, 2560x1080p@50/60Hz, 2K@24/25/30/50/60Hz, 4K@24/25/30/50/60Hz
  • Max. Range: 180m at 1080p@60Hz, 100m (328ft) at 4K@60Hz (4:2:0)
  • Latency: Up to 2 frames
  • Content Protection: HDCP 2.2/1.4
  • Switching Time Between Inputs: <2.5 seconds


  • USER INTERFACE
  • Control: Input selection buttons, and remote contact-closure switches switches. Kramer API via RS-232 serial commands transmitted by a PC, touch screen system or other serial controller, embedded web pages via LAN for configuration and control
  • Indicators: Power, link, input selection LEDs


  • POWER
  • Source: 12V DC
  • Consumption: 2.1A


  • ENCLOSURE
  • Size: MegaTOOLS®
  • Type: Aluminum
  • Cooling: Convection ventilation


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing


• Item Includes:

  • VP-427X2 4K HDBT/HDMI Receiver/Scaler
  • Power adapter and cord (1)
  • Bracket Set (2)
  • Rubber Feet (4)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063093617
