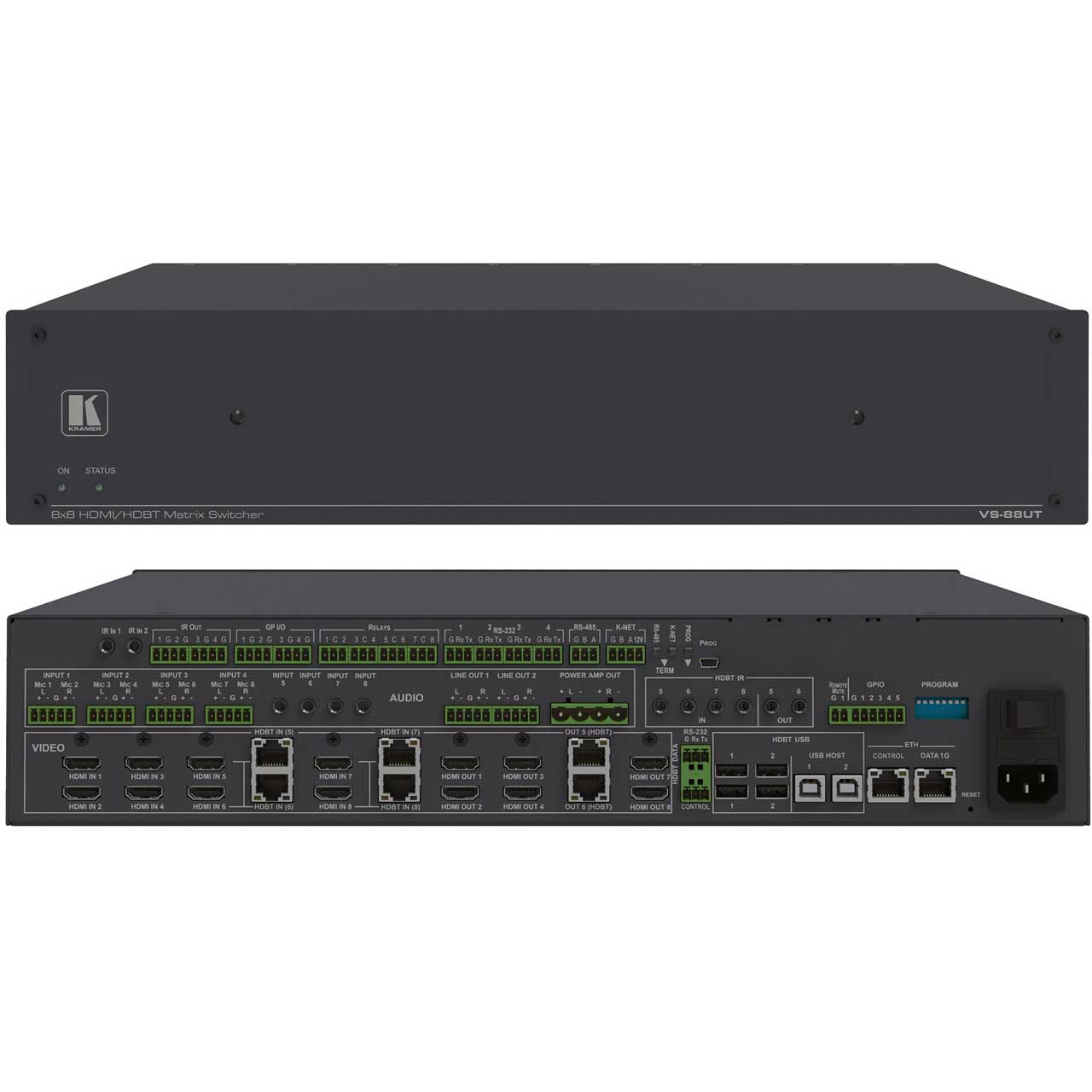

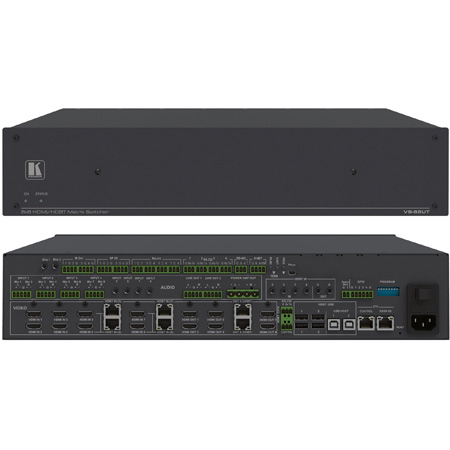

Kramer VS-88UT 8x4 HDMI HDBaseT & Audio Matrix Switcher

ITEM #: KR-VS88UT MFG #: 50-80355010

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$9,905.00

Our Price:

$7,924.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    50-80355010 - Overview

    Versatile All-in-One AV Presentation Solution!

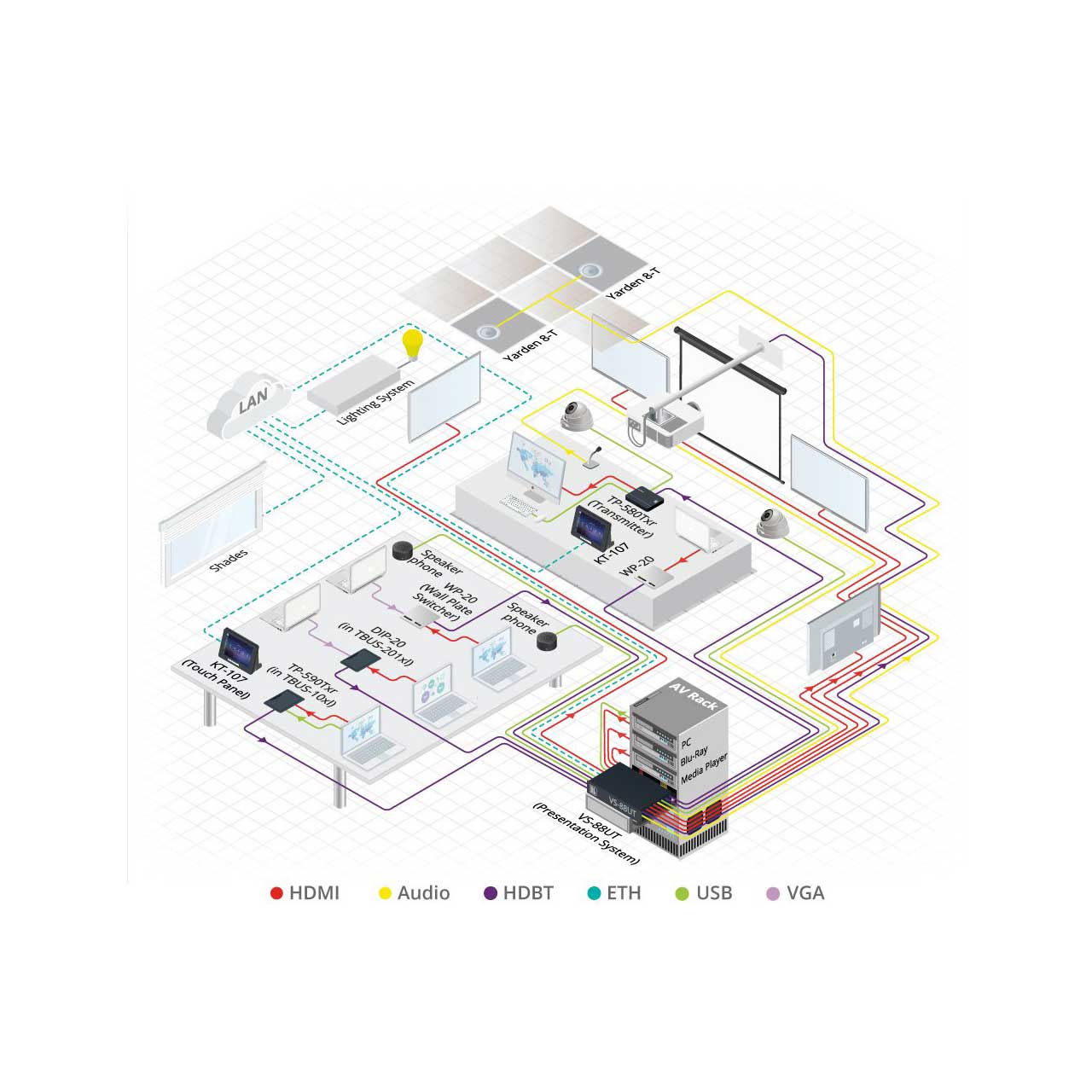

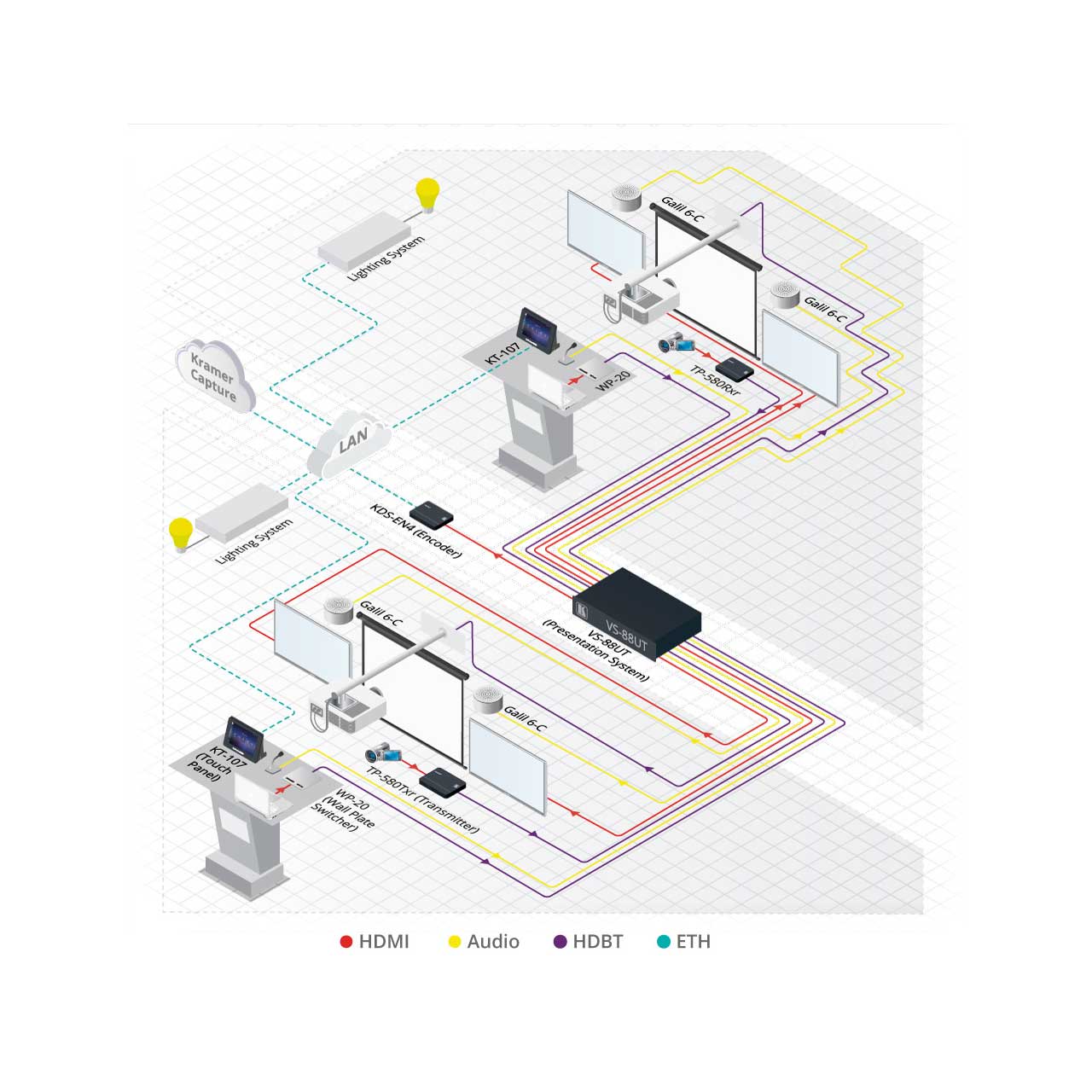

    Kramer's VS-88UT is an all-in-one 4K@60Hz (4:2:0) Audio-Video presentation system with integrated range extension and an integrated control system master. The unit switches the video, embeds the audio and outputs the signal to both an HDMI and an HDBaseT 2.0 with USB extension and PoE on the HDBaseT output ports. Outstanding audio support includes balanced stereo audio, unbalanced stereo audio, and de-embedded audio sources that output to embedded audio, balanced stereo audio as well as a power amplified audio output.

    VS-88UT includes a master room controller that can operate over Ethernet (LAN) with control ports that include: one bidirectional RS-485, four RS-232, four IR, four GPI/O, and eight relays to control a wide variety of AV devices. It includes a KNET™ connector interface that enables access to the master controller from auxiliary room controllers such as control keypads. The unit can also provide power to auxiliary room controllers via the KNET™ connectors. VS-88UT includes an Ethernet gateway to control and manage remote I/O ports.

    Perfect for:
    Classroom, lecture theaters and education application
    Projection systems in conference rooms, boardrooms, hotels and churches

    • Features:

      • Versatile All-in-One Solution - Provides a high-performance AV presentation matrix, powerful HDBaseT signal extender and fully featured, programmable master room controller in one unit.
      • High-Performance, Professional AV Matrix - Switches 6 4K@60Hz (4:2:0) HDMI inputs and 2 HDBaseT 2.0 signals to 2 4K@60Hz (4:2:0) HDMI outputs and 2 HDBaseT 2.0 signals at up to 10.2Gbps (3.4Gbps per graphics channel) data rate. Signals are HDCP and DVI compliant with Deep Color, 3D, and 7.1 PCM. Includes active source & acceptor detection, auto-switching and auto-scanning of inputs, and a non-volatile memory that retains the last configuration, after switching the power off and then on again.
      • Flexible Audio Extraction, Embedding and Control Options - Includes 4 balanced stereo or 8 microphone audio inputs (selectable), 4 unbalanced stereo inputs, 2 line-out balanced stereo audio outputs and one audio amplified output. Features audio volume control, audio breakaway and AFV (audio-follow-video) operation support. Global mute for both video and audio outputs enables smooth integration of the audio system with a public announcement audio system in case of an emergency event.
      • Powerful HDBaseT Extender - Extends signals up to 100m at 4K @60Hz (4:2:0), up to 130m (430ft) at full HD (1080p @60Hz 36bpp), and up to 180m (590ft) at ultra mode and full HD (1080p @60Hz 24bpp). Featuring Kramer reKlocking™ and Equalization Technology that rebuilds the digital signal to travel longer distances. Note: For optimum range and performance, use recommended Kramer cables.
      • Programmable Master Room Controller - Connect multiple peripheral devices and control them using intuitive embedded web pages. Schedule actions and macros to automate device control.

    • Specifications:

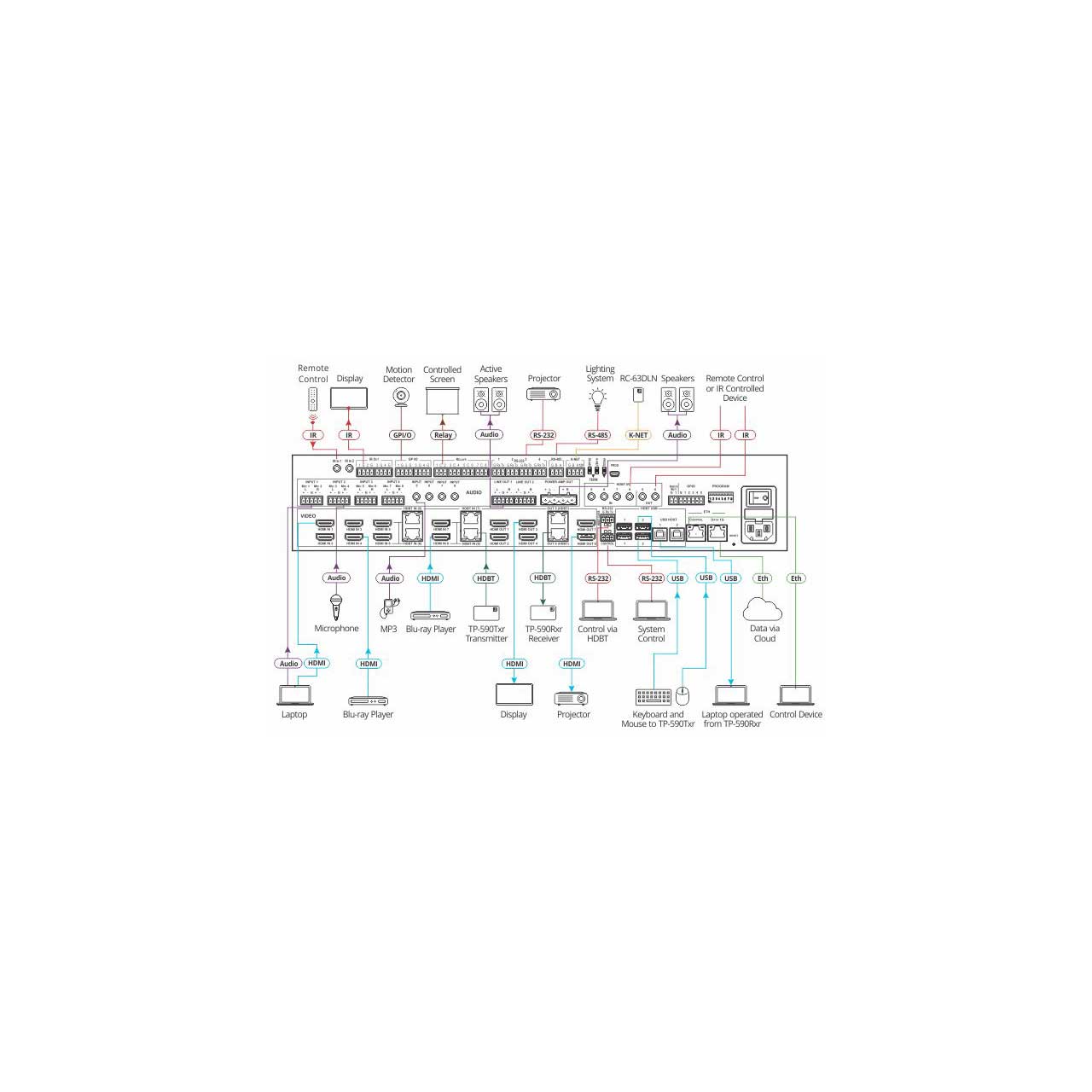

      • INPUTS
      • 4 HDMI: On female HDMI connectors
      • 4 HDBT/4 HDMI (Selectable): On RJ-45/female HDMI connectors
      • 4 Unbalanced Stereo Audio: On 3.5mm mini jacks
      • 4 Balanced Stereo Audio/8 Balanced Mic (Selectable): On 5-pin/3-pin terminal block connectors
      • 4 IR: On 3.5mm mini jacks for IR tunneling via HDBaseT
      • 2 IR (room controller): On 3.5mm mini jacks

        OUTPUTS
      • 6 HDMI: On female HDMI connectors
      • 2 HDBaseT: On female RJ-45 connectors
      • 2 Balanced Stereo Audio: On 5-pin terminal block connectors
      • 1 Stereo Speaker Output: On a 4-pin terminal block, 2x50W into 4?
      • 2 IR: On 3.5mm mini jacks for IR tunneling via HDBaseT

        PORTS
      • 1 RS-232: On a 3-pin terminal block for Serial Tunneling via HDBaseT
      • 1 RS-232: On a 3-pin terminal block for Device Control
      • 4 (2+2) USB:
      • 2 USB:
      • 1 Ethernet Control
      • 1 Ethernet 1G
      • 1 100BaseT Ethernet
      • 1 K-NET 5mm Mini-jack (room controller)
      • 1 RS-485 (room controller)
      • 4 RS-232 Serial (room controller)
      • 8 Relays (room controller)
      • 4 GPI/O (room controller)

        EXTENSION LINE
      • Up to 100m (330ft): At 4K@60Hz (4:2:0)
      • Up to 130m (430ft): At Full HD (1080p @60Hz 36bpp)
      • Up to 180m (590ft): HDBaseT Ultra Mode and Full HD (1080p @60Hz 24bpp)
      • Compliance: HDBaseT 2.0

        USER INTERFACE
      • Indicators: ON & STATUS LEDs
      • Configuration Switches: RS-485 Termination, RS-485 Termination, Programming

        VIDEO
      • Max. Resolution: 4K@60Hz (4:2:0) 24bpp resolution
      • Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
      • Content Protection: HDCP 1.4

        ANALOG AUDIO
      • Max Vrms Level: 1
      • THD + Noise: 0.03% @1kHz at nominal level

        EXTENDED USB
      • Host Compliance: 1.1 and 2.0
      • Max Extended Line Rate Bandwidth: 127Mbps (out of max 480 USB)
      • Max Devices: 7
      • Max Hubs: 2
      • Max Ports per Hub: 8

        EXTENDED ETHERNET
      • Max Transmission Bandwidth: 100Mbps

        EXTENDED RS-232
      • Baud Rate: 300 to 57600

        CONTROL RS-232
      • Baud Rate: 115200

        SUPPORTED PC WEB BROWSERS
      • Windows 7 and Higher: Internet Explorer (32/64 bit) version 10, Firefox version 30, Chrome version 35
      • MAC: Chrome version 35, Firefox version 30, Safari version 7
      • Optimal Resolution: 1920x1080
      • Minimal Resolution: 1024 x 768d

        POWER
      • Source: 100-240V AC, 50/60Hz
      • Consumption: 250VA

        ENCLOSURE
      • Size: 19" (W), 9.3" (H), 2U, rack mountable
      • Type: Aluminum
      • Cooling: Fan ventilation

        ENVIRONMENTAL CONDITIONS
      • Operating Temperature: (32° to 104°F
      • Storage Temperature: -40° to 158°F
      • Humidity: 10% to 90%, RHL non-condensing

        REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
      • Safety: CE, UL
      • Environmental: RoHs, WEEE

    • Item Includes:

      • VS-88UT 8x8 HDMI/HDBT Matrix Switcher
      • Rack ears (1 set)
      • Power cord (1)
      • Rubber Feet (4)

    • Warranty:

      • Limited 7 Year Warranty

    • GTIN:

      7291063074333
