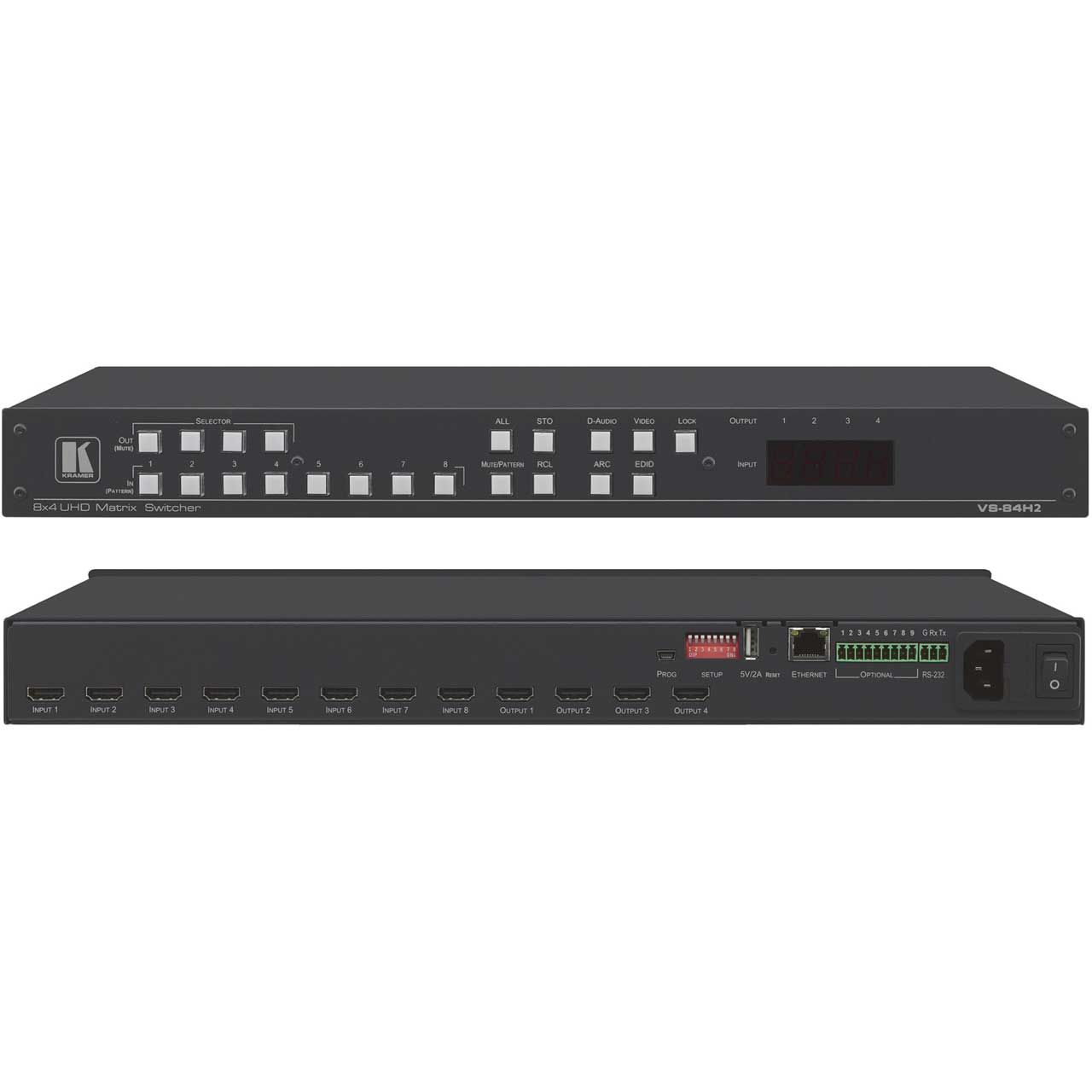

Kramer VS-84H2 8x4 4K HDR HDCP 2.2 HDMI Matrix Switcher with Digital Audio Routing

VS-84H2 - Overview

Resolutions up to 4K60 (4:4:4)

• Features:

  • High-Performance AV Matrix - Switches 8 4K@60Hz (4:4:4), HDR, HDMI, HDCP (2.2/1.4)-compliant signals to 4 4K@60Hz (4:4:4), HDR, HDMI, HDCP (2.2/1.4)-compliant outputs at up to 18G data rate. Featuring Kramer re-Klocking™ and Equalization Technology that rebuilds the digital signal to travel longer distances. Note: For optimum range and performance, use recommended Kramer cables.
  • HDMI Support - Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels as specified in HDMI 2.0.
  • Independent Audio Routing - Any embedded digital audio input can be routed to any digital output, in addition to ARC sources, to produce an equivalent 12x12 audio matrix (8 embedded digital inputs + 4 ARC inputs and 4 digital outputs + 8 ARC outputs).
  • Easy Step-In Collaboration Function - When used with a Kramer Step-In enabled switcher, just plug in your device and press the Step-In button. Your device becomes the active signal on the main display.
  • EDID Management - Individual EDID management per input. Captures and stores the EDID from a display device.
  • Flexible Content Protection - Selectable HDCP per input.
  • Quick Access to Common Configurations - Save up to 16 preset configurations.
  • Smart Switching - Active source & acceptor detection. Automatic input selection based on priority selection or last connected input.
  • Embedded Pattern Generator - With selectable patterns.
  • Convenient Unit Control and Configuration Options - Local control via front panel switching, memory, lock and EDID buttons, and Input/Output LED display. Distance control via user-friendly embedded web pages via the Ethernet, Protocol 3000 API, and RS-232 serial commands transmitted by a PC, touch screen system or other serial controller.
  • Cost-Effective Maintenance - Input selection indicators facilitate easy local maintenance and troubleshooting. Firmware upgrade via Ethernet or Mini USB.
  • Easy Installation - 19" enclosure for rack mounting in a 1U rack space with included rack ears and universal 100-240V AC power supply.


• Specifications:

  • INPUTS
  • 8 HDMI: On female HDMI connectors


  • OUTPUTS
  • 4 HDMI: On female HDMI connectors


  • PORTS
  • 1 Ethernet: On an RJ-45 connector
  • 1 RS-232: On a 3-pin terminal block connector
  • 1 USB: On a USB type A connector, for powering an external device
  • 1 USB: On a mini USB connector, for firmware upgrade or communication with a PC or serial controller


  • VIDEO
  • HDMI Support: Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels as specified in HDMI 2.0
  • Content Protection: HDCP 2.2
  • Max. Output Resolution: 4K@60Hz (4:4:4)


  • USER INTERFACE
  • Control: Input/output selection, mute, test pattern, memory, front panel lock, buttons. RS-232 serial commands transmitted by a PC, touch screen system or other serial controller, embedded web pages via LAN for configuration and control
  • Indicators: Input/output LCD display


  • POWER
  • Source: 100-240V AC 50/60Hz
  • Consumption: 600mA


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RH (non-condensing)


• Item Includes:

  • VS-84H2 4K HDMI 8x4 Matrix Switcher
  • Rack ears (1 set)
  • Rubber feet (4)
  • Power cord (2)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063091767
