YARDEN 6-ID (W) - Overview

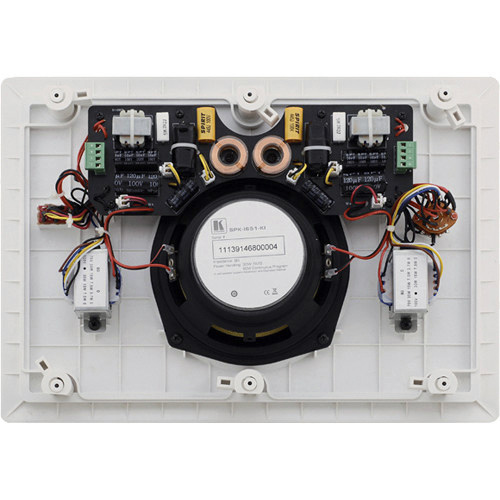

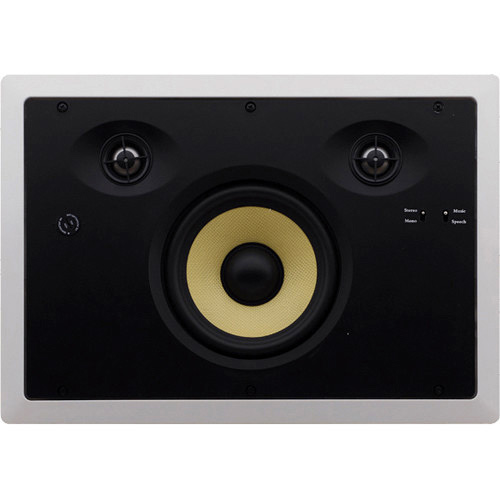

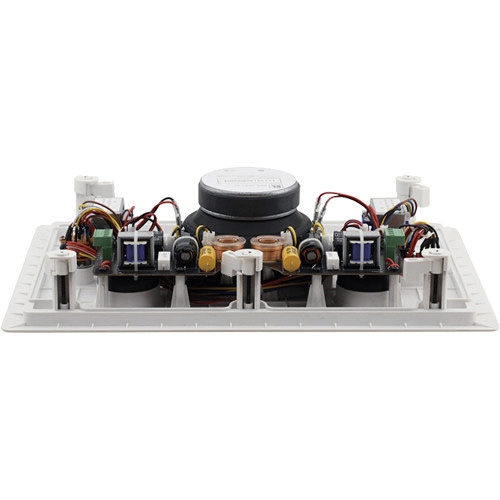

The Yarden 6-ID High Performance In-wall Stereo Speaker features a Kevlar(R) woofer, dual pivoting titanium tweeters, speech mode to improve intelligibility, 2nd level cross-over design and multi-tap power transformer for selecting 8Ω (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation.

  • Features:

    • Type - 2-way in-wall stereo speaker.
    • Woofer - 6.5” Kevlar(R) cone.
    • Tweeters - Two pivoting 1” titanium domes.
    • Impedance - 8Ω.
    • Speech/Music Selector Switch.
    • Stereo/Mono Selector Switch.
    • Power Handling - 0W RMS, 80W continuous program.
    • Transformer Taps - 70V - 30W/15W/7.5W/3.7W/Off (Lo-Z), 100V - 30W/15W/7.5W/Off (Lo-Z).


  • Specifications:

    • DESCRIPTION: 2-way in-wall speaker.
    • FREQUENCY RESPONSE: 40Hz to 20kHz @ -10dB, 60Hz to 20kHz @ ±3dB.
    • WOOFER: 6.5” (166mm) Kevlar(R) with rubber surround.
    • TWEETER: 2 pivoting 1” (25mm) titanium.
    • IMPEDANCE: 8Ω (transformer tap in off position).
    • TRANSFORMER TAPS: 70V - 30W/15W/7.5W/3.7W/Off (Lo-Z), 100V - 30W/15W/7.5W/Off (Lo-Z).
    • SENSITIVITY: 85dB SPL 1W @1m.
    • MAX SPL: Continuous: 100dB, peak: 103dB.
    • POWER HANDLING: 30W RMS, 80W continuous program.
    • CROSSOVER FREQUENCY: 2.3kHz.
    • DIRECTIVITY FACTOR (Q): 7.5 averaged 1kHz to 10kHz.
    • DIRECTIVITY INDEX (DI): 8.8dB averaged 1kHz to 10kHz.
    • INPUT CONNECTORS: Terminal blocks.
    • CONTROLS: Mono/Stereo select switch, Music/Speech select switch.
    • MATERIALS: Frame, aluminum grill, ABS cabinet.
    • OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F).
    • STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F).
    • HUMIDITY: 10% to 90%, RHL non-condensing.
    • WEIGHT: 3.03kg (6.68lbs) approx.
    • SHIPPING WEIGHT: 3.85kg (8.49lbs) approx.
    • DIMENSIONS: 48cm x 28cm x 8.8cm (18.9” x 11.02” x 3.46”), W, D, H.
    • INSTALLATION CLEARANCE: Mounting depth: 8.3cm (3.27").
    • COLORS: Available in white.


  • Item Includes:

    • 1 speaker


  • GTIN:

    7291063065331
