kvm-tec SVX1 Smartline Extender Single - Local/Remote Kit

ITEM #: KVM-6501 MFG #: 6501

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KVM-6501

6501 - Overview

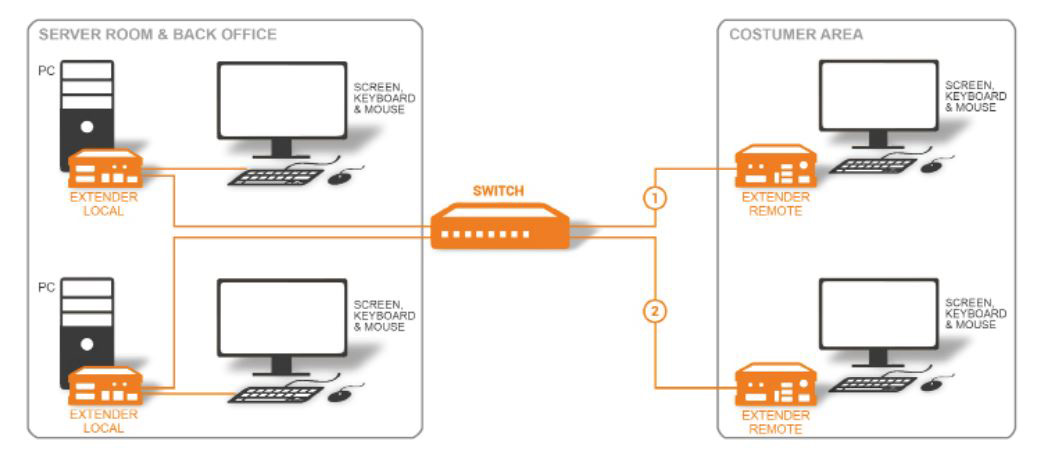

The kvm-tec SVX1 is a highly optimized KVM Extender that has a range of 492 ft at a resolution of 1920 x 1200 and is available in copper in a single and dual version. The effect tuning of the kvm-tec video compression with a low latency time enables the signals to be transmitted without delay. USB and video is transferred via CAT5/6/7 cable. The DVI extension without loss of quality allows full HD videos to be transmitted in real time. The transparent USB 2.0 interface supports tablets and touchscreens, sound modules, printers and much more. Even in the standard version. An USB option is available for memory sticks and USB hard drives. High reliability and robust de-sign makes the kvm-tec extender ideal for many applications. Additionally, the kvm-tec security feature USB save "prevents the intrusion of computer viruses via the interface by disabling mass storage device support such as USB memory sticks and external hard disk drives. With the Matrix Switching System upgrade code enabled, the SVX Extender can be used with a standard network Switch to reate a full KVM Matrix Switching System without any additional hardware. Additionally, our intelligent soft-ware, the kvm-tec Switching Manager, (available separately) provides easy and intuitive management of all KVM Extenders in the switching system.

Please Note: This Extender System REQUIRES both a SEND and RECEIVE unit in order to function. This is a kit containg both required units.

  • Features:

    • Max resolution.1920x1200 @ 60Hz
    • Max distance 492ft in copper
    • Transparent USB 2.0 extension
    • Full HD video in real time
    • DVI extension without loss of quality
    • Ultra compact up to 4 channels in a 19" 1RU
    • Automatic Plug & Play installation
    • One CAT 5/6/7 cable for USB and video
    • Local (CPU) - remote (CON) monitor output
    • Firmware Flash upgradeable without cable
    • High reliability and rugged design
    • 19" rack mountable
    • Screw-locked DVI jack
    • Sound/RS232 external extendable over USB adapter
  • Specifications:

    • Interfaces
    • Video: HDMI In (no HCDP), DVI-I In/Out
    • USB 2.0: USB-B - PC, USB-A

    • Signal Type: DVI-I, DVI-D
    • Resolution (Digital): Max. 1920 x 1200 @ 60Hz
    • Color Mode: 24 bit

    • Specification: USB 2.0
    • Type: Transparent
    • Rate: Max. 480Mbit/s, mass storage and camera optional

    • Operating Temperature: 32°F - 133°F
    • Storage Temperature: -13°F - 176°F
    • Operating/Storage Humidity: <90%, non-condensing
    • Cooling: Free air convection

      Power & Physical
    • Power Supply: External 12V DC 1A, 6W
    • Casing Material: Anodized Aluminum
    • Dimensions (HxWxD): 1.57" x 3.83" x 4.07"
    • Weight: 10.1oz (Local), 10.3oz (Remote)
  • Item Includes:

    • 1x SVX1 Local (CPU)
    • 1x SVX1 Remote (CON)
    • 2x Power Supply 12V 1A
    • 2x DVI-HDMI Cable
    • 1x USB Cable
    • 1x Quickstart Manual
    • 4x Mounting Pads
    • 4x Rubber Feet
  • Warranty:

    • 2 years
  • GTIN:
