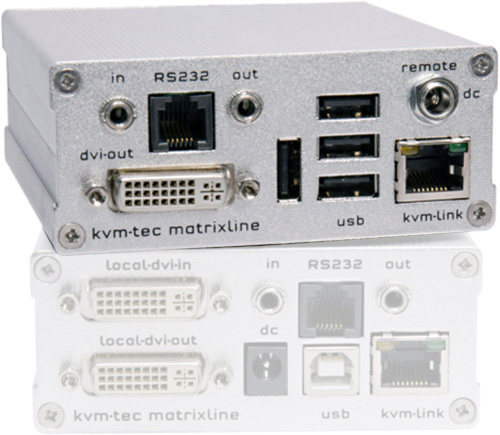

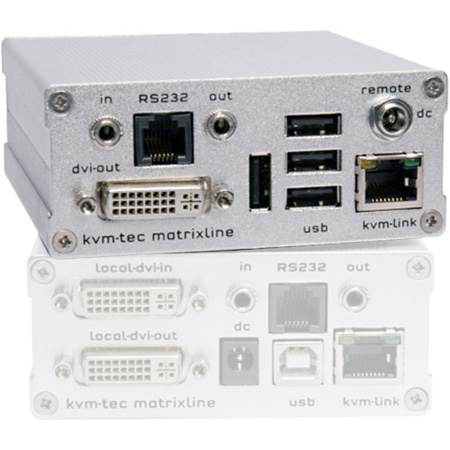

kvm-tec MX1 Matrixline Extender Single - Local/Send Unit Only

ITEM #: KVM-6711L MFG #: 6711L

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KVM-6711L

6711L - Overview

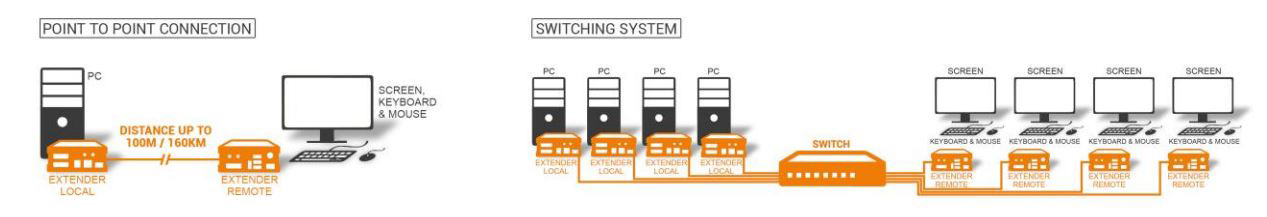

The highly optimized KVM-Tec MX1 Local KVM Extender has a range of 492ft/99 miles at a resolution of 1920x1200 and is available in copper and a fiber single version. The effect tuning of the KVM-Tec video compression with a low latency time enables the sig-nals to be transmitted without delay. USB and video is transferred via one cable. The DVI extension without loss of quality allows Full HD videos to be transmitted in real time. The transparent USB 2.0 interface sup-ports tablets and touchscreens, sound modules, printers and much more in the standard version. An USB option is included for memo-ry sticks and USB hard drives. High reliability and robust design make the KVM-Tec extender ideal for many applications. Additionally, the KVM-Tec security feature "USB save" pre-vents the intrusion of computer viruses via the interface by disabling mass storage devices support such as USB memory sticks and external hard disk drives. The MX Extender can be used with a standard net-work Switch to create a full KVM Matrix Switching System without any additional hardware.

Please Note: This Extender System REQUIRES both a SEND and RECEIVE unit in order to function. This is a SEND unit only.

  • Features:

    • Automatic Plug and Play installation
    • USB Keyboard/Mouse/Touchscreen
    • Supports DDC/EDID monitor information
    • Local and remote monitor
    • Transparent USB 2.0 extension
    • Full HD 1080p 1920 x1080 @ 60Hz
    • Compatible with all CAT5/6/7 cables
    • Flash firmware - upgradeable without cable
    • High reliability, rugged design
    • 19" rack mountable
    • Ultra compact: up to 4 channels in a 19" 1U
    • Analog VGA transmission (optional)
    • Optional Sound or RS232 transmission (optional)

      KVM-Tec Upgrade Codes Included:
    • USB Memory
    • Matrix Switching System
    • Sound analog in both directions in CD quality
    • Analog VGA - converted to DVI
    • RS232
  • Specifications:

    • Interfaces
    • Video: DVI-I In/Out (no HCDP)
    • USB 2.0: USB-B - PC
    • Audio: 3.5mm jack plug (Line IN/OUT)
    • RS232: RJ11 connector (adapter RJ11 - Sub9 optional)

    • Signal Type: DVI-I
    • Resolution (Digital): Max. 1920 x 1200 @ 60Hz
    • Resolution (Analog): Max 1920 x1200 @ 60Hz (opt.)
    • Color Mode: 24bit

      Audio (optional)
    • Type: Analog
    • Bandwith: 16bit, 44kHz, 2ch

    • Specification: USB 2.0
    • Type: Transparent
    • Rate: Max. 480Mbit/s, mass storage and camera optional

      RS232 (optional)
    • Type: Transparent
    • Rate: Max. 230.400bps
    • Signals: TxD, RxD, DTR, DSR, RTS, CTS, DCD

    • Operating Temperature: 32°F - 133°F
    • Storage Temperature: -13°F - 176°F
    • Operating/Storage Humidity: <90%, non-condensing
    • Cooling: Free air convection

      Power & Physical
    • Power Supply: External 12V DC 1A, 6W
    • Casing Material: Anodized Aluminum
    • Dimensions (HxWxD): 1.57" x 3.83" x 4.07"
    • Weight: 10.7oz
  • Item Includes:

    • 1x MX1 Local (CPU)
    • 1x Wall Power Supply 12V 1A
    • 1x DVI-DVI Cable
    • 1x USB A-B Cable
    • 4x Rubber Feet
    • 4x Mounting Pads
  • Warranty:

    • 2 years
  • GTIN:
