kvm-tec MX1 Matrixline Extender Single - Remote/Receive Unit Only

ITEM #: KVM-6711R MFG #: 6711R

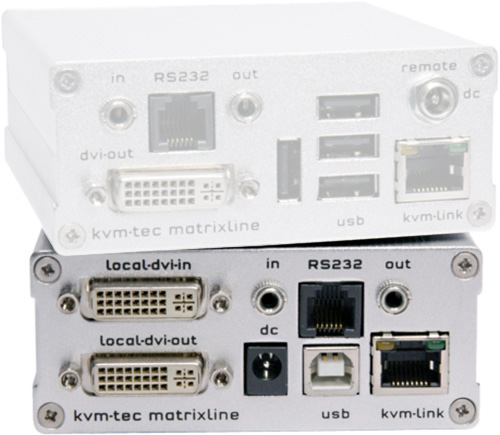

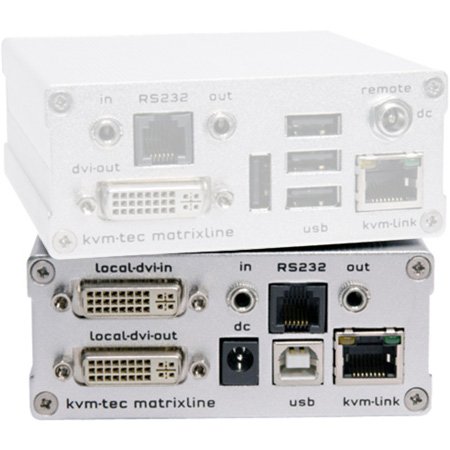

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KVM-6711R

6711R - Overview

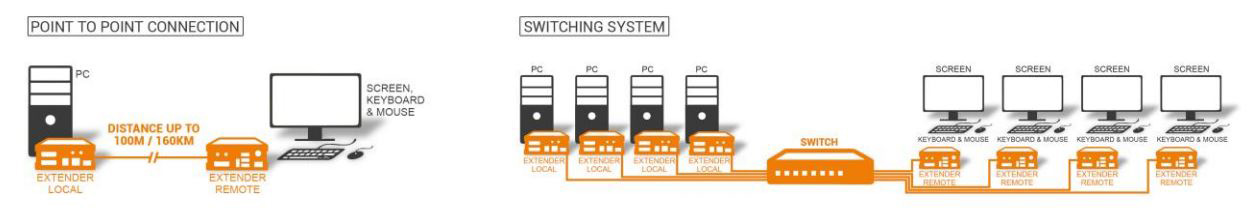

The highly optimized KVM-Tec MX1 Remote KVM Extender has a range of 492ft/99 milesat a resolution of 1920x1200 and is available in a copper and a single fiber version. The effect tuning of the KVM-Tec video compression with a low latency time enables the sig-nals to be transmitted without delay. USB and video is transferred via one cable. The DVI extension without loss of quality allows Full HD videos to be transmitted in real time. The transparent USB 2.0 interface sup-ports tablets and touchscreens, sound modules, printers and much more in the standard version. An USB option is included for memory sticks and USB hard drives. High reliability and robust design make the KVM-Tec extender ideal for many applications. Additionally, the KVM-Tec security feature USB save prevents the intrusion of computer viruses via the interface by disabling mass storage devices support such as USB memory sticks and external hard disk drives. The MX Extender can be used with a standard net-work Switch to create a full KVM Matrix Switching System without any additional hardware.

Please Note: The Smartline Extender System REQUIRES both a SEND and RECEIVE unit in order to function. This is a RECEIVE unit only.

  • Features:

    • Automatic Plug and Play installation
    • USB Keyboard/Mouse/Touchscreen
    • Supports DDC/EDID monitor information
    • Local and remote monitor
    • Transparent USB 2.0 extension
    • Full HD 1080p 1920 x1080 @ 60Hz
    • Compatible with all CAT5/6/7 cables
    • Flash firmware - upgradeable without cable
    • High reliability, rugged design
    • 19" rack mountable
    • Ultra compact: up to 4 channels in a 19" 1U
    • Analog VGA transmission (optional)
    • Optional Sound or RS232 transmission (optional)

      KVM-Tec Upgrade Codes Included:
    • USB Memory
    • Matrix Switching System
    • Sound analog in both directions in CD quality
    • Analog VGA - converted to DVI
    • RS232
  • Specifications:

    • Interfaces
    • Video: DVI-I Out
    • USB 2.0: USB-A (devices)
    • Audio: 3.5mm jack plug (Line IN/Speaker)
    • RS232: RJ11 connector (adapter RJ11 - Sub9 optional)

    • Signal Type: DVI-D
    • Resolution (Digital): Max. 1920 x 1200 @ 60Hz
    • Resolution (Analog): Max 1920 x1200 @ 60Hz (opt.)
    • Color Mode: 24bit

    • Operating Temperature: 32°F - 133°F
    • Storage Temperature: -13°F - 176°F
    • Operating/Storage Humidity: <90%, non-condensing
    • Cooling: Free air convection

      Power & Physical
    • Power Supply: External 12V DC 1A, 6W without USB devices
    • Casing Material: Anodized Aluminum
    • Dimensions (HxWxD): 1.57" x 3.83" x 4.07"
    • Weight: 10.3oz
  • Item Includes:

    • 1x MX1 remote (CON)
    • 1x Wall Power Supply 12V 1A
    • 1x RJ11 to Sub9 (RS232) adapter (opt.)
    • Quickstart Manual
  • Warranty:

    • 2 years
  • GTIN:
