Laird 20 Amp Twistlock Plug to powerCON TRUE1 TOP Female Power Adapter Cable - 2 Foot

Name: Laird 20 Amp Twistlock Plug to powerCON TRUE1 TOP Female Power Adapter Cable - 2 Foot
Brand: Laird Digital Cinema
SKU: LDC-20TM-PCTF
Price: 47.49 USD
Availability: PreSale

ITEM #: LDC-20TM-PCTF MFG #: LDC-20TM-PCTF

Laird Digital Cinema

List Price:

$52.49

Our Price:

$47.49

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

LDC-20TM-PCTF - Overview

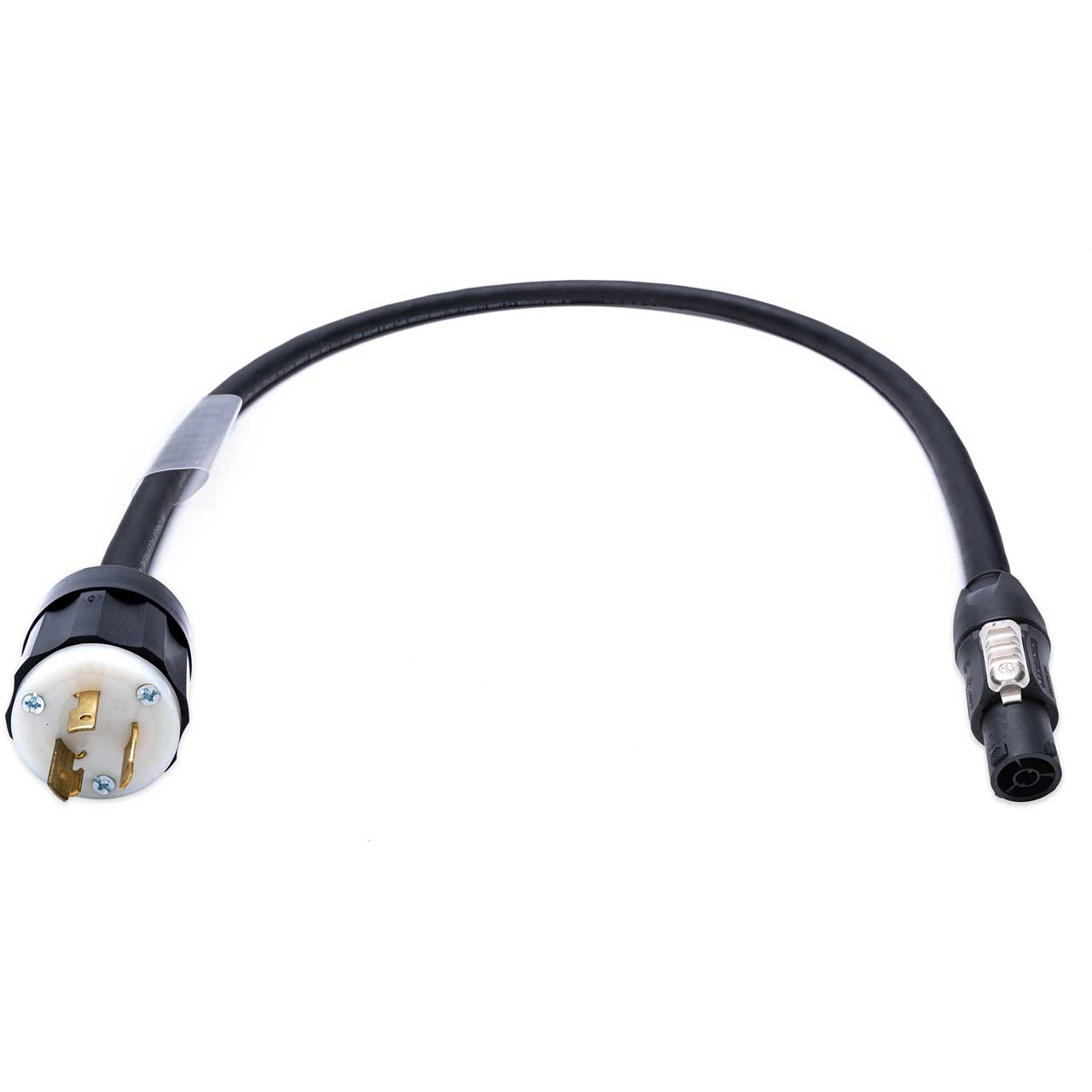

The LDC-20TM-PCTF is a handy power cable by Laird for adapting a 20 Amp twistlock receptable to Neutrik TRUE1 TOP cable. These cables are built with SJOOW heavy duty 12/3 wire that’s perfect for location shoots, studio sets and theatrical stages to power lighting, audio and video gear. This power adapter cable has a male 20A twistlock plug to a Neutrik powerCON TRUE1 TOP Female. The Twistlock design provides a secure AC connection to ensure your gear is always up and running!

Features:
- Laird's heavy-duty flexible SJOOW PWR-12/3-TP power cable
- High-quality Neutrik powerCON connectors
- Rugged 20-amp connectors
- UL-recognized components
Specifications:
- Cable Type: SJOOW
- Number of Conductors x AWG: 3x12
- Conductor Insulation: Rubber (EPR)
- Outer Jacket Material: Rubber (CPE)
- Current Carrying Capacity: 25 Amps
- Outer Diameter: 0.425in - 0.476in
- Nom. Voltage: AC U 300V
- Temperature:
  • Flexing: -4°F to 194°F (-20°C to +90°C)
  • Static: -40°F to 194°F (-40°C to +90°C)
- Min Bend Radius:
  • Flexing: 4.76in
  • Static: 2.85in
- Weight: 0.14lbs/ft

  Neutrik powerCON Connector:
- Contact Resistance: ≤ 2 mΩ
- Amperage: 20 Amps
- Voltage: 250 V AC
- Dielectric Strength: 4 kVdc / 2.8 kVac
- Insulation Resistance: > 0.1 GΩ (initially)
- Lifetime: 5'000 mating cycles

  Leviton Connector:
- Amperage: 20 Amps
- Voltage: 250 VAC
- Blade/Contact Material: Solid Brass
- Body Material: Impact Modified Nylon
Warranty:
- 1 Year
