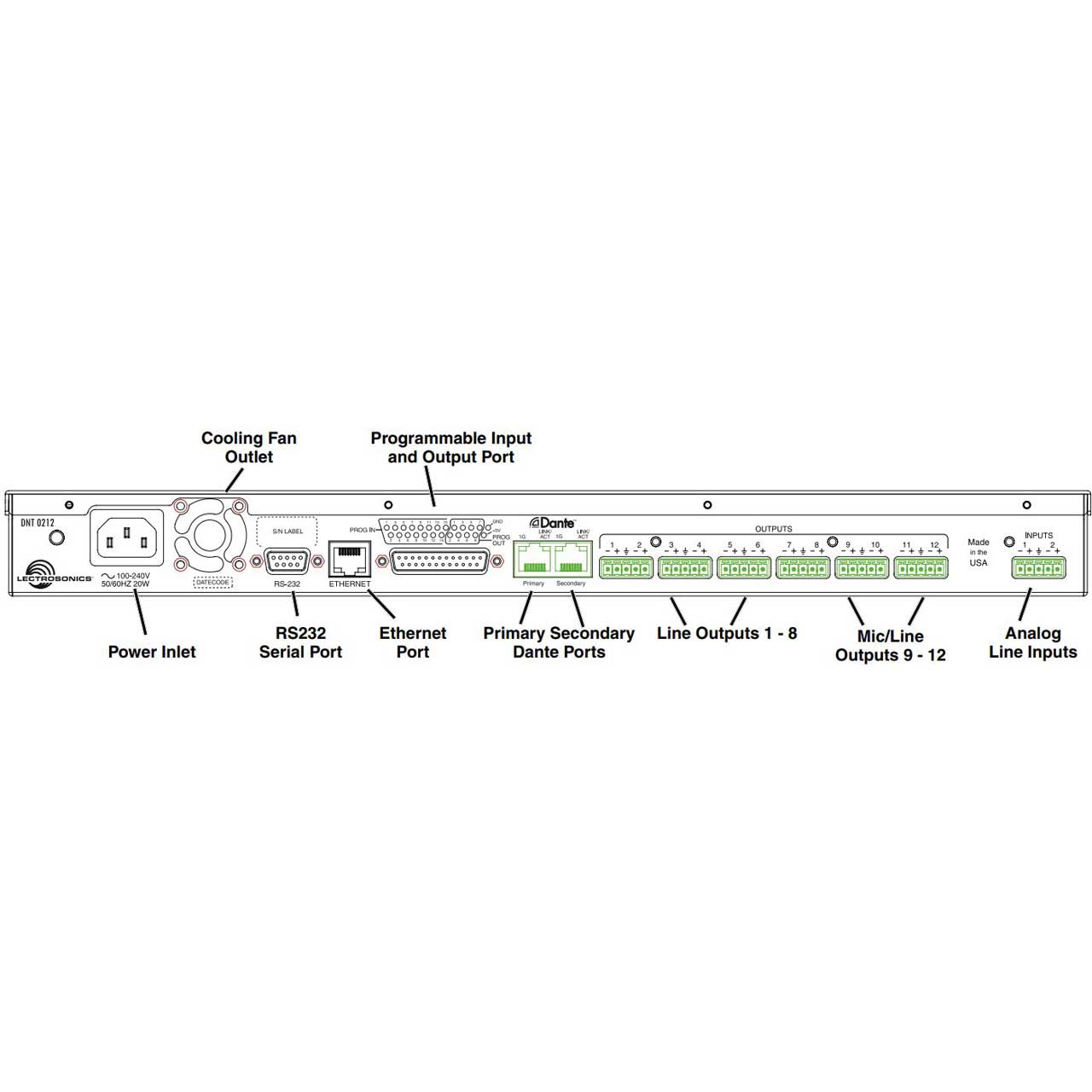

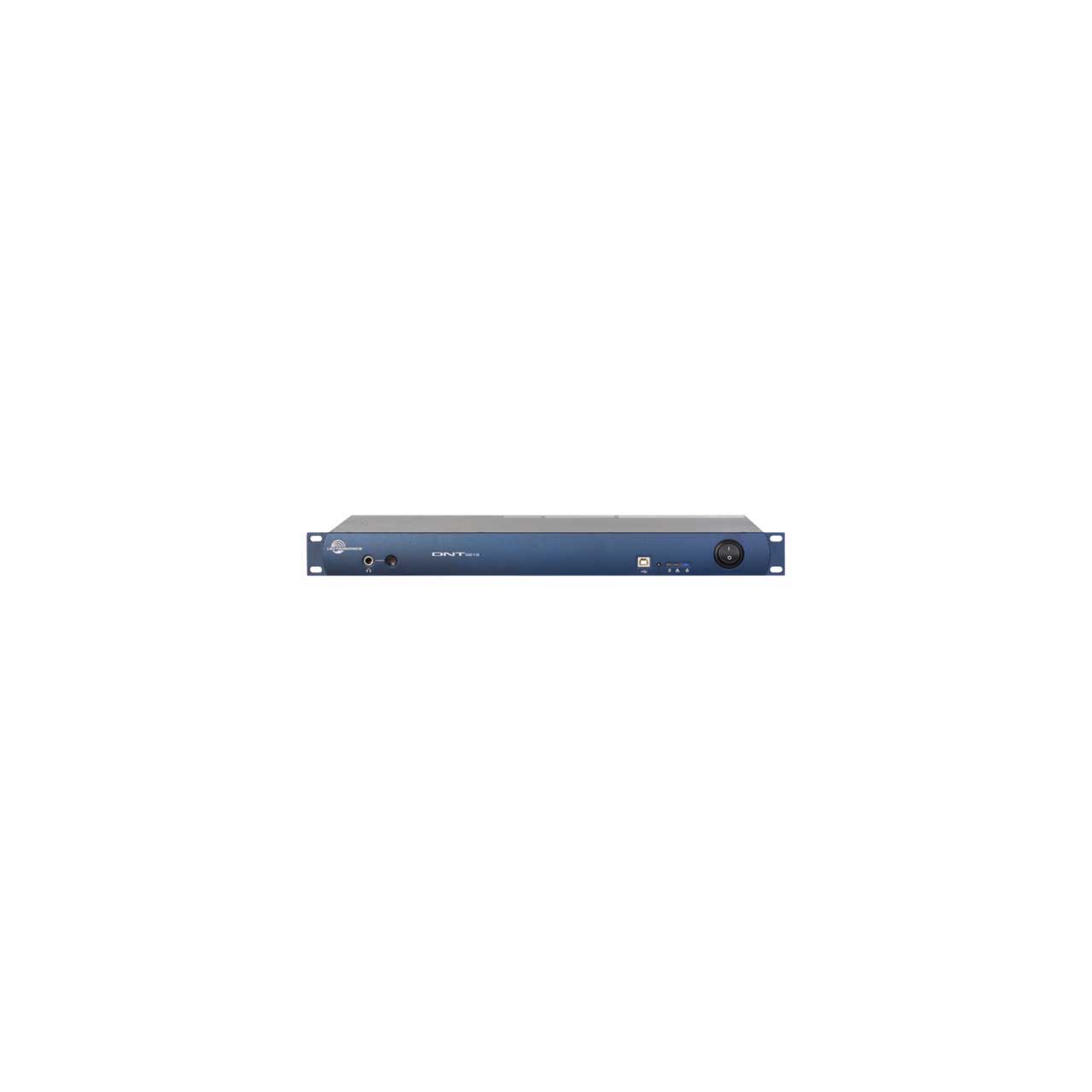

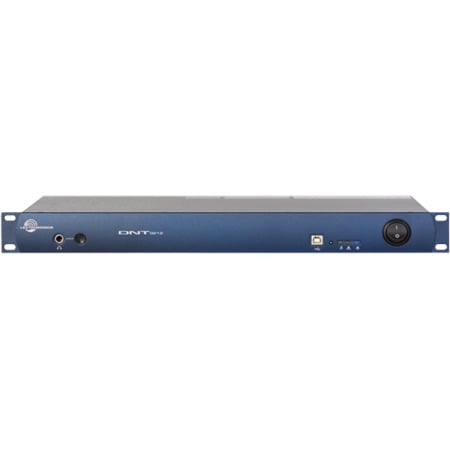

Lectrosonics DNT0212 processor subscribes to channels on a Dante network and delivers them to an internal digital matrix for automatic mixing and processing, and to Dante network transmit channels. In addition, two analog line level inputs are provided for use with local sources audio sources such as voice evacuation announcements.
The outputs of the matrix can be assigned to a Dante transmit channel, an analog output and/or routed back to an input to be further mixed and processed with another input channel or matrix mix.
The DNT0212 is at home in sound reinforcement and conference systems, room combining, courtrooms, council chambers, house of worship systems and numerous other multi channel sound systems. High quality microphone preamps and A-D converters provide studio quality audio for court recording and telepresence systems. Delay, EQ filters and dynamic processing is present on every output channel. Smooth gain transition is enabled on every input and output channel, and every crosspoint, to prevent audible artifacts caused by abrupt level changes.
Signal routing options are extremely flexible. Each output channel can select signals from the Dante network, external analog sources, output mixes from the internal matrix and the internal signal generators. Each of the 48 automatic mixers in the internal matrix crosspoints can mix signals from any or all of the 34 input channels and the four signal generators.
