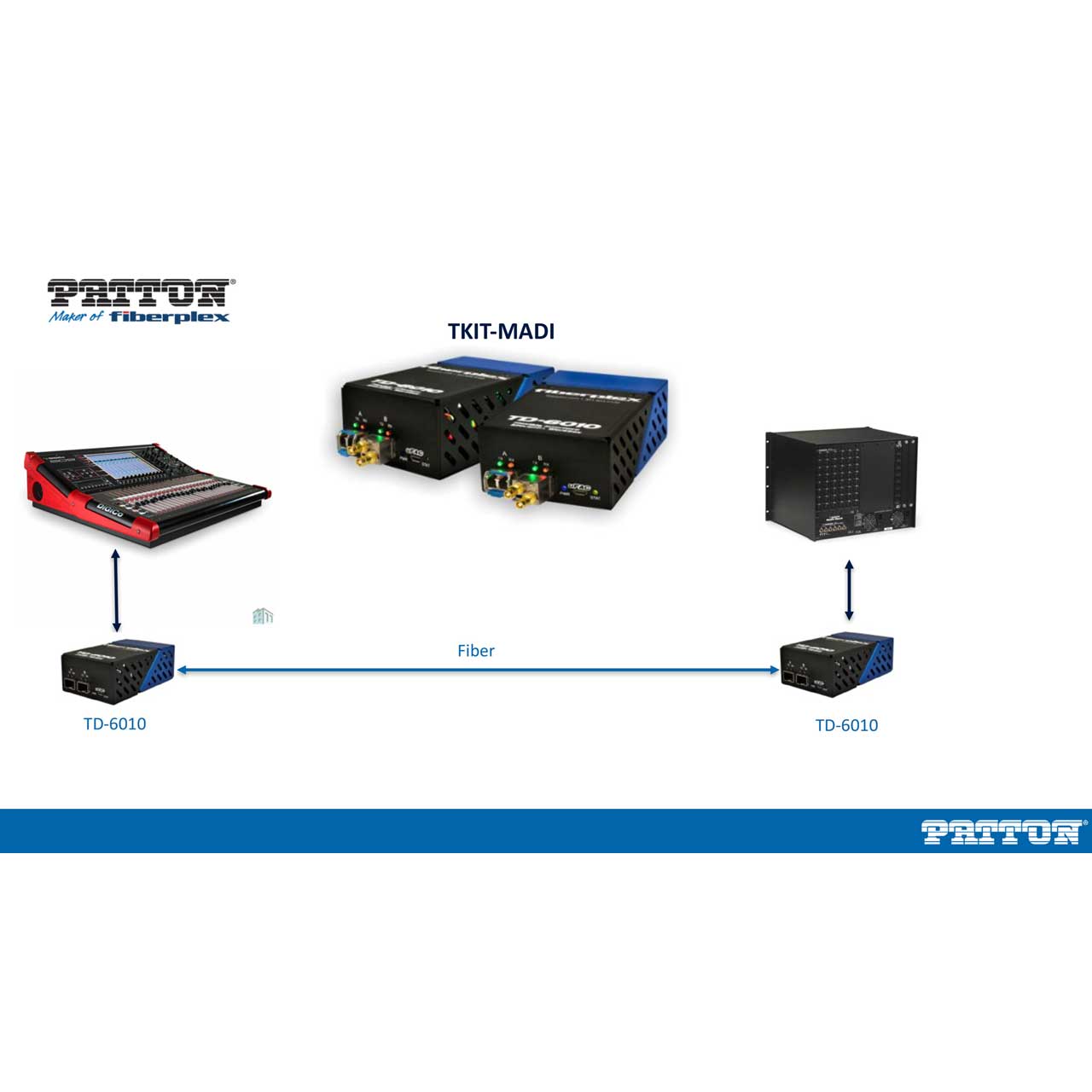

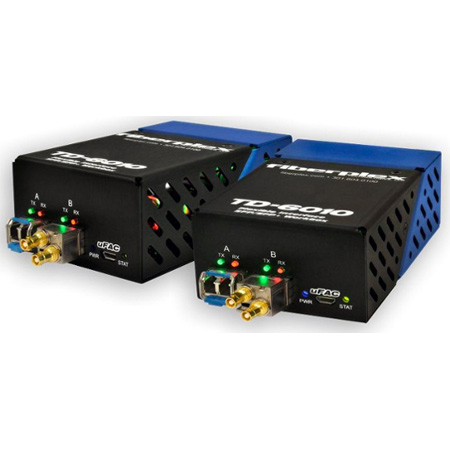

Fiberplex TKIT-MADI-M TD-6010 (Pair) MADI (AES10) to Multimode Optical Conversion 1310nm 2km Includes AC Power Adapter

ITEM #: TKIT-MADI-M MFG #: TKIT-MADI-M

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$2,058.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    TKIT-MADI-M - Overview

    The FiberPlex Technologies `TKIT' bundles takes the incredible flexibility of the TD-6010 12.5 Gbps workbox and bundles it with a set of application specific SFP modules to create a simple, easy to order solution for your specific application. Includes AC Power Adapters.
    All TKIT boxes come equipped with a USB 2.0 Micro-B Connection for monitor control. It is a USB port intended to monitor and control the installed SFP. It is for future functionality only, Fiberplex currently does not have software available for this.

    All fiber connectors are LC duplex and all TKIT kits come with all SFPs needed. All TKITs listed have HDBNC connections where applicable. (3G SDI, MADI)

    • Features:

      • Meet Electrical Specifications of AES10-2003
      • Available as Tranciever, Dual RX or Dual TX
      • HD-BNC™ connectors (75&Omega)
      • Integrated Equalizer: Typical length of Belden 1694A cable: 100m at 125Mb/s
      • Integrated Cable Driver: Control via serial interface including:
      • Input signal detection, Voltage & Temperature Monitoring, Module Information

    • Specifications:

      • Storage Temperature (°C): -40 - 85°C
      • OperatingTemperature (°C): 0 - 50°C
      • Interface: Full speed USB 2.0 compliant MicroB Device
      • Optical Modules: 2 SFP+ MSA (SFF-8431, SFF-8432, SFF-8433) compliant slots, data rate 0 - 12.5 gigabits
