Lightronics AS62DC Portable Dimmer

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

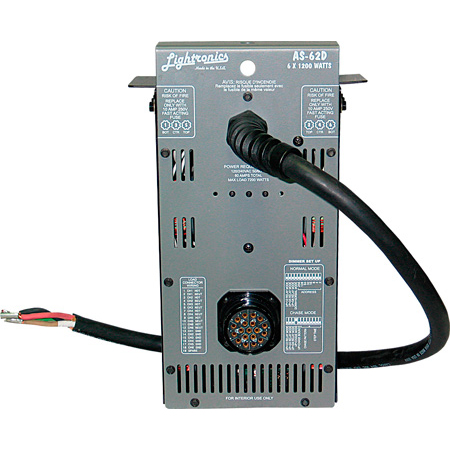

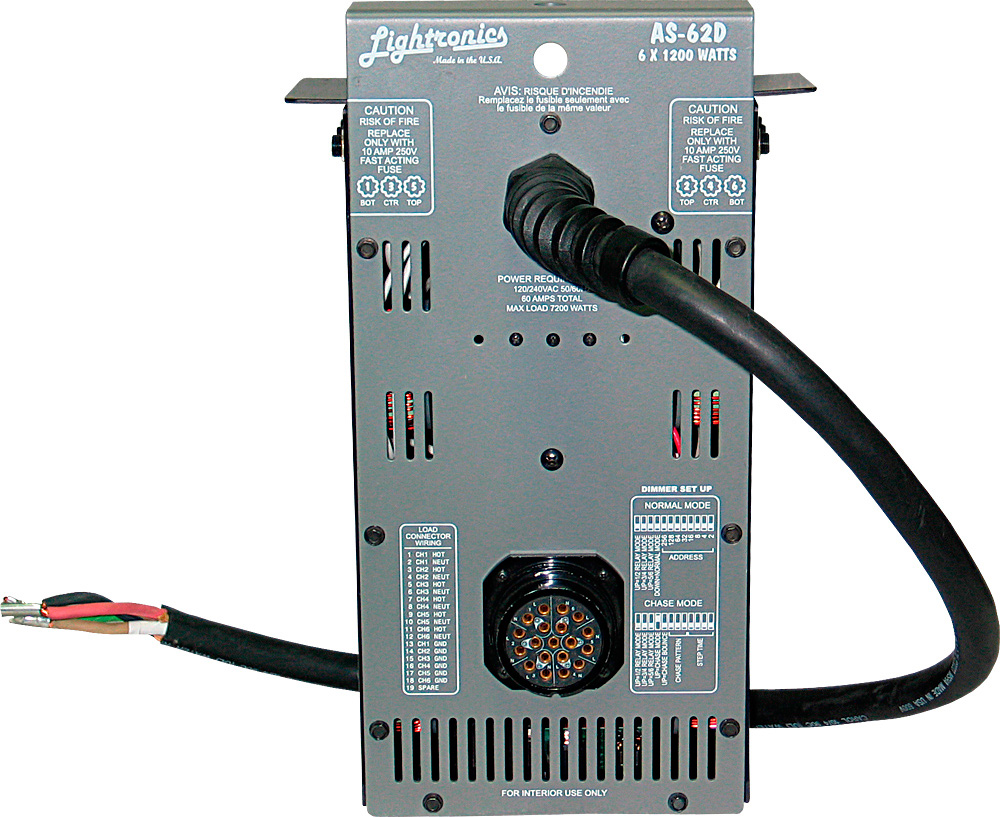

    Lightronics AS62DC Portable Dimmer

    Manufacturer: Lightronics

    Item #: LGT-AS62DC   •   MFG #: AS62DC



    List Price:$925.00
    Our Price:$693.75

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




      Share!





      The AS62DC is a compact 4 channel light dimmer with Circuit Breakers. It has a maximum capacity of 1200 Watts per channel and maximum total load capacity of 4800 Watts. It is supplied with 2 input power cord stubs which may be connected to 2 different 120 VAC power phases. The unit operates using the USITT DMX-512 protocol or an industry standard three wire multiplex protocol. The AS62D may be operated in a relay (non-dim) mode. The unit will also function as a chaser and has several preset chase patterns which may be used.


      • Features

        • 6 Channels
        • 1200W per Channel
        • 4800 Watts Total Capacity
        • 8 Built in Chases
        • DMX-512 & LMX-128
        • Relay Mode Switchable
        • Circuit Breakers
        • Edison Outputs
        • 120V

      • Specifications

        • Channels: 6
        • Channel Capacity: 1200 Watts per Channel
        • Total Power: 4800 Watts
        • Control Protocol: DMX-512 and 3 Wire LMX-128
        • Control Connections: Dual 5 Pin XLR, DMX Dual 3 Pin XLR, LMX
        • Power Requirements: 120VAC, Two 20 Amp Circuits
        • Power Input: Two Edison Plugs
        • Frequency: 50 or 60Hz
        • Fusing: 10 Amp each Channel
        • Preheat Voltage: Soft Start Control
        • Response Curve: Modified Square Law
        • Filter Rise Time: 350 Microseconds
        • Filter Max. Rate of Rise: 105 Milliamps / Microsecond
        • Response Time: 8.3 Milliseconds
        • Full Load Voltage Drop: 3 Volts
        • Conduction Angle Range: 180 Degrees
        • Efficiency: 97%
        • Size: 13.5”L x 8.5”W x 3 3/8”D
        • Weight: 8.5 Pounds
