Lilliput UQ19-ABBP 18.4-Inch 1000 Nits Studio Production Monitor with 8K 12G-SDI / HDMI 2.1 with Gold Mount

UQ19-ABBP - Overview

• Features:

  • Sunlight Readable Screen: The 1000 nits high brightness screen not only provides director with accurately colors outdoors, but also combines with the HDR algorithm to deliver an unparalleled quality picture.
  • Precise Color Expression: A good quality A+ grade screen with color depth of 1.07B is carefully selected one in a hundred, so that every detail cannot be missed through accurately reproducing the rich colors of reality.
  • 8K 12G-SDI HDMI Video Signal: Combine four 4K 60Hz video signals into one 8K 60Hz video signal using a quad-link 12G-SDI connection.
  • Rugged Portable Suitcase: A rugged suitcase with fully upgraded protection that is super resistant to drop and shock. It also has a wealth of functionality, making it both practical and durable at the same time.
  • Remote Control Application: Connect your computer to control the monitor via application. The interfaces of RS422 In and RS422 Out can realize synchronization control of multiple monitors.

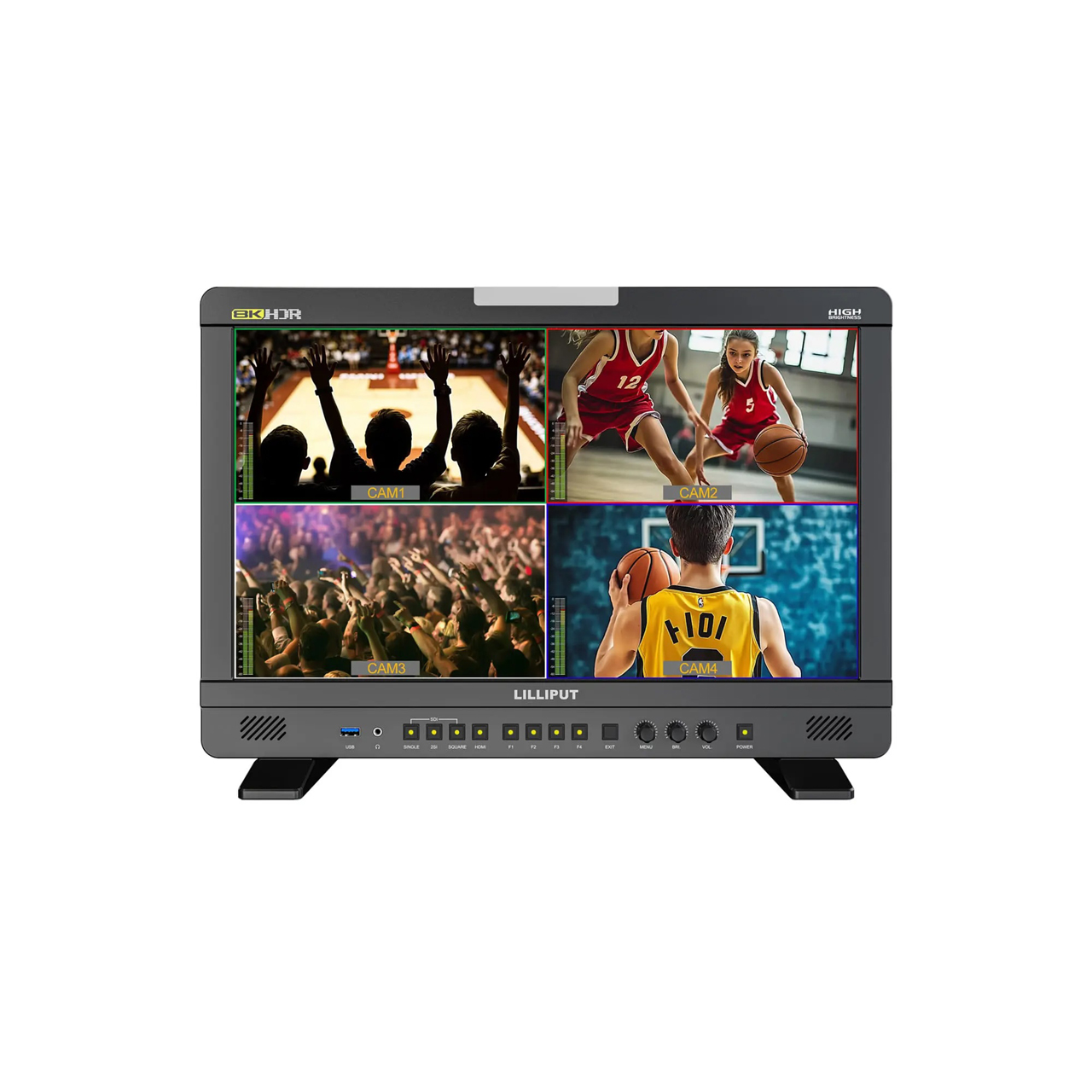

  • Quad-Split Multiview: In quad-split multiview mode, any input signal can be selected and changed among 12G-SDI, HDMI 2.1 and 12G-SFP+. Moreover, the images can be differentiated with colorful borders to enhance the senses of monitoring.
  • Easy-to-Use UI: Upgraded UI of monitor brings extreme convenient and practical experience. Moreover, an abundance of shortcut buttons and knobs cover most of monitor functions and settings. User can quickly reach their desired functions.
  • Outdoor Filmmaking: A portable production monitor designed for outdoor filmmaking/broadcast live, the 1000 nits of high brightness screen effectively combats sunlight and allows for accurate color reproduction.
  • Video Post-Production: A high brightness 4K monitor with HDR is critical in film and video post-production to ensure accurate color grading, detail precision, and consistency across deliverables. Monitors must also feature advanced video connectivity and support more than 10 bit color depth to prevent banding.


• Specifications:

  Display
  • Panel: 18.4"
  • Physical Resolution: 3840*2160
  • Aspect Ratio: 16:9
  • Brightness: 1000 cd/m²
  • Contrast: 1000:1
  • Viewing Angle: 178°/178° (H/V)
  • HDR: ST2084 300/1000/10000/HLG
  • Supported Log Formats: SLog2/SLog3/CLog/NLog/ArriLog/JLog or User
  • Look Up Table (LUT) Support: 3D LUT (.cube format)
  • Calibration: Calibrate color space to Rec.709, DCI-P3, NTSC, BT.2020

    Video Input
  • SDI: 4x 12G (Supported 8K-SDI Formats Quad Link)
  • SFP: 1x 12G SFP+ (Fiber module for optional)
  • HDMI: 1x HDMI 2.1 (Supported 8K-HDMI Formats)

    Video Loop Output
  • SDI: 4x 12G (Supported 8K-SDI Formats Quad Link)
  • HDMI: 1x HDMI 2.1 (Supported 8K-HDMI Formats)

    Supported Formats
  • SDI: 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
  • SFP: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
  • HDMI: 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60

    Audio In/Out (48kHz PCM Audio)
  • SDI: 16ch 48kHz 24-bit
  • HDMI: 8ch 24-bit
  • Ear Jack: 3.5mm
  • Built-in Speakers: 2x

    Remote Control
  • RS422: In/Out
  • GPI: 1
  • LAN: 1

    Power
  • Input Voltage: DC 15V - 24V
  • Power Consumption: ≤56W (15V)

    Environment
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)

    Physical
  • Dimensions (LxWxH): 21" x 17" x 5" (533mm x 432mm x 127mm)
  • Weight: 26.7lbs (12.1kg)


• Item Includes:

  • 1x 15V 4.8A (18.4")/19V 6A (23.8")/24V 7.5A (31.5") DC Adapter
  • 2x Base Bracket
  • 1x 8GB USB flash drive (User guide and software included)
  • 1x Gold Mount/Anton Bauer Battery Plate
  • 1x VESA Mount Plate
  • 1x D-tap to XLR Connector
