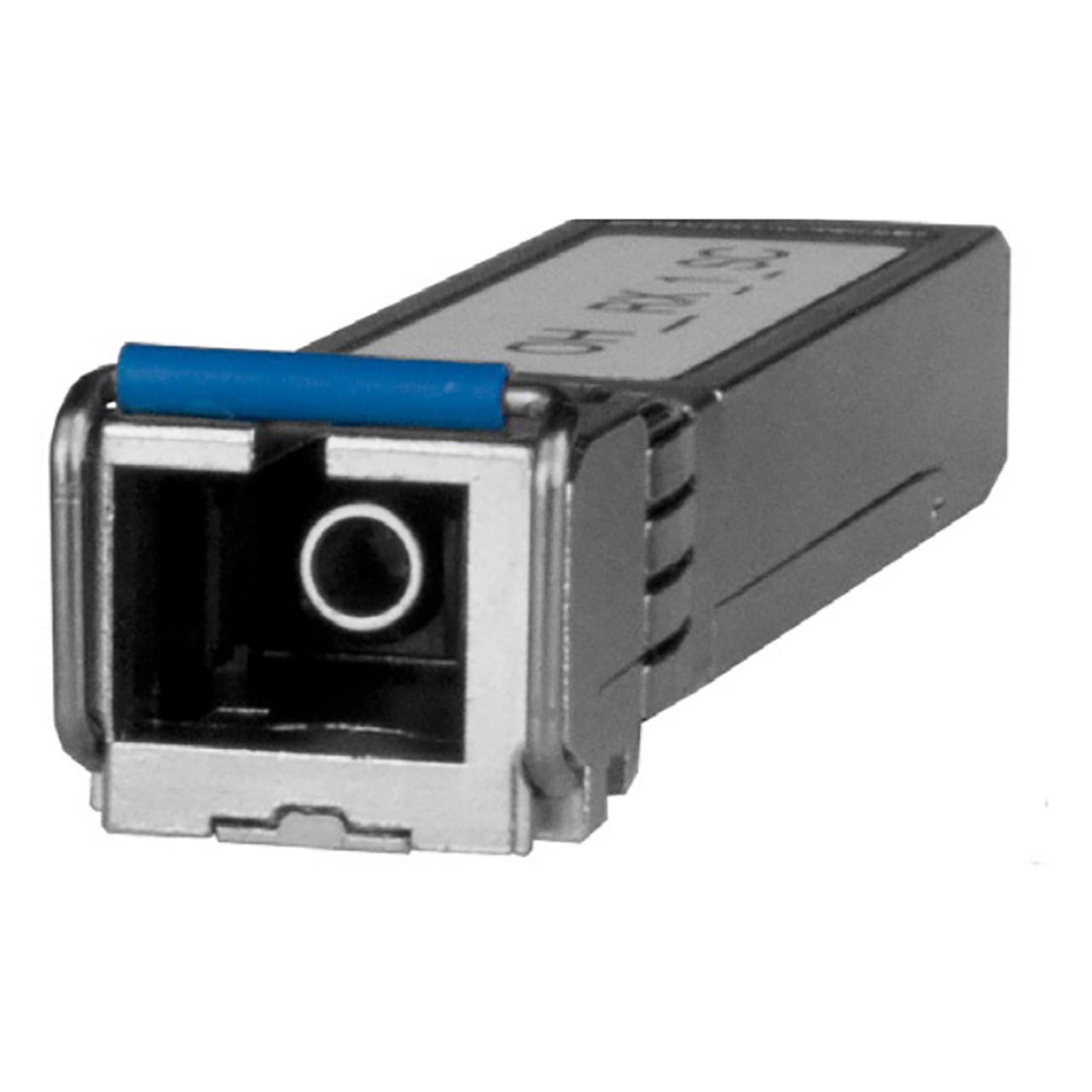

The OH-RX-1-SC 3G-SDI fiber receiver is available as an integrated (pre-assembled) or plug-in option for select LYNX Technik yellobrik and Series 5000 products. This module facilitates the conversion of the SDI optical signal into an electrical signal for further processing within these products. Support is provided for all wavelengths between 1260nm and 1620nm according to ITU-T G694.2 (18 wavelengths).
The module accommodates 270Mbit/1.485Gbit and 2.97Gbit SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.
Supported Lynx Technik products feature a build-in SFP socket ("cage") for easy installation or upgrades. SFPs are hot-swappable to provide maximum workflow flexibility.
