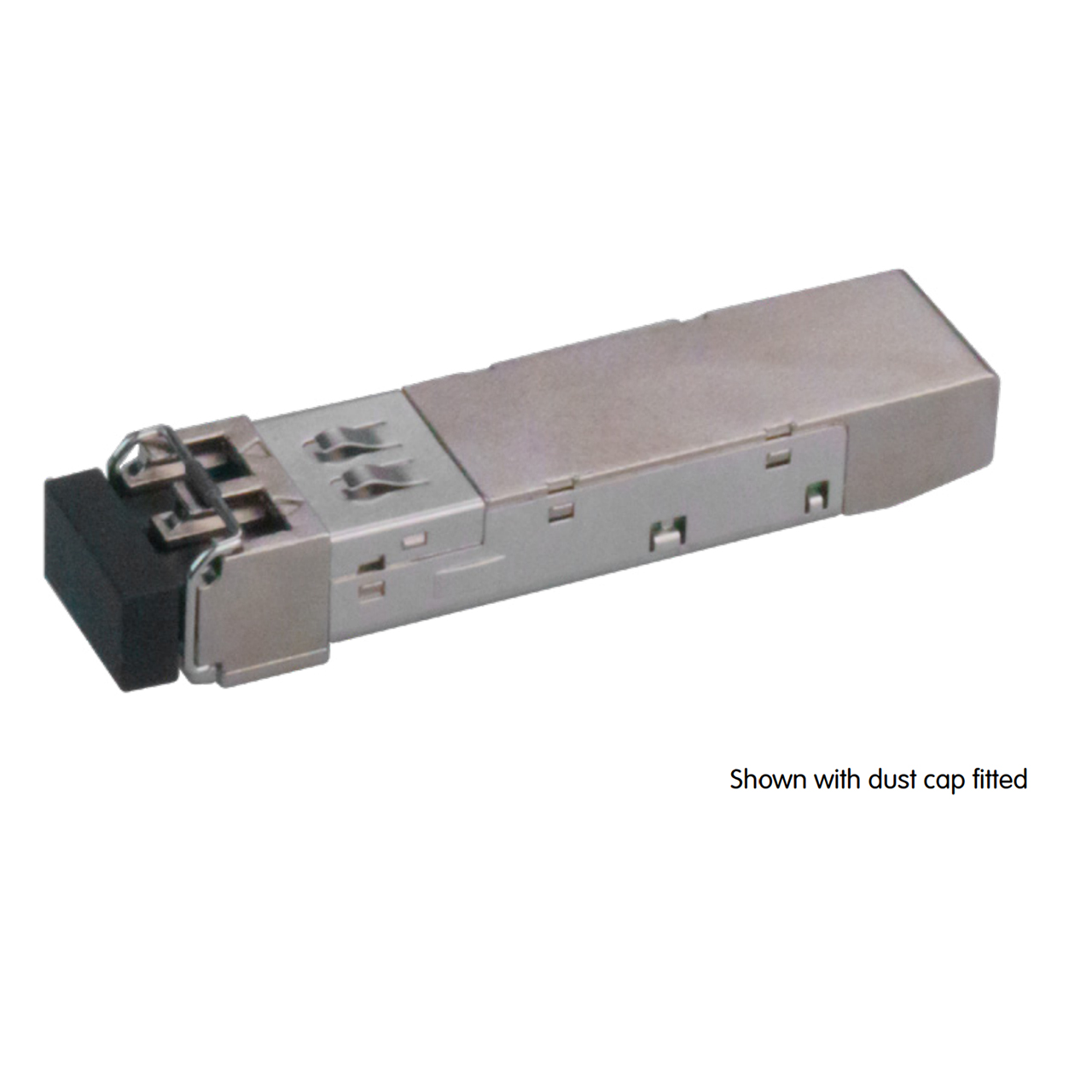

LYNX Technik OH-TR-10G-LC-MM 10GbE Duplex Multimode Fiber Transceiver SFP - 850nm - LC Connectors

OH-TR-10G-LC-MM - Overview

• Features:

  • 10GbE/1GbE fiber Transceiver
  • Duplex LC connector
  • Multimode
  • TX wavelength 850nm
  • RX wavelength 850nm
  • Pluggable and hot swappable
  • Lead free and RoHS compliant


• Specifications:

  Transmitter
  • Wavelength:
    - Min: 840nm
    - Typ: 850nm
    - Max: 860nm
  • Optical Power: -9dBm - -3dBm
  • Date Rate: 0.6Gbps - 11.3Gbps

    Receiver
  • Sensitivity: -11.1dBm
  • Wavelength:
    - Min: 840nm
    - Typ: 850nm
    - Max: 860nm
  • Loss of Signal Assert: -25dBm
  • Loss of Signal De-Assert: -12.5dBm
  • Loss of Signal Hysteresis: 0.5dB

    Mechanical
  • Size (Not Including Connector): 2.24" x 0.53" x 0.49" (57mm x 13.4mm x 12.4mm)
  • Weight: 0.11lbs (50g)
  • SFP Connector Pinning: MSA
  • Fiber Connections: LC/Duplex - Multimode
  • Operating Temperature Range: 41°F - 104°F (5°C - 40°C)
  • Power Supply Voltage: 3.3VDC
  • Power Consumption: 300mA max


• Item Includes:

  • 1x 10GbE Duplex Multi-mode Fiber Transceiver SFP


• Warranty:

  • 3 Year Limited Warranty


• GTIN:

  4250479328228
