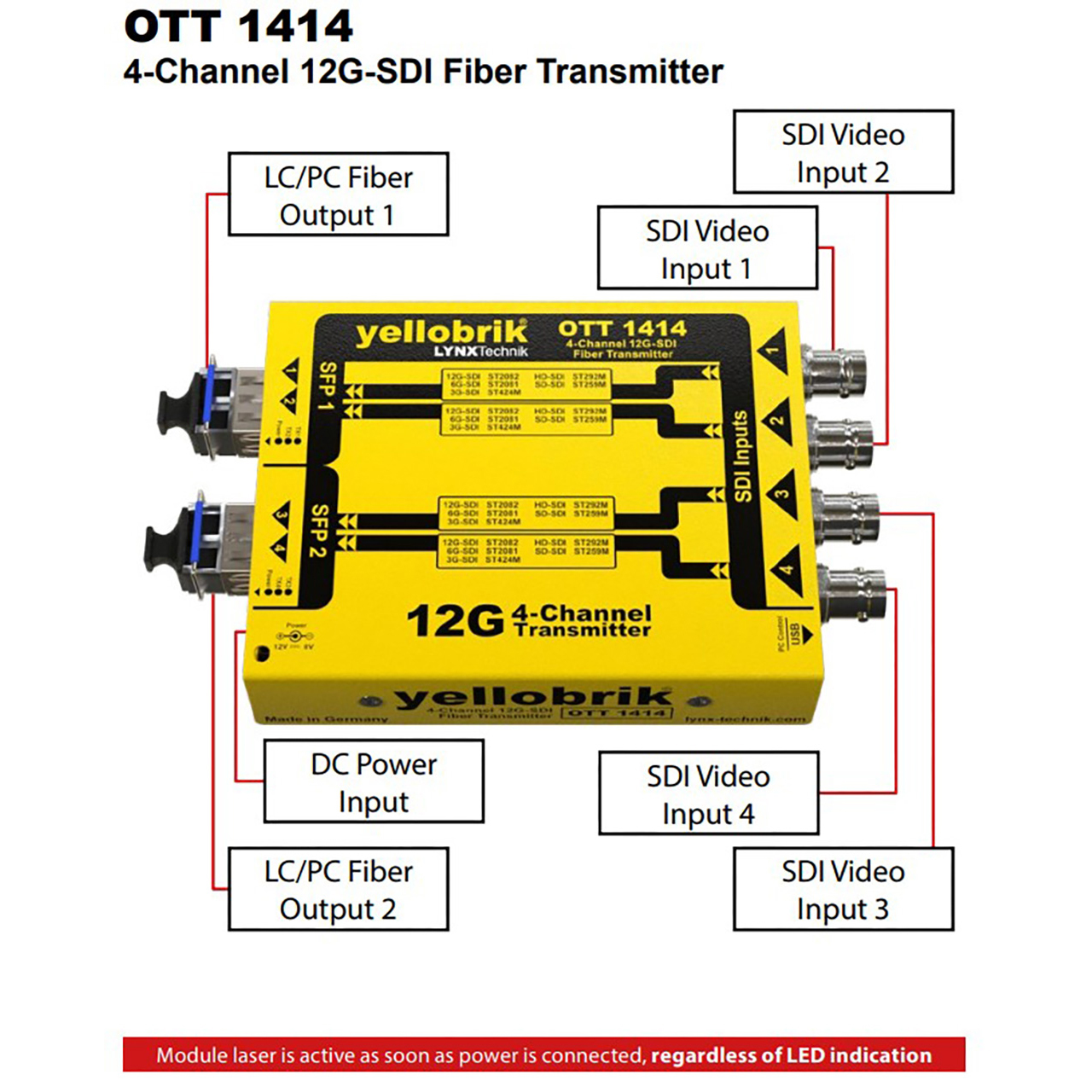

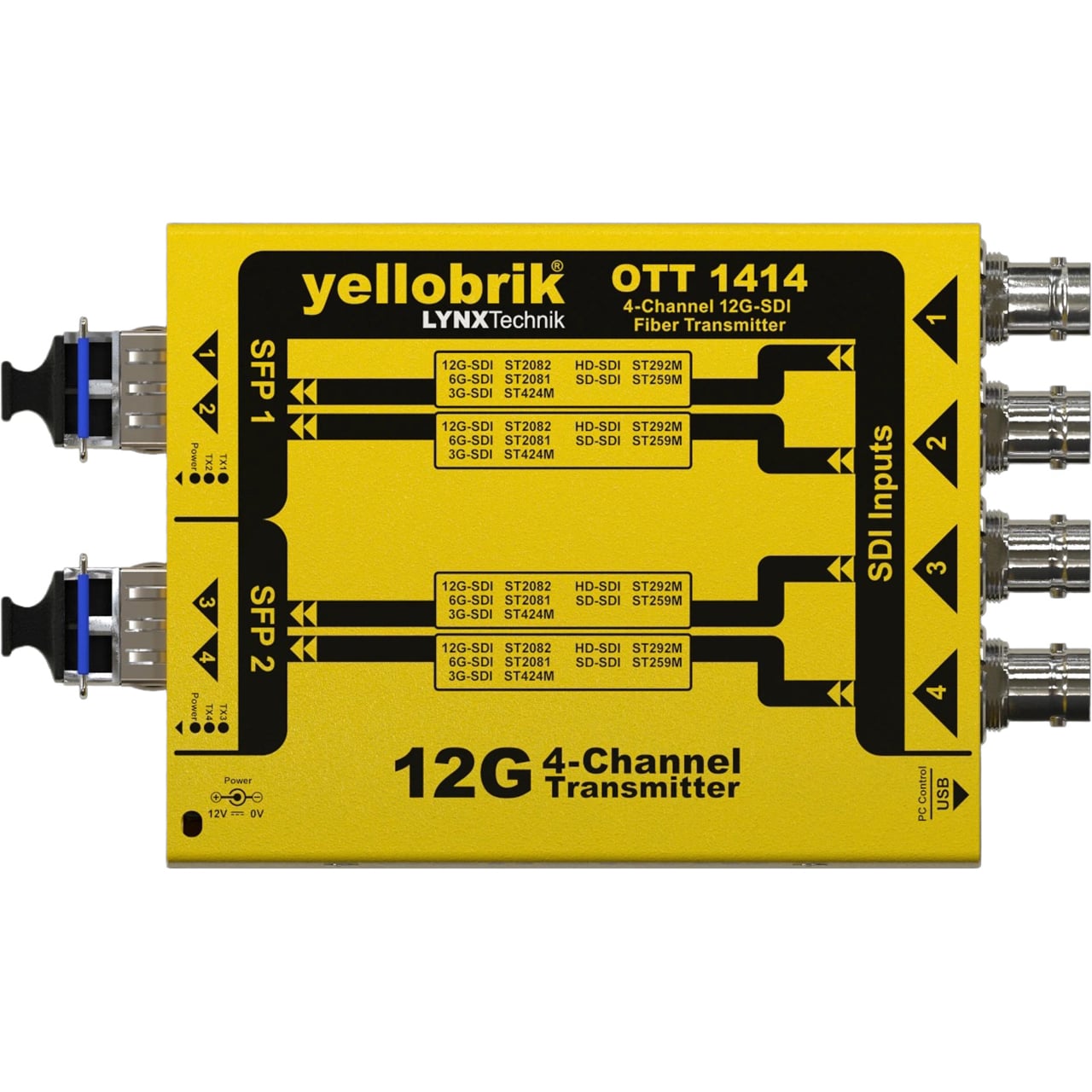

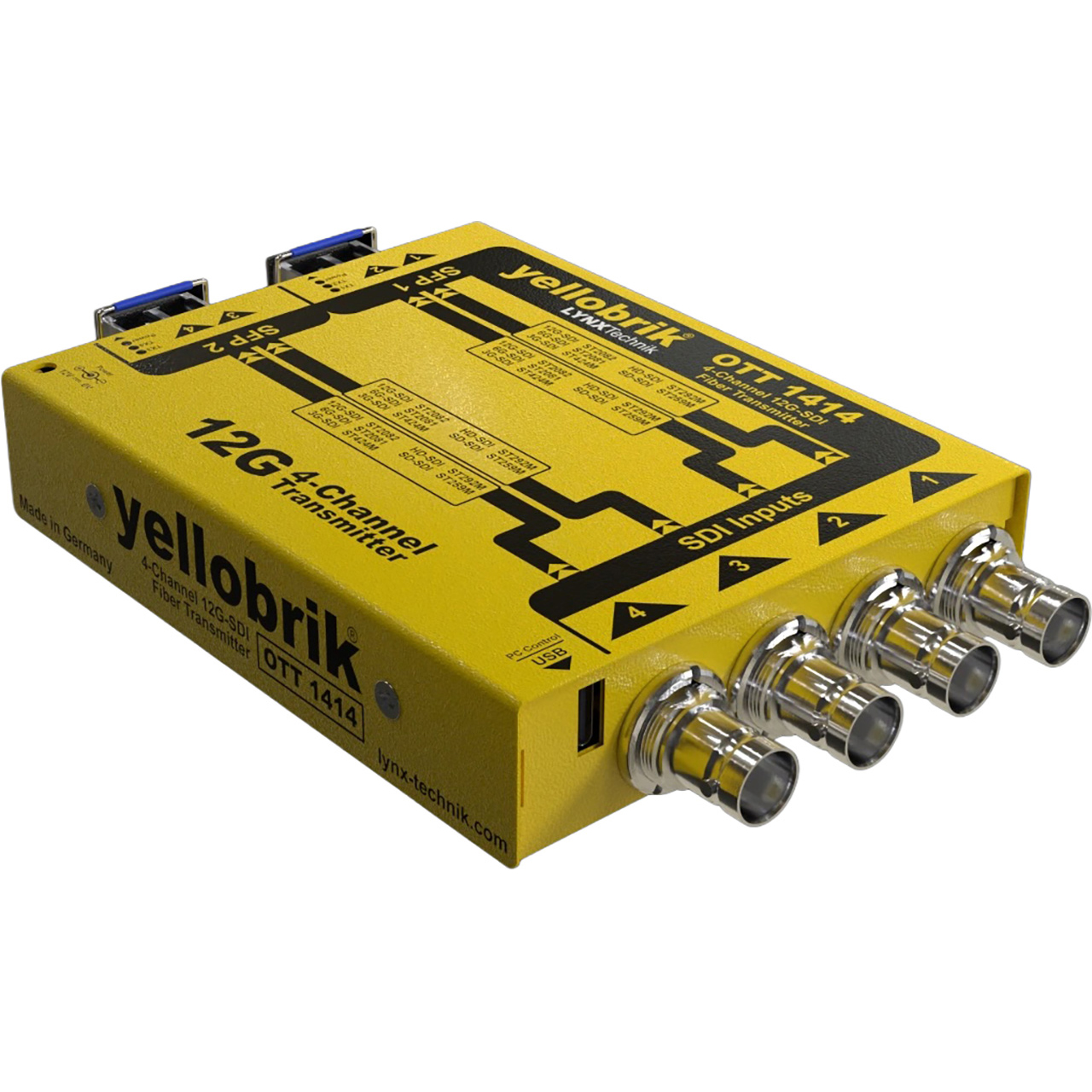

The LYNX Technik Yellobrik OTT 1414 is a compact 4-channel SDI-to-fiber transmitter designed to optimize the distribution of uncompressed, broadcast-quality video signals over long distances.
When paired with a compatible 12G-SDI receiver (e.g., Yellobrik ORR 1404, ORR 1402, ORX 1400), it creates a very cost-effective 4-channel optical transmission system for signals up to 12G-SDI (4096x2160 @ 60Hz)) preserving full uncompressed quality. (Each channel requires a dedicated fiber connection.)
The OTT 1414 has 4x fully independent channels and each will auto-detect and re-clock any 270Mbit/s, 1.5Gbit/s, 3Gbit/s, 6Gbit/s and 12Gbit/s SDI source before optical transmission. The module is fully compatible with 3G Level A and Level B formats.
Like all yellobriks, the OTT 1414 is fully compatible with the RFR 1200 rack frame, which accommodates up to 14 modules. This allows up to 56 channels in 2RU of rack space for system installations.
