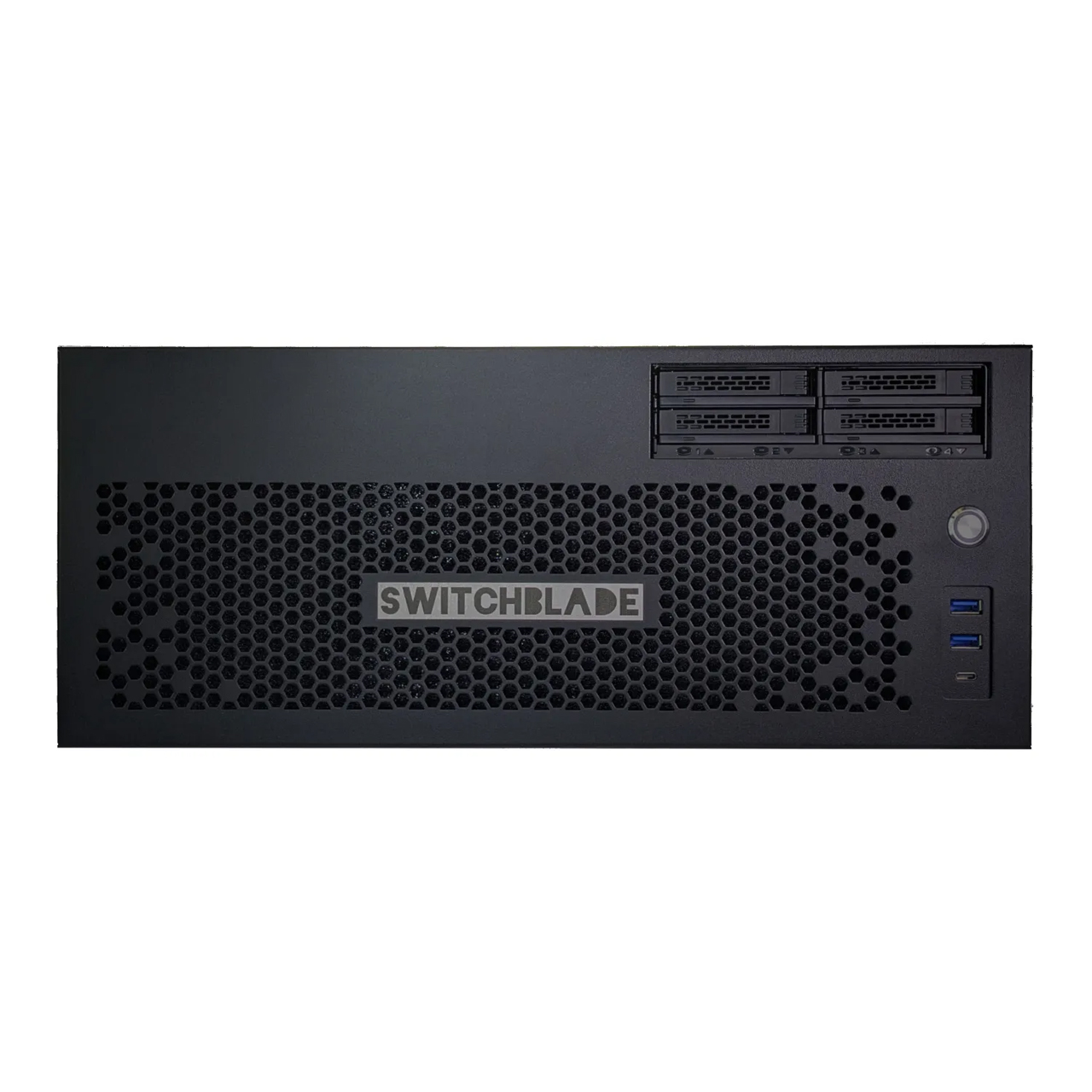

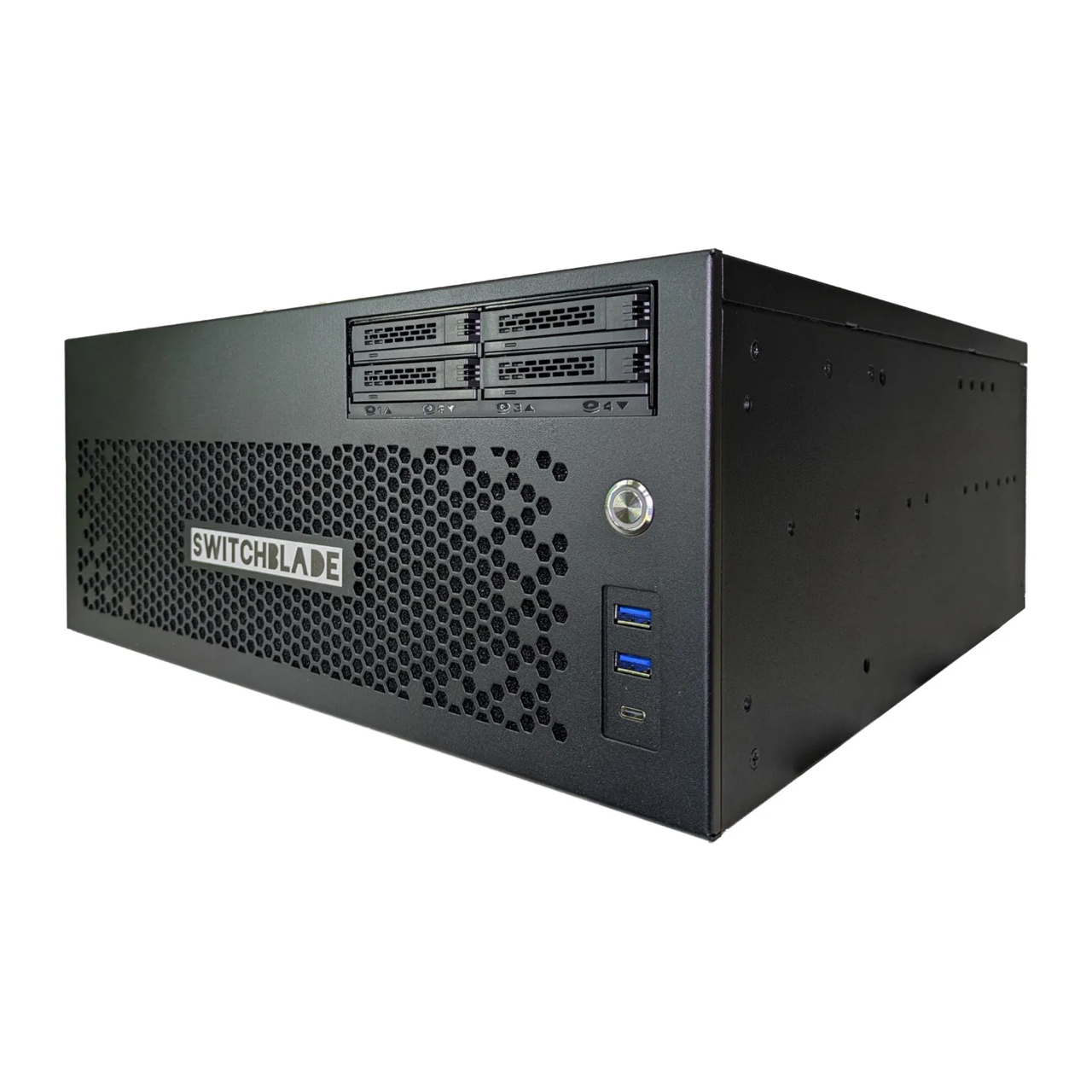

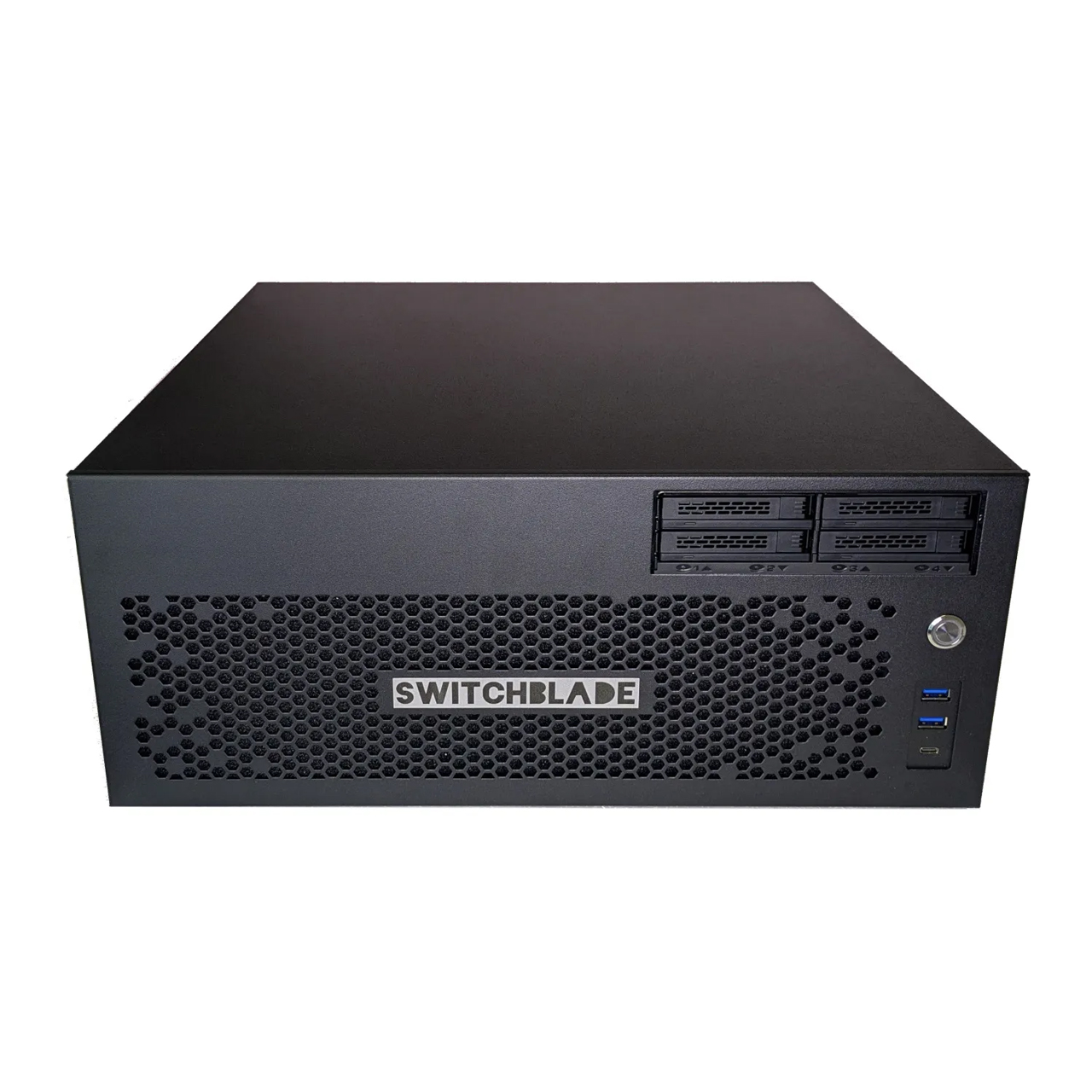

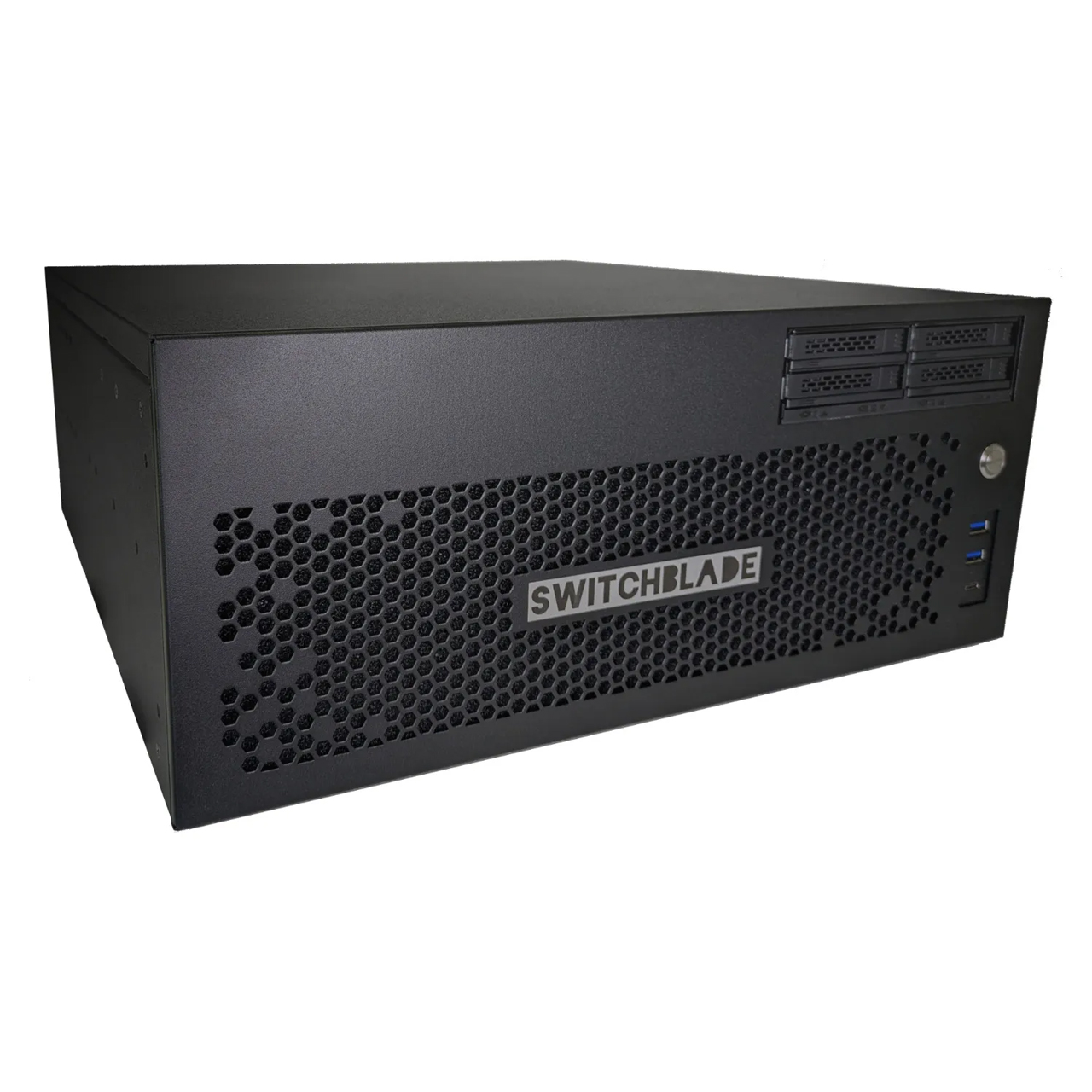

Switchblade LPU4 4RU Production Switcher with vMix 4K - 8x 3G-SDI Inputs - 4x 3G-SDI Inputs & Outputs - NVIDIA RTX A4500

SWBS-LPU4-8SDI-4SDIO-VM4K - Overview

• Features:

  • 4x 3G-SDI inputs
  • Multi-channel ISO recording
  • NDI and SRT I/O support
  • Up to 8 remote callers
  • Up to 8 replay channels
  • Short-depth 17-inch 4U chassis
  • Multi-monitor output
  • 4x removable SSD bays


• Specifications:

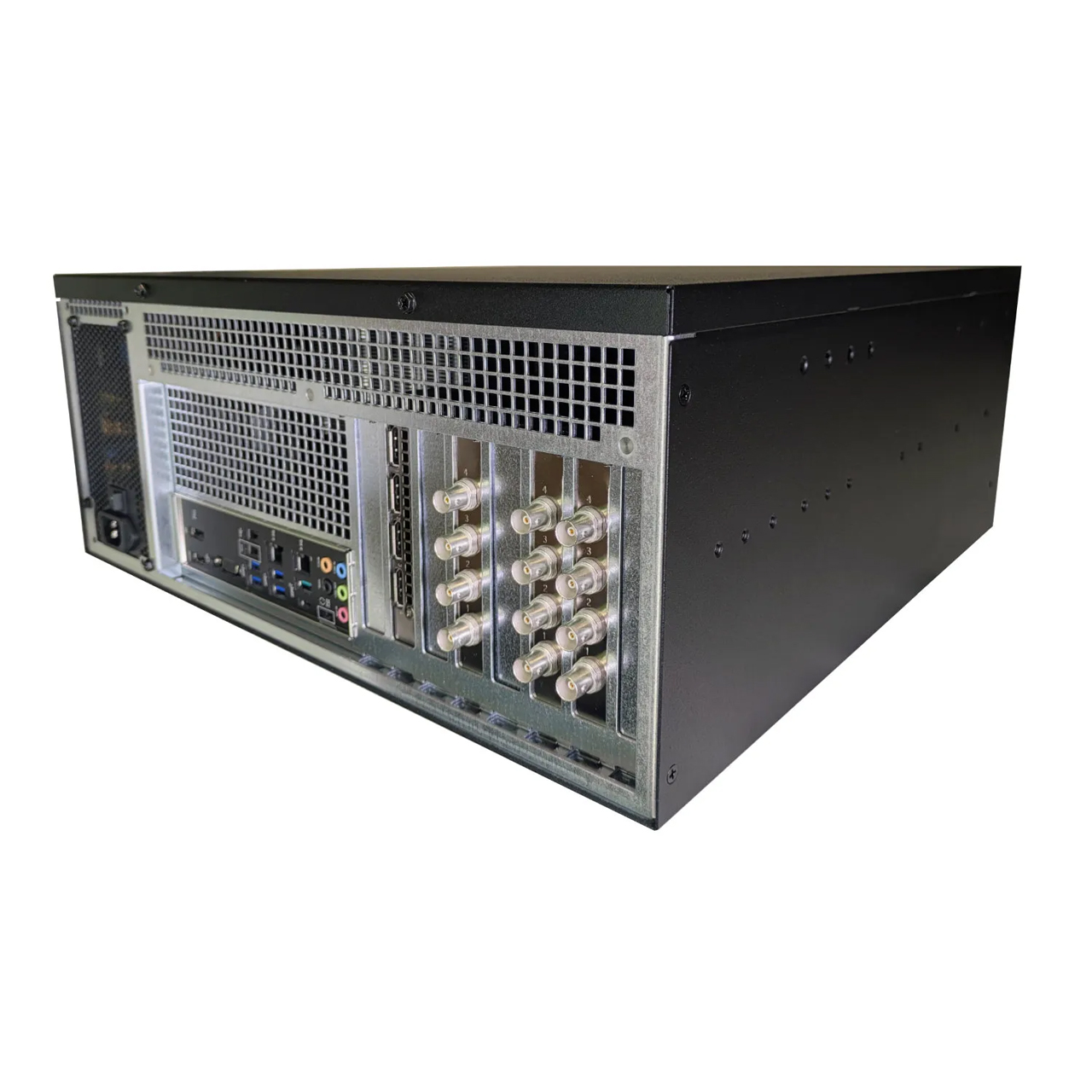

  Video & Audio Connections
  • Video Inputs: 4x 3G-SDI
  • Video In/Out: 4x Bi-Directional 3G-SDI Inputs/Outputs
  • Audio Inputs/Outputs:
    - 1x 3.5mm line-in
    - 1x 3.5mm mic-in
    - 1x 3.5mm line out

    Hardware Specifications
  • Dimensions (WxHxD): 17" x 6.96" x 16.89"
  • Weight: 63lbs
  • Processor (CPU): Intel Core i7-14700KF 20-core processor
  • Memory (RAM): 32GB DDR5
  • Storage (Internal): 1TB NVMe M.2 Solid State Drive (SSD)
  • Storage (Removable): 4x Hot-swappable 2.5" SATA SSD bays (drives not included)
  • Graphics (GPU): NVIDIA RTX A4500 with 20GB GDDR6 RAM
  • Network: 2x RJ-45 2.5Gbps Ethernet ports


• Item Includes:

  • 1x LPU4 4RU Switcher
