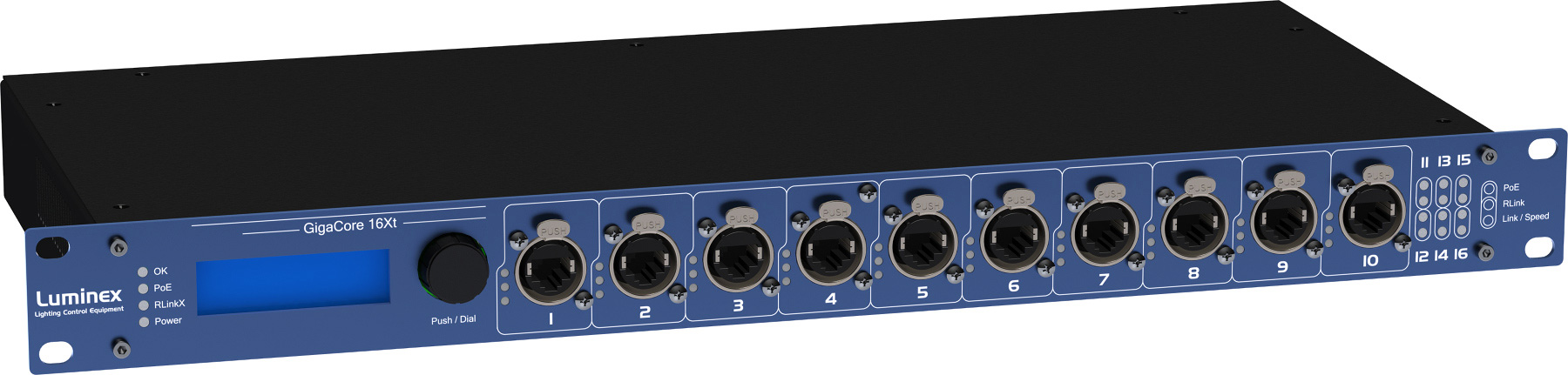

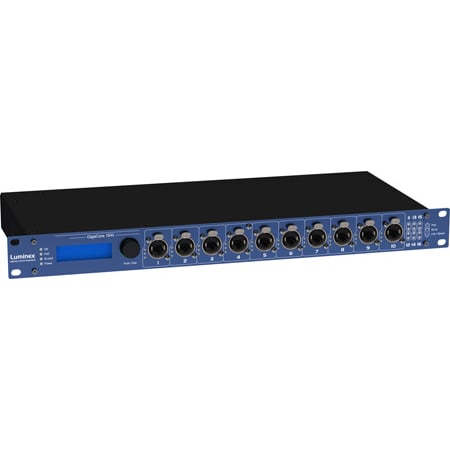

Luminex GigaCore 16XtPOE Touring 12-Port EtherCON & 4-SFP Port POE Gigabit Ethernet Switch Dante Switch AES67 Switch

Manufacturer: Luminex

Item #: LUM-GC-16XTPOE   •   MFG #: LU 01 00048-POE



List Price:$4,275.00
Our Price:$3,847.50

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Setup a Pro AV Network Without any IT Knowledge!

    The Luminex GigaCore 16XtPOE is a Gigabit Ethernet switch designed to cope with the most demanding lighting and AV installations. Managed through an intuitive web interface, the unit can also be configured from the front end display, making this switch a hassle-free solution for your everyday job. Four SFP cages also offer users to create complex network topologies over fiber link, such as mesh or ring. Additional available options makes the GigaCore 16Xt one of the most secured system of the industry.

    Focus on being creative again
    Stop wasting time on programming your network or spending money on IT consultants to do it for you. With the Luminex GigaCore 16XtPOE switch and only some basic AV knowledge, you can do it all by yourself in just the blink of an eye. Now you can finally focus on your core business as an AV technician or designer: "being creative"!

    When distance matters: Fiber to the rescue
    The Luminex GigaCore 16XtPOE provides users with four SFP cages for Fiber connectivity. Just connect a multimode or single mode Fiber transceiver to each SFP cage and it will enable you to cover greater distances with a total link immunity up to 10km!

    Optional: Redundant Power Supply Unit (RPSU)
    Connect the GigaCore 16XtPOE to a GigaCore RPSU for ultimate redundancy, even on power level (and PoE). If for some reason the built-in power supply fails, the RPSU keeps your system up and running.

    Free software included
    LumiNet Monitor is a free software pack that will increase the comfort of working with Luminex equipment and together with the easy-to-use web interface for GigaCore's, it adds high value to your project monitoring and preparation.


    • Features

      • Tailored for AV industry: Pre-configured settings that are common in the AV industry, such as QoS and IGMP snooping.
      • Easy set-up: Easy group function with pre-configured VLAN’s for a quick set-up (without IT knowledge).
      • Touring approved: Metal housing and ruggedized Ethercon connectors, ideal for touring and live events.
      • Converged networking: Transfer multiple protocols (Dante™, RAVENNA/AES67, ArtNet, MANet 1&2, sACN,Q-LAN)
      • Ultimate link redundancy: RlinkX redundancy protocol automatically takes over signal in milliseconds in case of a link failure.
      • With PoE+: Don’t worry about power plugs anymore. PoE+ powers-up all compatible devices within the network.

    • Specifications

      • Most suitable applications: Touring and live events
      • RLinkX (Link redundancy): Yes
      • Groups (VLAN segmentation): Yes
      • MultiLinkX (Link aggregation): Yes
      • Profile manager: Yes
      • Memory: 4Mb
      • MAC adress table: 8192 Entries
      • Address learning / Aging: Self learning, Auto aging
      • Switching throughput: 32Gbps
      • IGMP support: Yes (V1/V2/V3)
      • IGMP snooping: Yes, enabled by default
      • Port sensing: Auto negotiation
      • Auto crossover: MDI / MDIX
      • Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
      • Ethernet connectivity: 12 x Shielded Neutrik Ethercon connectors
      • Fiber connectivity: 4 x SFP cages
      • Ethernet port speed: 1Gbps
      • Serial: 1 x serial RJ45 console port

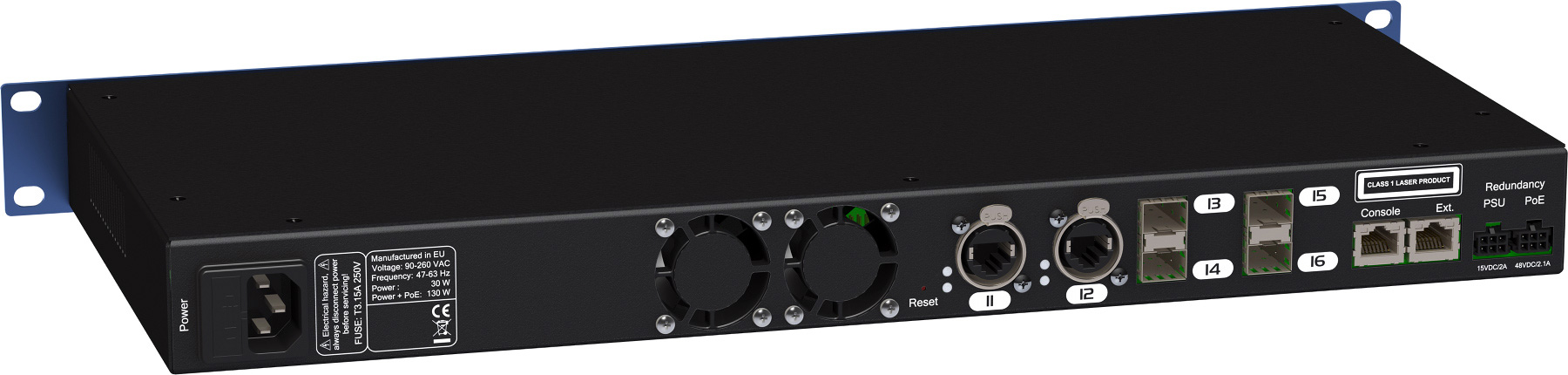

      • Power connectivity:
      • 1 x IEC inlet with fuse holder
      • 1 x redundant power input on Molex Micro-Fit 6 pin connector
      • 1 x redundant PoE input on Molex Micro-Fit 6 pin connector
      • Power input: 100-240VAC, 50-60Hz
      • Power consumption: Maximum 30W (maximum 180W with PoE Supply Unit)
      • Fuse: 3.15A 250V Slow Blow
      • Backup power input: 15VDC / 2A
      • Backup PoE power input: 48VDC / 3.4A
      • PoE supply on front ports: up to 160W
      • Supported protocols: Dante, RAVENNA/AES67, Ethersound, Q-LAN, REAC, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
      • Sound protocol compliance: Yes (low jitter)
      • Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet
      • Display and jog: Yes
      • Configuration: Through the built-in web server or with the front end display menu
      • Status LEDs:
      • Global status LEDs: Device, power, PoE power, RLinkX
      • Port status LEDs: PoE, RLinkX, link/activity and port speed
      • Colored RGB LEDs: No
      • Mounting: Rack
      • Enclosure: Robust metal housing
      • Dimensions (W x D x H): 482 x 204,3 x 44 mm (19" x 8.04" x 1.73")
      • Weight: 3 kg
      • Packaging: 545 x 335 x 80 mm (21.5" x 13.2" x 3.15")
      • Environment:
      • Operating temperature: 0 to +50 °C
      • Storage temperature: -10 to +70 °C
      • Humidity (non condensing): 5 to 95% RH
      • Certificates/Approvals: CE
      • Standards: EN 60950-1, EN 55022, EN 55024

    • Supported Protocols & Compliance

      • Supported protocols: Dante, RAVENNA/AES67, Ethersound, Q-LAN, REAC, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
      • Sound protocol compliance: Yes (low jitter)
      • Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet
