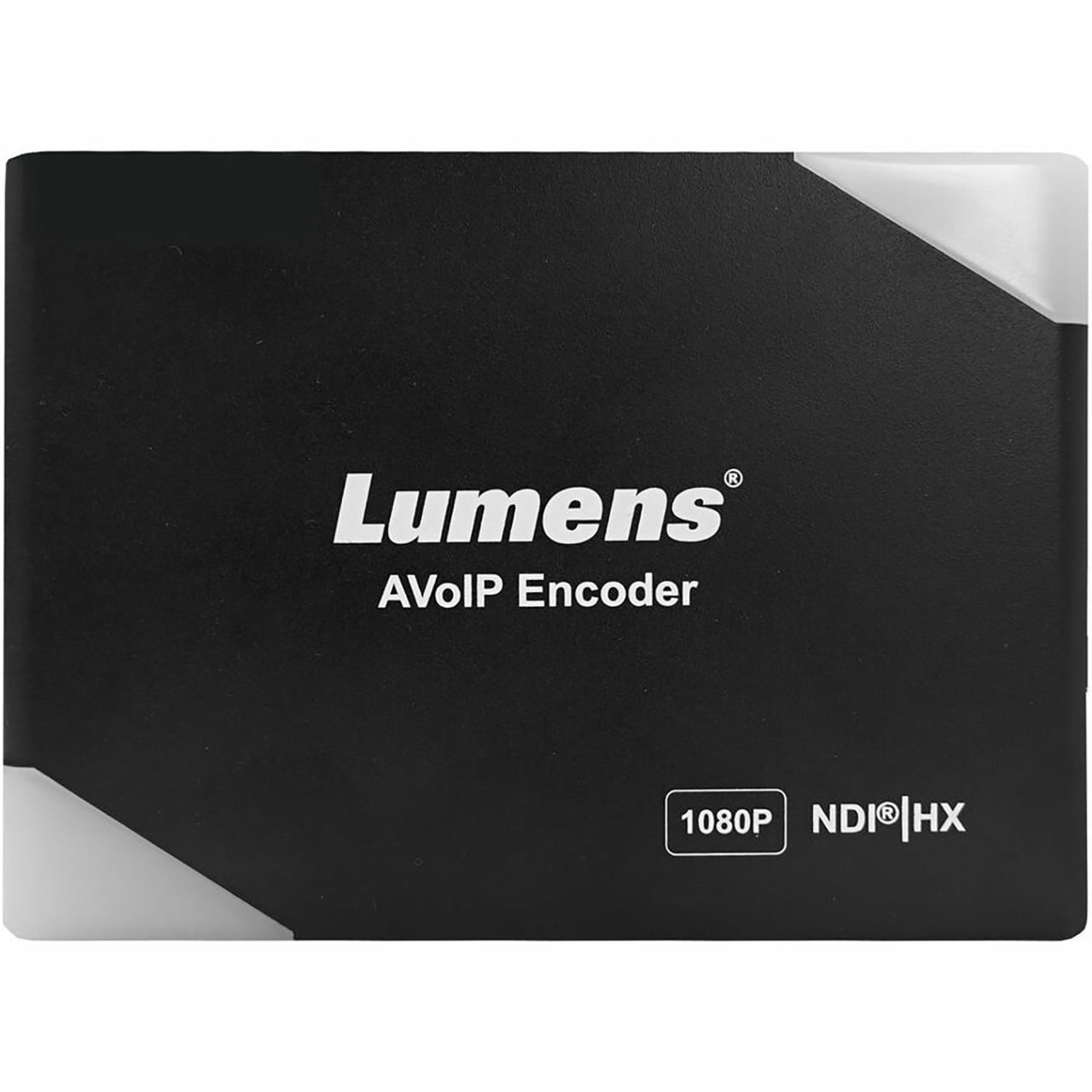

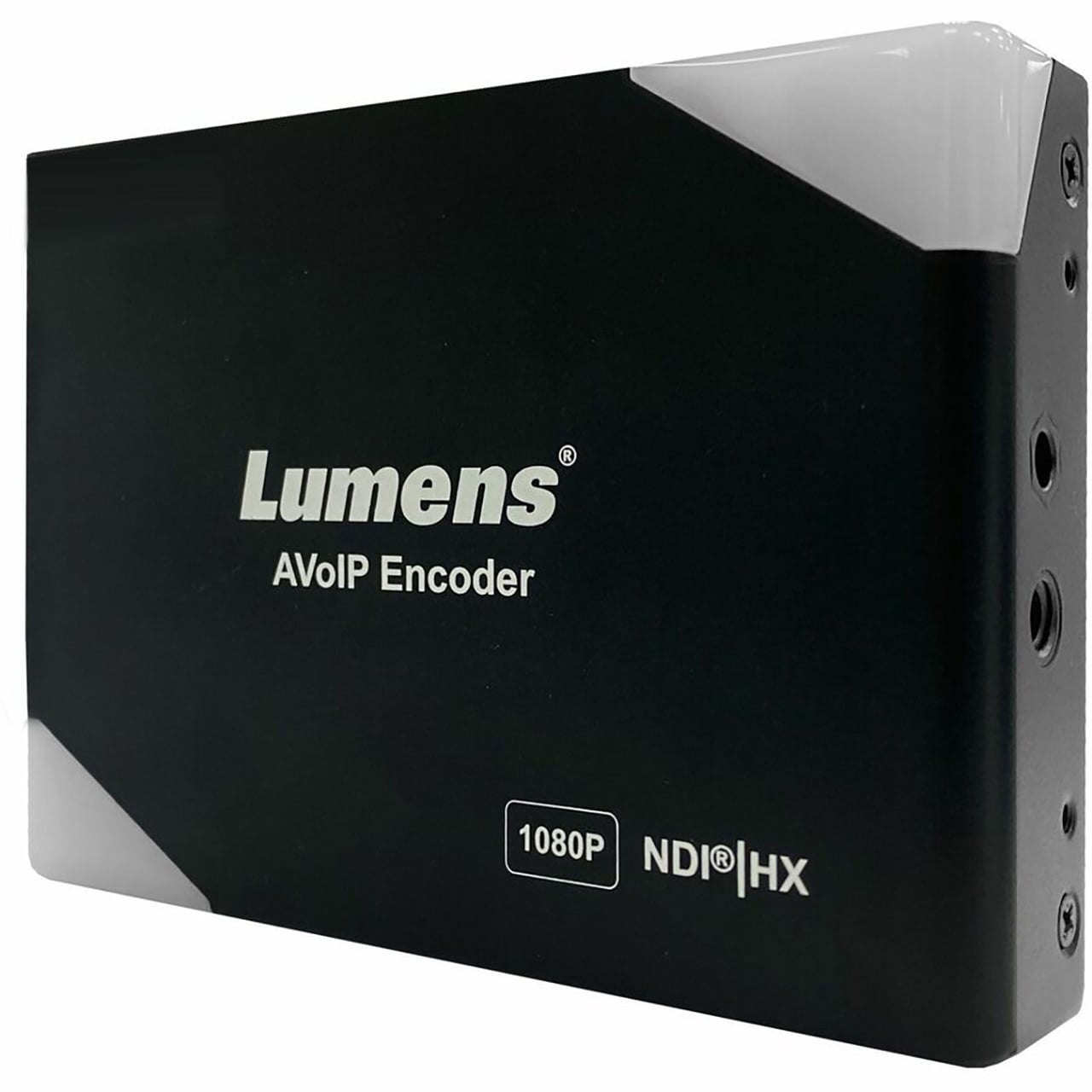

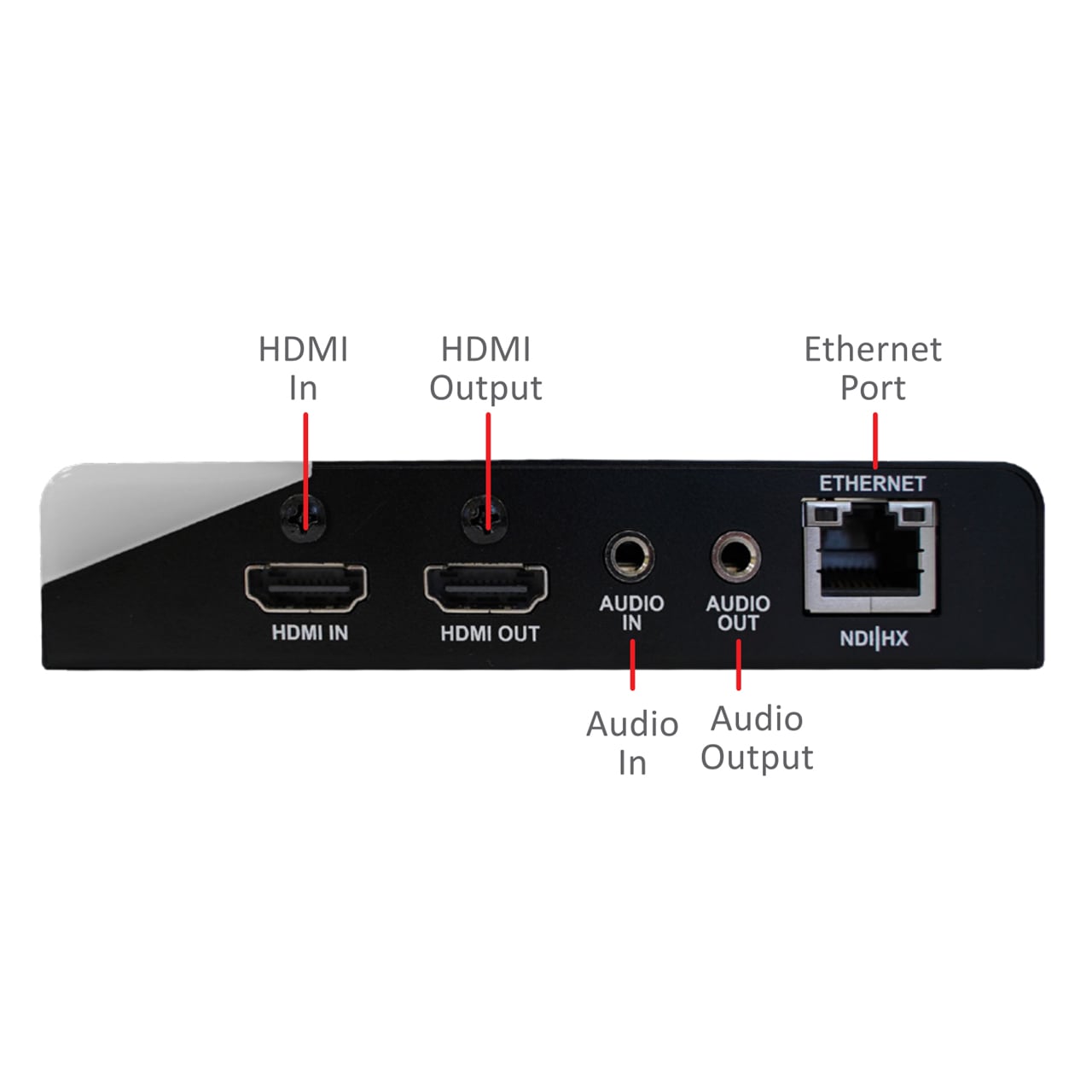

The Lumens OIP-N40E encodes HDMI video, USB-C, and DisplayPort signals to NDI HX and IP formats at very low latency. The device is Dante-ready, enabling seamless integration with Dante audio and Dante AV-H video networks.
Encode HDMI to IP
Encoding HDMI sources to IP allows the use of affordable, centrally managed network switches. It also enables long-distance cabling. IP video can be securely streamed both locally and globally.
USB and DisplayPort Conversion
OIP-N40E's USB port can convert USB (UVC/UAC) and DP signals for transmission over IP. It supports USB output (webcam extension) when used with OIP-N60D.
Dante Ready
Utilizing the Dante Controller app, users can add a Dante license to the OIP-N40E. This enables it to encode video to Dante AV-H and transmit Dante audio signals bi-directionally.
NDI HX3 Low Latency, High Quality Video Distribution
With NDI HX, video is transmitted over local area networks. Sources can be ingested into live production, AV, and streaming platforms.

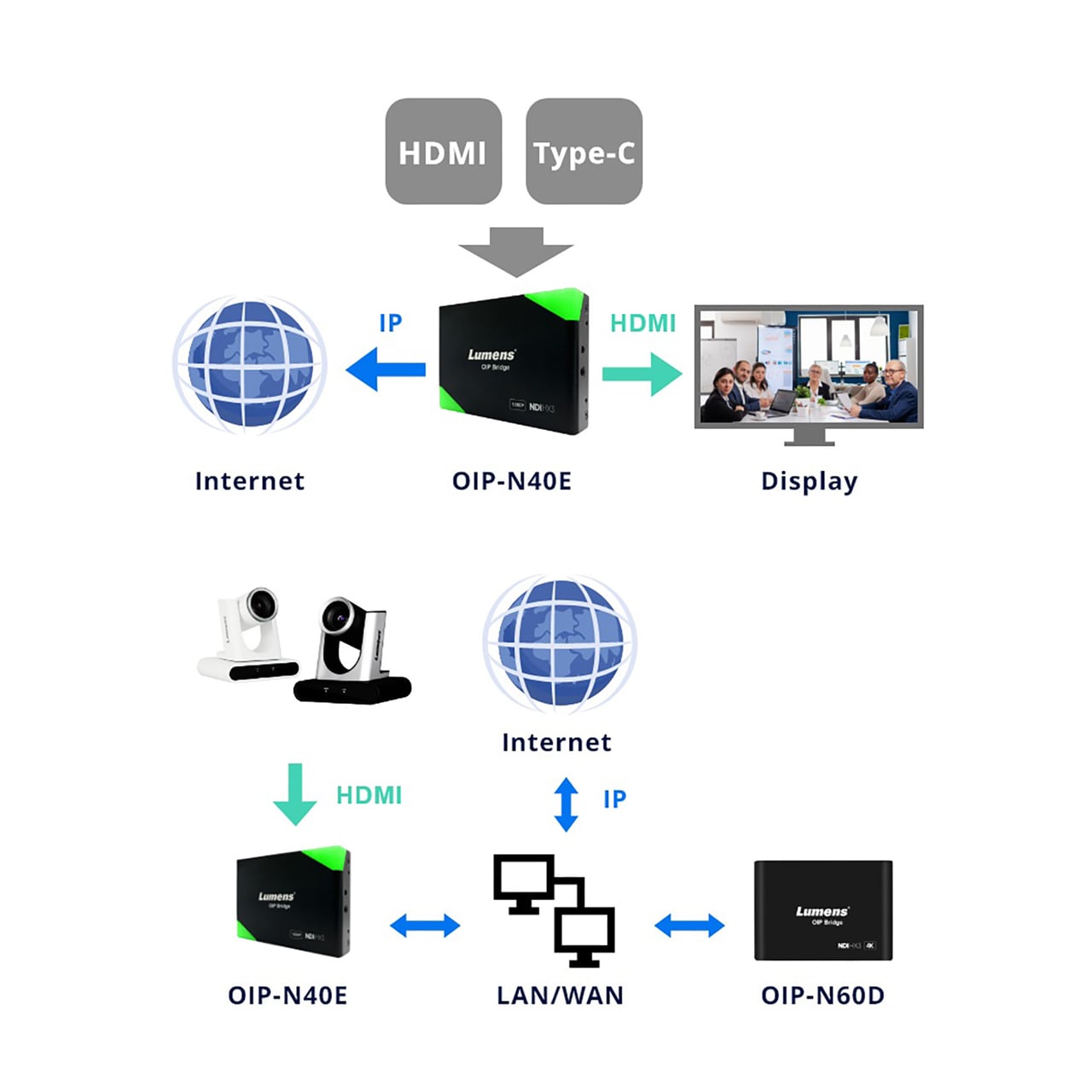

Camera Converter

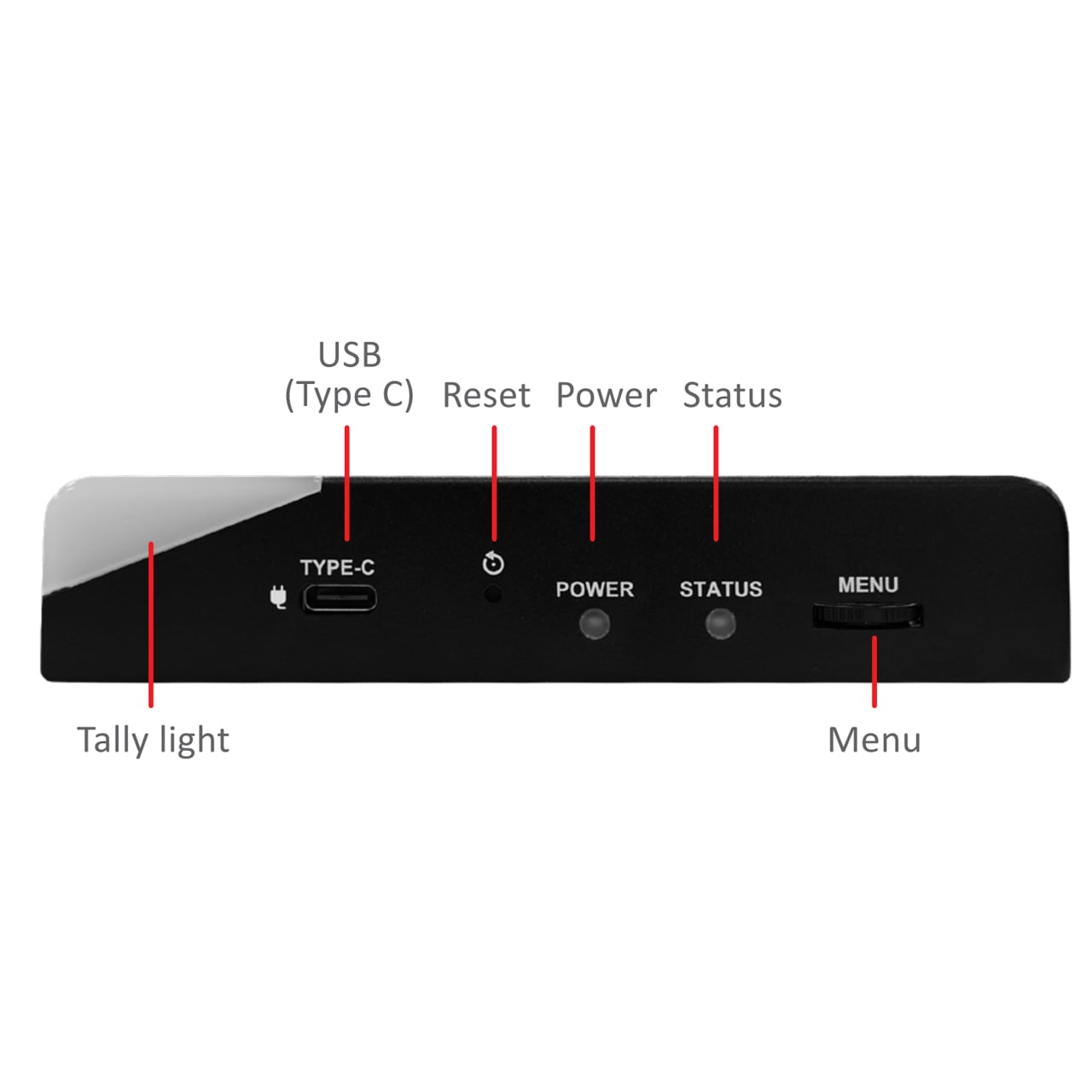

OIP-N40E converts any HDMI camera into an IP device. Locally, a tally light indicates that the camera is live, while the IP signal is transmitted to decoders, computers, or streaming platforms. OIP-N40E features a pass-through HDMI output.
OIP-N Series Crestron Control Module
The module enables integrators to use the Crestron environmental control system to manage the Lumens products.
