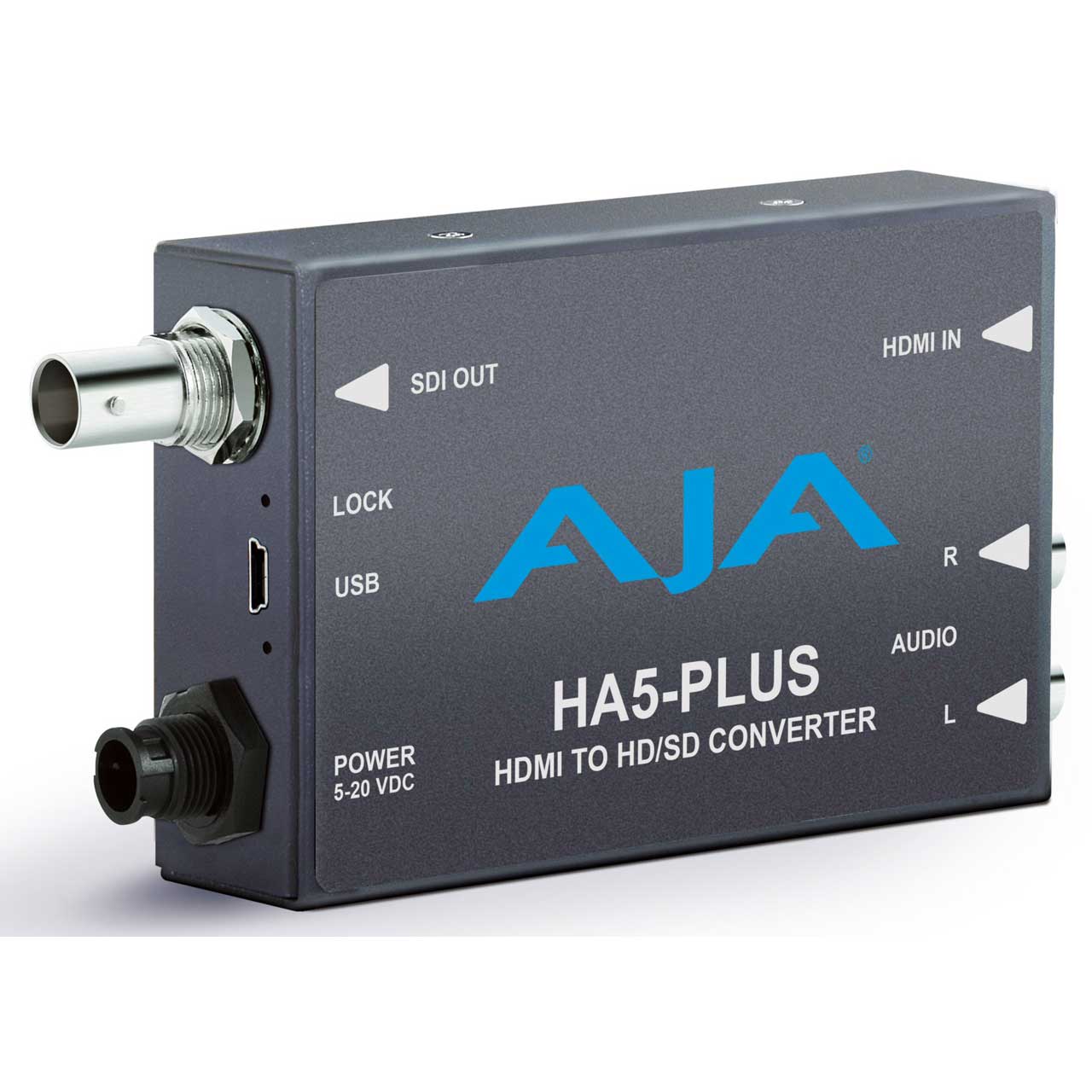

AJA HA5-Plus HDMI to 3G-SDI Mini-Converter


  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:


Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup

    HA5-PLUS - Overview

    The AJA Hi5-Plus allows you to easily integrate HDMI and SDI! The Hi5-Plus brings HDMI and 3G-SDI devices together for a full range of monitoring and recording solutions! Perfect for the edit suite, on set or at live events.

    HDMI to 3G-SDI Mini-Converter
    HA5-Plus is AJA's next generation HDMI to SDI Mini-Converter. The HDMI input is converted to 3G-SDI output for driving SDI monitoring solutions. Up to eight channels of HDMI audio are passed through to the SDI output as well as the ability to embed two channels of analog audio.

    Full HDMI Support
    The equalized input on the HA5-Plus is engineered to support HDMI in runs up to 30 meters in length using 24 gauge cable. Embedded HDMI audio support also allows for a single cable solution to avoid unnecessary clutter and simplify installation.

    Pristine Image Quality
    A 3G-SDI output with PLL clock filtering ensures a low jitter output for solid image stability. An LED indicator shows the input source as either SD (green) or HD (red) for fast and easy signal identification.

    Analog audio input
    Using the two RCA analog audio inputsyou can embed any 2-channel analog audio signal into the SDI output to maintain proper audio sync throughout the workflow.

    DSLR support
    HA5-Plus accepts progressive standard definition signals at 525p and 625p for compatibility with DSLR cameras, allowing the signal from those cameras to be easily incorporated into SDI workflows.

    USB and MiniConfig Support
    AJA's free MiniConfig software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

    • Features:

      • Industry Leading Technical Support!
      • HDMI to 3G/HD/SD-SDI
      • Full HDMI support including embedded audio
      • Equalized HDMI input
      • PLL clock filtering for low jitter SDI outputs
      • Lock LED shows type of input source: SD (green), HD (red), or 3G (amber)
      • HDMI v1.2 standard
      • 1m HDMI cable included
      • Configure via USB port and supplied Mini-Config software
    • Specifications:

      • Video Input: HDMI with embedded audio, up to 8 channels

      • Input Formats
      • 525i, 625i, 525p, 625p, 480p, 576p
      • 720p 50, 59.94, 60
      • 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • 1080i 50, 59.94, 60
      • Note: HDCP content not supported

      • Video Output: 3G-SDI with embedded audio
      • Output Formats
      • 525i 29.97
      • 625i 25
      • 720p 50, 59.94, 60
      • 1080i 25, 29.97, 30
      • 1080p 23.98, 24, 25, 29.97, 30
      • 1080p 50, 59.94, 60 - SMPTE 425-1 Level A Mapping structure 1 (1920X1080 4:2:2 10-bit YCbCr)

      • Audio Input: SDI embedded audio, select from 16 channels
      • Audio Output: 2-channel RCA-style (-10dBV nominal)

      • Power:

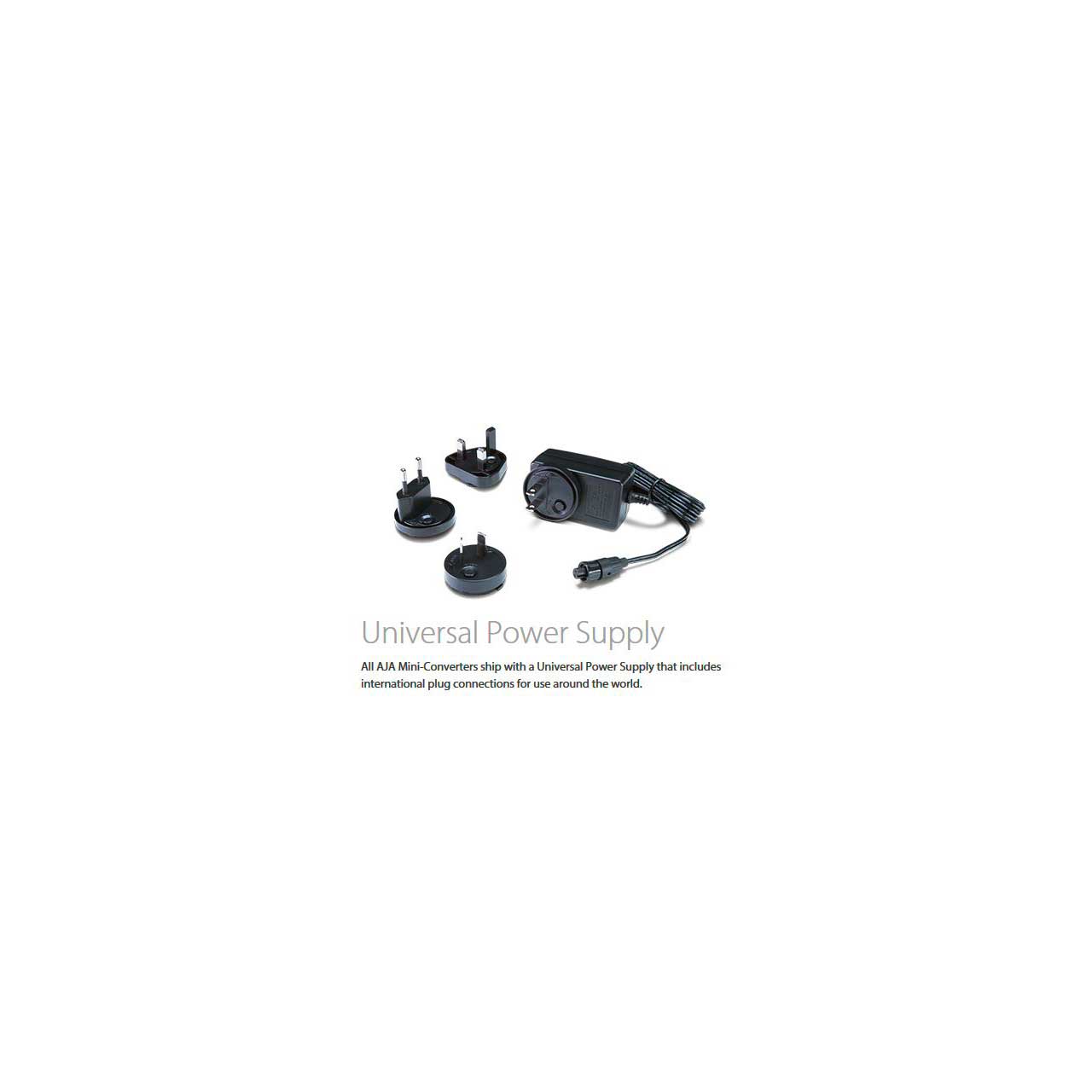

      • Uses AJA Power Supply model DWP-U-R1 (included with purchase)
      • 100-240V, 50/60Hz Universal Input
      • +5V DC regulated, 7.5 watt capacity

      • Size: 4.6" x 2.4" x 1"(117mm x 61mm x 25mm)
    • Warranty:

      • All AJA Mini-Converters are covered by a 5-year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
    • GTIN:


    HA5-PLUS - Required Accessories

      HA5-PLUS - Recommended Accessories
