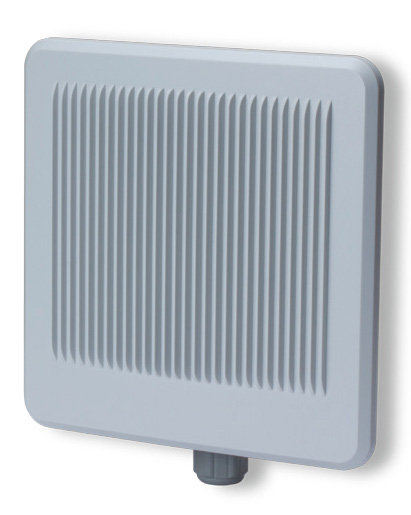

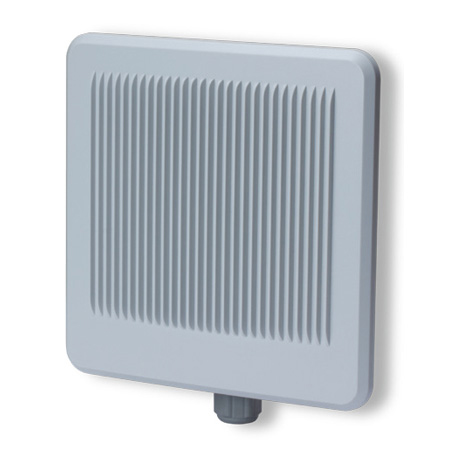

Luxul XWO-BAP1 High Power AC1200 Dual-Band Outdoor Bridging AP

XWO-BAP1 - Overview

• Features:

  • Dual-Band 2.4 and 5 GHz
  • High Output Power for Maximum Coverage
  • Data Transfers up to 1200Mbps
  • Concurrent Dual-Band Wireless
  • 802.11ac (up to 1200Mbps)
  • Support for Point-to-Point and Point-to-Multipoint Wireless Bridging
  • Up to 4 SSIDs per Band (8 Total)
  • Single-Cable Installation with PoE
  • 802.3at PoE Powered (Injector Included)
  • Weather Resistant Enclosure (IP-65)
  • Pole or Wall Mount (Mounting Hardware Included)
  • Three Year Limited Warranty


• Specifications:

  • Hardware Features
  • Standards Compliance: 802.11b/g/n/ac
  • Interface: One 10/100/1000M Port
  • Antenna: Two Internal 2.4GHz (7dbi). Two Internal 5GHz (12dbi)
  • Button: Reset button
  • Power: 802.3at PoE
  • Power Consumption: 17W on average (Depending on the Wireless activity)
  • Environmental Temperatures: -20-50c
  • Dimensions WxHxD in. (mm): 9"x9"x1.9" (229 x229 x149)

    Wireless and Other Features
  • Frequency: 2.4GHz, 5GHz
  • Wireless Speed
  • 2.4GHz: 300Mbps;
  • 5GHz: 866Mbps.
  • Output Power: 30dBm
  • Wireless Security: WPA-PSK, WPA2-PSK, WPA/WPA2/AES
  • Operating Modes: Wireless AP

    Other Functions and Features
  • Remote Web Management
  • System Logging
  • Backup & Restore Configurations
  • VLAN/Guest Network Support
  • QoS Support
  • Up to 4 SSIDs
  • Firmware Upgradeable via Browser
  • Certifications: FCC, RoHS, IC, RCM


• Item Includes:

  • XWO-BAP1 Outdoor Bridging AP
  • PoE Injector
  • Mounting Kit
  • Water Resistant Cable Gland
  • Ethernet Cable
  • Quick Install Guide


• Warranty:

  • 3-year limited warranty


• GTIN:

  0655003920031
