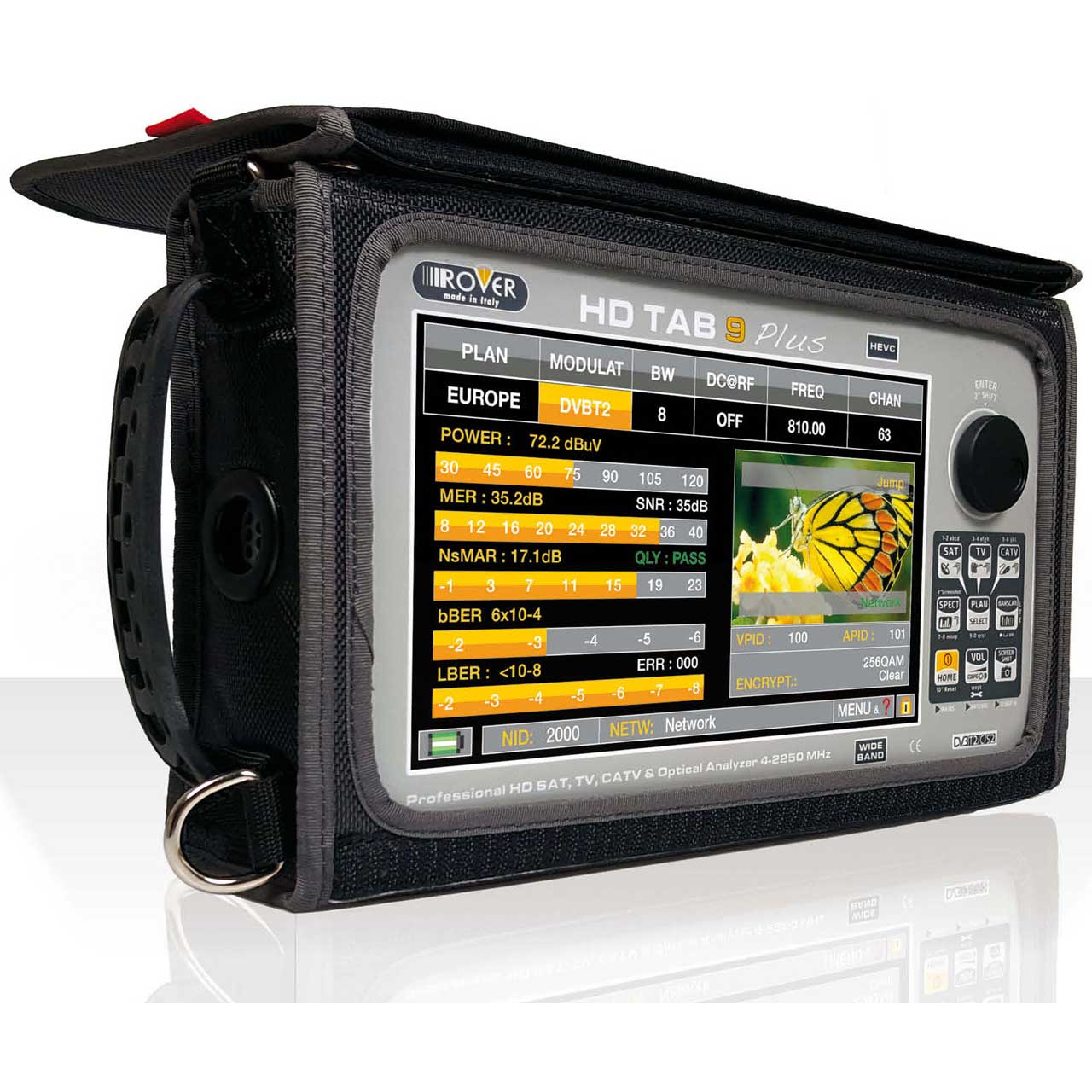

Leader HD TAB 9 PLUS ATSC for USA Standard Signal Level Meter with Spectrum Analyzer

HD TAB 9 PLUS - Overview

• Features:

  • ETR 101-290 T.S. Analyzer
  • HELP function: automatically identifies all the signals with digital modulation SAT, TV and CATV
  • Automatic Assistant: Signal Quality analysis, Channel Scan memorization
  • Barscan TV & CATV function from 10 to 100 channels on one screen
  • Buzzer & Noise Margin real time graph for digital signals microinterruptions
  • Reflectometric measurements APP
  • PRODRIVE TEST: REMOTE MONITORING and LOGGING: TS, measurements, spectrum, thumbnails
  • Optical Input signals
  • SATELITE: SAT SCR, DiSEqC, SCR & dCSS, Motorized antenna, Dual LNB, SAT FINDER, SAT EXPERT
  • Custom Channel Plans: 25 (199 ch. per plan), Programmable TV, SAT (or combined TV/SAT) by PC or Local Keyboard
  • Loggers: TV, SAT & combined with stop & go function
  • SAT Memory Plan: More than 2.000 transponders prememorized for world wide Satellite
  • Free SMART PC interface program and FW upgrades


• Specifications:

  • Measurements & Spectrum ANALYSIS
  • Frequency Range: TV, CATV & Radio: 4-1250 MHz (TAB 9 PLUS); SAT: 950-2250 MHz (2610 with Sat extension opt.)
  • Frequency Resolution: TV & CATV 25 KHz; SAT: 5 or 1 MHZ selectable
  • Power range Meas.: TV 28 to 130 dBµV, SAT 30 to 130 dBµV
  • Digital Meas: Digital Power, MER (32 to 42 dB depending on modulation), BER, PER, LDPC, BCH, Noise Margin, MER versus CARRIER
  • Analog Meas & Picture: Analog level, V/A ratio
  • Measurement Resolution: 0.1 dB
  • Level Measurement Accuracy: 1 dB typ. (2 dB max.)
  • Resolution Filter Bandwidth: TV & CATV: 100 KHz @ -3 dB; SAT: 1 MHz or 5 MHz @ -3 dB selectable
  • Constellation: for TV/CATV and SAT signals
  • Spectrum: Real time, Max Hold and spectrum memorization with real time compare function
  • Net-id on board: Net-id, NID, TSID, LCN, SAT Orbit Position
  • Echoes, Pre-echoes, Micro-echoes: Representation in real Time
  • Quality: Digital Auto quality Test: PASS-MARGINAL-FAIL
  • TS: TR 101-290 v1.2.1 ANALYSIS, SI, PMT, bit rate, network delay, MPEG services and tables
  • IPTV: measurements and picture decoding

    Optical Measurements
  • FC-ST-SC interchangeable input connectors
  • Automatic loss calculation
  • Wavelengths (nm): 1310, 1490, 1550
  • Range: -25 to 10 dBm
  • Resolution: 0.1 dB
  • Accuracy: ±0.5 dB
  • Optical to RF conversion

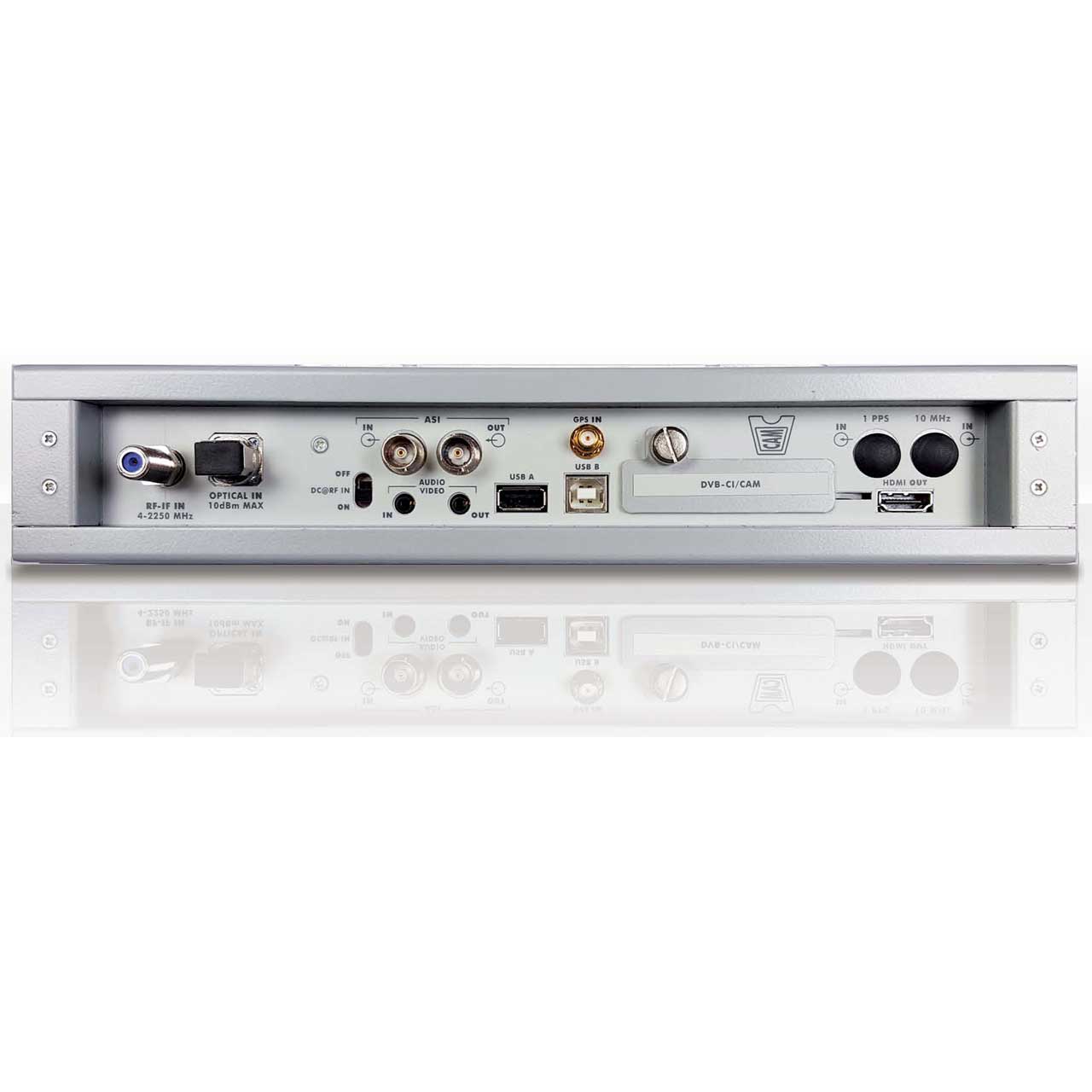

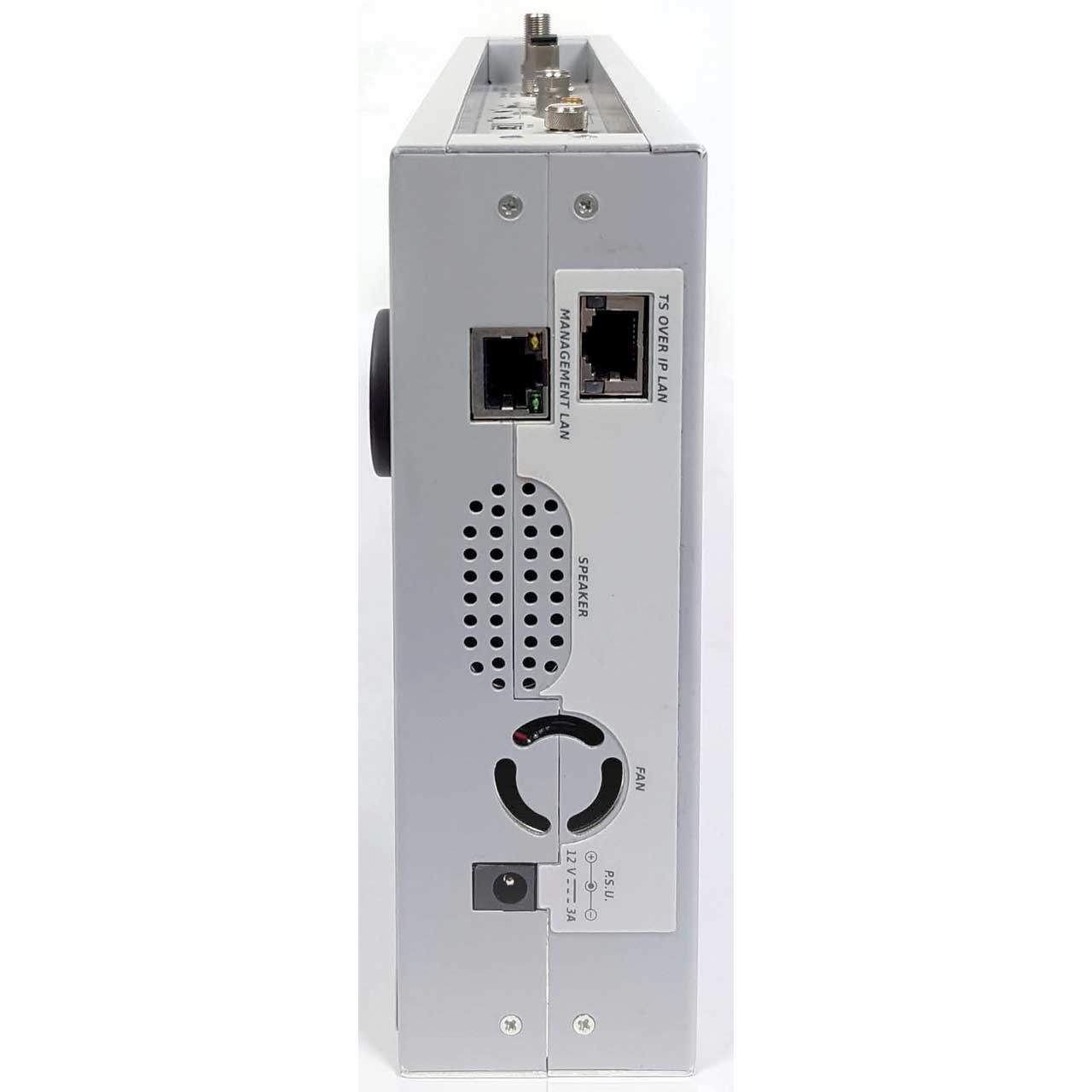

    Comm. Ports And Outputs
  • RF Input : 75 ohm (interchangeable "F")
  • LAN: RJ45 10/100 base Ethernet
  • USB 2.0: Type B (PC Interface)
  • USB 2.0: Type A (USB drive)
  • Digital Pictures: MPEG2-4 SD & HD pictures with Program List, Audio Video PIDs, LCN, Video bit Rate all on one screen
  • Audio: AAC supplied, DOLBY (opt.)
  • Asynchronous Serial Interface (ASI): ASI input on 75Ω BNC connector, ASI output on 75Ω BNC connector
  • Audio / Video: Composite A/V input, HDMI output
  • Common Interface: PCMCIA slot for single/multi-service CAM modules

    General
  • 9" TFT TOUCH Display: 16:9 high resolution and high brightness
  • Power Supply: Built in LiPo battery with up to 6 hours duration & Battery Test function
  • DC Voltage at RF input: 5 - 12 - 18 - 24 V, DiSEqC, SCR, dCSS
  • PC Interface: USB
  • Front-Panel: Alpha numeric keypad
  • Power Save: TFT backlight timer, brightness adj
  • PC Management: SMART software
  • Weight: 5.73Lbs (2.6kg) with batteries
  • Dimensions (HzWxD): 11.41 x 6.69 x 2.16" (29 x 17 x 5.5cm)
  • Housing: Aluminum and Steel and padded bag


• Item Includes:

  • Elite bag
  • Universal side pocket for accessories
  • Shoulder Strap
  • Mast attachment safety belt
  • USB 2.0 Cable for PC connection)
  • Audio Video Cable 3 x RCA Male - Jack 3.5 mm Male, 1.8 Mt.
  • Audio Video Cable 3 x RCA Female - Jack 3.5 mm Male, 1.8 Mt.
  • 12 VDC - 3A battery charge Power Supply
  • Vehicle charge adapter
  • User GUIDE (CD)
  • Quick reference guide
  • F Female - F Female Connector
  • BNC Female - F Female Connector
  • IEC Female - F Female Connector
  • Quick F Male - F Female Connector
  • Plastic Pen for Touch-Screen displa
