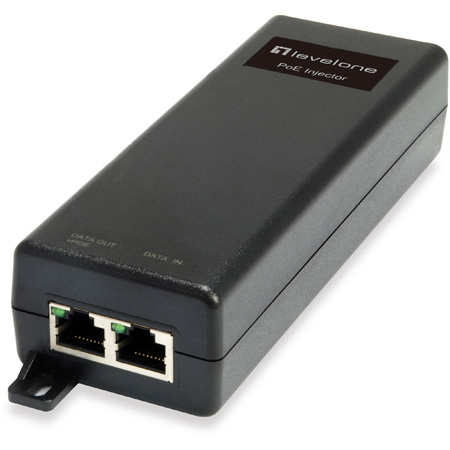

LevelOne POI-3000 Gigabit PoE Injector - 802.3at/af PoE - 30W

ITEM #: LVL1-POI-3000 MFG #: POI-3000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LVL1-POI-3000

POI-3000 - Overview

Advanced PoE Solution

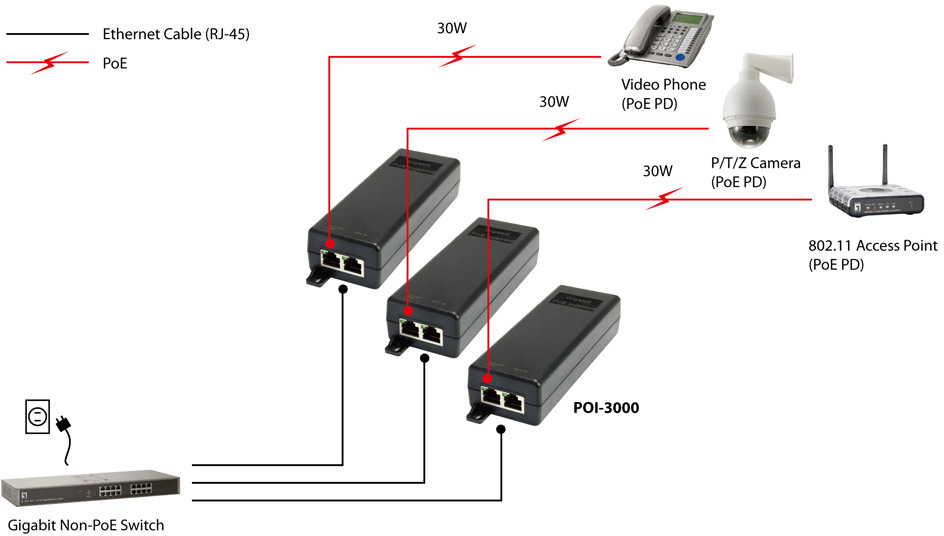

The LevelOne POI-3000 is a single port, high power PoE PSE solution for remote PoE PD devices. Generating up to 30W , POI-3000 supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3at PoE standard and is backward to IEEE802.3af. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. For all the function featured in POI-3000, people can get the benefit of flexible network installation at lower cost, less downtime. It also provides a high-bandwidth pipe to the network.

  • Features:

    • IEEE 802.3af/at PoE PSE with 30W power budget
    • Auto-detection and protection of non-standard PoE devices
    • Unique interlocking feature for easy installation
    • 10/100/1000Mbps wire speed transmission and reception
    • 6KV surge protection level on each port

  • Specifications:

    • Standards & Protocols
    • IEEE 802.3 10Base-T, Ethernet
    • IEEE 802.3u 100Base-TX, Fast Ethernet
    • IEEE802.3ab 1000Base-T, Gigabit Ethernet
    • IEEE 802.3af/at Power over Ethernet (PoE) compliant

      Port

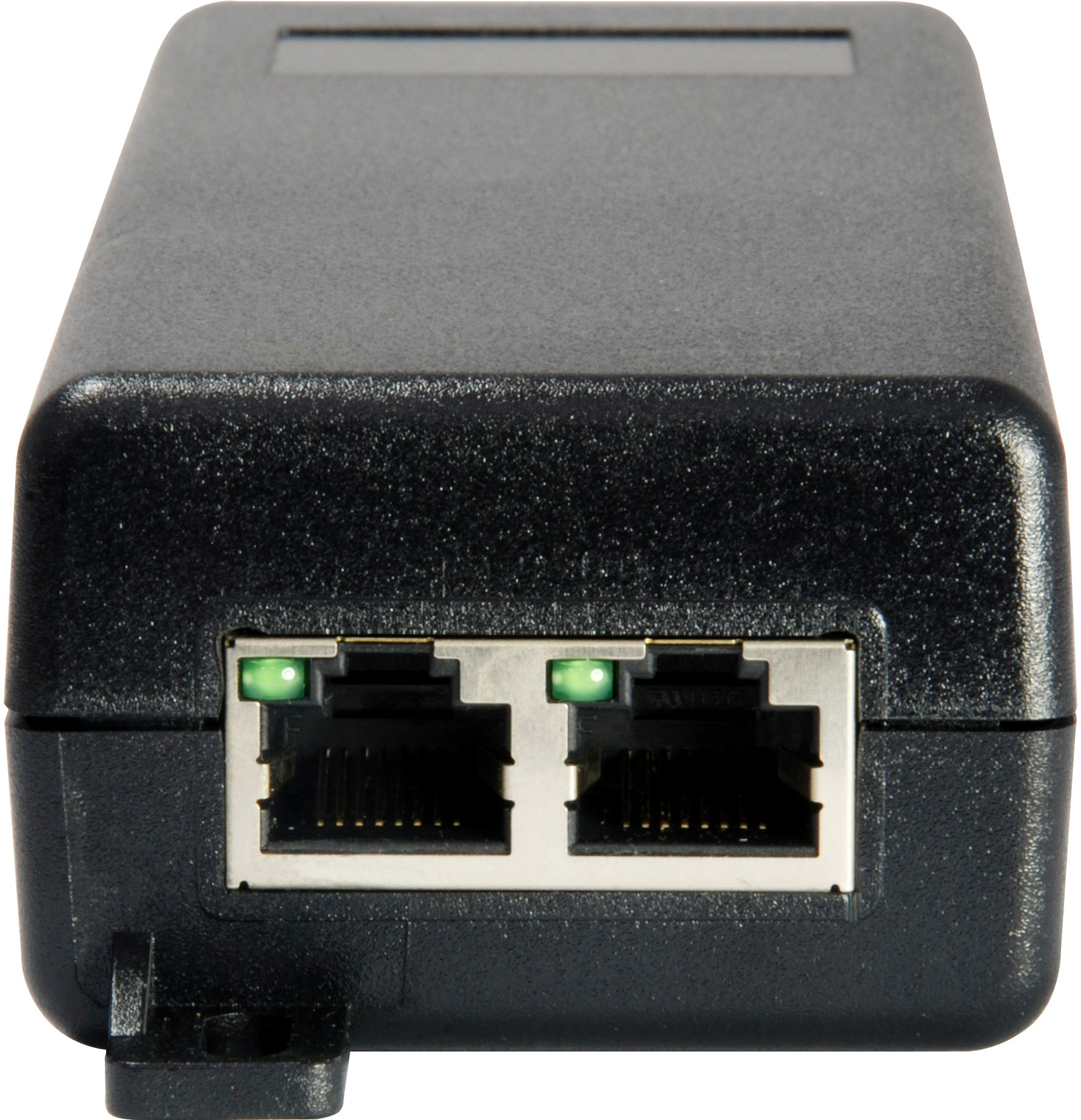

    • 1 x 10/100/1000Base-T RJ-45 Input Port
    • 1 x 10/100/1000Base-T RJ-45 PoE Output Port

    • Indicator: Power, PoE
    • Pin Assignment and Polarity: 1/2 (+), 3/6 (-)

      Power Input
    • PoE Power Output: DC 56V / 30W
    • Unit Output Voltage: DC 56V / 0.54A

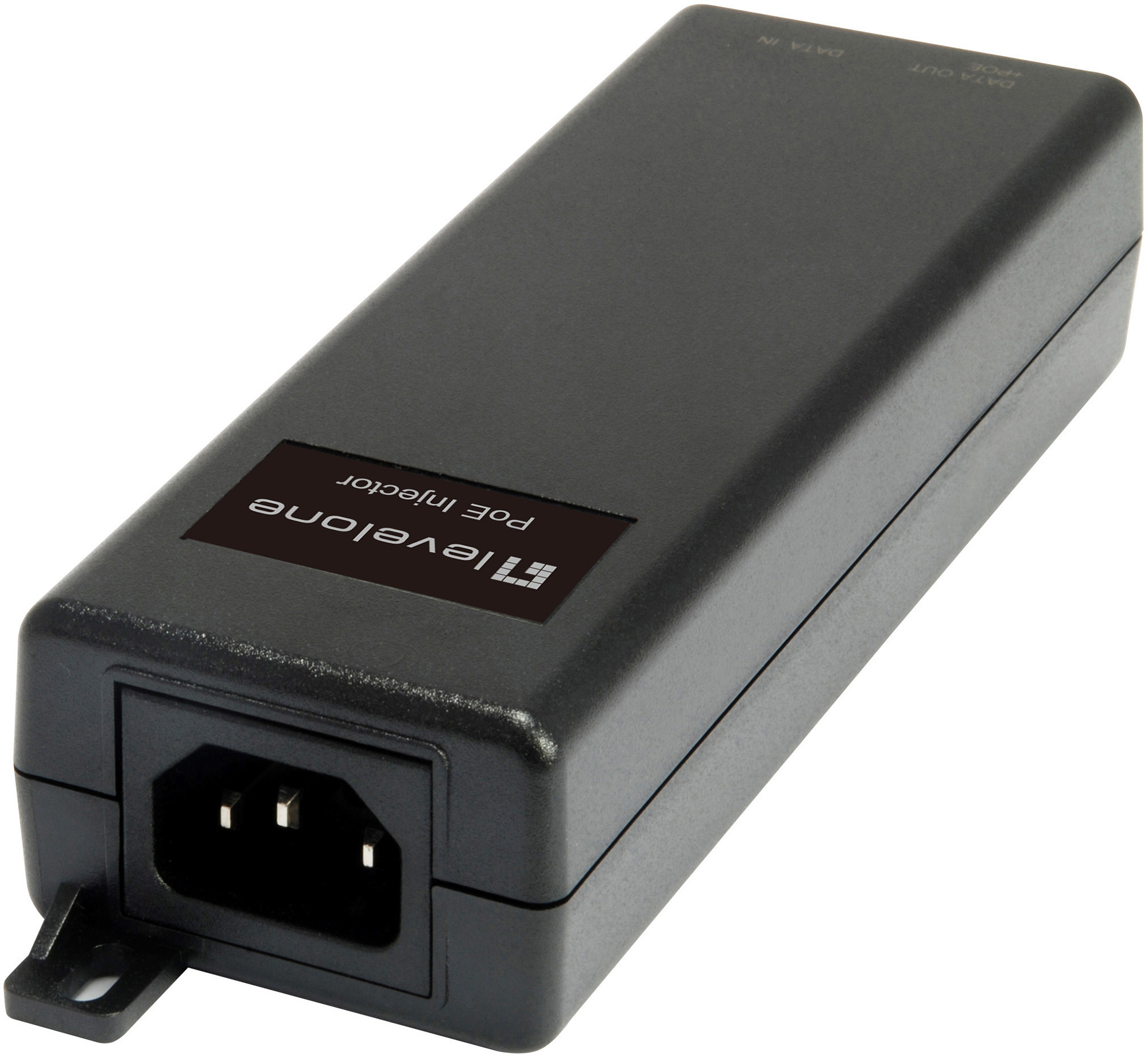

    • Power Requirement: 100-240V AC, 50/60Hz, 0.8A
    • Power Consumption: 30W (Max.)
    • Power Consumption: 30W
    • Data Rate: 10/100/1000Mbps

      Operating Temperature (°C)
    • Operating: -20°C ~ 60°C
    • Storage: 0°C ~ 70°C

      Operating Humidity (Non-condensing)
    • Storage: 5% to 95%
    • Operating: 5 ~ 95%

    • Mount: Wall mount

      Features
    • PoE: IEEE 802.3af/at standard

      Physical Specifications
    • Dimensions (W x D x H mm): 173.5 x 55 x 35.5mm
    • Weight (g): 275g

      Approval and Compliance
    • EMI/EMS: EN55024 Class B, FCC, CE, Industry Canada ICES-003 Class B
    • Safety: EN60950, EN62368, UL
    • Environmental Test: IEC61000 ESD Level 4 (Con 8KV /Air 15KV)
    • Others: EN55022 Class B, Hi-pot 3KVac, Insulation Resistance 50MΩ, 6KV PoE Surge, EN55032, AS/NZS CISPR32

  • Item Includes:

    • x1 POI-3000
    • x1 Quick Installation Guide
    • x1 Power Cord

  • GTIN:

    0846359001431
